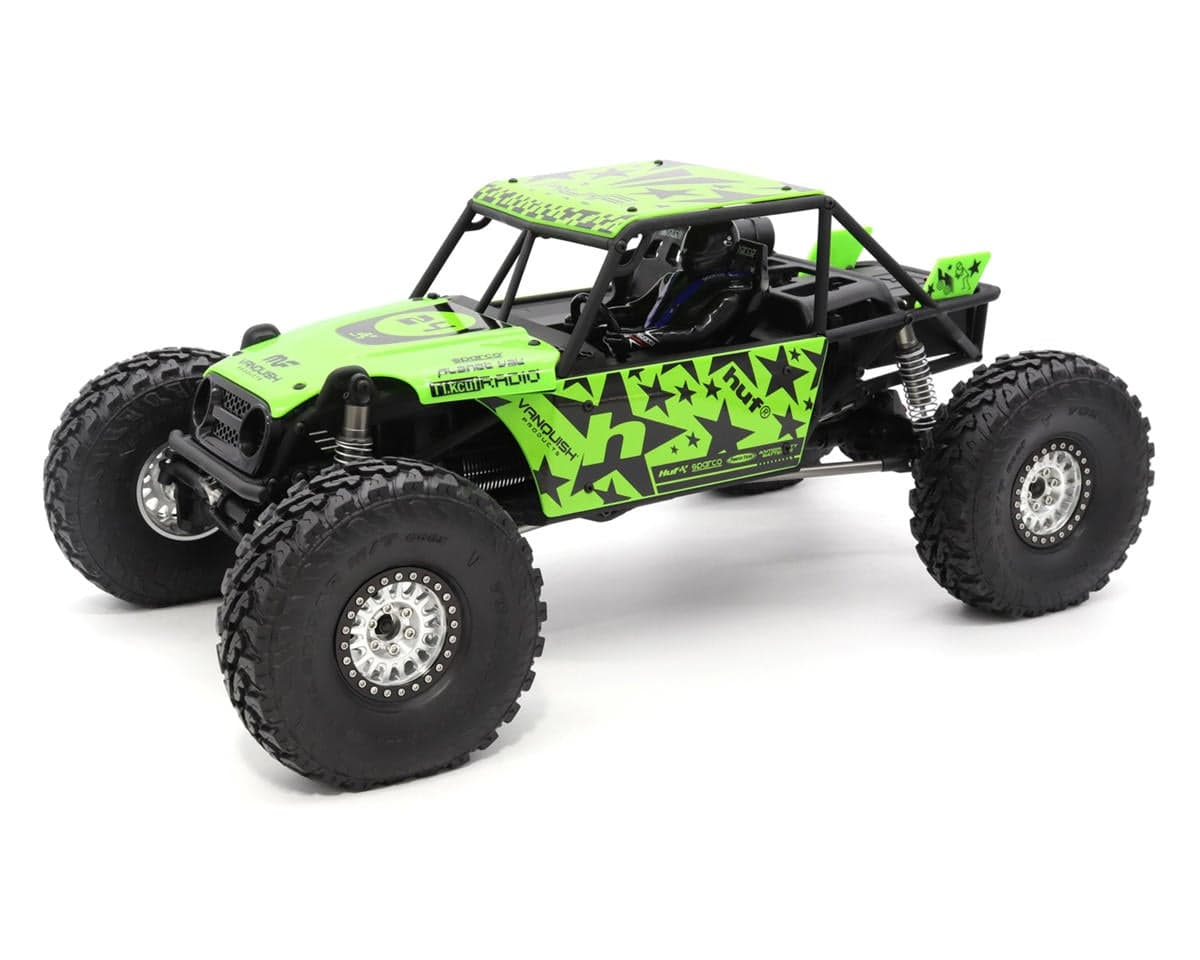

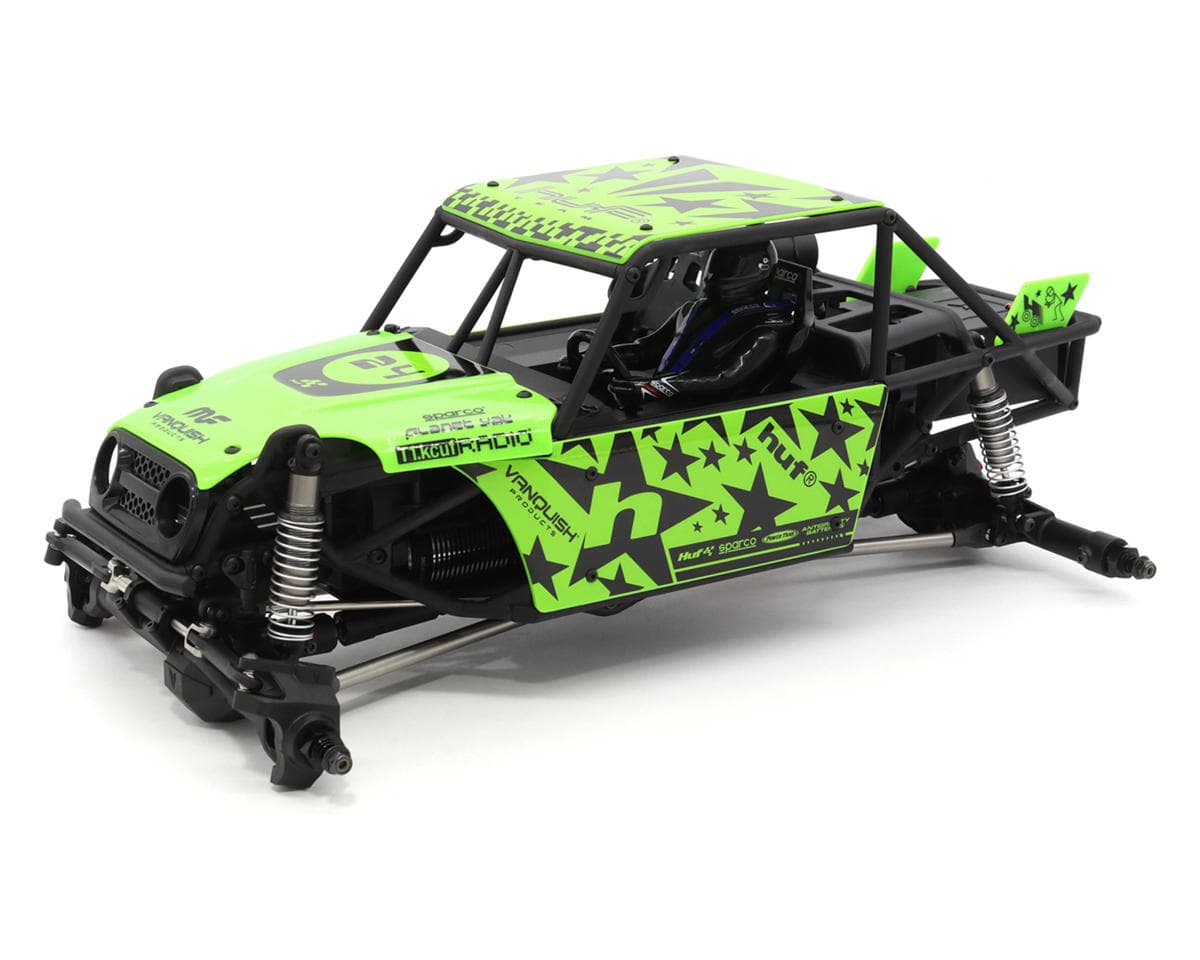

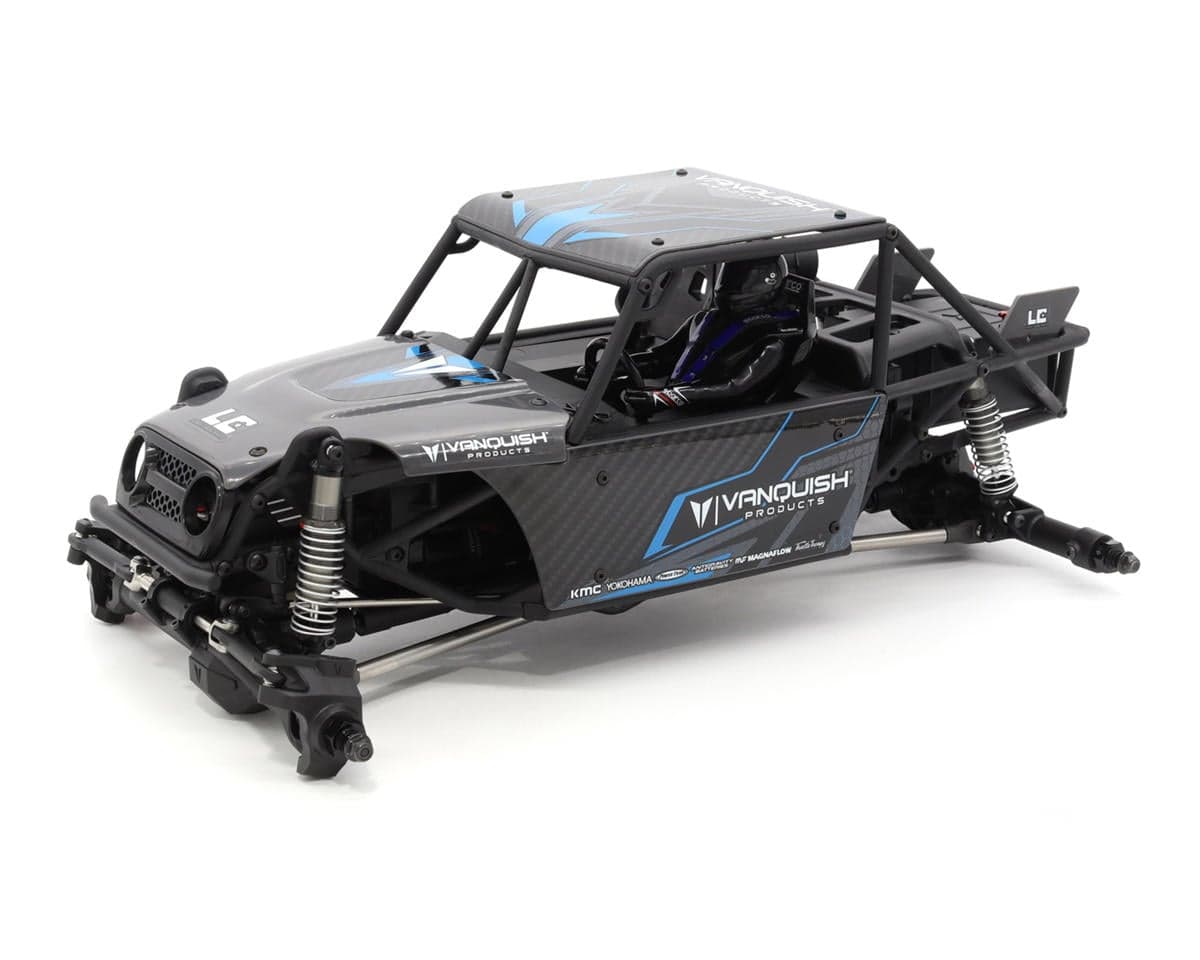

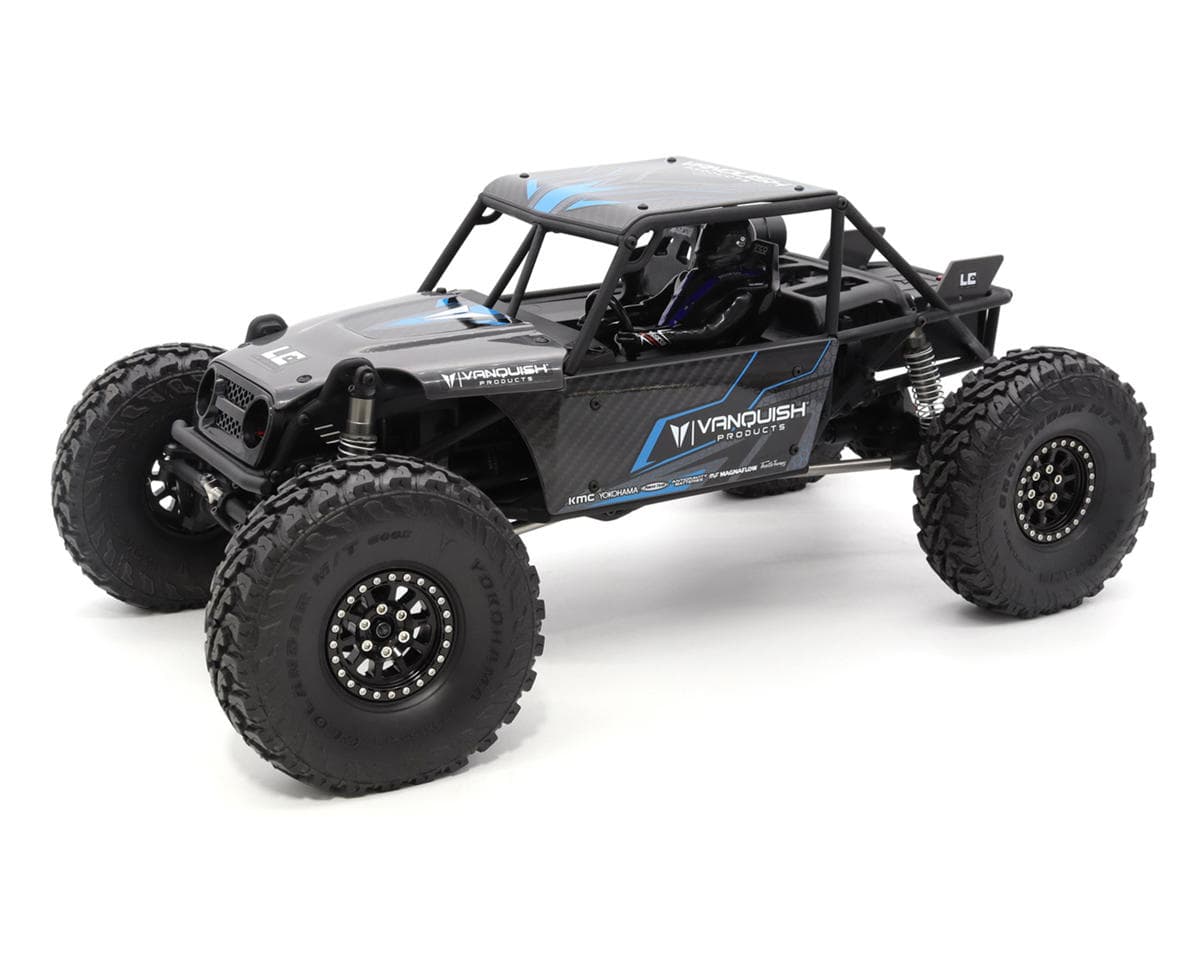

Vanquish Products H10 Optic 1/10 4WD Rock Crawler Kit (ALL SALES FINAL) (Color Picked at Random)
About this part
Randomly Selected Extreme 10th Scale RC Rock Crawler

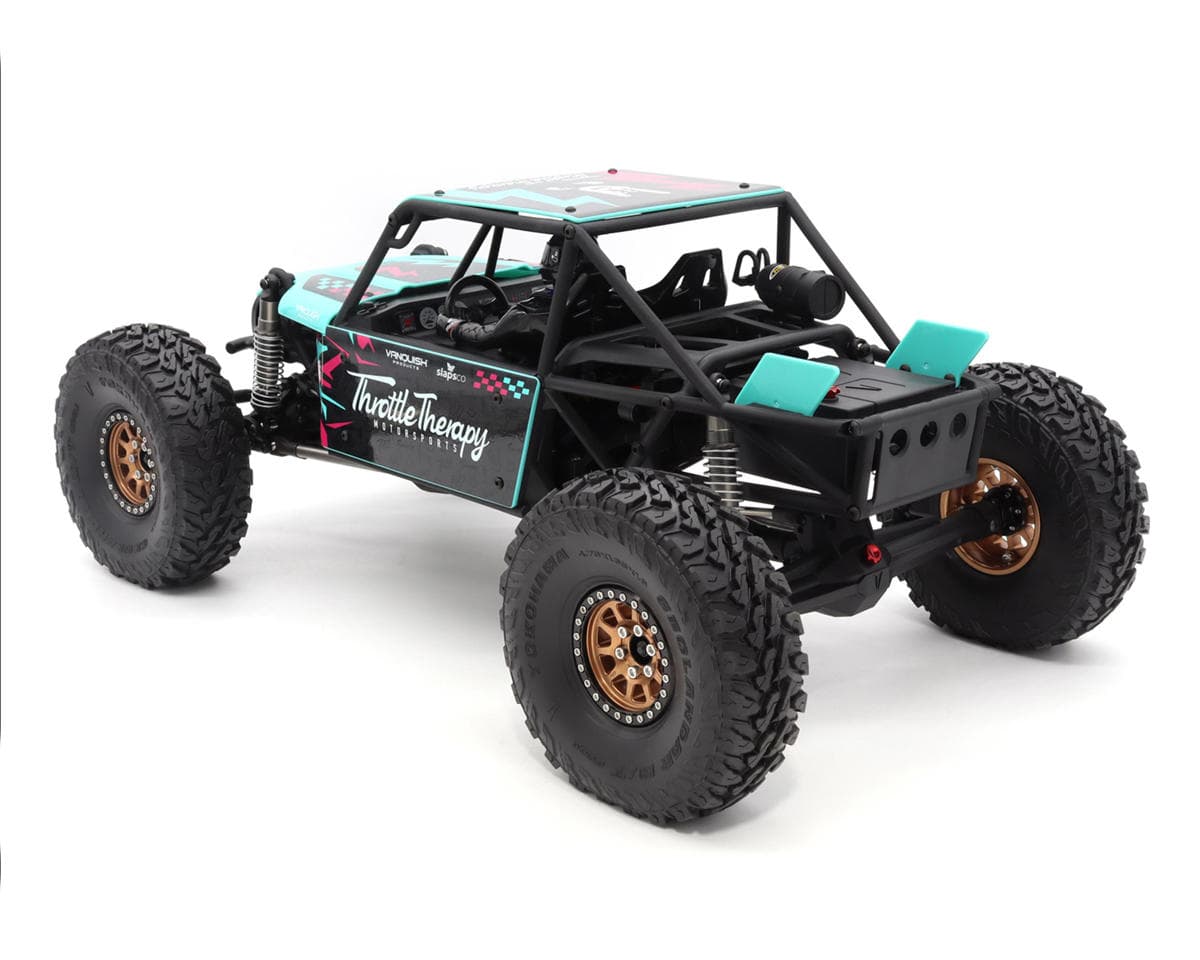

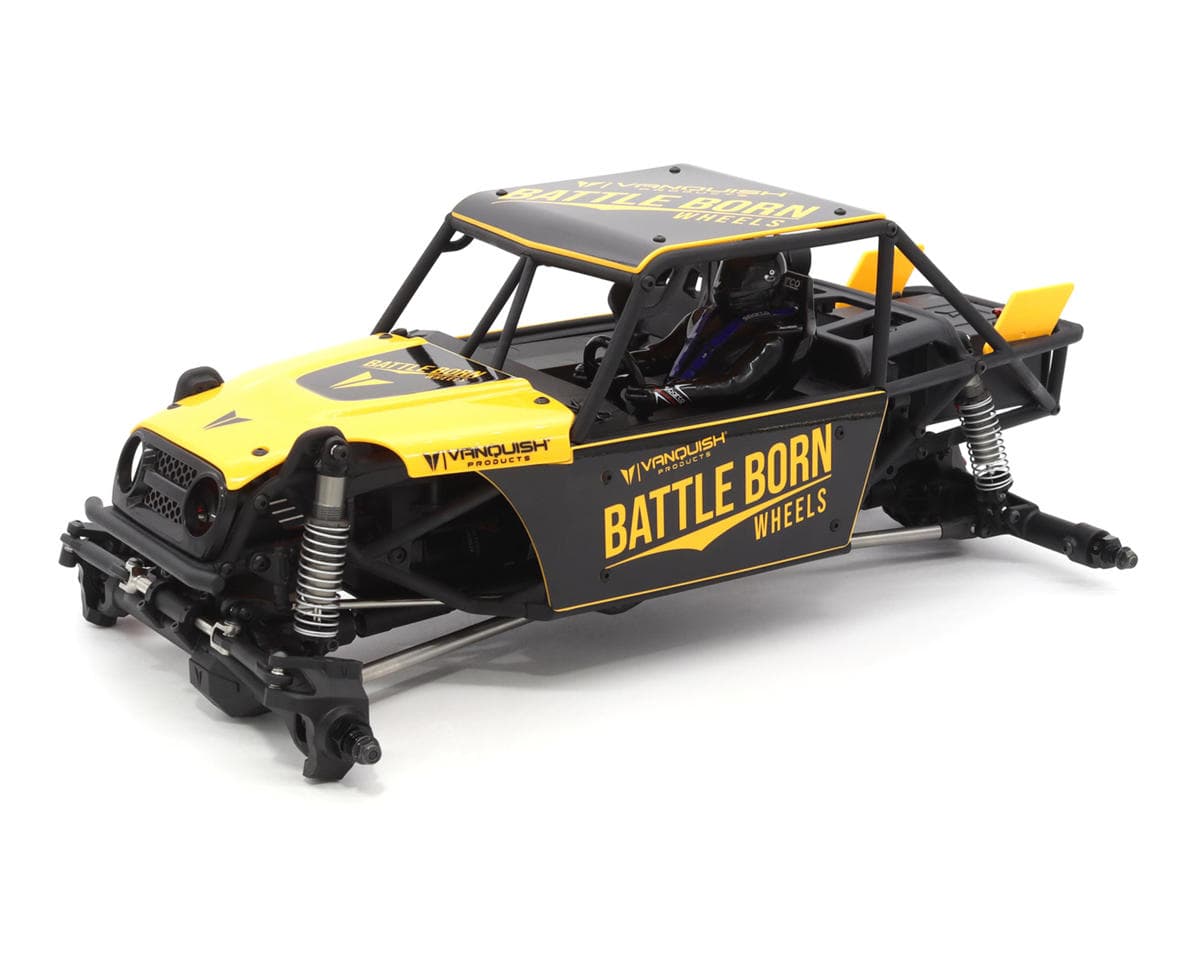

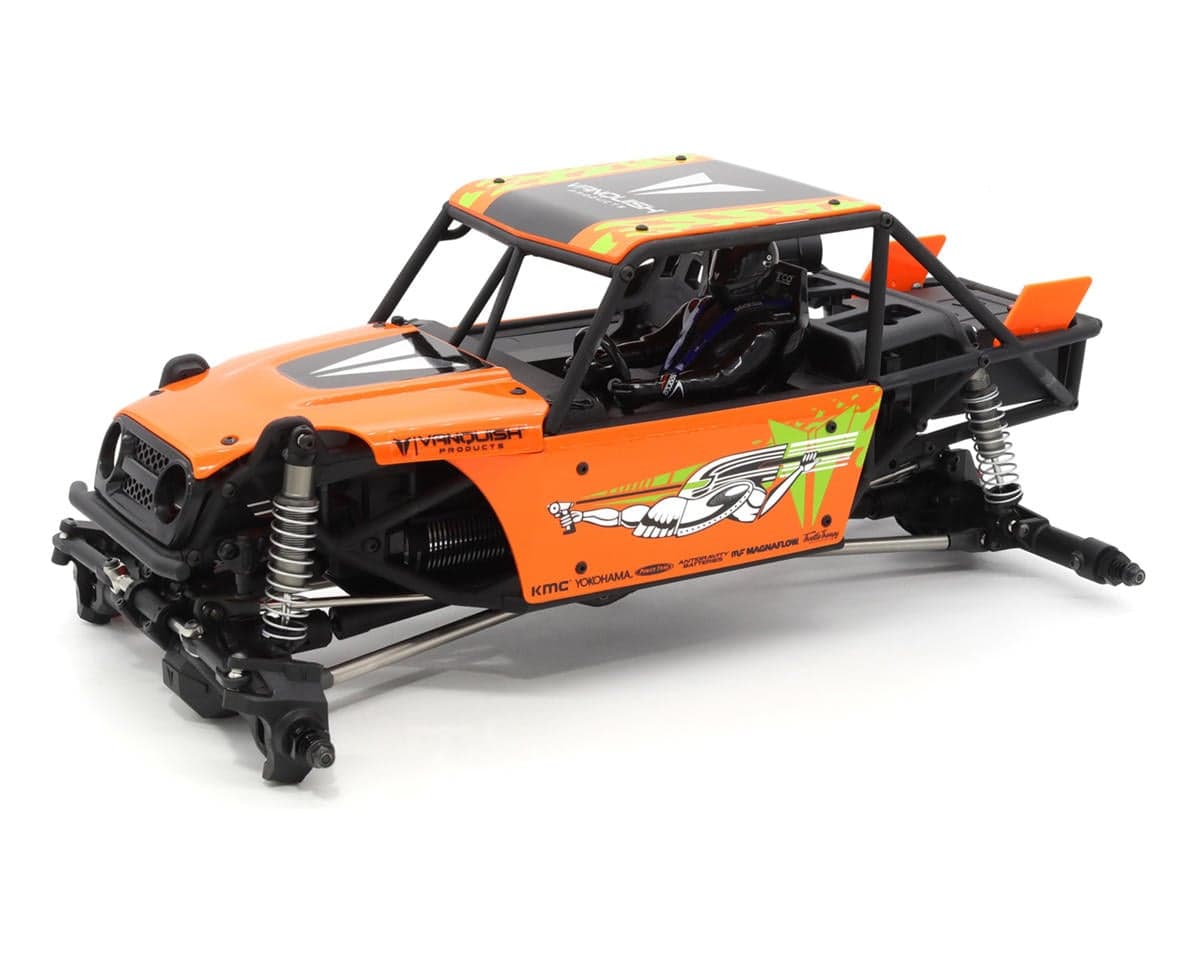

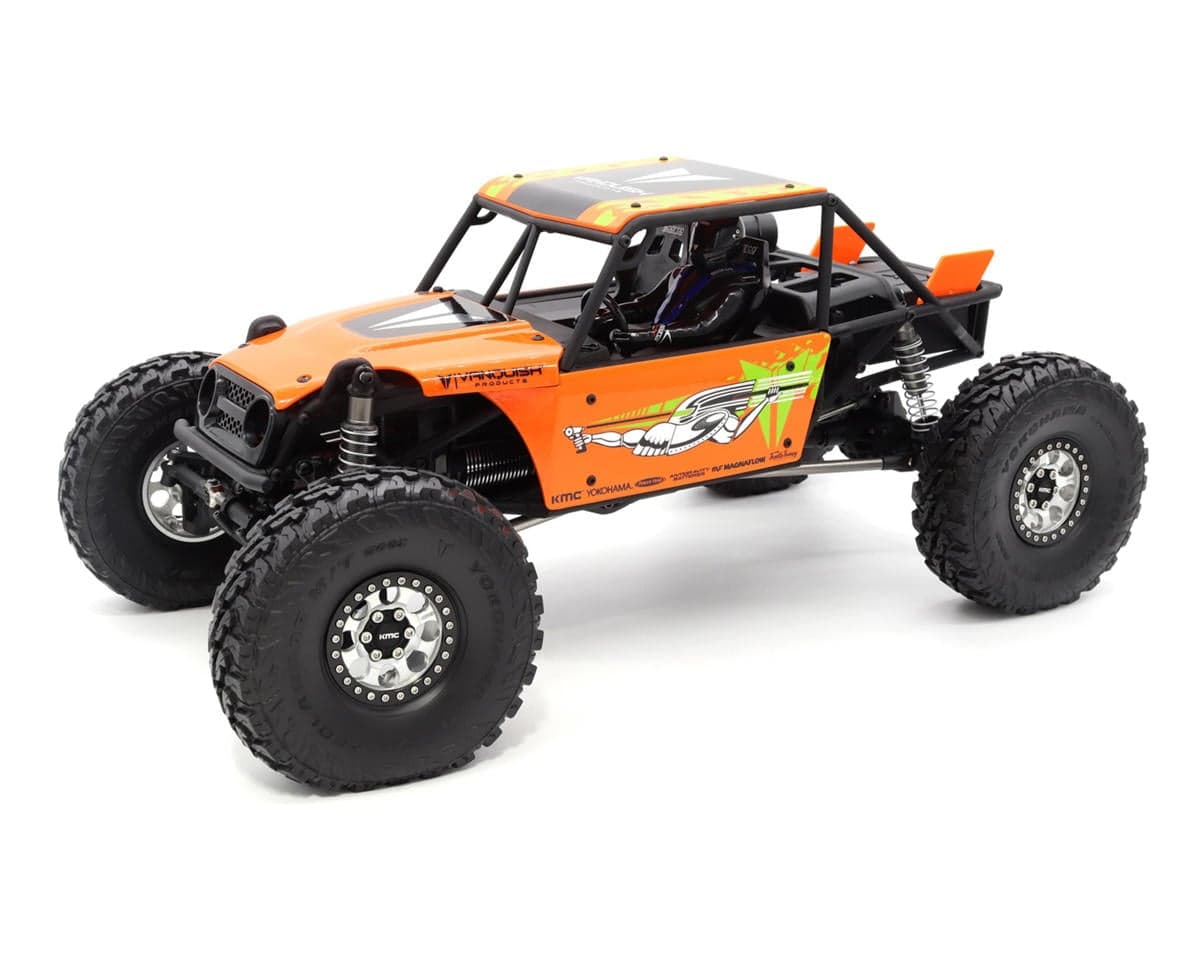

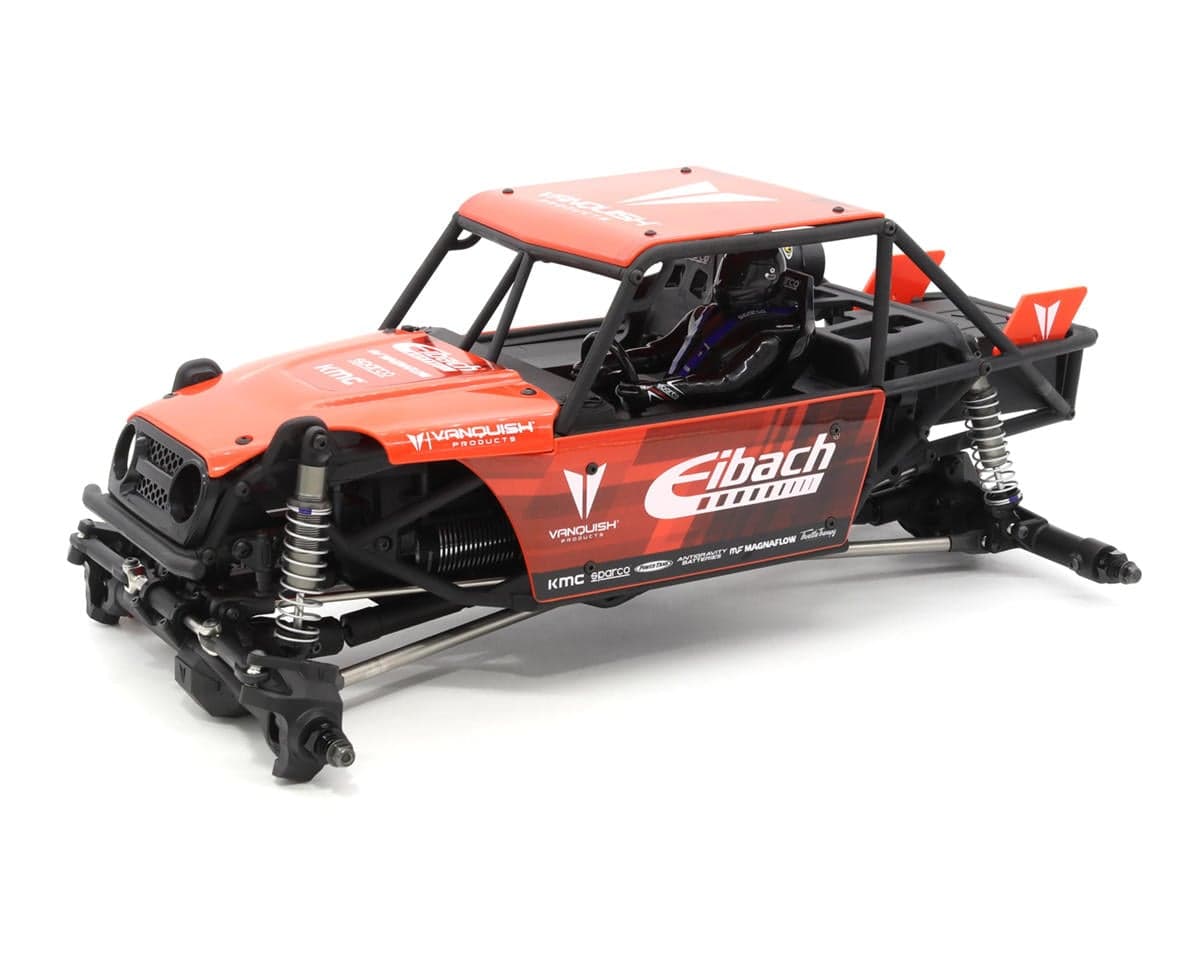

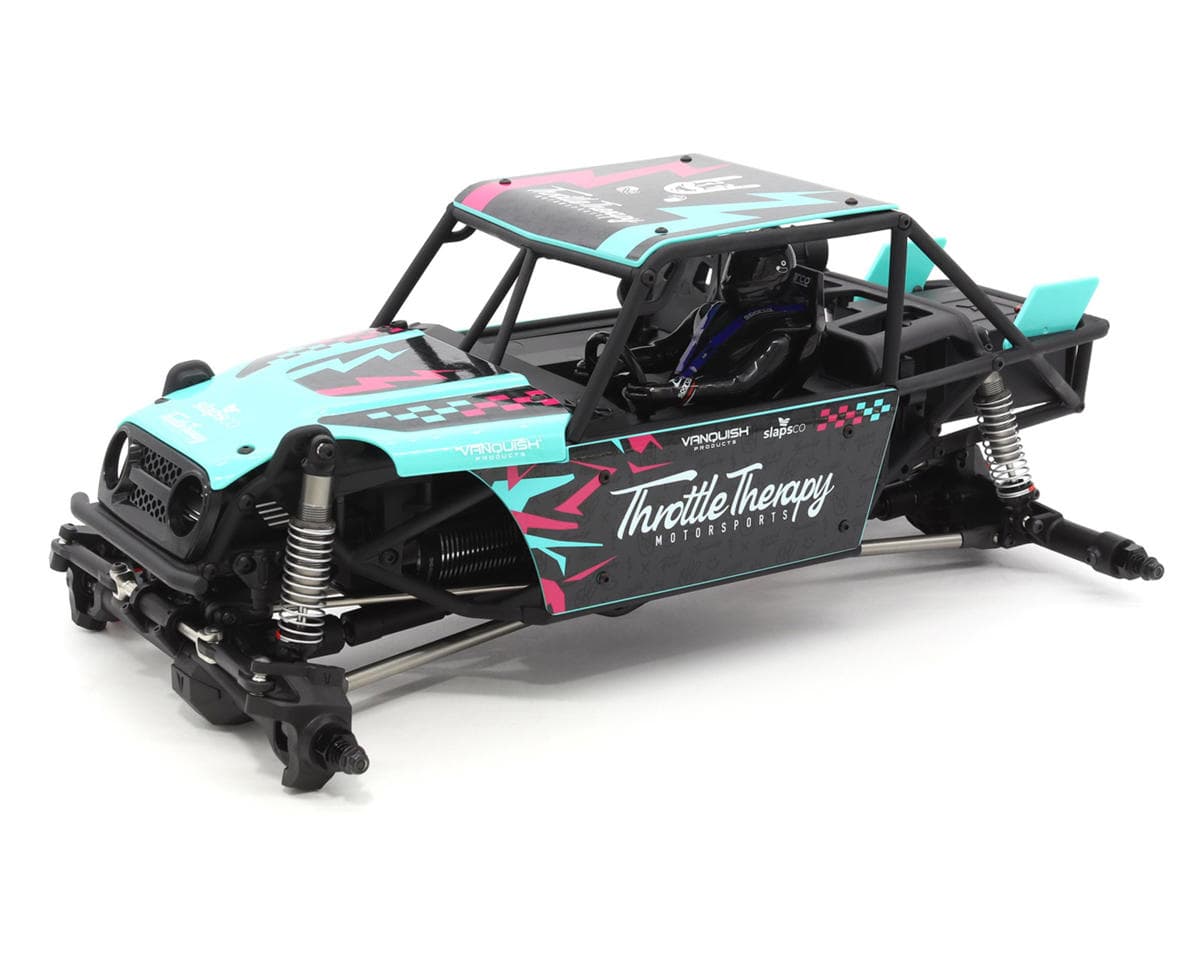

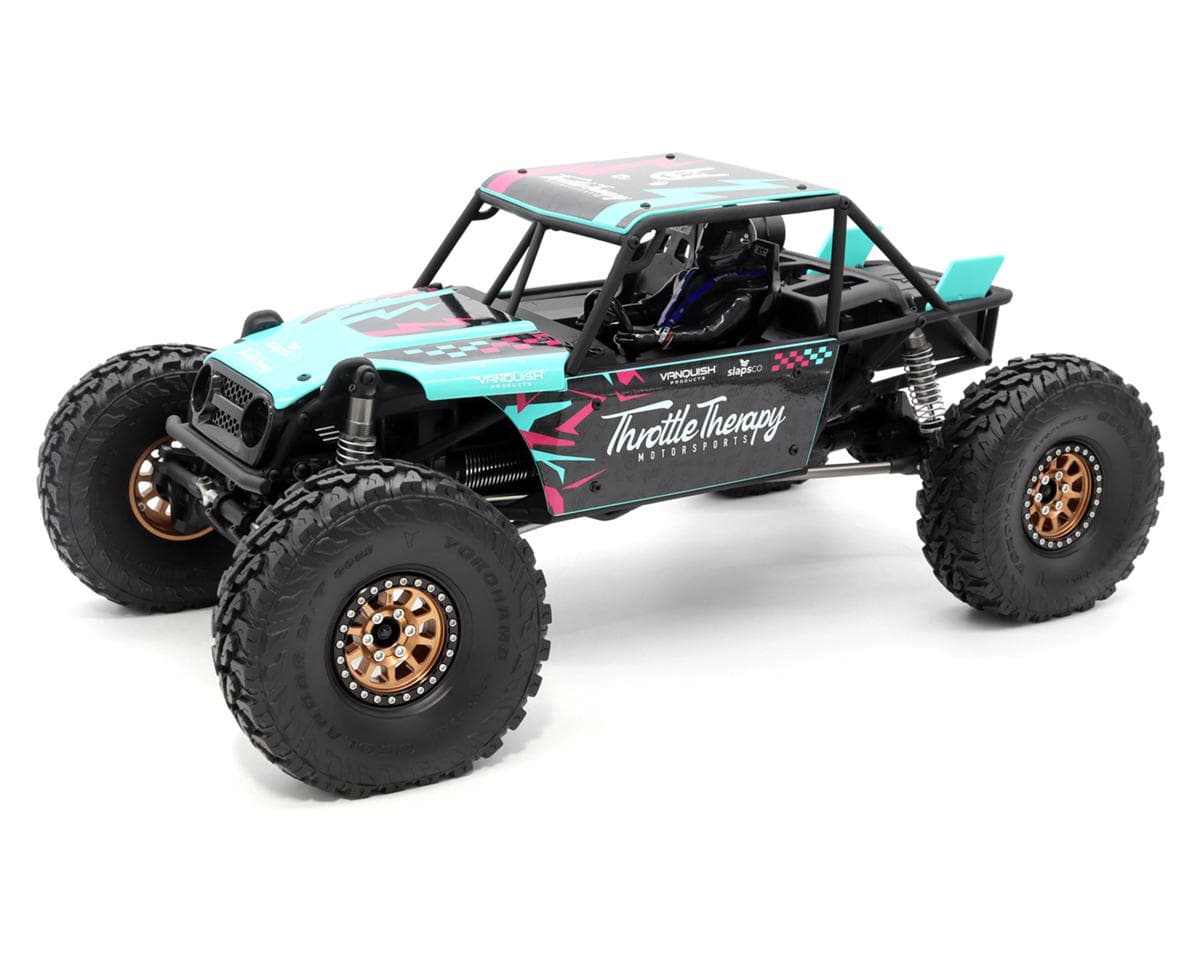

Unleash style and innovation with the Vanquish H10 Optic Kit, paired with the high-performance VFD transmission. Featuring a forward-mounted motor for optimal weight distribution, precision-machined gears, and a built-in dig system for advanced control, the VFD transmission is a pinnacle of engineering. The H10 Optic Kit boasts six unique liveries, with a chance to score an exclusive secret variant found nowhere else. With liveries selected entirely at random, each kit delivers a thrilling unboxing experience and a uniquely styled masterpiece.
About the H10 Optic
Hidden Battery Compartment
Where does the battery go? It is cleanly tucked away inside the driver-side body panel. Using a genius pin design, the battery tray is sized to accommodate a shorty-style LiPo battery (battery sold separately). This panel is also removable on the passenger side, making it convenient storage for scale accessories.

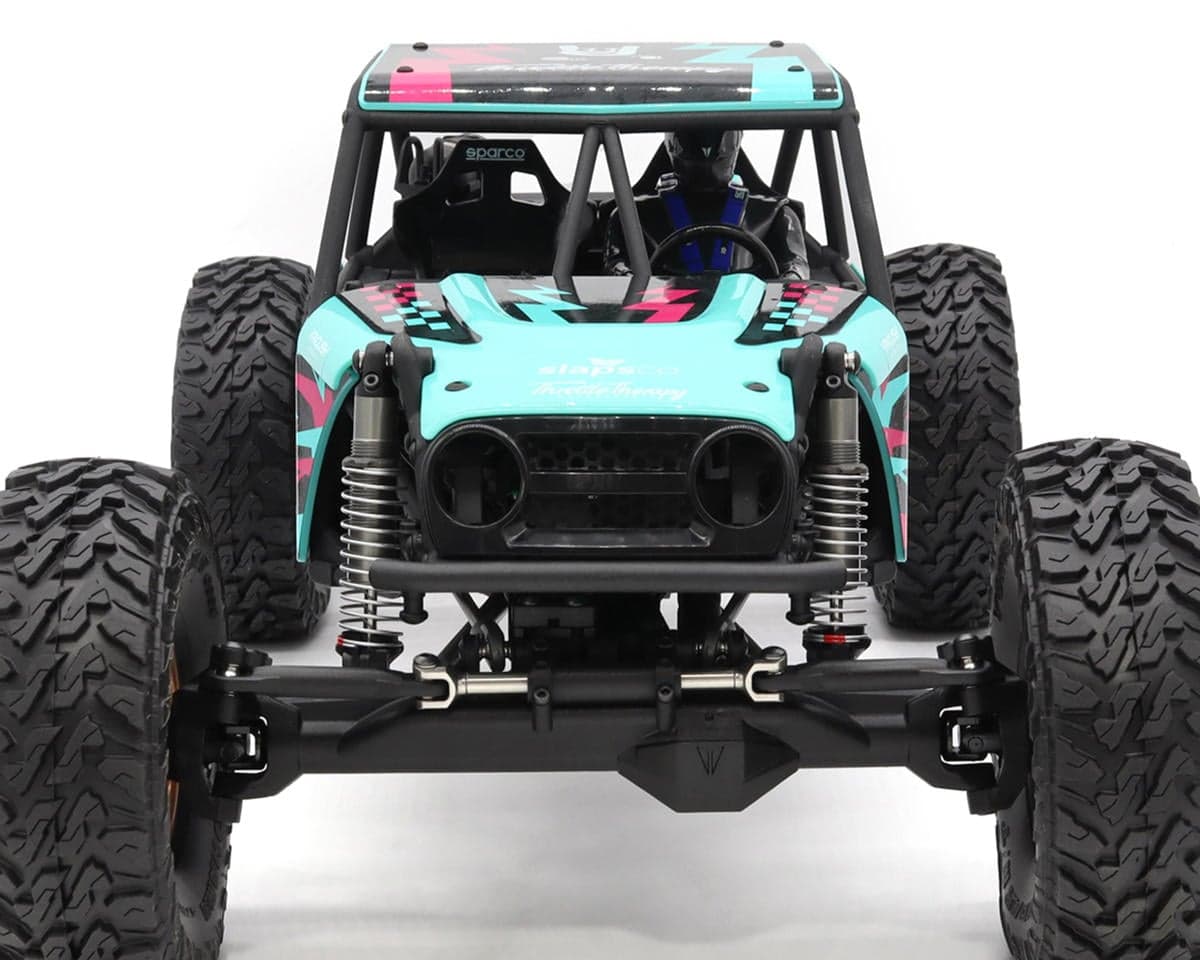

Scale Ram Style Steering
It wouldn't be a Vanquish truck without crazy attention to detail. The front axle features a Hydro style ram steering system that provides a direct and protected link between the front tires and hides the servo low behind the rear axle to enhance the scale appearance. The servo drives the passenger side tire and that transfers the movement to the front facing ram giving insane scale looks.

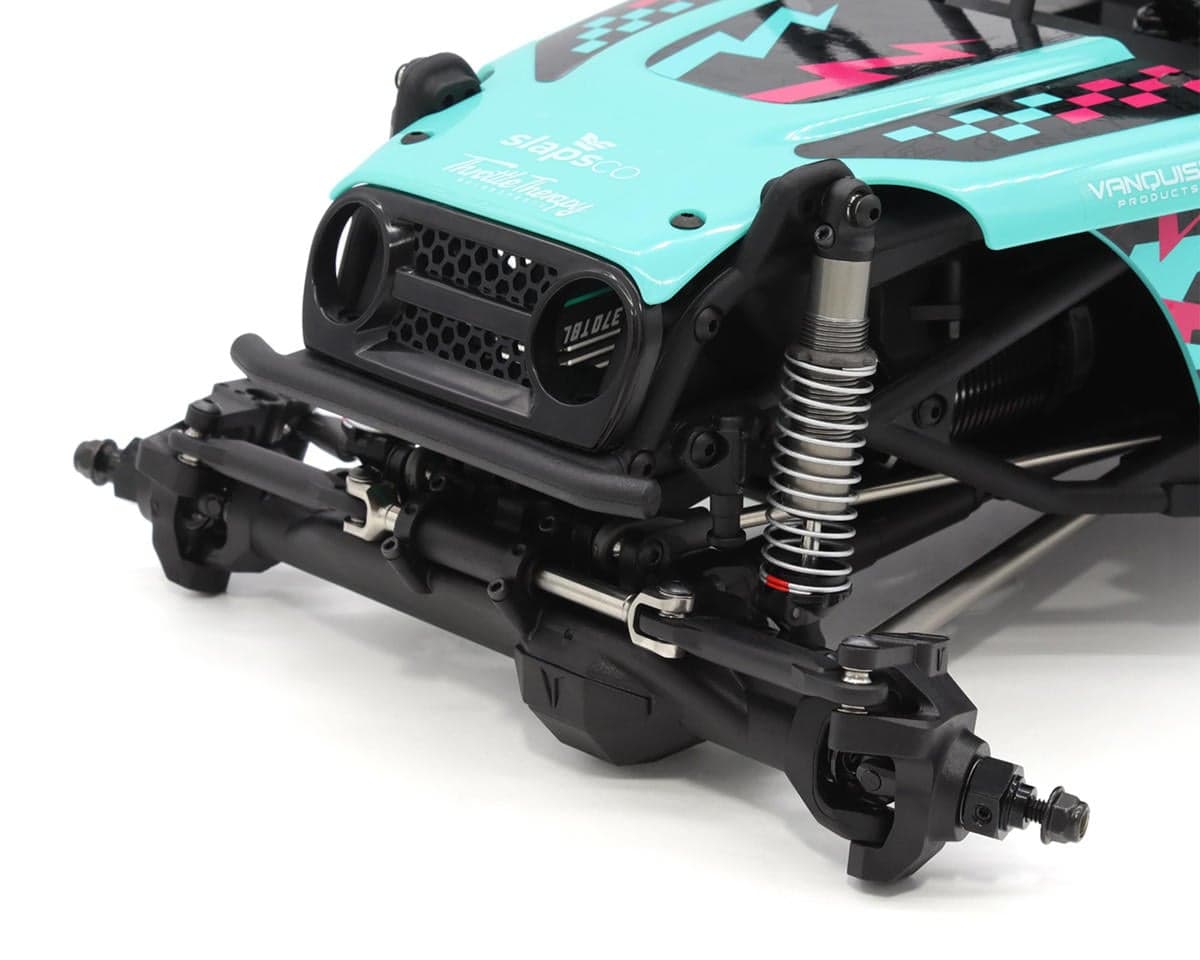

Front Axle
This truck features Vanquish's cutting-edge H10 Axles, equipped with an offset pumpkin design and precision-machined hypoid gears for efficient power transfer. The axles also utilize chromoly spools and spiral-cut ring and pinion gears for durability and performance. Power is transmitted through metal universal joint driveshafts, while S8E shocks and stainless steel links provide superior suspension stability. These advanced components set benchmarks in scale performance and rugged reliability.

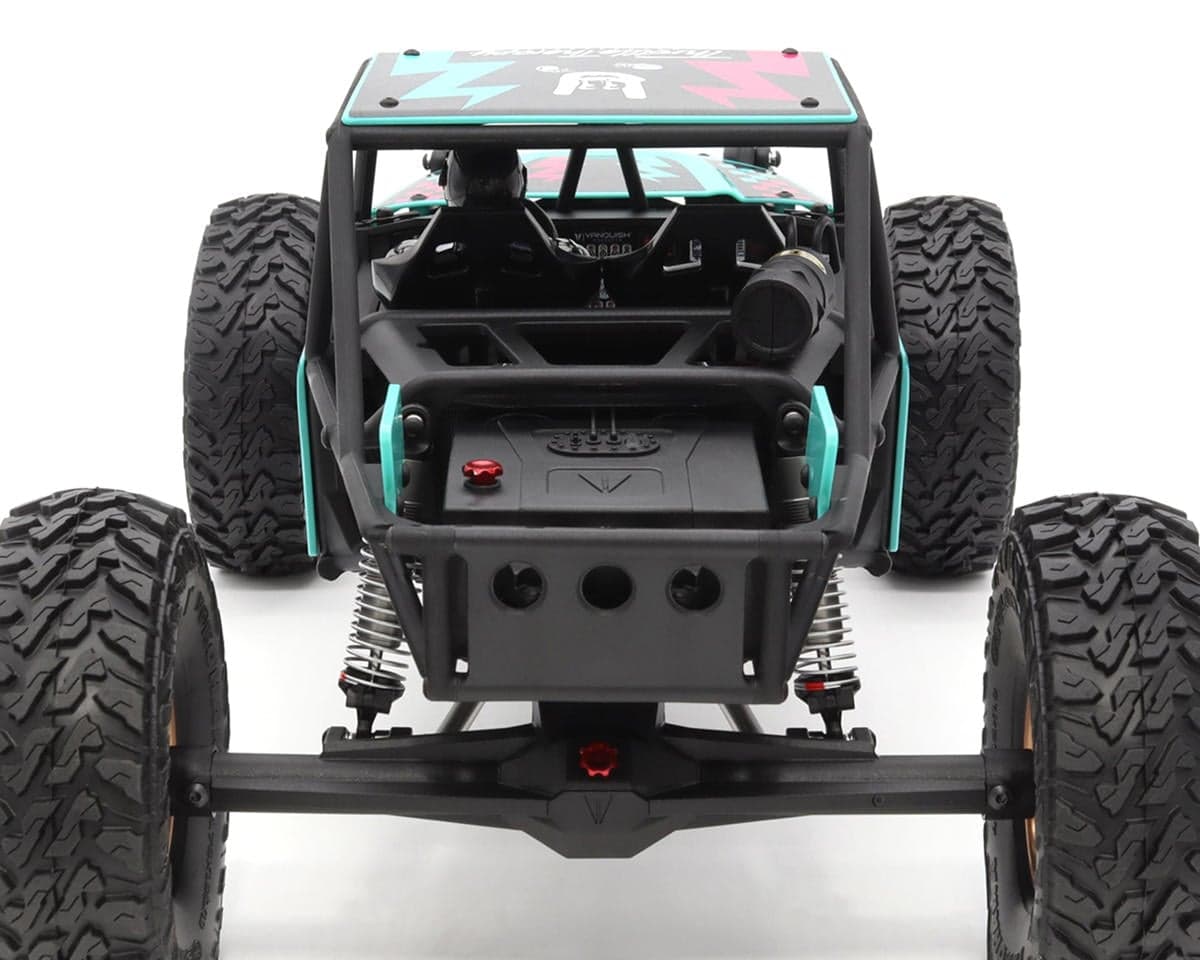

Rear Axle
The rear H10 axle uses a centered pumpkin design and gives a scale realistic look with bracing molded into the rear of the axle housing. Housed inside are machined hypoid gears and chromoly spools, just like the front axle, to promote efficiency. Stainless steel links are also used with S8E shocks for smooth suspension movements.
Features:

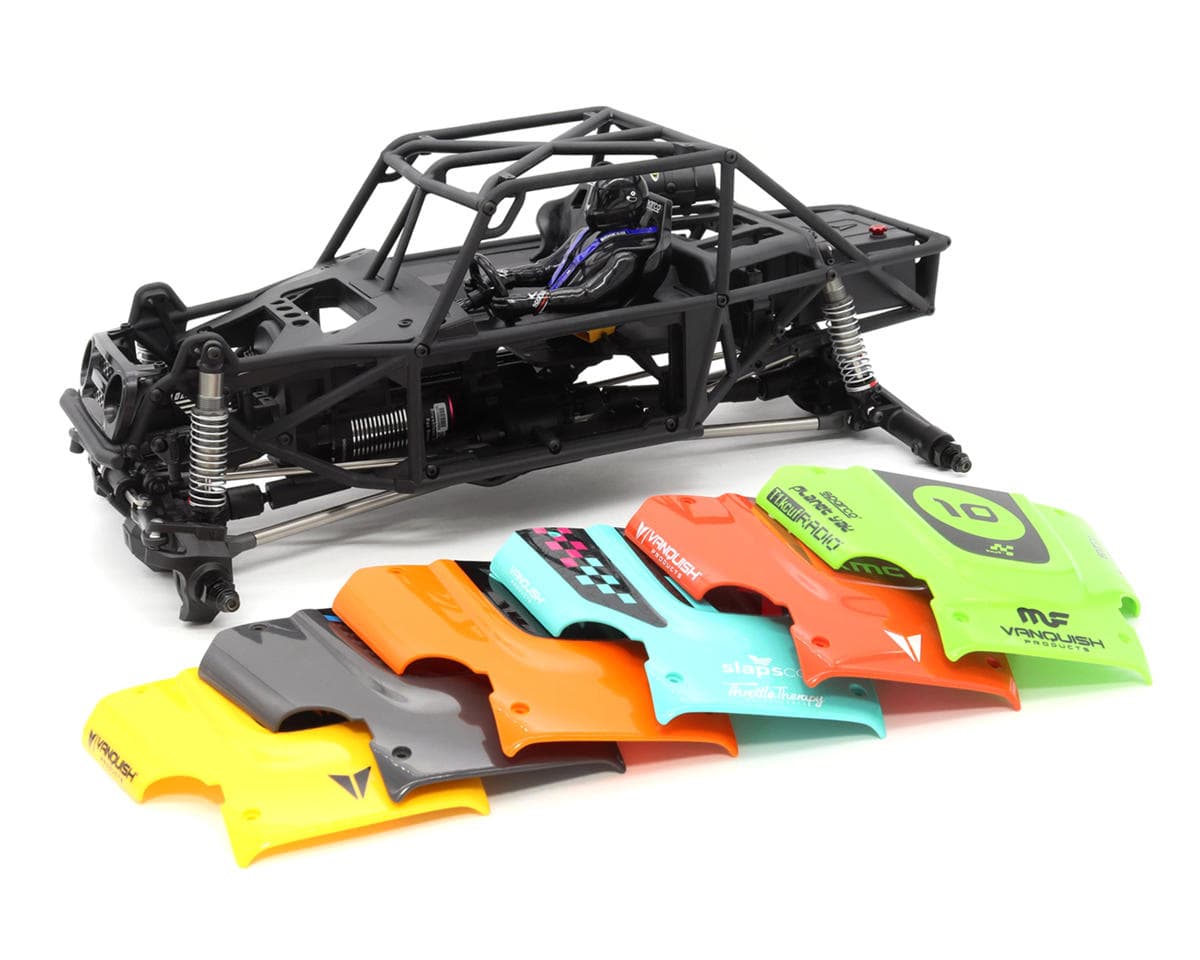

- Random Hard body design (Chosen at random)
- Molded cage chassis
- Random Scale body panels with hidden battery tray
- VFD transmission with Machined aluminum Motor Plate and Bearing Plates
- H10 Axle with hidden servo and scale steering ram
- Equipped with Incision S8E shocks
- Stainless steel front and rear 4-link design
- Hidden electronics mounting locations
- Machined hypoid gears and chromoly spools
- Scale Powertank and fuel cell in the bed of the cage
Includes:
- (1) H10 Optic 1/10 4WD Rock Crawler Kit
- Manual
Needed To Complete:
- (1) 3+ Channel Transmitter/Receiver System
- (1) Compatible Steering Servo (Included is a 25T spline 20mm Servo Horn)
- (1) ESC (Electronic Speed Controller)
- (1) 540 Size Motor
- (1) 2-3S LiPo Battery (7.4-11.1V)
- (1) Compatible Battery Charger
- (4) 1.9" Wheels (Vanquish Products or SLW Hub Compatible wheels required)
- (4) 1.9x4.75" Tires (recommended)
Recommended to Complete:
Specifications:
| Scale | 1:10 |
|---|---|
| Drive | 4WD |
| Power Source | 2-3S LiPo |
| Length | 18in (457.2mm) |
| Wheelbase | 13.26in (337mm) |
| Width | 8.11in (206mm) |
| Height | 7.8in (198mm) |
| Battery Compartment | 3.66x1.42x1.65in (93x36x42mm) |
*Tech Note: RC Kits are an unassembled Remote Control Model that require assembly, user selected electronics, and other user provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
*Product Disclaimer: Please note that the H10 Optic Kit is packaged with a randomly selected livery, including the possibility of an exclusive secret variant. Specific color requests cannot be accommodated, as the selection is completely random. Additionally, all sales are final, and returns or exchanges are not accepted.
Manuals:
User Manual
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.8 · 25 reviews
Awesome kit with a lot of room to add options like dig. Minus a star due to leaky shocks. Vanquish has yet to figure that one out with. Just like the vrd they're a mess after a couple runs.

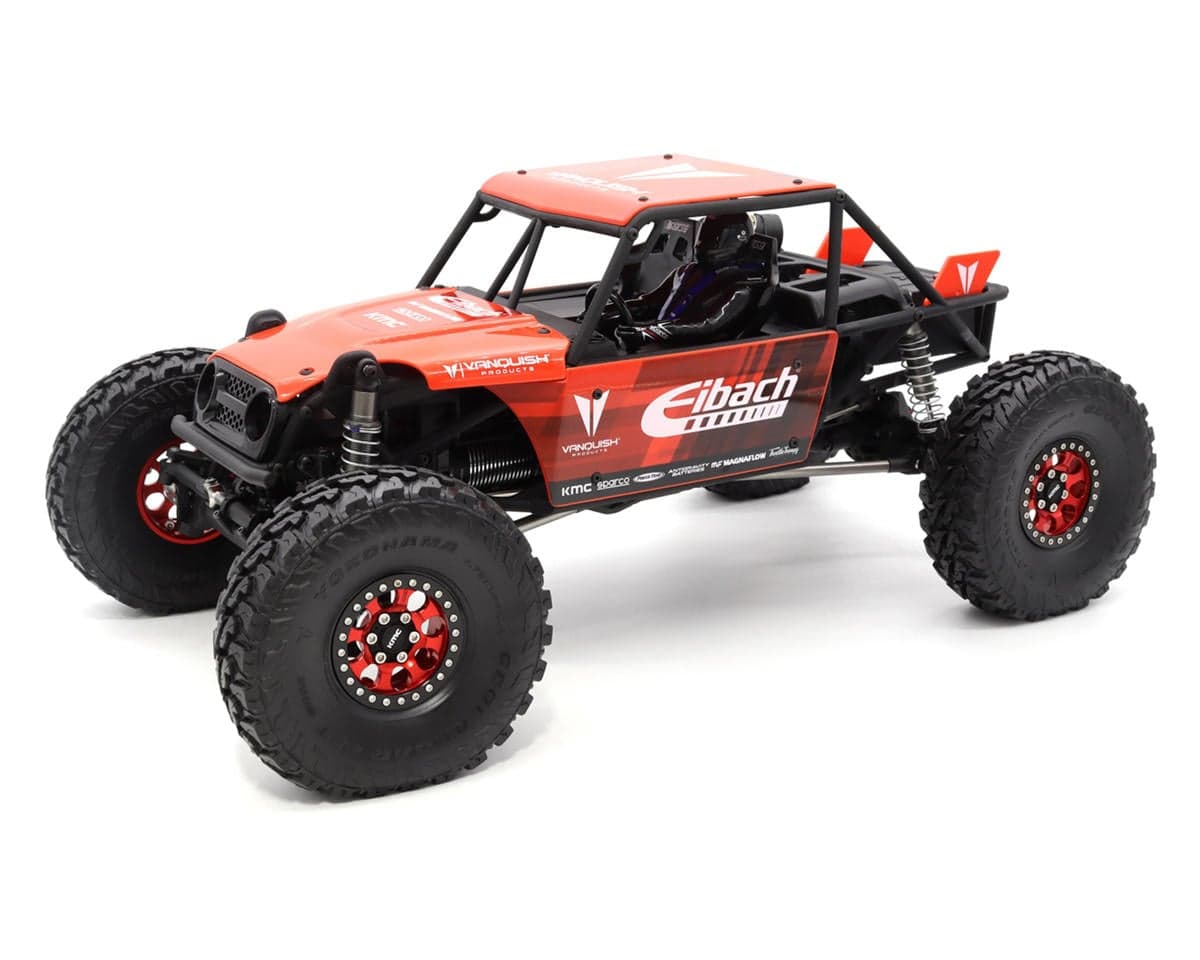

I was happy to see the H-10 Optic available as an assembly kit. Part of the fun for me is putting them together and setting them up. The order arrived quickly and undamaged. I got the red Eibach livery and it looks really slick. It went together quickly and without issues. I used a Hobbywing 2 in 1 crawler motor with some 2.2” Proline Hyrax tires on a set of black bead locks with red rings. I have since ordered the teal Throttle Therapy and grey “carbon fiber” liveries.
