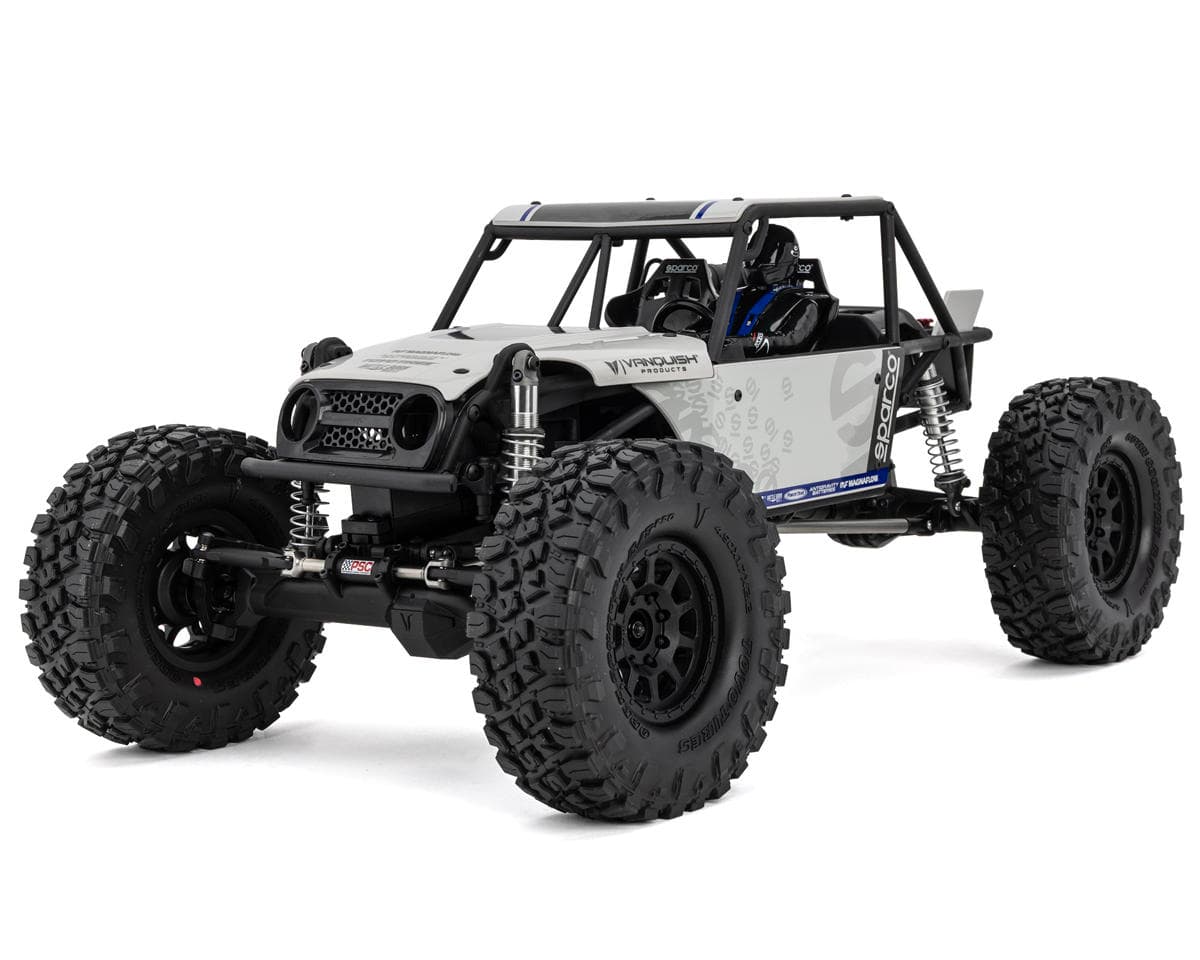

Vanquish Products H10 Optic 1/10 4WD RTR Brushless Rock Crawler (Sparco V2)
About this part
Scale-Focused Crawler with Brushless Power & Performance

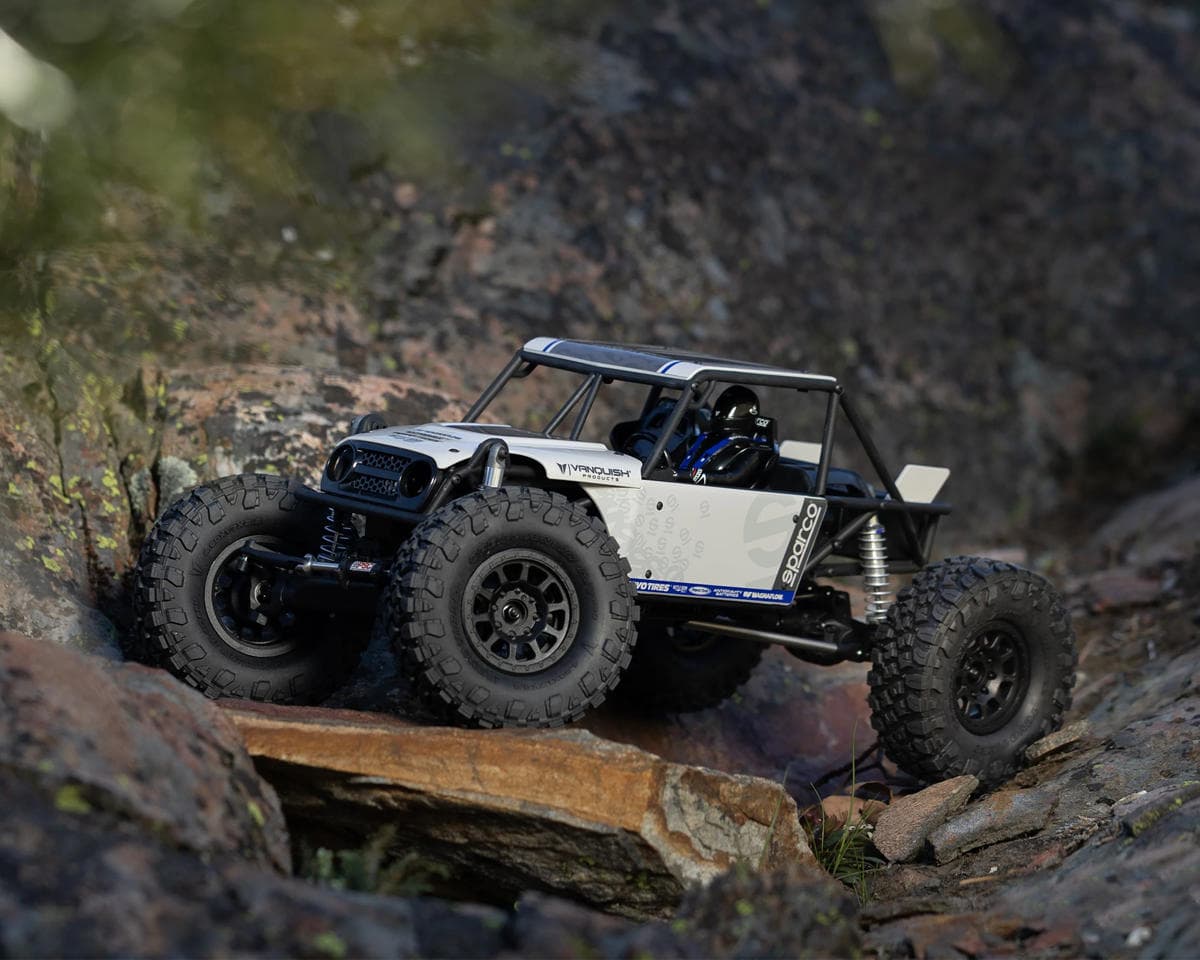

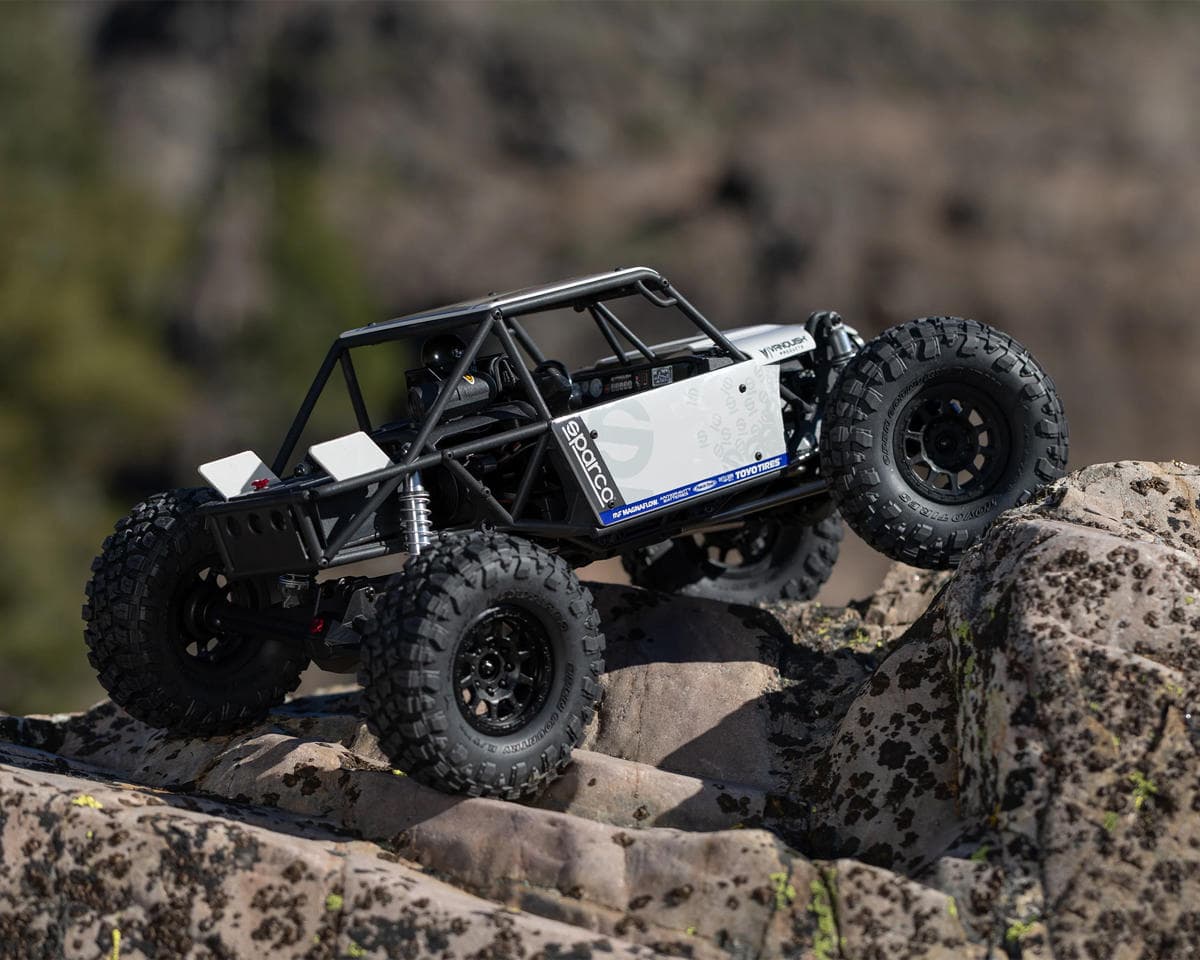

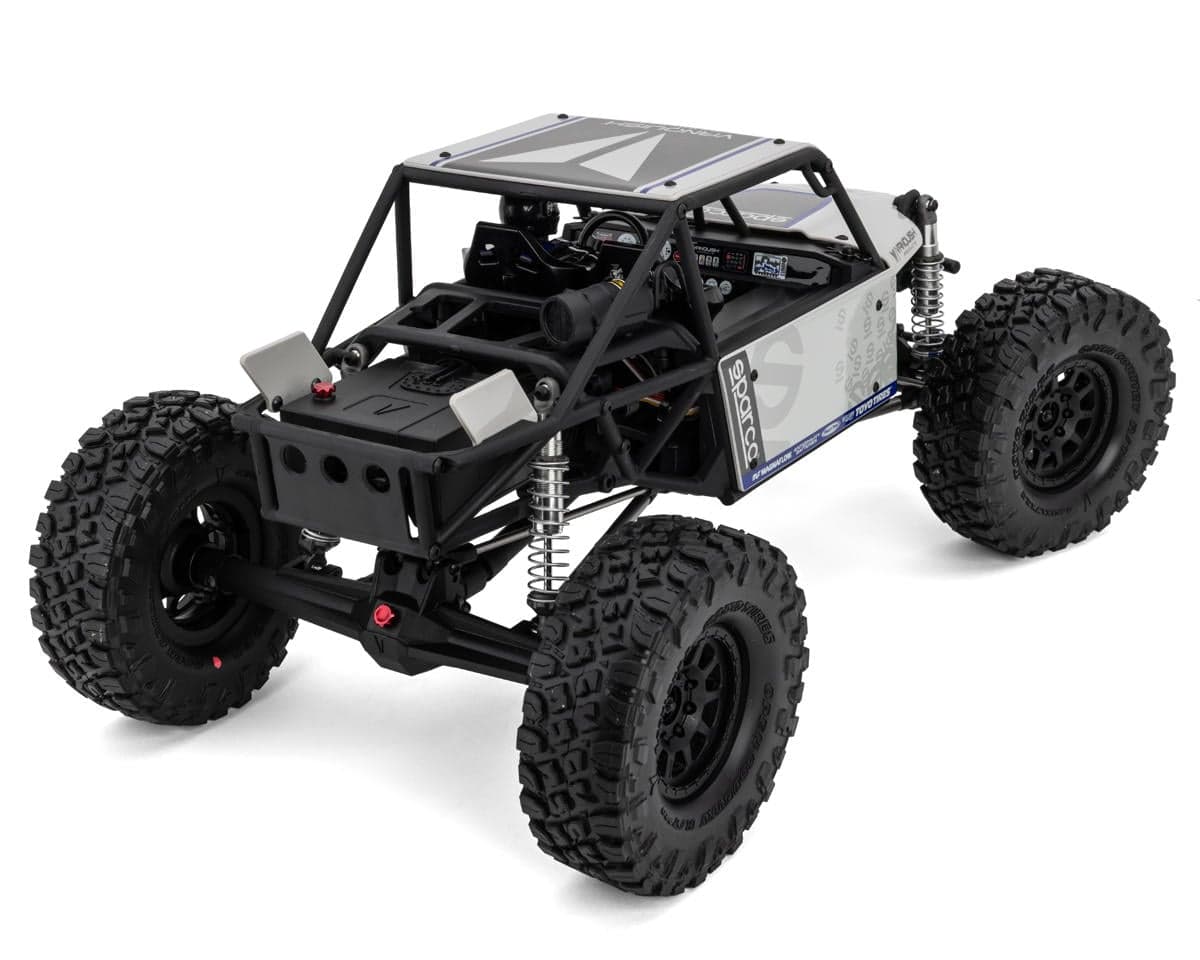

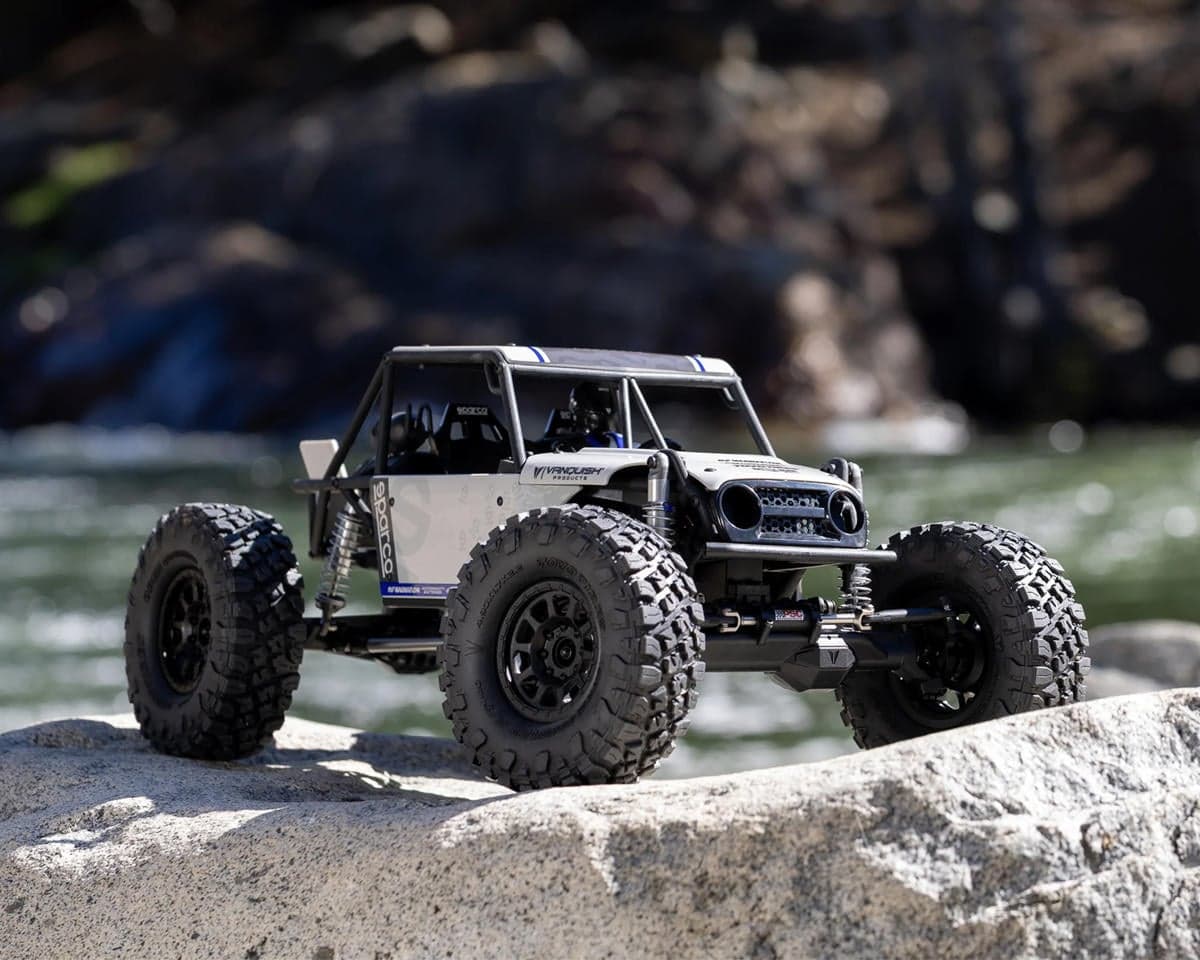

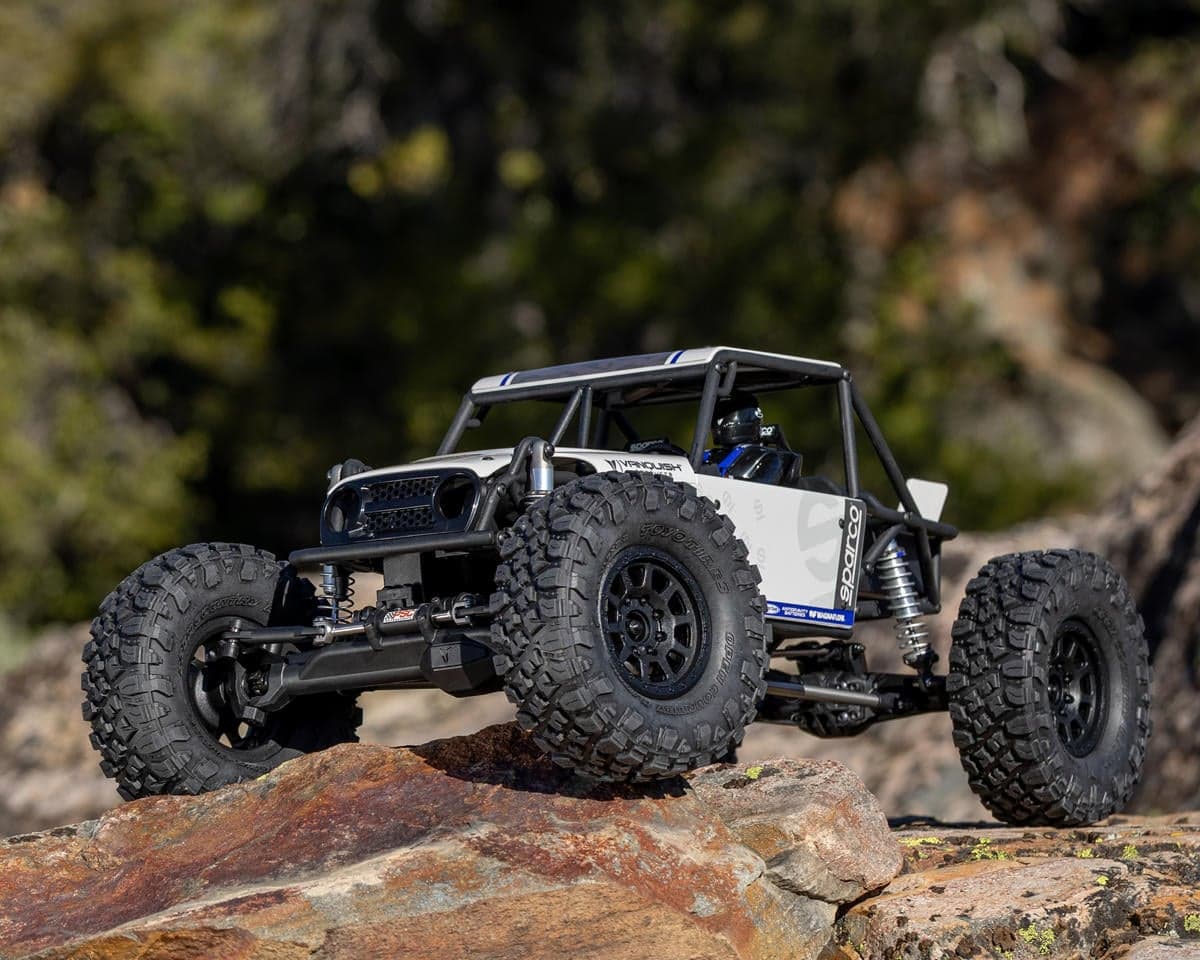

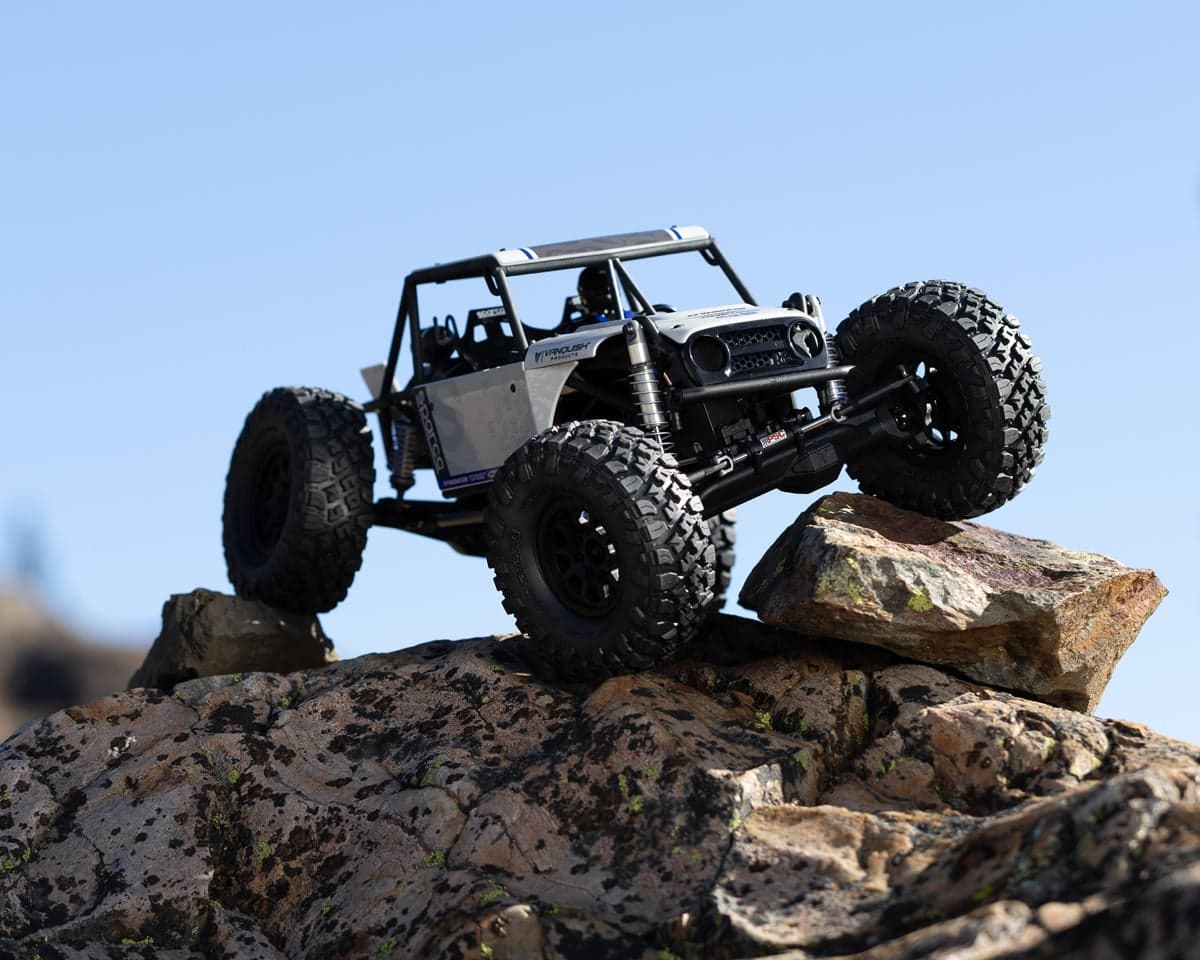

The Vanquish H10 Optic 1/10 4WD RTR Brushless Rock Crawler is built from the ground up as a purpose-designed trail buggy, blending rugged performance with detailed scale realism. Its caged chassis design showcases the tall 2.2-inch Toyo Tires Open Country R/T Pros mounted on Battle Born Sierra wheels, while the widened H10 axles and 13.26-inch wheelbase deliver stability across technical terrain. Power comes from the Hobbywing Fusion RTR 1800kV 2-in-1 Brushless System, offering smooth, precise low-speed control through FOC technology. With a hard-molded body, Sparco-equipped interior, and integrated hydro-style ram steering, the H10 brings together capability, durability, and scale detail in a single trail-ready platform.
About the Brushless H10 Optic
Brushless Control & Performance

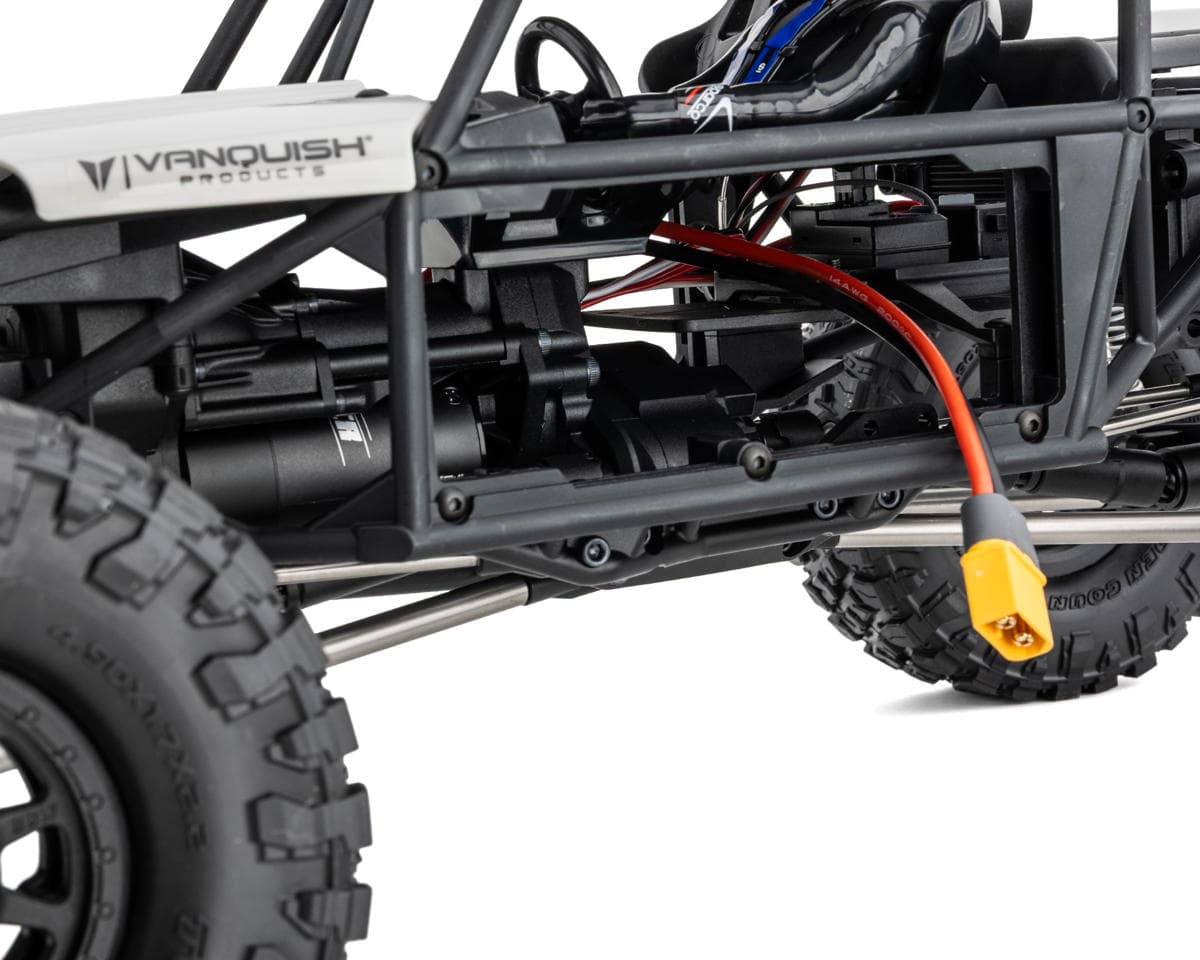

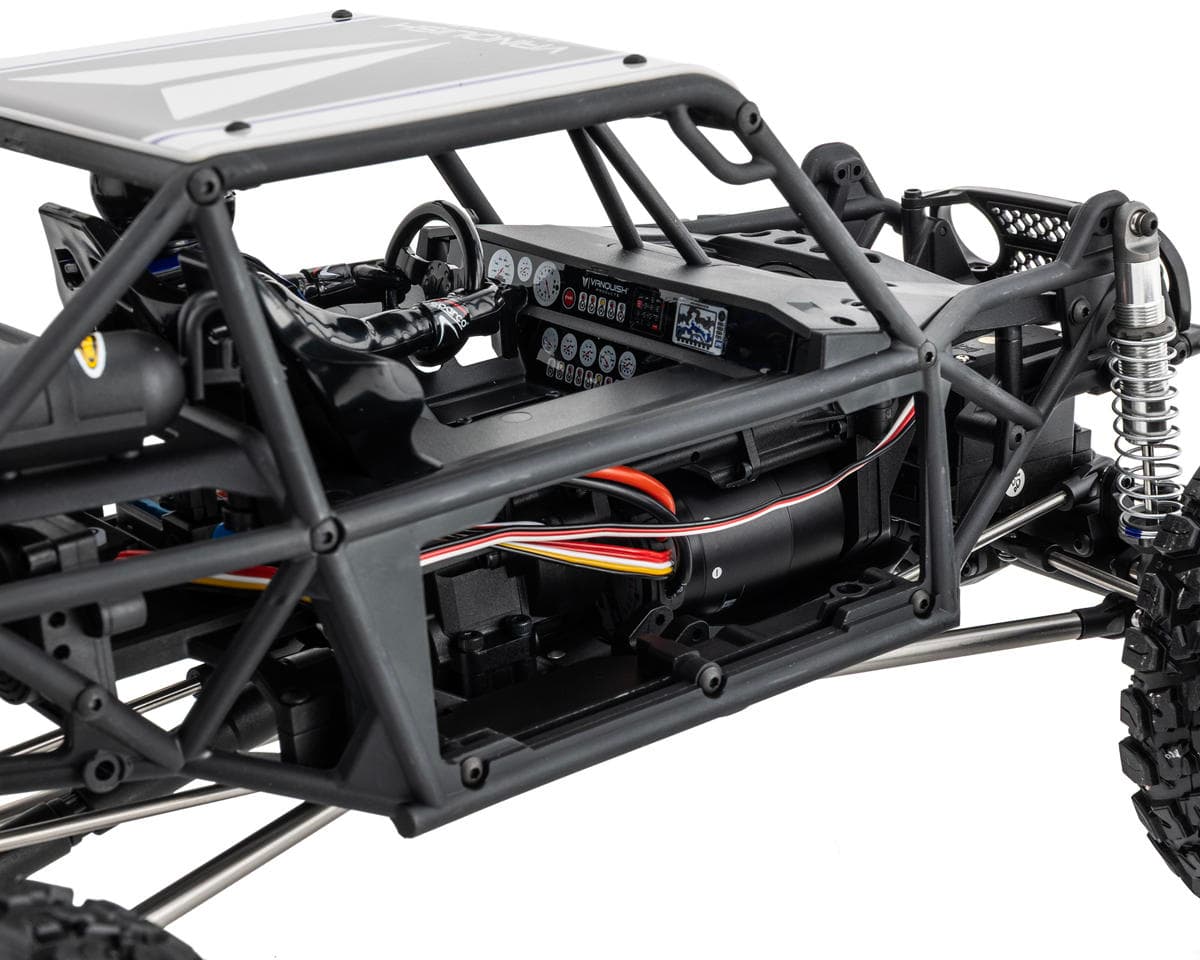

The factory-installed Hobbywing Fusion RTR 1800kV system gives the H10 Optic a major boost in torque and responsiveness, using FOC technology to maintain smooth, predictable throttle control over obstacles. Its integrated ESC reduces wiring complexity and keeps the chassis clean. Paired with the proven VFD transmission and its low motor placement, the H10 maintains a balanced center of gravity for confident climbing, sidehilling, and technical crawling. This combination marks Vanquish's first brushless RTR setup, delivering improved performance right out of the box.
Steering & Axle Engineering

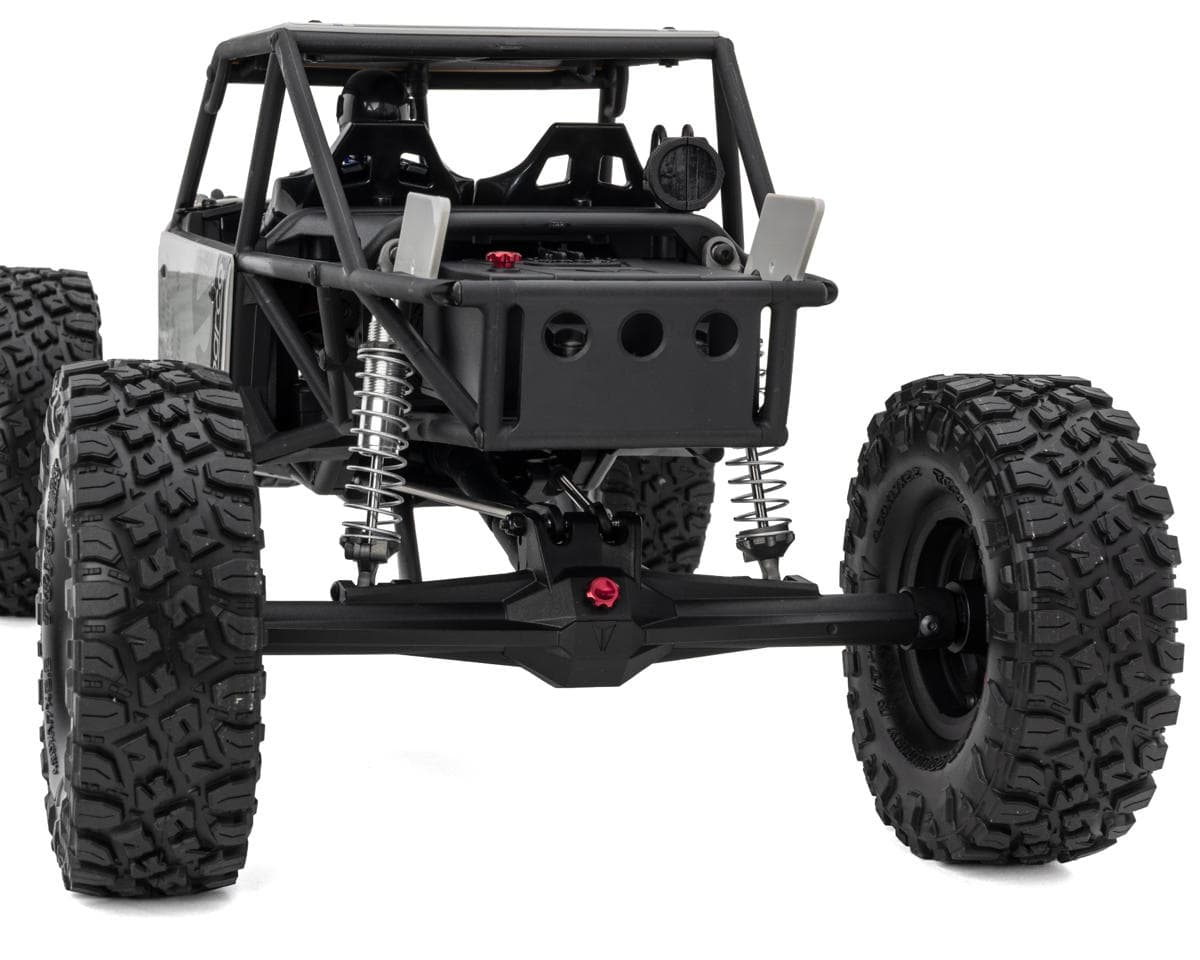

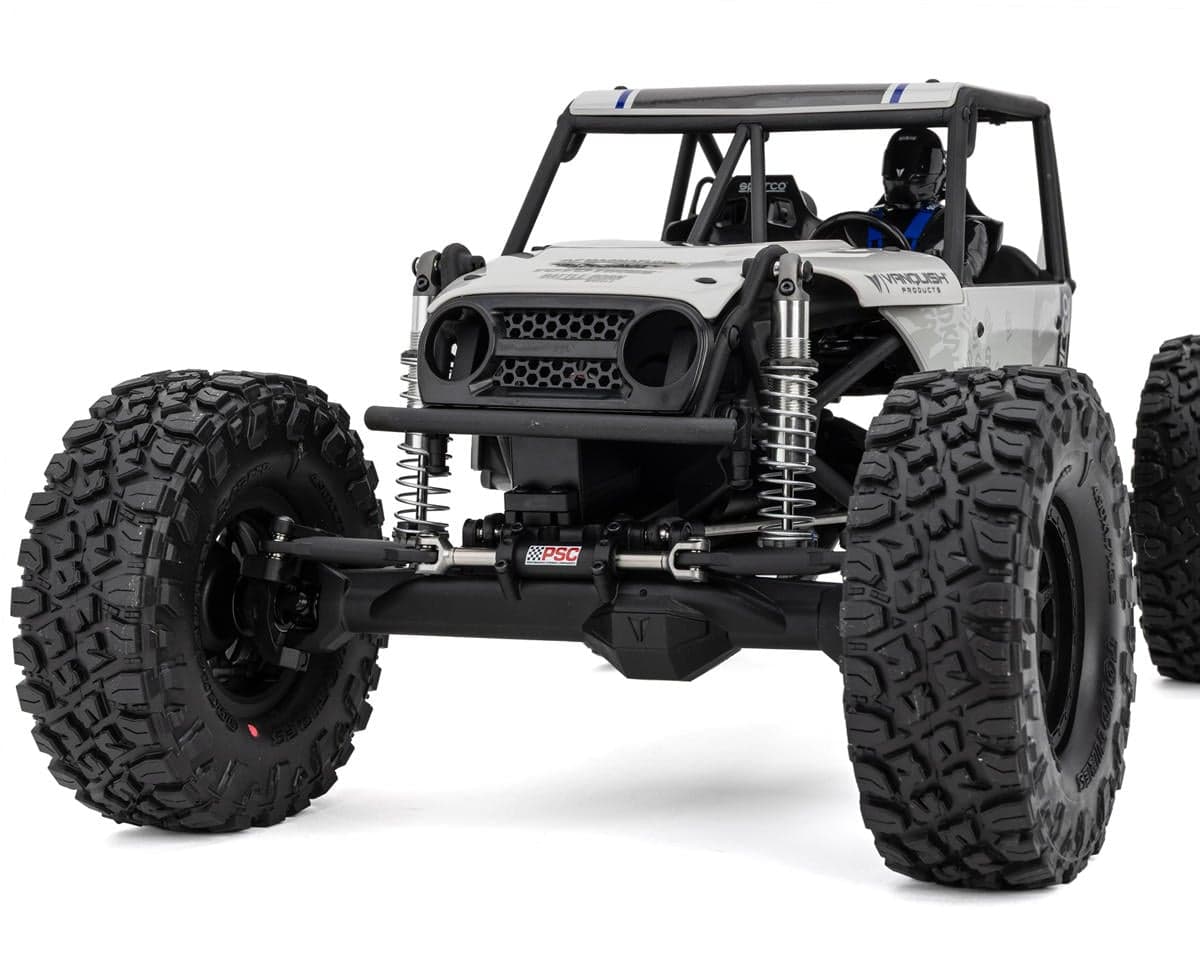

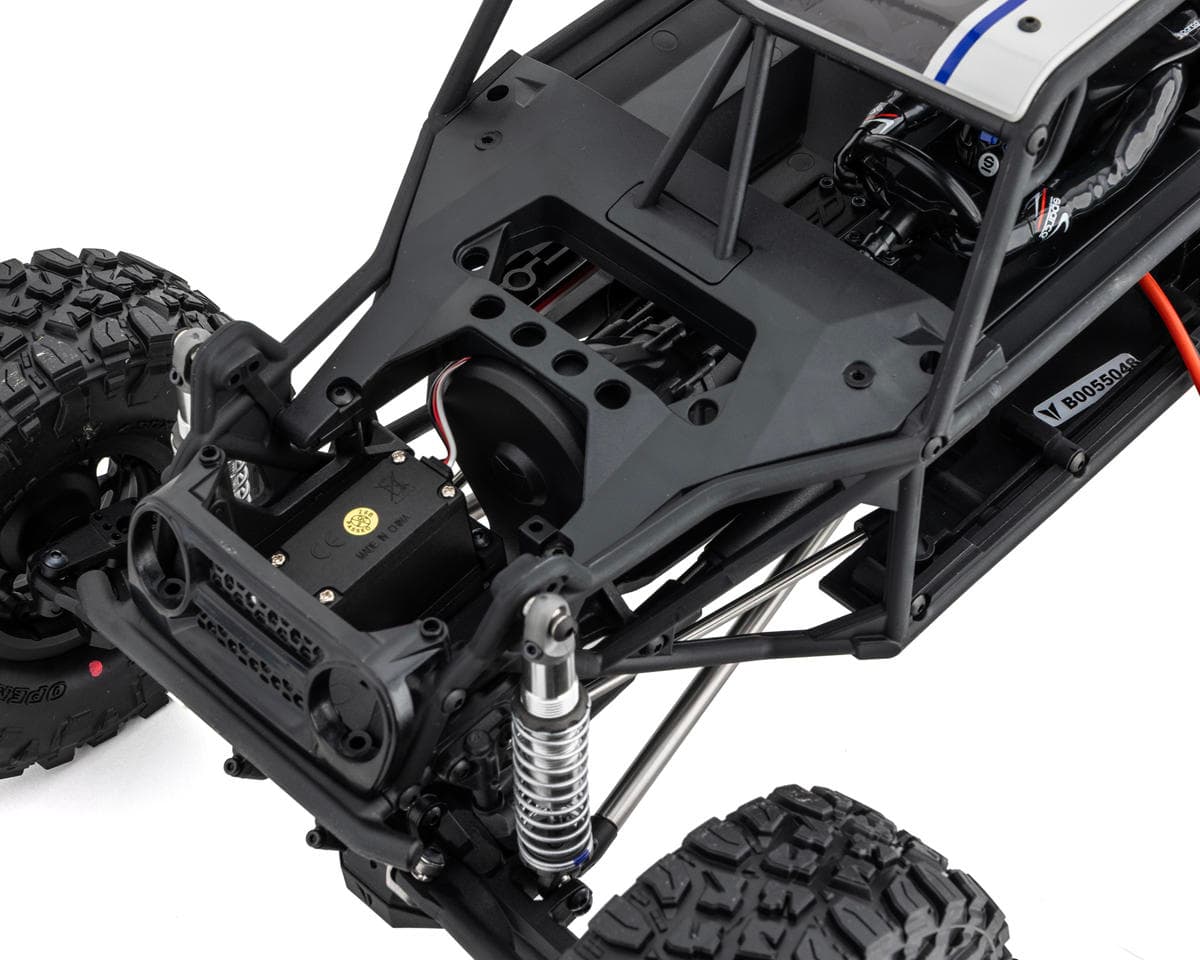

The updated H10 front and rear axles offer increased width and a four-link suspension layout for added stability. A licensed PSC hydro-style ram steering system replaces the traditional tie rod, hiding the servo behind the axle for a clean scale appearance while protecting the steering components. VDI universal axle shafts provide up to 47° of steering angle, and the axle housings include integrated C-hubs, a front lower skid plate truss, and a removable third member. The integrated steering skid plate and clamping ram housing add durability and enhance the realistic look.
Hard Body Design & Interior Detail

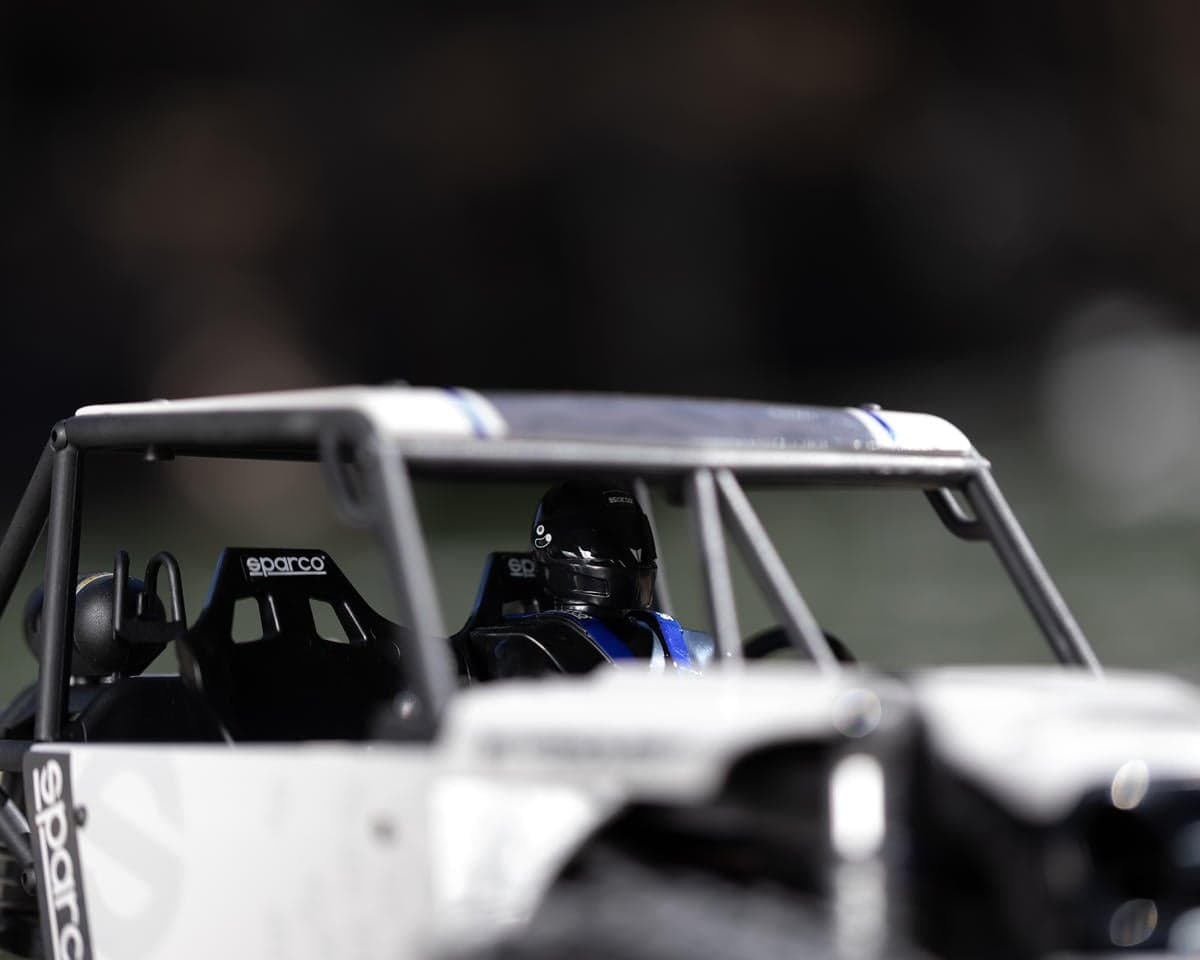

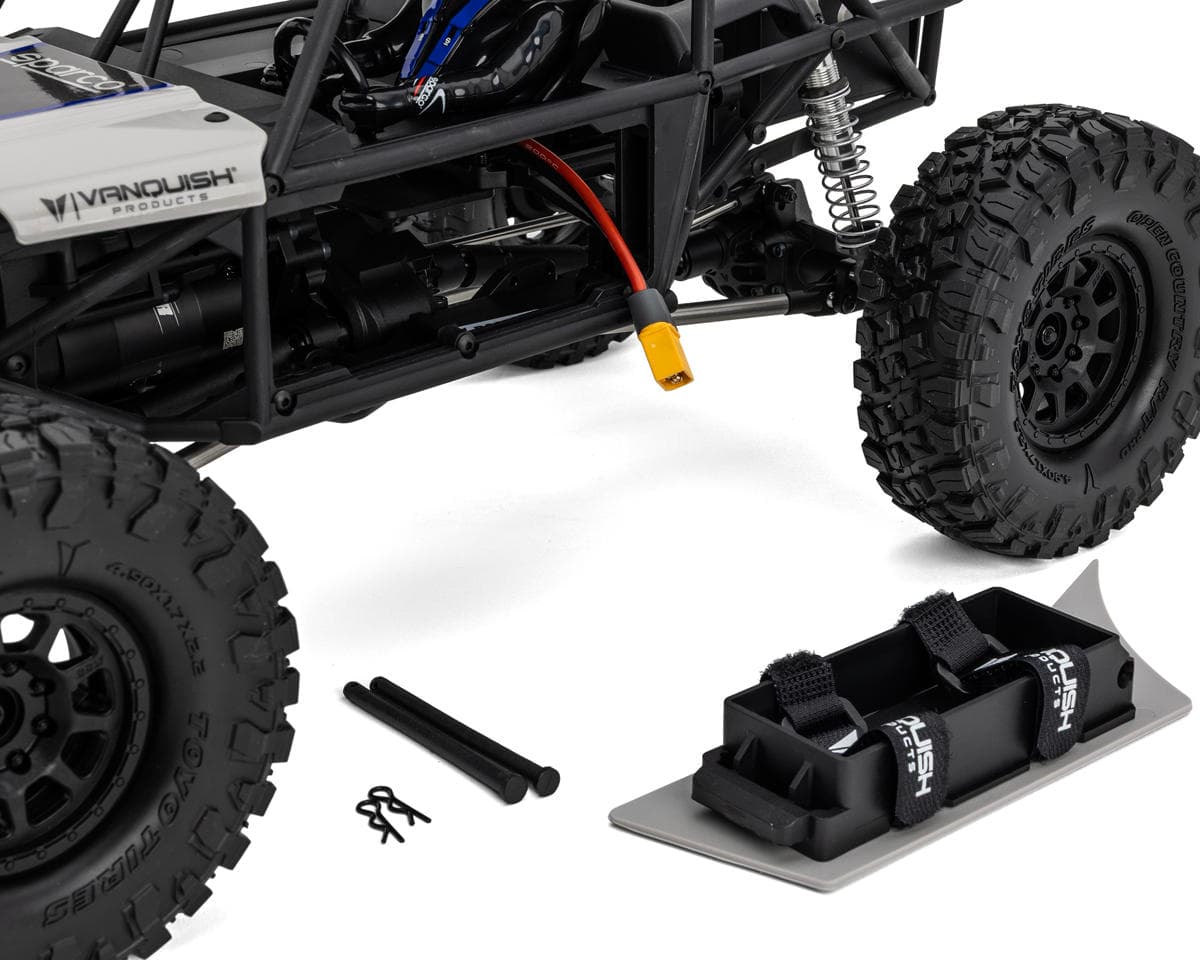

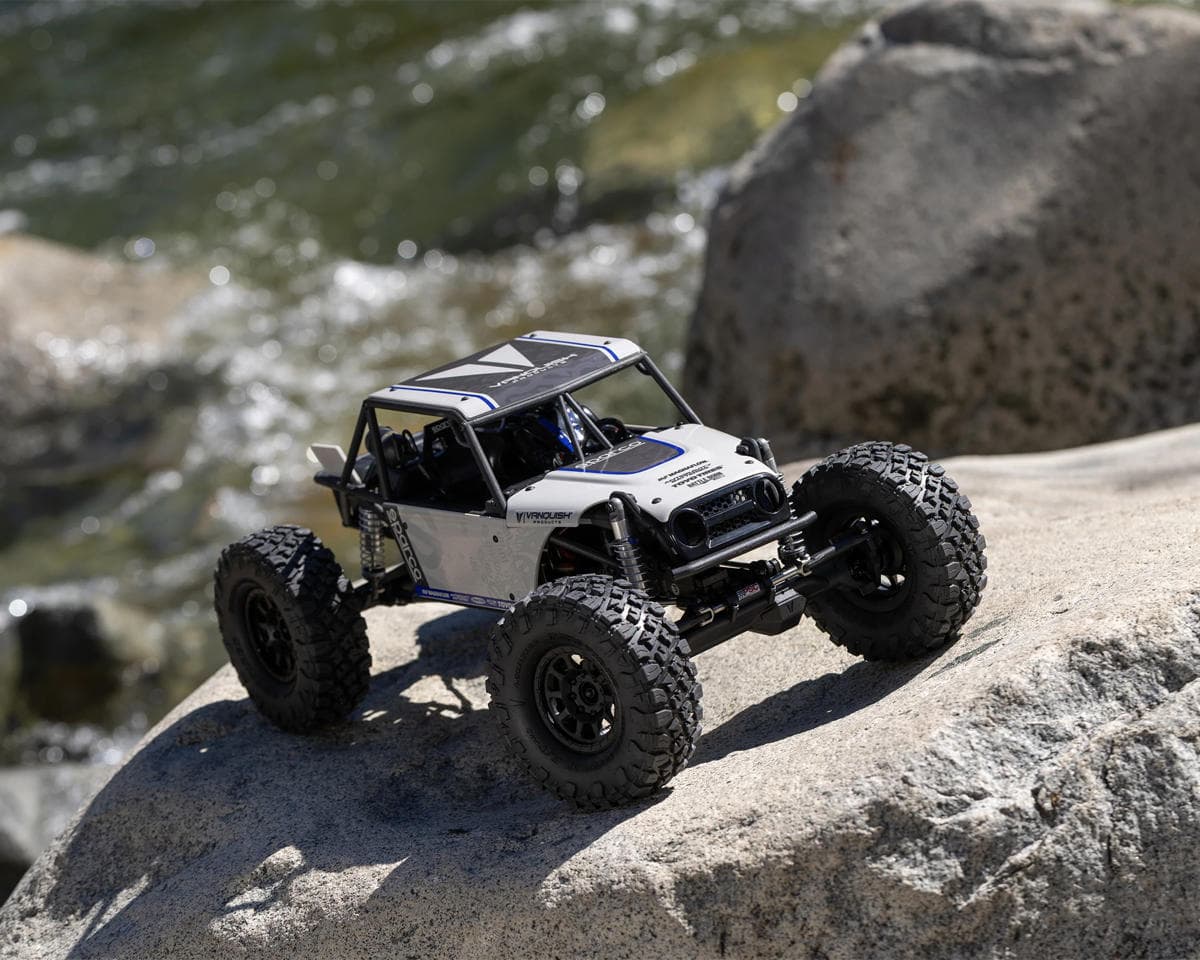

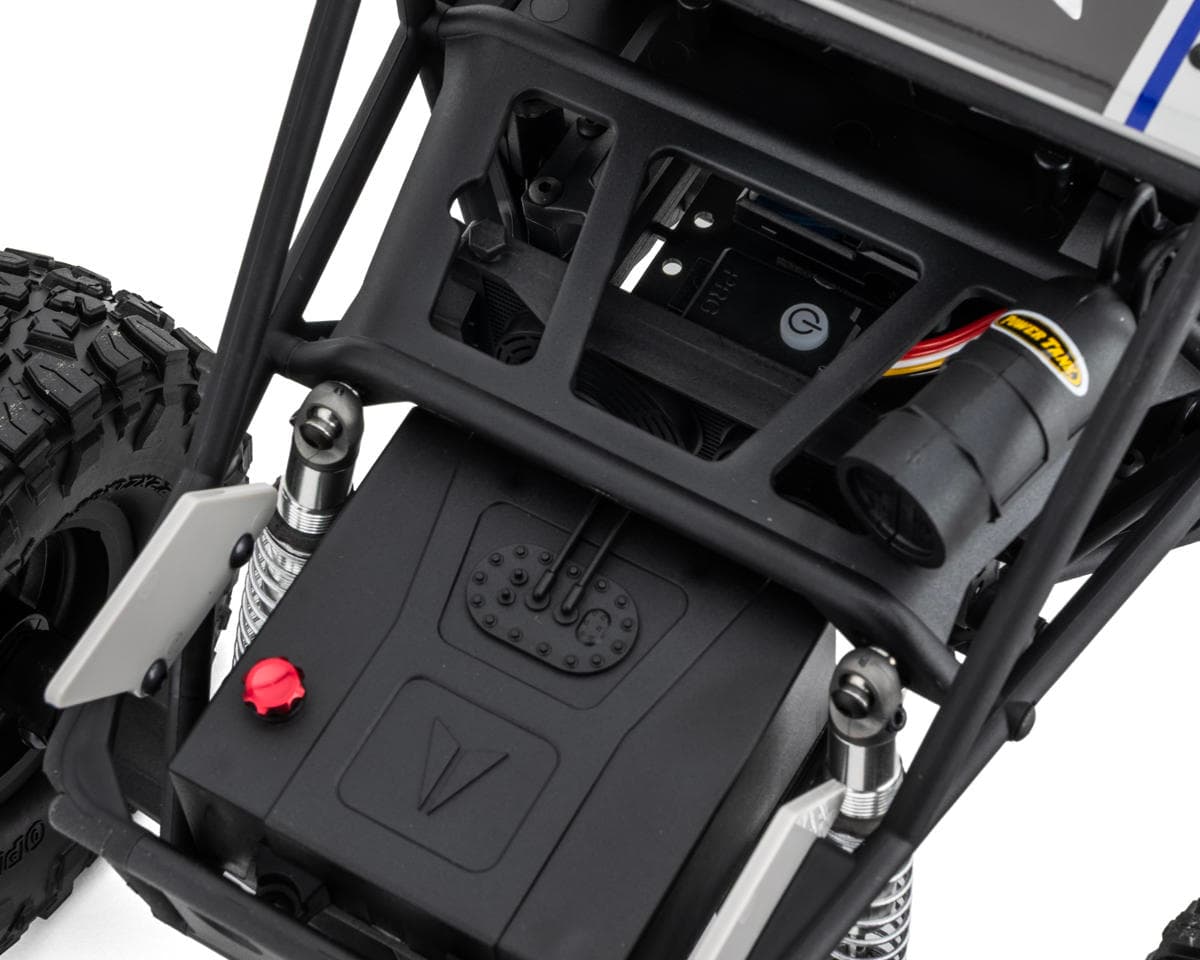

The Optic body is molded from durable ABS, giving the H10 a rigid, true-to-life trail buggy feel with solid body panels and a highly detailed interior. Inside, a molded driver figure is fully outfitted with Sparco-licensed gear, including EVO L QRT seats, a competition racing suit, RF-5W helmet, and gloves. The symmetrical two-seat design maintains a narrow width for navigating tight obstacles, while short overhangs improve approach and departure angles. Battery access is quick and simple thanks to a single pin-and-latch system on each side panel, making trail swaps fast and frustration-free.
Features:
- Brushless Hobbywing Fusion RTR system for smooth low-speed control
- FOC technology maintains precise throttle response over obstacles
- Exclusive H10 axles with increased width for added stability
- PSC hydro-style ram steering system with hidden servo placement
- VDI universal axle shafts offering up to 47° steering angle
- Rigid ABS hard body with detailed interior and molded panels
- Symmetrical two-seat design for narrow trail navigation
- Short front and rear overhangs improve approach and departure angles
- VFD transmission with low motor placement for balanced handling
- Quick-access pin-and-latch battery compartments for fast trail swaps
Includes:
- (1) H10 Optic 1/10 4WD RTR Brushless Rock Crawler
- (1) Hobbywing Fusion RTR 2-in-1 Brushless Power System (1800kV) w/XT60 Connector

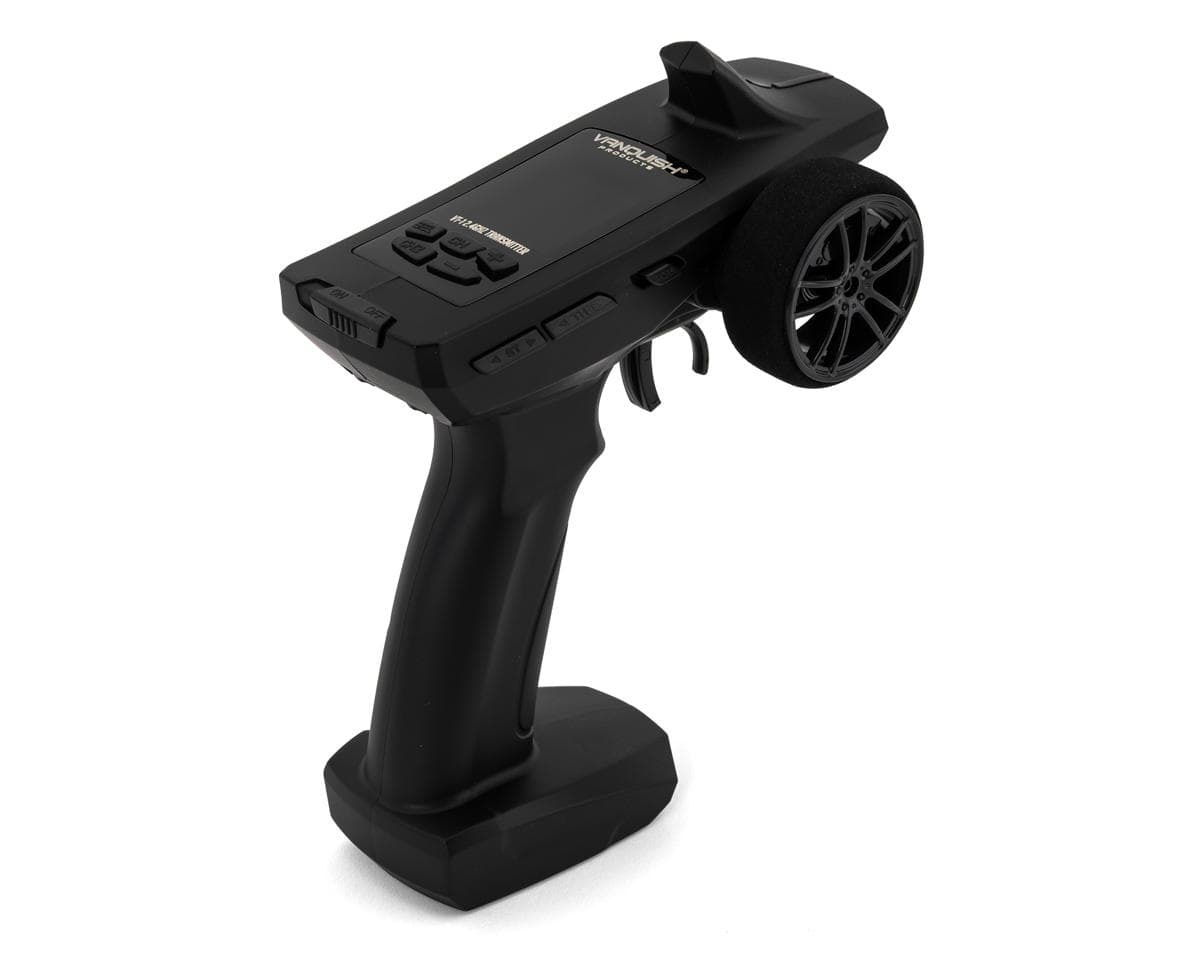

- (1) 2.4GHz Radio System

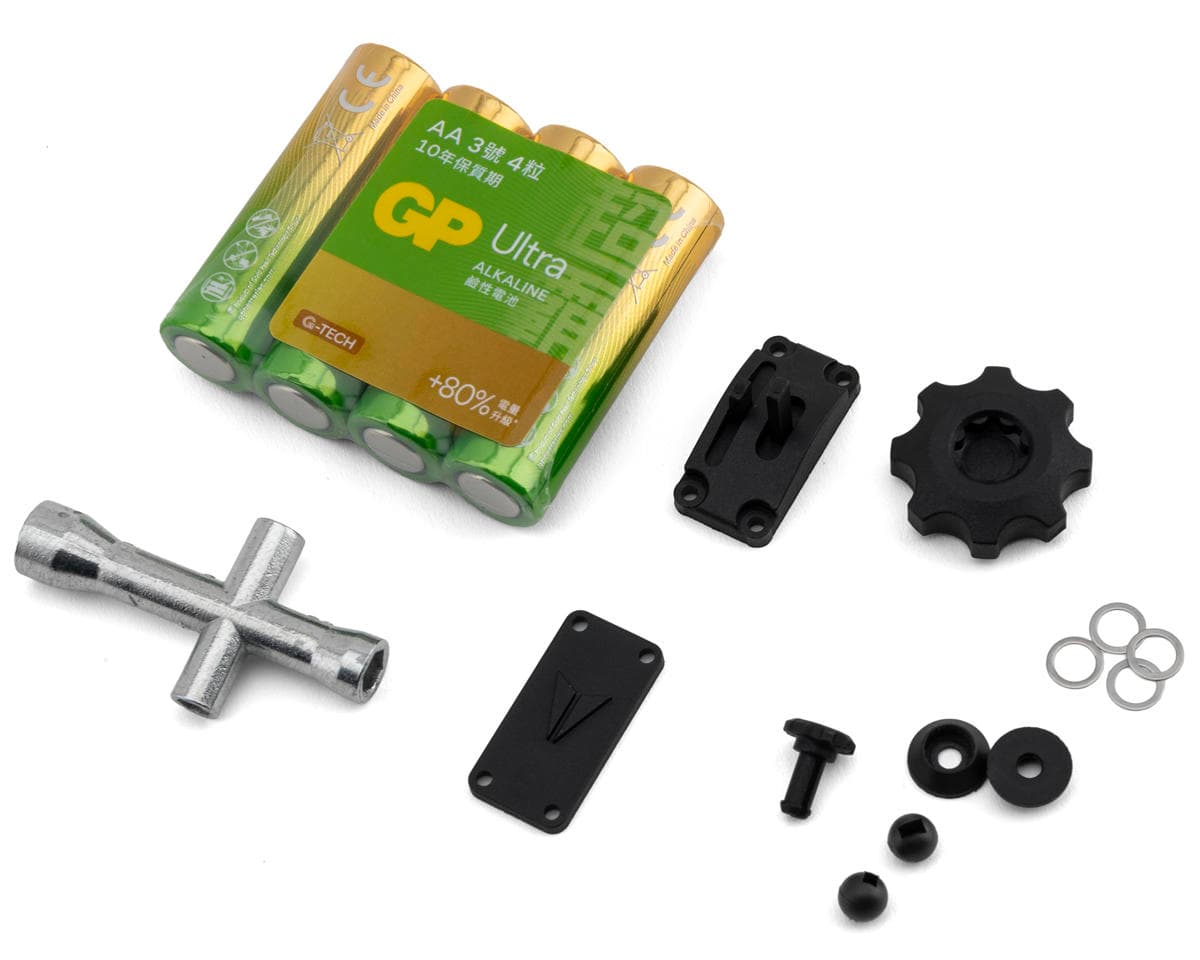

- (4) AA Batteries for Transmitter
- Product Manual
Needed To Complete:
- (1) 2-3S LiPo Battery (7.4-11.1V) w/XT60 Connector
- (1) Compatible Battery Charger
Recommended to Complete:
Specifications:
| Scale | 1:10 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Drive | 4WD | ||||||||
| Power Source | 2S-3S LiPo | ||||||||
| Length | - | ||||||||
| Wheelbase | 13.26in (337mm) | ||||||||
| Width | 8.11in (206mm) | ||||||||
| Height | 7.87in (200mm) | ||||||||
| Weight | 85.6oz (2426.72g) | ||||||||
Electronics
|
|||||||||
Wheels
|
|||||||||
Tires
|
|||||||||
| Assembly Level | RTR* | ||||||||
*Tech Note: Ready-to-Run models come equipped with all electronics and include the transmitter needed for use. Please check the "Needed To Complete" above to make sure you have everything you need to get out and enjoy your RC model.
Manuals:
Fusion RTR 2-in-1 Manual
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 4 reviews
Best out of the box trail/crawler I have ever bought. Looks great, works great. Tire foams are pretty hard, replace those with something much softer and you’re good to go.
Good solid truck. very capable stock out of the box. Brushless is nice. Climbs and trail runs great
Awesome if you're looking for a Buggy that's a good platform to build off from. Has excellent support from the aftermarket. Buy it and it won't disappoint.
While I’m new to crawling, I’m not new to the RC hobby. I’ve built kits and bought ready-to-run units from various manufacturers, but I’ve rarely encountered a product as well-engineered and produced as this one. It feels like the engineers were able to incorporate most of their desired features without facing any objections from the bean counters. I own 1/30, 1/24, and 1/18 scale crawlers, but this is my first 1/10 scale rig. It feels substantial and unperturbed by terrain. In person, it’s also quite handsome, and even the packaging is excellent. I’m eagerly looking forward to getting more time with it, but I’ve already noticed that it’s surefooted, smooth, and surprisingly fast. I must admit, it’s not as front-heavy as I would prefer, which is understandable since it’s more of a trail rig than a pure crawler. However, that won’t deter me from trying to add some weight to the front end. I’m incredibly satisfied with my purchase and am now considering getting a Stance RTR as a stablemate.
All four verified reviewers rate the Vanquish H10 Optic Sparco V2 five out of five. Reviewers praise its out-of-the-box performance on climbing and trail runs, its solid build and appearance, and its brushless power system. One reviewer notes it works well as a platform for aftermarket upgrades. The only recurring criticism is that the stock tire foams are hard, with one reviewer recommending softer replacements. Reviews are short and positive, and the sample is small, so the picture is limited.
- + Strong out-of-the-box climbing and trail performance
- + Solid, well-built, attractive appearance
- + Brushless system
- + Good platform for aftermarket upgrades
- − Stock tire foams are hard
