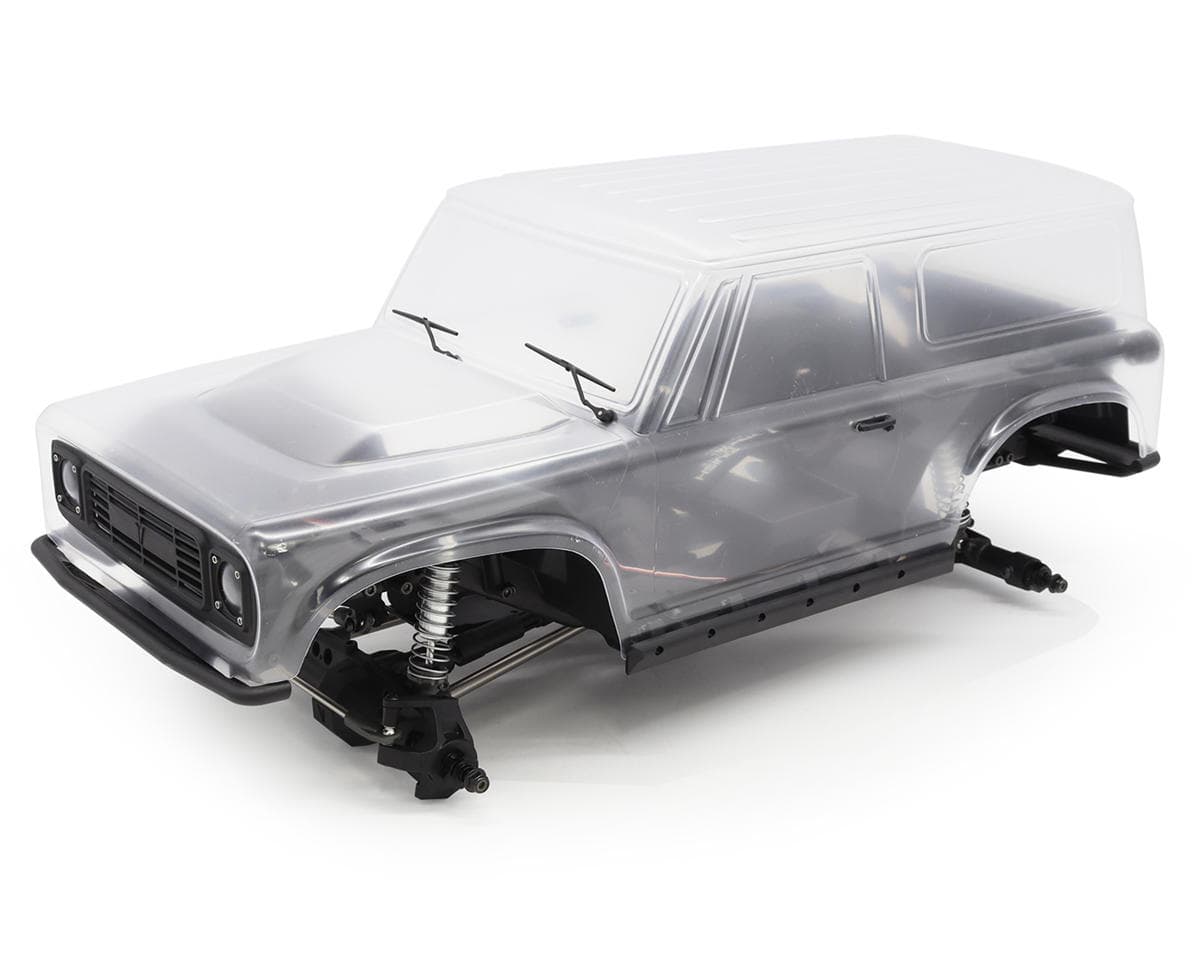

Vanquish Products VS4-10 Origin Classic 1/10 4WD Rock Crawler Kit (Clear)
About this part
High-Performance Classic Scale Truck with Updated Features
The Vanquish Products VS4-10 Origin Classic 1/10 4WD Rock Crawler Kit brings back the iconic body style that launched the original Vanquish platform, paired with refined engineering throughout the chassis and drivetrain. Its molded inner fenders feature integrated clipless body mounts and adjustable shock positions, giving builders more tuning flexibility than ever before. With the VFD transmission positioned low and forward, and the F10 straight axles delivering dependable strength, the Origin Classic is built for confident performance on demanding terrain.
About the VS4-10 Origin Classic Kit
VFD Transmission
The VFD transmission is designed to deliver a blend of durability, scale appearance, and optimized weight distribution. By placing the motor low and forward, the drivetrain improves climbing stability and steering response, while the factory 6.5% overdrive enhances turning precision without stressing electronics. Internally, the VFD uses hardened chromoly shafts, sintered gears, and modular bearing plates that allow for optional gear ratio tuning inside the transfer case. A slipper eliminator maximizes power transfer, and the molded extended skid plate protects the motor during rough, technical driving.
F10 Straight Axles & Suspension
The molded F10 straight axles draw from Vanquish's extensive axle design experience, offering a rigid structure with an integrated truss and oversized C-hubs for long-term durability. High-pinion hypoid gears, universal-style axle shafts, and 49° of steering provide smooth, predictable handling on uneven terrain. Paired with Incision 90mm S8E Shocks featuring dual O-ring seals and polished shafts, the suspension delivers controlled articulation and consistent damping. The adjustable lower shock mounts and 3-link front suspension with panhard bar further enhance tuning capability while maintaining scale realism.
Chassis & Trail-Ready Construction

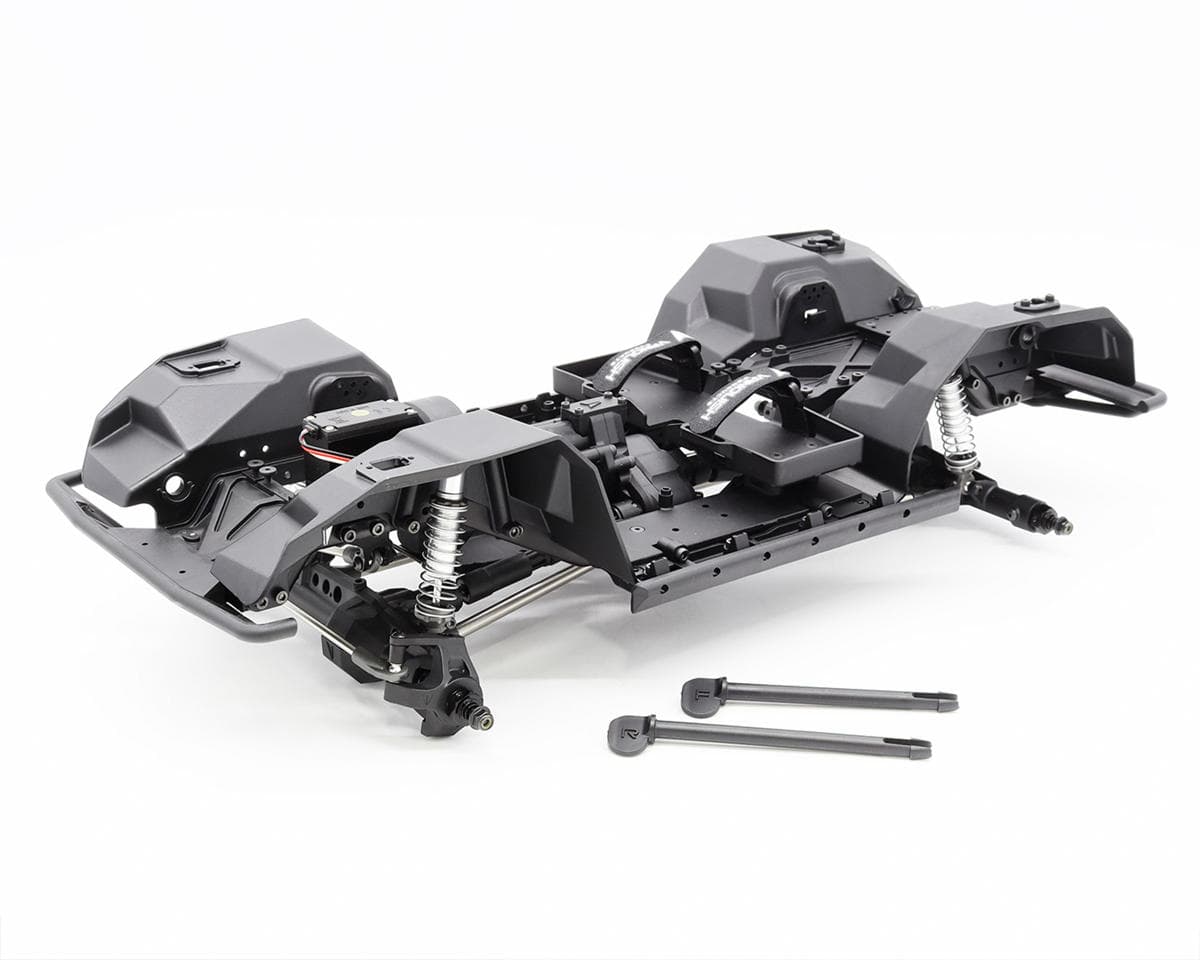

The VS4-10 chassis uses heavy-duty steel C-channel frame rails for strength and scale authenticity, reinforced by molded crossmembers in high-stress areas. Integrated mounting positions for electronics, dual servo options, and clean winch line routing make the platform adaptable for advanced builds. Molded rock sliders with replaceable outer sections protect the body, while the machined aluminum panhard mount ensures precise suspension geometry under load. The molded inner fenders double as adjustable shock towers, securely capturing the tops of the ninety-millimeter shocks for consistent performance on rugged trails.
Features:
- Low-forward motor placement for improved weight distribution
- 6.5% factory overdrive for enhanced turning and climbing
- Hardened chromoly transmission shafts
- Sintered internal transmission gears
- Molded F10 straight axles with integrated truss
- 49° of steering angle
- Incision 90mm S8E shocks with dual O-ring seals
- Heavy-duty steel C-channel frame rails
- Integrated clipless body mounting system
- Adjustable shock tower positions molded into inner fenders
Includes:
- (1) VS4-10 Origin Classic 1/10 4WD Rock Crawler Kit
- (1) Clear Origin Classic Body
- (1) VFD Transmission Assembly
- (2) F10 Molded Axles
- (4) Incision 90mm S8E Shocks
- (4) Molded Inner Fenders and Shock Towers
- (1) Stainless Steel Links and Pivot Hardware Set
- (1) 15T 32P Pinion Gear
- (1) 52T 32P Spur Gear
- (1) 25T Servo Horn
- (1) 30wt Shock Oil Bottle
- (1) Threadlock Container
- (1) Grease Container
- Product Manual
Needed To Complete:
- (1) 2+ Channel Transmitter/Receiver System
- (1) Battery
- (1) 540 Class Motor
- (1) ESC (Electronic Speed Control)
- (1) Compatible Steering Servo (25T Servo Horn Included)
- (4) 1.9x4.65" Tires
- (4) 1.9" SLW Hub Compatible Wheels (See compatible wheels here)
- (1) Compatible Battery Charger
- Paint for Body
- Assembly Tools
Specifications:
| Scale | 1:10 |
|---|---|
| Drive | 4WD |
| Power Source | Electric |
| Length | - |
| Wheelbase | 12.3in (313mm) |
| Width (Hex to Hex) | 7.17in (182mm) |
| Height | - |
| Weight | - |
| Assembly Level | Kit* |
*Tech Note: RC Kits are an unassembled Remote Control Model that require assembly, racer selected electronics, and other racer provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 3 reviews
Happy to alway order from Amain! Alway ships fast.. great prices.. looking foward to building this new kit!
Great kit itbwas my dirst Vanquish build it and now my 5th Vanquish rc. I wish i would have upgraded to the blk alum axales. But over all awesome kit
Excellent service, very good RC gear. Because of the purchase we made, we should have an extra bonus for future purchases.
Three verified owners rated this clear-body 1/10 4WD rock crawler kit 5 out of 5. Reviewers praise the kit overall and the seller's fast shipping, good prices and service. One reviewer, on their fifth Vanquish build, says they wish they had upgraded to the black aluminium axles. Reviews are few and mostly focus on the seller rather than the kit's performance, so detail on build quality or handling is limited.
- + Awesome overall kit
- + Fast shipping
- + Good prices
- + Excellent service
- − Stock axles considered an upgrade candidate by one owner
