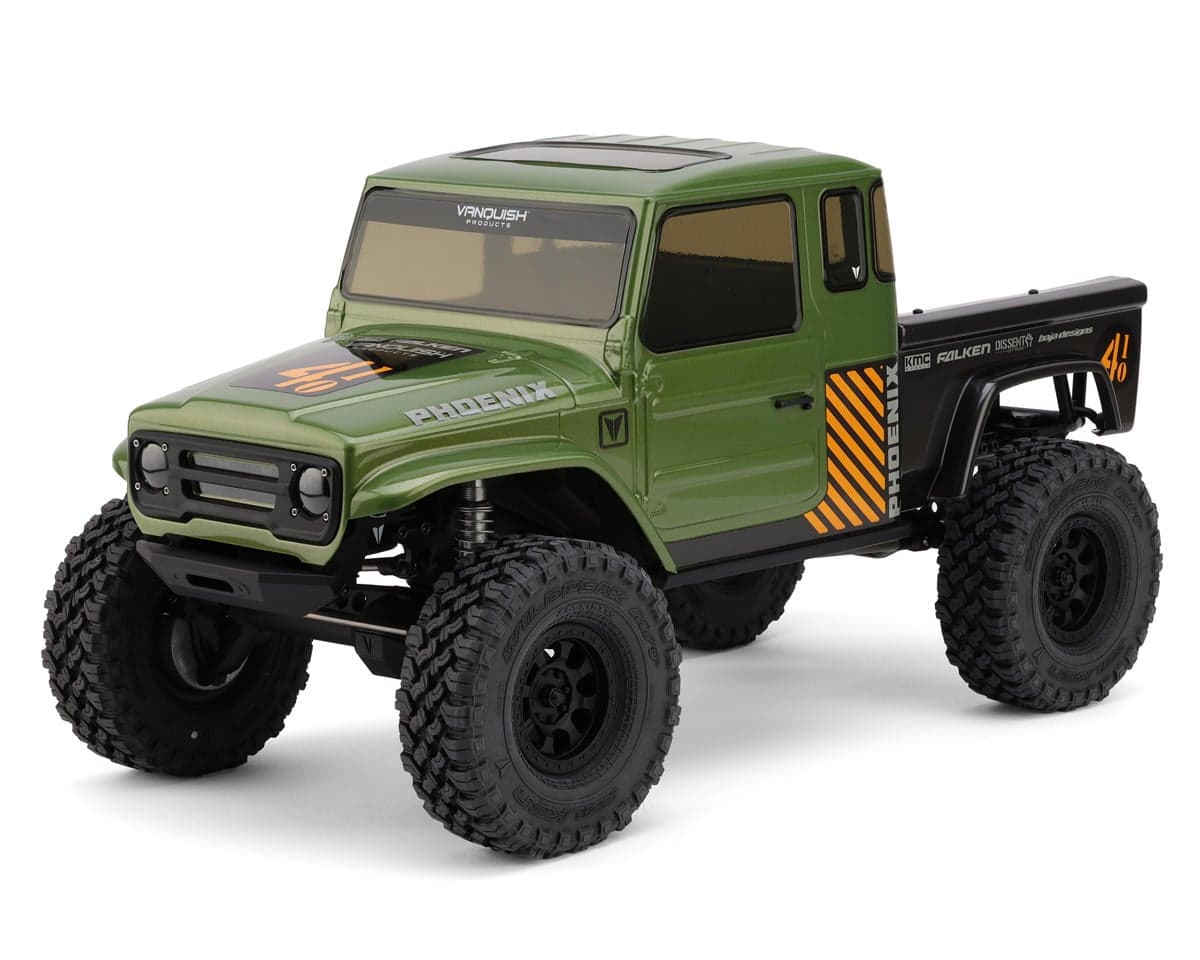

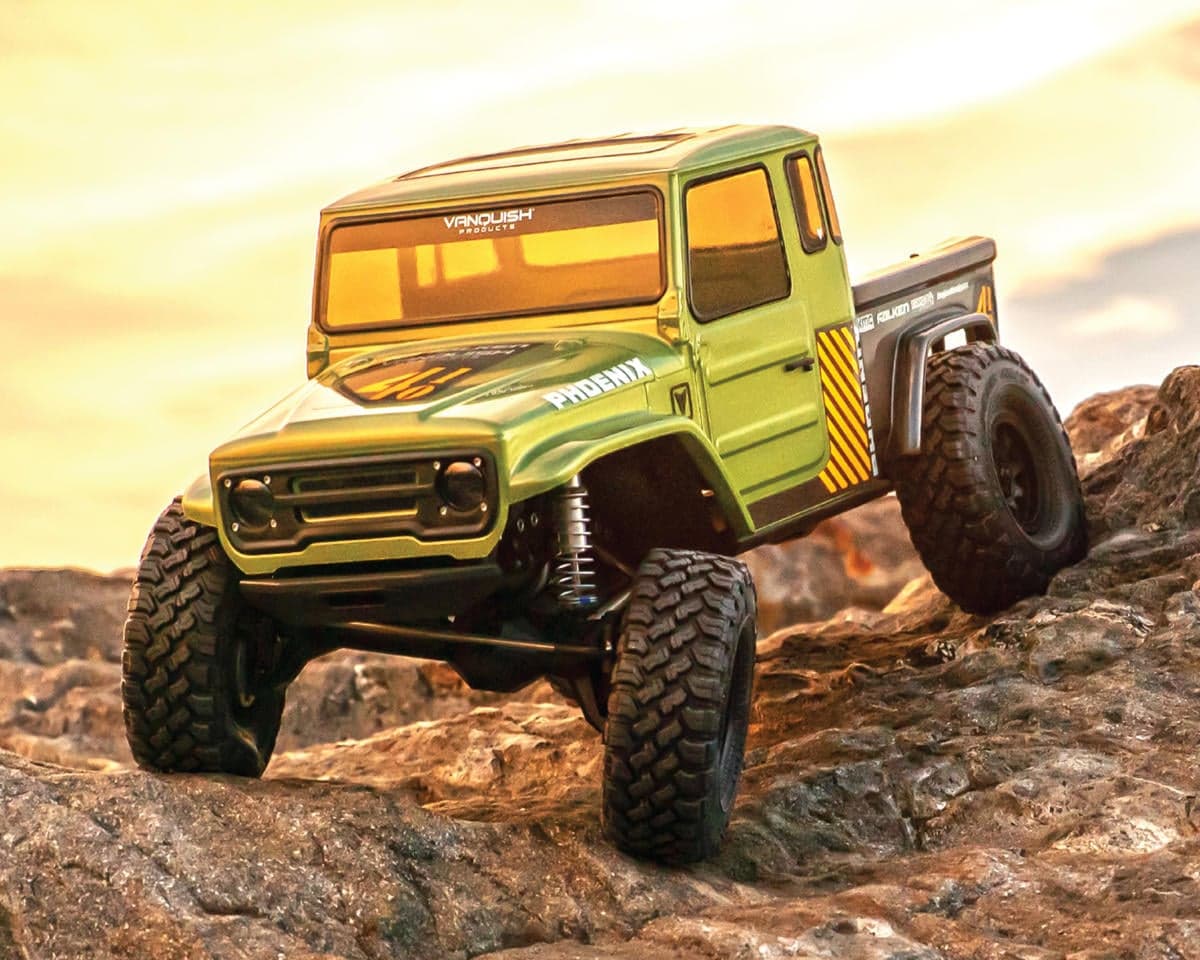

Vanquish Products VS4-10 Phoenix Portal 1/10 RTR Brushed Rock Crawler w/2.4GHz Radio
About this part
High-Performance Rock Crawler with Advanced Features
The Vanquish VS4-10 Phoenix Portal 1/10 RTR Brushed Rock Crawler combines classic off-road truck styling with cutting-edge engineering. Designed for those who demand performance and durability, the Phoenix Portal RTR is built to handle rugged trails and rocky terrain with confidence. With high-quality components throughout and a carefully thought-out design, it delivers both scale realism and unmatched capability. Whether you're a seasoned crawler or just getting started, this rig is built to impress.
About the VS4-10 Phoenix Portal RTR Crawler
Advanced Electronics

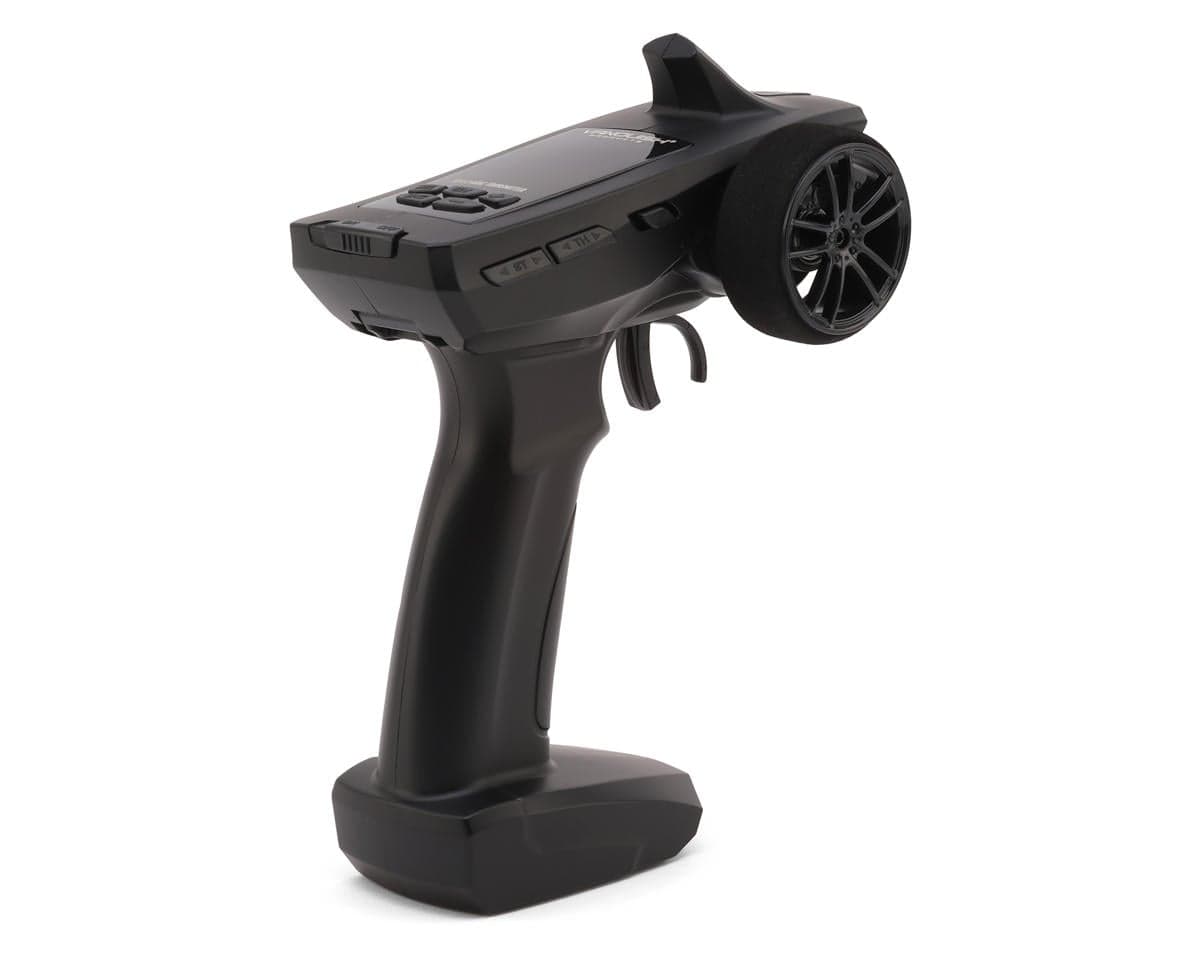

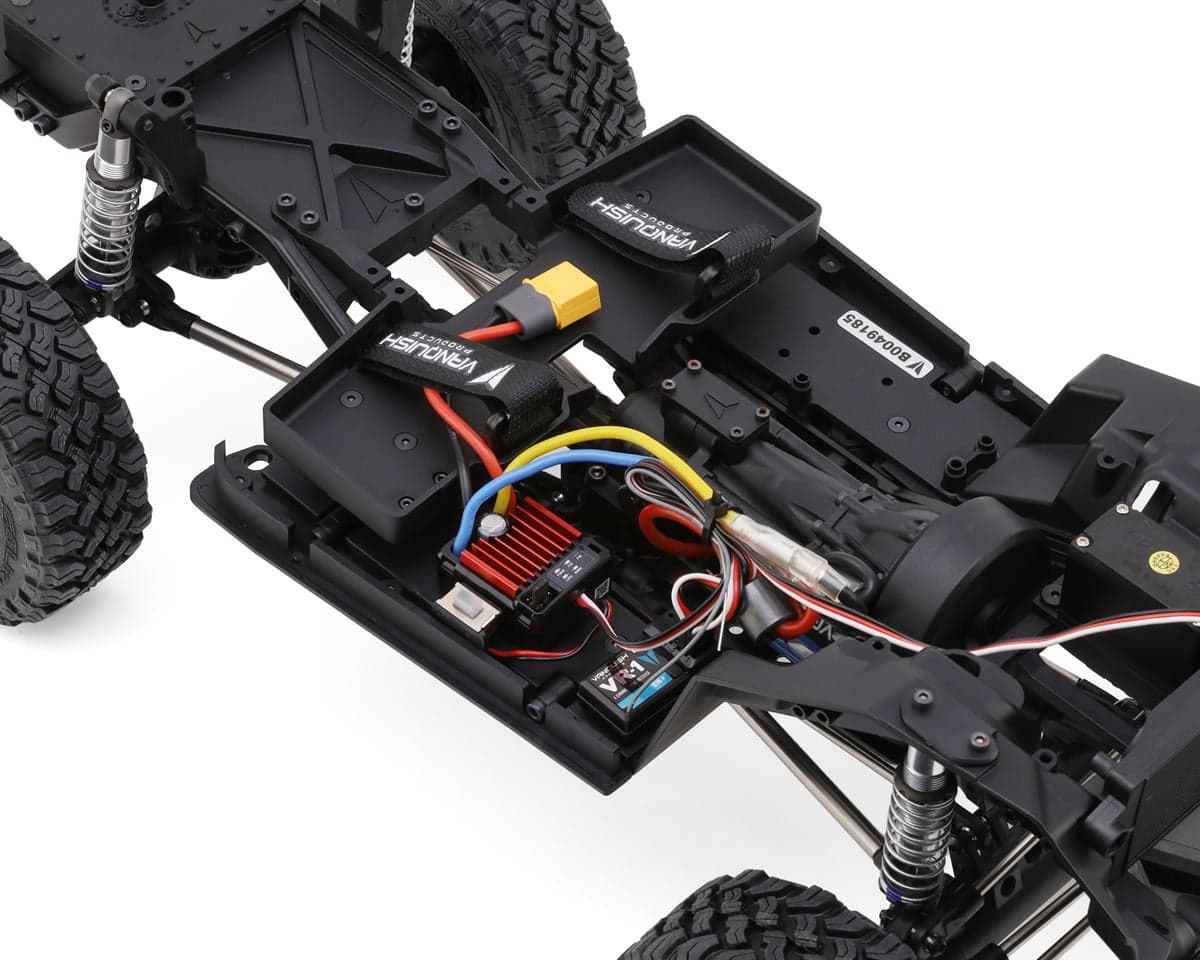

The VS4-10 Phoenix is equipped with an impressive electronics package tailored for performance and expandability. At its core is the 35T VM-1 Brushed Motor, optimized to deliver strong torque for technical crawling while retaining enough wheel speed for trail driving. Power is managed by the 3S-capable VE-1 ESC, based on the proven Hobbywing 1060 platform, and factory-tuned with adjustable drag brake and LiPo cutoff settings. The VS-1 metal gear servo offers two hundred ounces per inch of torque and is water-resistant, ensuring reliable steering under tough conditions. Control is provided by the VT-1 Digital Four-Channel Transmitter, which includes model memory, multi-position switches, endpoint adjustments, and supports add-ons like a winch or dig unit for even more capability.
Rugged Body & Scale Details

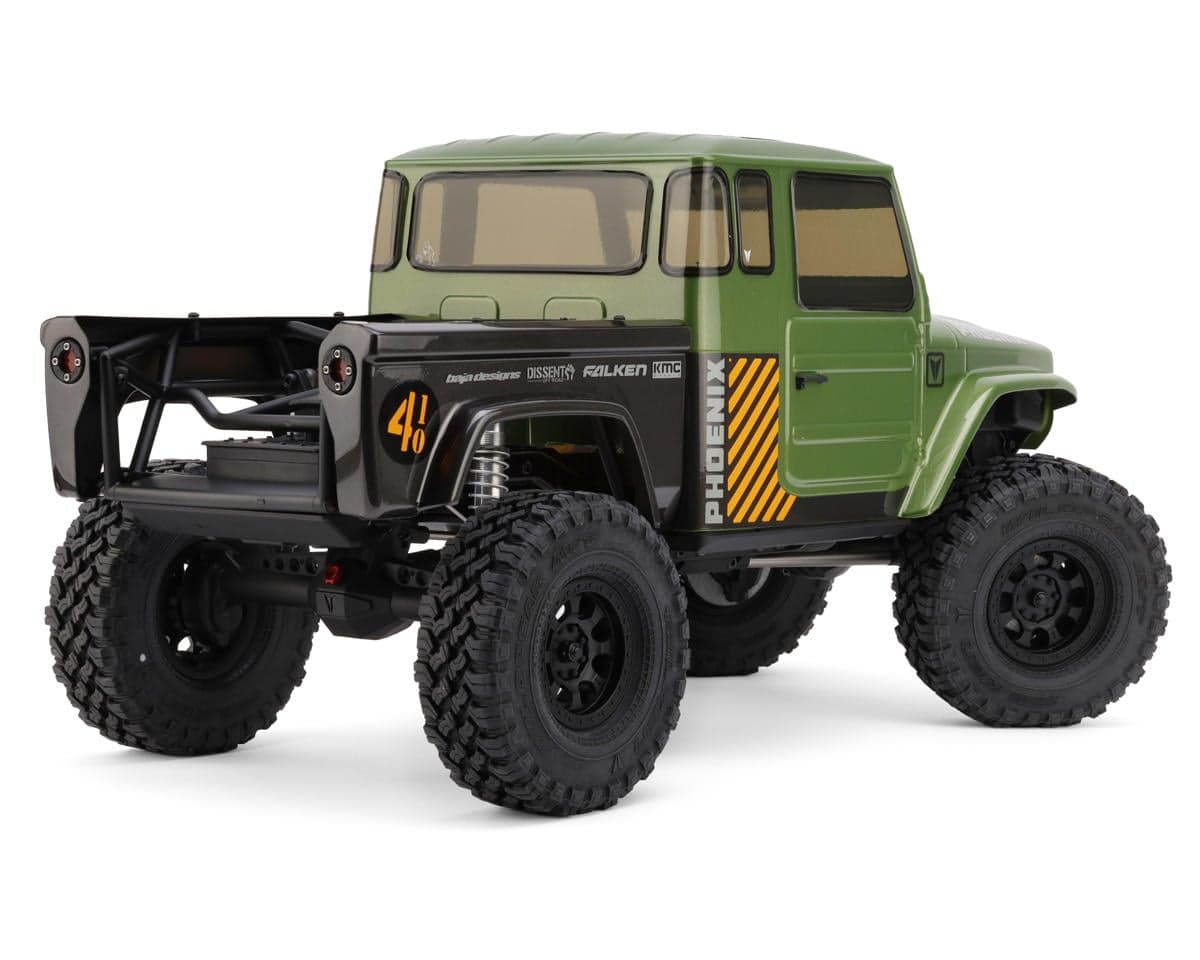

The Phoenix features a bold pre-painted body with a VRD1 rear cage, painted cab and bedsides, and a three-piece design with scale details like molded grill, headlight and tail light buckets, and hidden body clips. A hinged mounting system with a quick-release front pivot pin makes body access simple and clean. The molded rock sliders and high-clearance bumpers not only look great but improve approach and departure angles for serious crawling. Underneath, the 1.9 Falken Wildpeak M/T tires provide excellent grip in a variety of terrain, while the Incision KMC KM237 Hex Beadlock wheels offer scale realism and secure tire mounting for consistent performance.
Transmission & Suspension

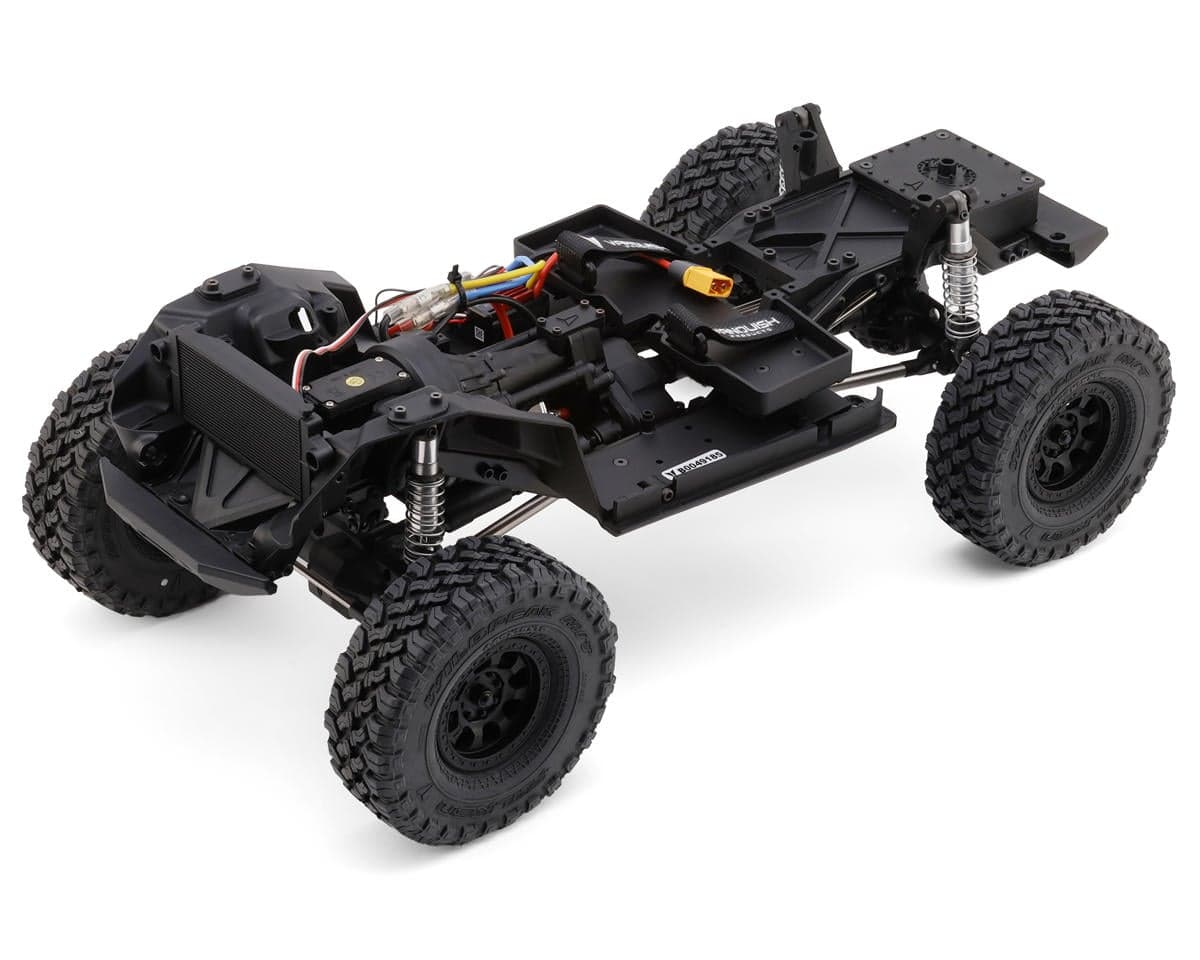

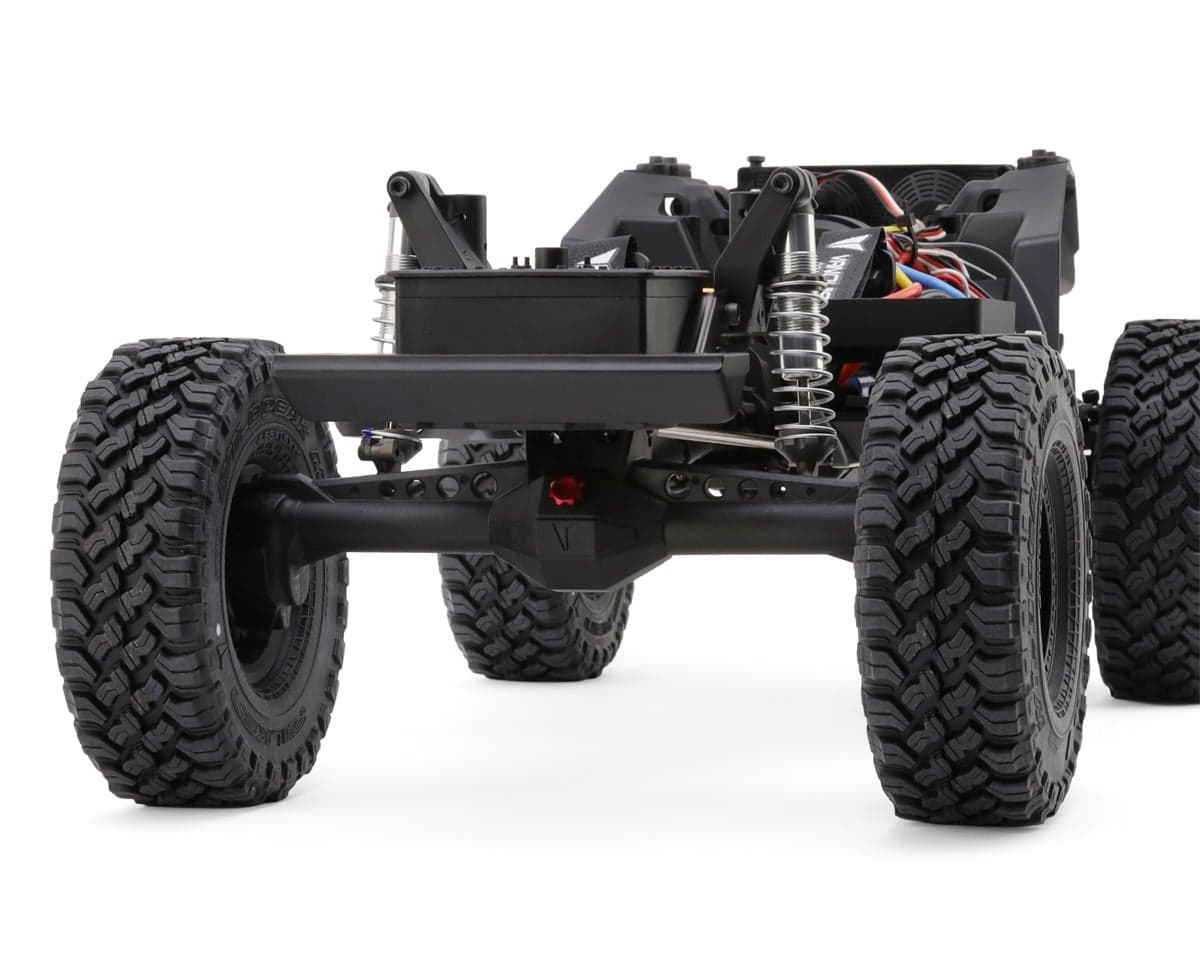

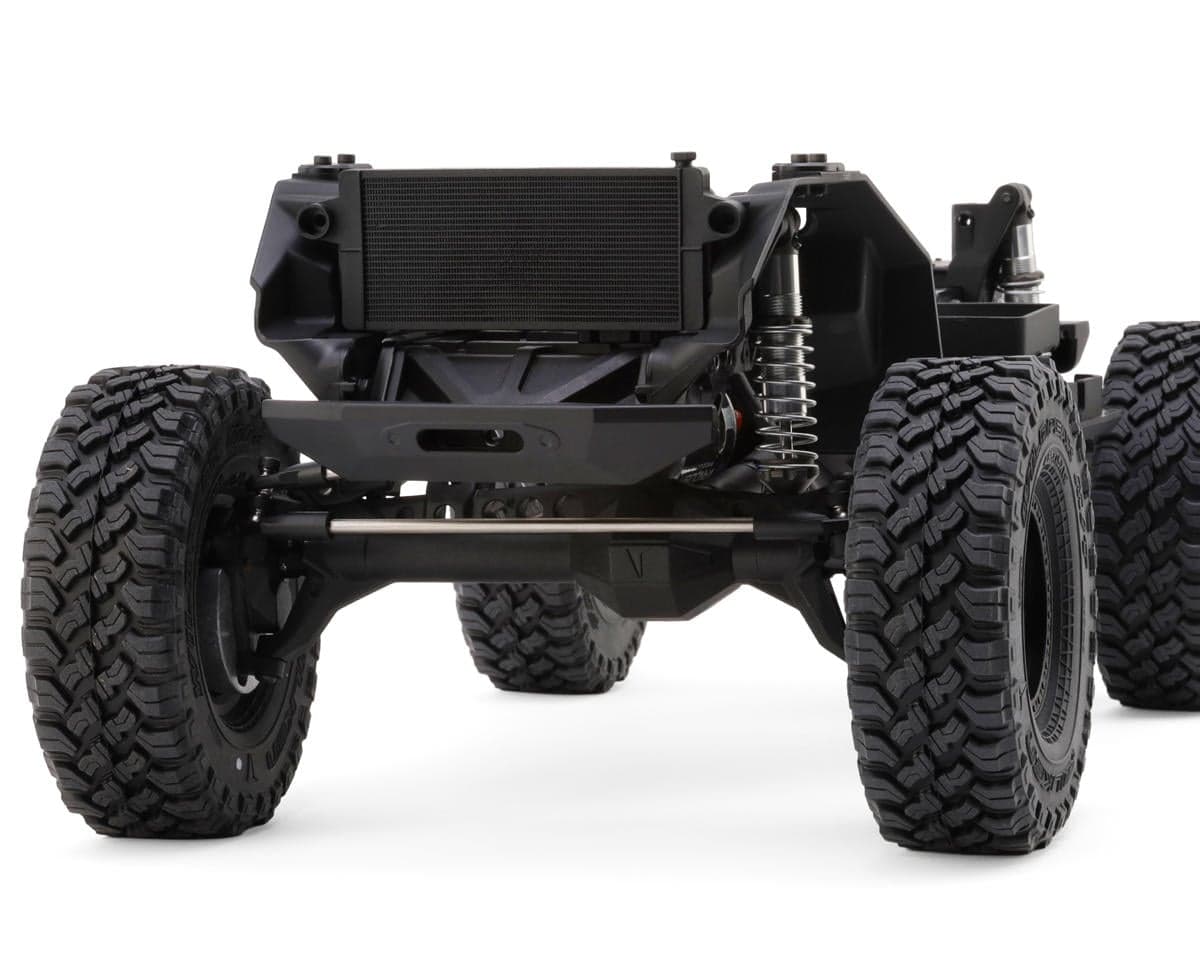

At the heart of the Phoenix's drivetrain is the VFD Spec transmission, which includes 6.5% overdrive for better climbing and tighter turns. It places the motor low and forward for ideal weight balance and is built with wide metal gears for long-lasting strength. The molded F10 Portal Axles include chromoly universal axle shafts with forty-nine degrees of steering, brass reinforcement tubes for added strength and low center-of-gravity weight, and machined gears throughout. The ISD10 driveshafts connect the system with machined CV joints and molded splined shafts for smooth articulation. The eighty-millimeter S8E shocks with dual O-ring cartridges and sealed upper bleeder screws provide consistent dampening, while the stainless steel suspension links and machined aluminum panhard mount ensure trail-ready durability.
Features:
- 6.5% overdrive built into the VFD Spec transmission
- Forward-mounted motor for improved weight distribution
- Chromoly universal axle shafts with 49° steering angle
- Brass inner axle tube reinforcements for added strength and low center of gravity
- Full metal internal transmission gears for durability under load
- High-pinion hypoid machined gear design for improved gear mesh and clearance
- CV-style driveshaft joints for smooth articulation and reduced torque twist
- Hidden body clip system with quick-access hinged front design
- High-clearance bumpers and rock sliders to maximize obstacle clearance
- Double shear shock mounts for increased suspension strength and stability
Includes:
- (1) VS4-10 Phoenix Portal 1/10 RTR Brushed Rock Crawler
- (1) Pre-Installed 3S Capable VE-1 ESC w/XT60 Connector
- (1) Pre-Installed VM-1 35T Brushed Motor
- (1) Pre-Installed VS-1 Metal Gear Servo
- (1) VT-1 4-Channel Transmitter
- Product Manual
Needed To Complete:
- (1) 2-3S LiPo or 6-Cell NiMH Battery w/XT60 Connector
- (1) Compatible Battery Charger

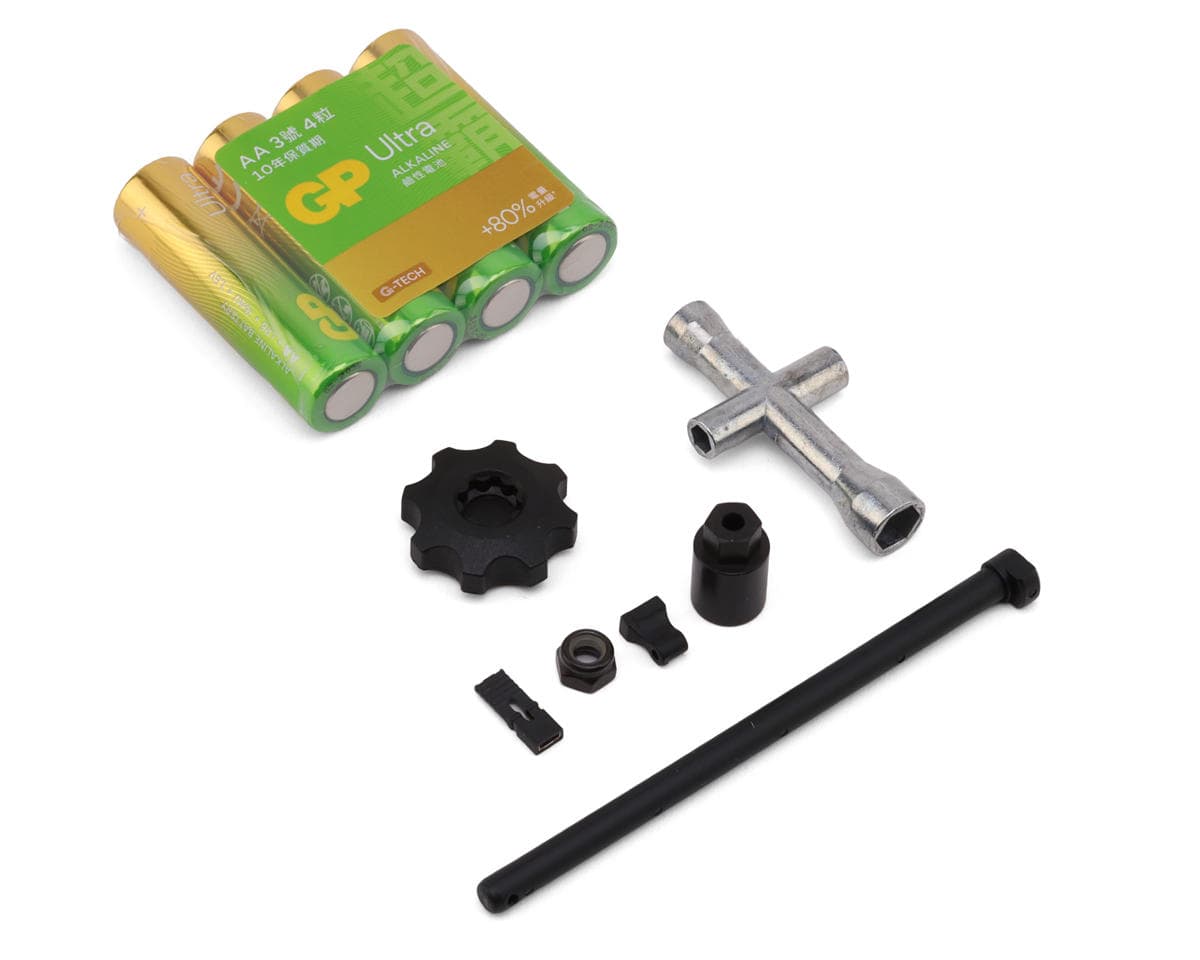

- (4) AA Batteries for Transmitter
Specifications:
| Scale | 1:10 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Power Source | 2S-3S LiPo (7.4-11.1V) | ||||||||
| Length | - | ||||||||
| Wheelbase | 12.32in (313mm) | ||||||||
| Width | 9.84in (250mm) | ||||||||
| Height | 9.84in (250mm) | ||||||||
| Weight | 95.24oz (2700g) | ||||||||
Electronics
|
|||||||||
Wheels
|
|||||||||
Tires
|
|||||||||
| Assembly Level | RTR* | ||||||||
*Tech Note: Ready-to-Run models come equipped with all electronics and include the transmitter needed for use. Please check the "Needed To Complete" above to make sure you have everything you need to get out and enjoy your RC model.
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.8 · 9 reviews
Excellent trail truck...with one hiccup. First off, the out-of-the-box quality is superb. Vanquish products just hit differently. Unfortunately, when I first tried to fire this thing up, the electronics went haywire. The transmitter seemed to be quite glitchy and the truck was un-runnable. I immediately did some trouble shooting by putting the ESC on another transmitter/esc and found the ESC to be functioning properly. That meant it was either the receiver or transmitter creating the problem. I called AMain and they were super helpful and sent me another receiver. Unfortunately this didn't solve the problem. So knowing the receiver and esc were good, I called AMain again and just like before they were very helpful and sent me out a new 3rd party transmitter free of charge (The Vanquish transmitter was out of stock) So this is a 5 star review for AMain as much as it is for the truck. Now the fun part. I put my Redcat electronics in the VS4-10 and got to run it at one of my favorite local spots. And, wow, this thing crushes lines. Such a predictable and planted feel. Runs quiet and smooth and looks good doing it. Assuming you get electronics that work, this truck is the best bang for your buck.
Beautiful rig BUT… ESC failed within a couple minutes of running. Lost forward direction and reverse is jumpy. My H10 Optic has been flawless.
Best RTR scale crawler in the market! Awesome quality, well built product. Piece of art!
What a great truck. My 5th Vanquish crawler, A Main has great customer service, fast shipping and at times when I needed it support on products. Have many brands but Vanquish is such a great product whether it is a RTR or a build kit, everything fits so well. Have not broken anything on this truck and it has tumbled down some big slopes so far. Thank you A Main
great rig this was my 3rd Vanquish i have bought need some up grade but out the box being a rtr it a great rig
Reviewers consistently praise the out-of-the-box build quality, fit and finish, and the thoughtful design of the chassis, with several noting it is a fun, well-made RTR crawler. Customer service from the seller is mentioned favourably. The main recurring problem is electronics: one verified owner reported glitchy transmitter and receiver behaviour, with replacement parts not resolving it, and another reported the ESC failing within minutes of running. A reviewer also noted that the plastic motor mount plate can deform when cap screws are tightened. Most reviews are short and positive, and the electronic faults appear in two of nine reviews.
- + Excellent out-of-the-box build quality
- + Thoughtful design and easy servo and transmission access
- + Good customer service and fast shipping
- + Fun to drive and attractive appearance
- − Electronics failures reported (transmitter, receiver or ESC)
- − ESC failed within minutes for one owner
- − Plastic motor mount plate can deform under cap screws
- − Upgrades needed for some owners
