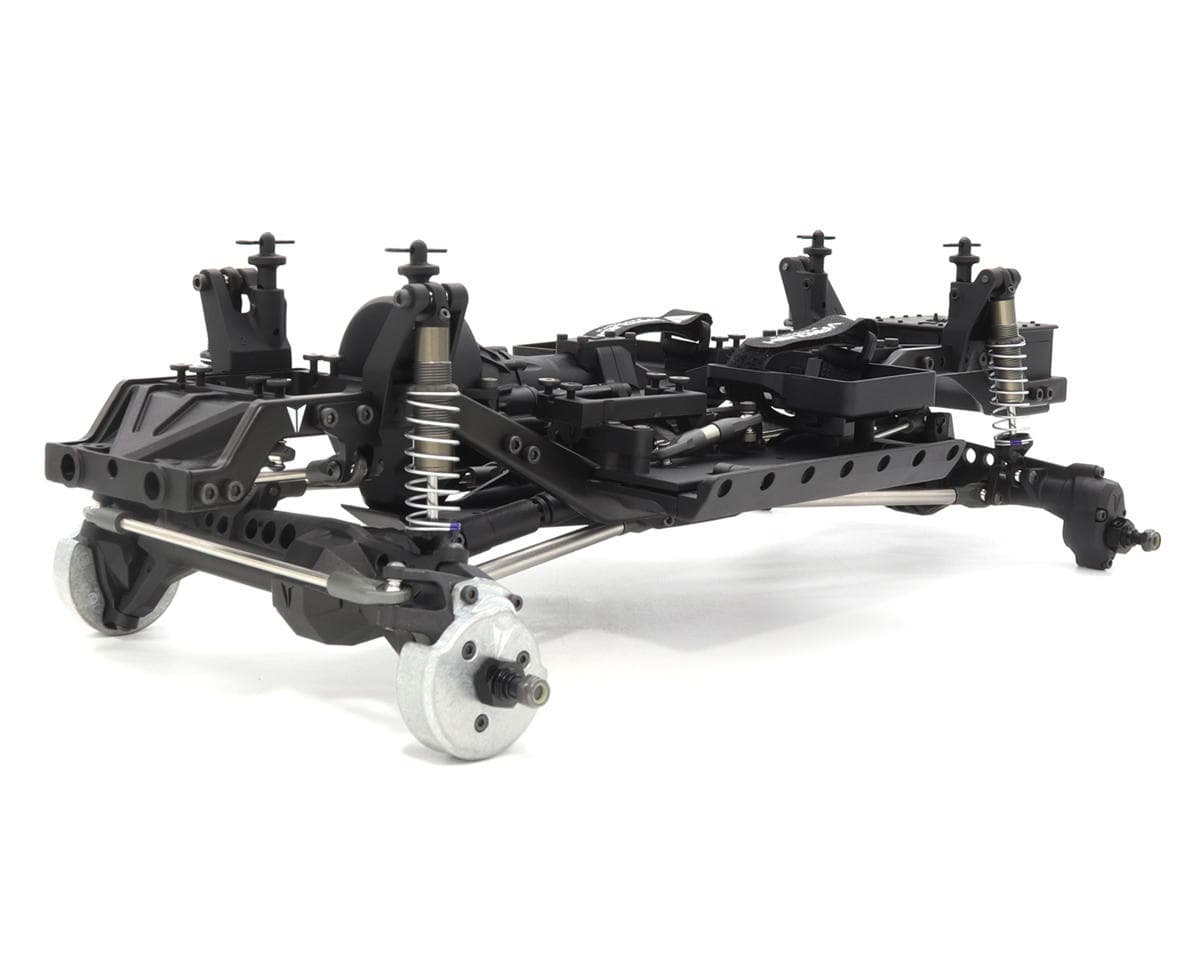

Vanquish Products VS4-10 Portal Axle 4x4 1/10 Rock Crawler Builders Kit
About this part
Supreme RC Scaler with Unmatched Performance & Durability
The Vanquish Products VS4-10 Portal Axle Builders Kit is the ultimate foundation for crafting a high-performance 1/10 rock crawler. Designed for extreme terrain, this kit combines cutting-edge drivetrain technology, precision engineering, and rugged durability to deliver unmatched control, clearance, and capability. Whether you're tackling technical trails or pushing the limits of scale crawling, the VS4-10 sets a higher benchmark in performance and customization!
About the VS4-10 Portal Kit

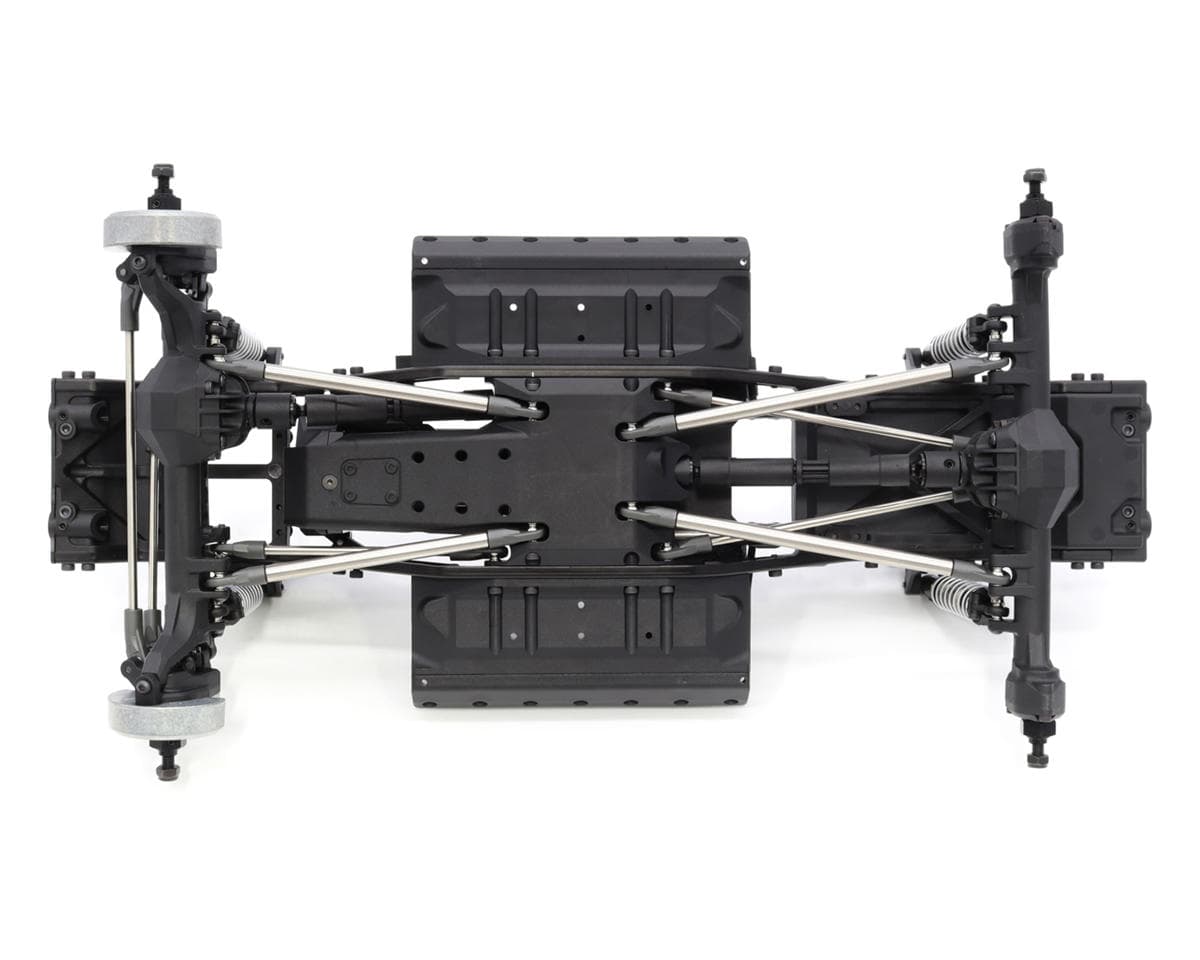

Chassis
The VS4-10 Chassis blends scale realism with high-performance durability, utilizing a heavy-duty steel C-channel frame that provides exceptional rigidity and strength. Designed to endure extreme terrain challenges, it maintains accurate scale proportions while ensuring an optimal weight balance for superior handling. The molded front and rear cross members reinforce key stress points while also incorporating dual servo mounting locations, integrated winch line routing, and a detailed scale fuel cell. Molded rock sliders with replaceable outer sections allow easy adaptability for various body widths while adding a layer of protection against obstacles. Additionally, the machined aluminum panhard mount ensures precise and reliable steering geometry, while the molded shock towers secure the 80mm Incision S8E shocks in a sturdy double shear configuration, enhancing durability under extreme driving conditions.

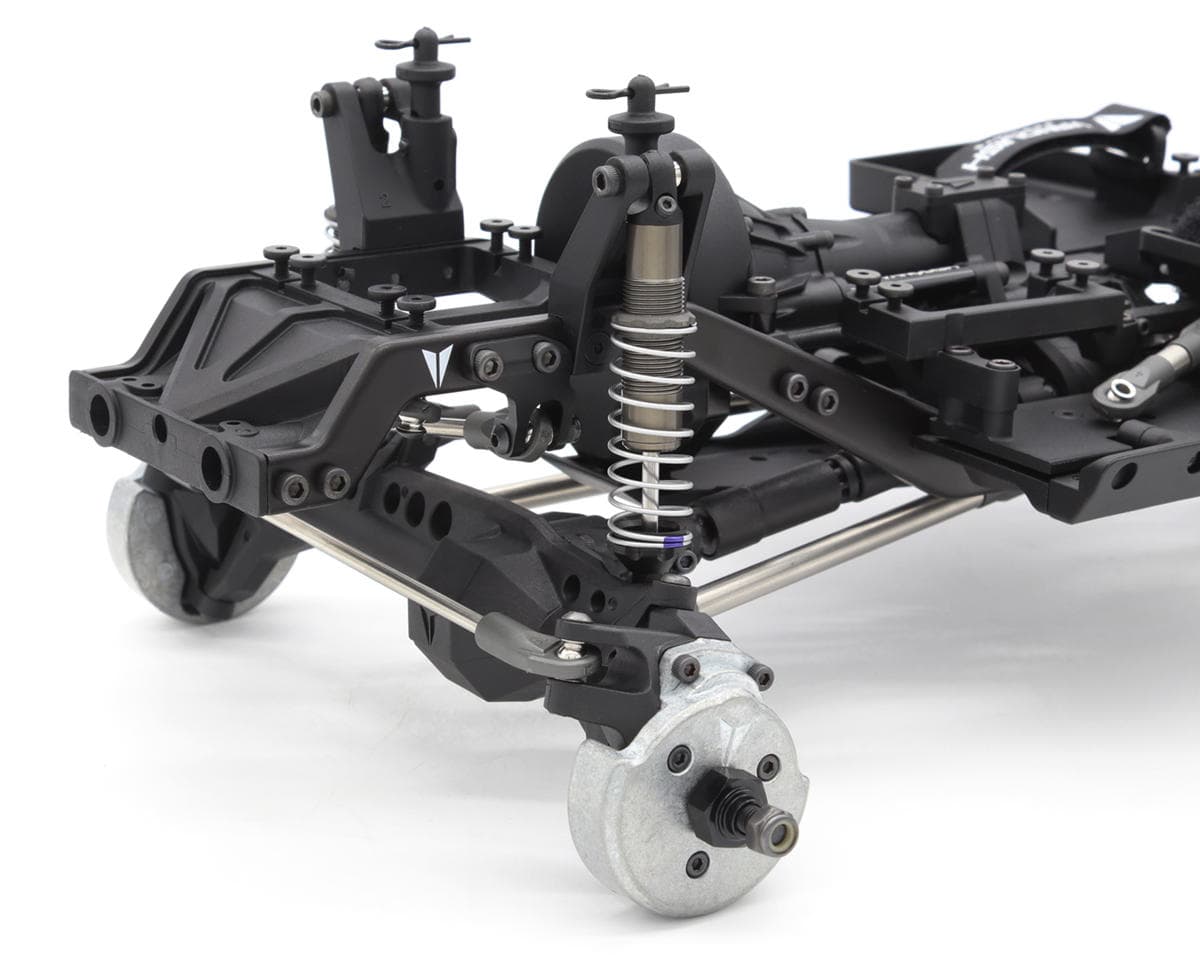

F10 Portal Axles
The F10 Portal Axles set a higher standard in durability, clearance, and smooth power delivery, leveraging Vanquish Products’ expertise in high-performance axle design. These axles are engineered for extreme off-road capability with a high-clearance portal configuration that reduces the differential housing size while maximizing ground clearance around the C-hubs and knuckles. This design minimizes hang-ups on obstacles, improving overall traction and control in technical terrain. The rigid one-piece molded housings integrate an axle truss, reinforcing structural integrity while reducing flex.
Internally, machined hypoid gears provide improved gear engagement, reduced driveline stress, and smoother power transfer. The inclusion of brass axle tube inserts and heavy alloy portal knuckle weights lowers the center of gravity for enhanced climbing stability. With a 49° steering angle, these axles deliver exceptional maneuverability, allowing for precise handling in the most challenging conditions.

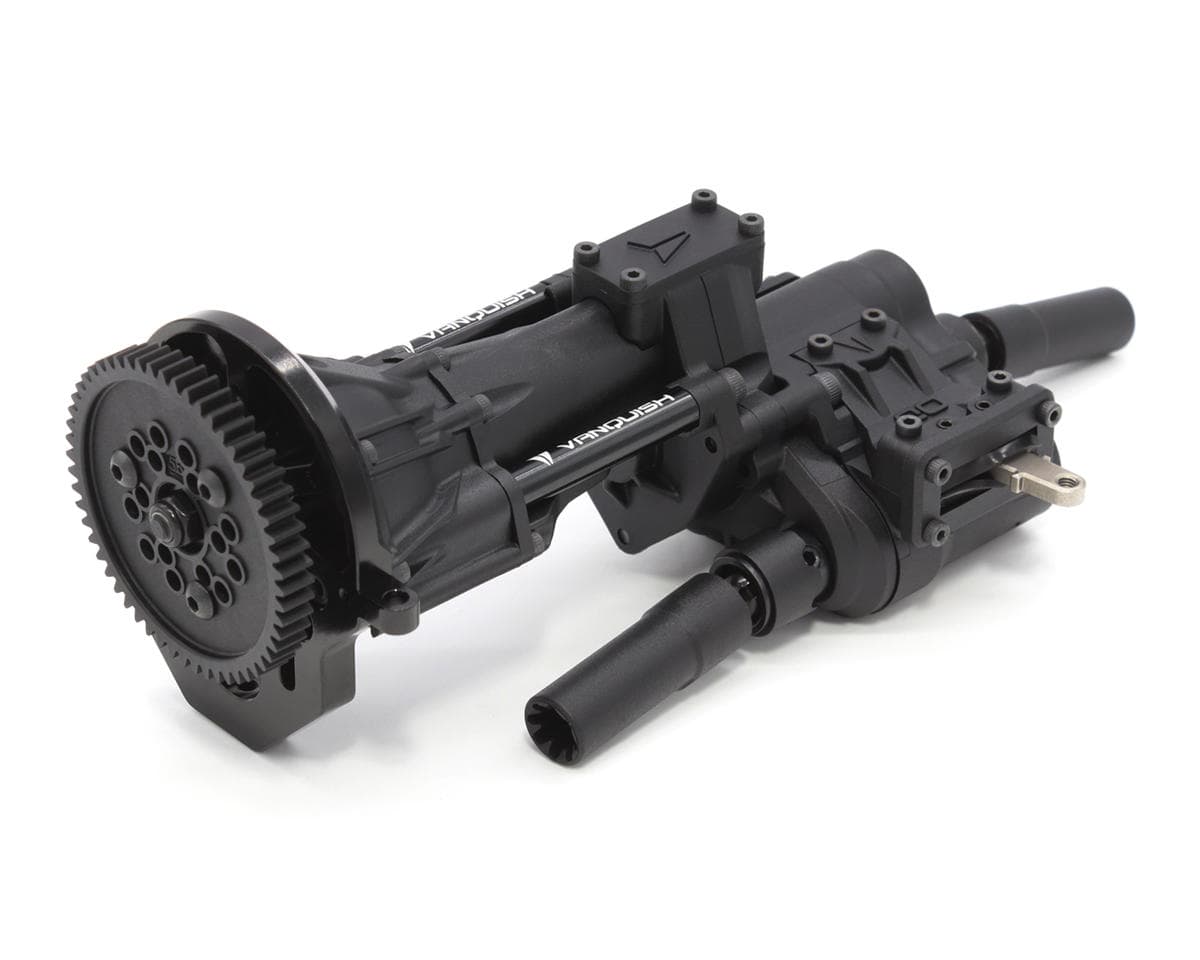

VFD Twin Transmission
At the core of the VS4-10 Portal Axle Builders Kit lies the revolutionary VFD Twin Transmission, a next-generation drivetrain system engineered for ultimate control, durability, and efficiency. This transmission features Selectable Overdrive Shifting, allowing drivers to toggle between 6.5% standard overdrive and a high 46% overdrive, dramatically altering the vehicle’s driving dynamics.
This system enables sharper turns and increased front-wheel speed for improved climbing performance. Additionally, the 3-position dig unit enhances maneuverability by enabling rear-axle locking, allowing for tight turns and controlled descents on steep inclines. Built for extreme durability, the VFD Twin incorporates machined internal gears, hardened chromoly shafts, and reinforced metal bearing plates, ensuring long-lasting performance under high stress.
A machined aluminum motor plate and VFD posts provide a stable foundation, while the slipper eliminator ensures maximum power transfer with minimal loss. Further enhancing scale realism, the VFD Twin features a molded transmission housing, an extended skid plate for motor protection, and silicone dust shields to guard against debris. Whether navigating treacherous rock formations or high-speed trails, the VFD Twin Transmission offers an unparalleled level of control and adaptability, making it a game-changer in the world of RC rock crawling.
Suspension
The VS4-10’s suspension system is engineered for maximum articulation, stability, and precision. Outfitted with Incision 80mm S8E shocks, this suspension setup provides smooth travel with hard-anodized aluminum threaded bodies, dual X-ring seals, locking preload collars, polished steel shock shafts, and machined pistons for precise damping characteristics. The 3-link front suspension with a panhard bar ensures proper geometry while maintaining a scale-accurate hidden servo setup. Meanwhile, the triangulated rear suspension enhances stability, allowing for controlled movement over unpredictable terrain. Combined with stainless steel links and pivot balls, the VS4-10’s suspension delivers durability, flexibility, and predictability, ensuring consistent handling across the toughest off-road challenges.
Features:
- Extremely durable all CNC-machined gears
- F10 Portal Axles provides high ground clearance and smooth, efficient power transfer
- VFD Twin with selectable overdrive (6.5% or 46%) and a 3-position dig for ultimate control
- Buttery smooth hard-anodized aluminum Incision S8E shocks
- Steel C-Channel Chassis
- SD10 Driveshafts with machined CV-style
- Heavy alloy knuckle weights
- Dual servo mounts support different steering and winch setups
- Heavy-duty steel links and & aluminum motor plate
- CMS (Chassis Mounted Servo) for scale realistic appearance
Includes:
- VS4-10 Portal Axle 4x4 1/10 Rock Crawler Builders Kit
- Threadlock
- Grease
- 30wt Shock Oil
- 7mm to 8mm thin wall wheel nut adapter tool
- Manual
Needed To Complete:
- (1) 3+ Channels Transmitter/Receiver system
- (1) Compatible steering servo (Included is a 25T spline Servo Horn)
- (1) ESC (Electronic Speed Controller)
- (1) 540 size motor
- (1) 2-4S (7.4-22.2V) LiPo Battery
- (4) 1.9" Wheels & Tires
- (1) 2-4S (7.4V - 22.2V) LiPo Battery
- (1) Compatible battery charger
- (1) 1/10 Rock Crawler Body (12.3")
- Paint for Body
- Tools for Assembly
Specifications:
| Scale | 1:10 |
|---|---|
| Drive | 4WD |
| Power Source | 2S-4S LiPo |
| Length | - |
| Wheelbase | 12.32in (313mm) |
| Width | 7.87 (200mm) |
| Height | - |
| Weight | - |
| Assembly Level | Kit |
*NOTE: RC Kits are an unassembled Remote Control Model that require assembly, racer selected electronics, and other racer provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.7 · 6 reviews
I love this kit. It is a great build but I am only giving it three stars for for 3 reasons. 1, the kit gives you everything you need but very little else. This generally isn't an issue, but a few extra e-clips would be appreciated as they like to shoot off to gods nowhere. They do give you 1 extra of each size but come on, the 3 extra cents it would likely cost to include 2-3 extra would be worth it. 2, the directions are great when trying to figure out where certain bearings are going. The manual should be a little clearer about metal vs rubber sealed bearings as well as sizes should be true to scale. And 3, the shocks suck out of the box. They pretty much barfed up all their oil on the first run. Reached out to Vanquish about this, I will update if I hear anything good back. Otherwise, stellar kit. Would be 5 stars with some very minor changes.
Excellent RC, very fast app delivery ? App Muy bien
The kit I ordered arrived and when I opened the factory seal and examined the contents I realized that it was a problem. It was not what was shown on the box and even had a loose LiPo battery with it. Plus there was no instructions to build with. I contacted AMain and they immediately handled the issue and sent me email return instructions. They air overnight shipped me the correct kit. They are awesome to work with and go out of their way to help you if you have questions or concerns about your purchase. I highly recommend using their company for hobby products.
Built a few kits over the years but this is the NICEST I have assembled to date. The build took me a little while but had to periodically purchase parts when I was able. The finished model exceeded my expectations. It is an extremely capable trail rig that looks good too. Purchased the Phoenix body and was able to set it up using a 7inch figure for a scale driver. Puts a smile on my face every time it’s trailing - whether over rocks, through mud, or just cruising on some hero dirt.
I have one word for this “Awesome”. The engineering Vanquish puts in there kits is second to none. There directions are very easy to follow & very well detailed. Amain hobbies always does a great job getting my kits & parts to me quickly & efficiently.
Reviewers largely praise the VS4-10 Portal Axle 4x4 kit for its build quality, engineering and performance on the trail, with several describing the assembly as enjoyable and the finished model as highly capable. One reviewer reports a mis-packed kit that the seller replaced promptly via an overnight shipment. The main recurring criticisms come from a single 3-star review, which notes few spare e-clips, instructions that could be clearer on bearing types and scale, and shocks that leaked oil out of the box. Several reviews are brief and do not discuss specific details. One reviewer mentions using a Phoenix body with the kit.
- + Capable trail performance
- + Well-engineered build quality
- + Enjoyable assembly
- + Clear, detailed instructions (per most reviewers)
- − Few spare e-clips included
- − Bearing type and scale diagrams could be clearer
- − Shocks leaked oil out of the box
- − Kit once arrived with incorrect contents
