Parts/Electric power/Brushless motors/Whitz Racing Products HyperMod Modified Sensored Brushless Motor (6.0T)
Whitz Racing Products

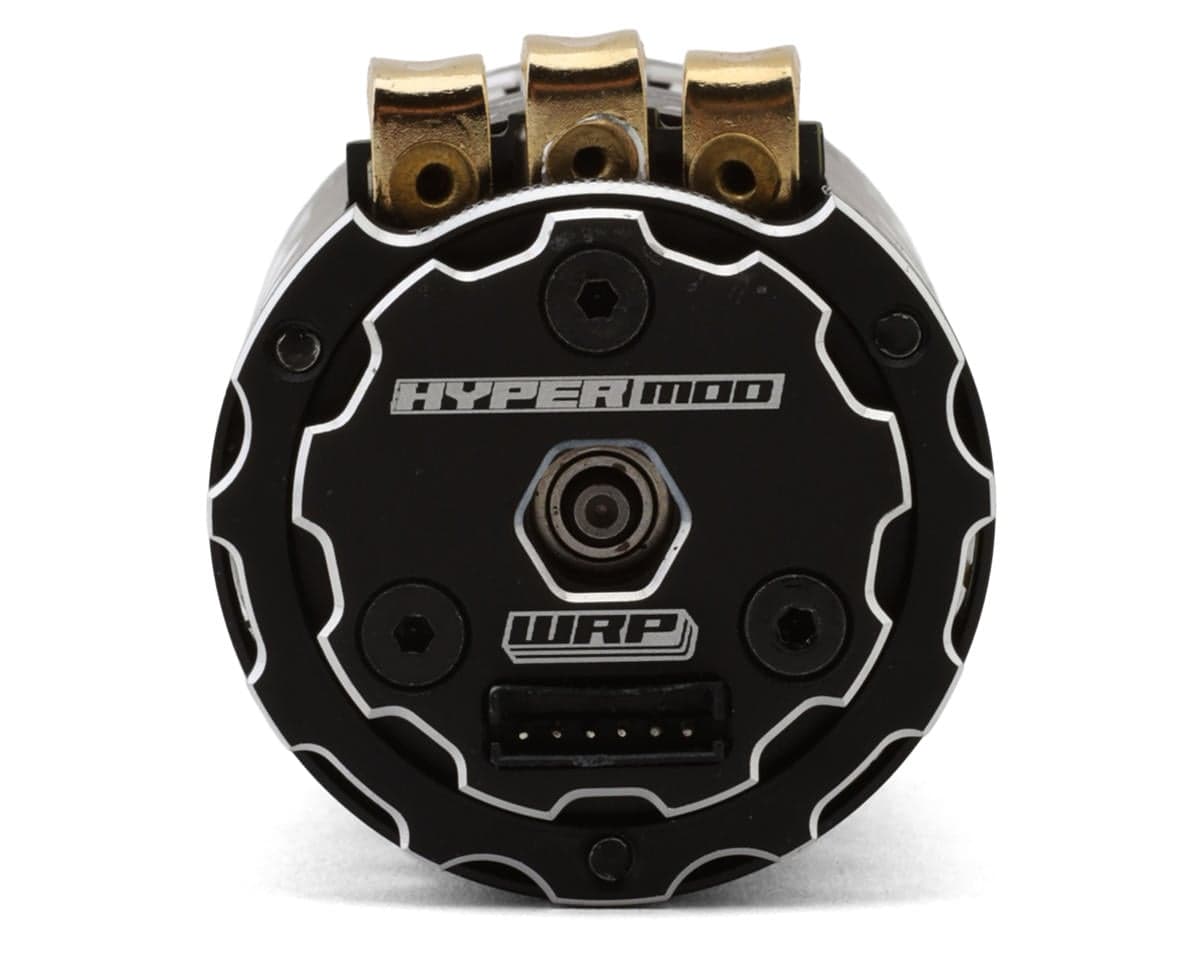

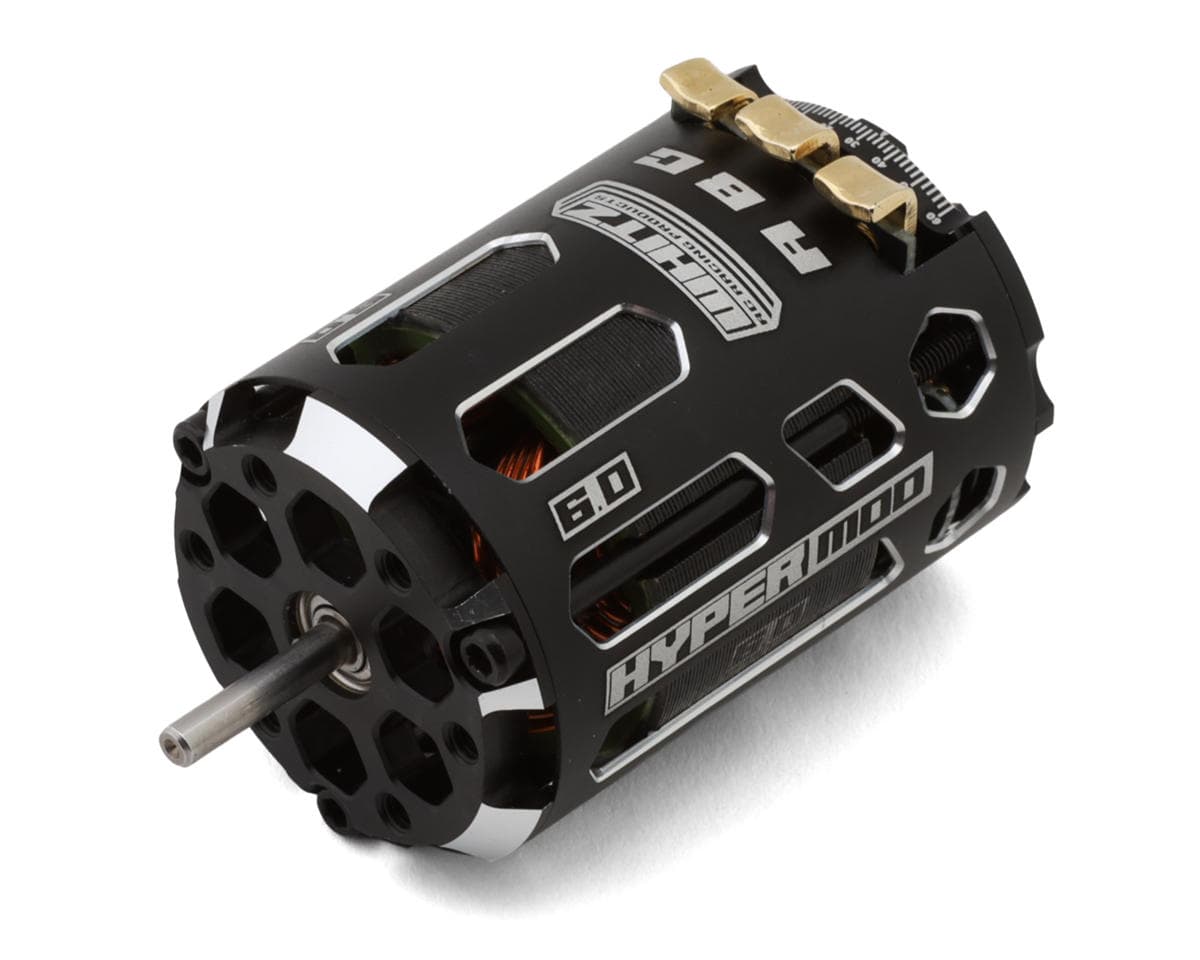

Whitz Racing Products HyperMod Modified Sensored Brushless Motor (6.0T)
Part # WRP-HM-60
Where to buy
$110.00
Prices are as last seen at the store; stock is not tracked.
About this part
Motor Overview:
Unleash serious modified-class performance with the Whitz Racing Products HyperMod Sensored Brushless Motor, engineered for strong torque, maximum power, and efficient cooling. Its precision-built design delivers smooth, consistent power when performance matters most.
About the HyperMod Modified Sensored Brushless Motor
Advanced Modified Performance
The Whitz Racing Products HyperMod Modified Sensored Brushless Motor combines strong torque, high power, and efficient cooling in a precision CNC-machined T6 aluminum can. High-purity copper windings, an updated stator coating, precision-mounted sensors, HyperGlide ball bearings, adjustable timing, and dual sensor ports deliver smooth, consistent performance while minimizing resistance and managing heat during both short and long runs.
Features:
- CNC-machined T6 aluminum motor can
- Improved stator coating dissipates heat efficiently
- Precision-mounted sensors optimize KV and RPM
- High-purity copper windings maximize power delivery
- HyperGlide ball bearings provide smooth operation
- Proprietary can design maximizes cooling
- Adjustable timing with dual sensor ports
- Copper-plated solder tabs provide reliable connections
Includes:
- (1) HyperMod Modified Sensored Brushless Motor (6.0T)

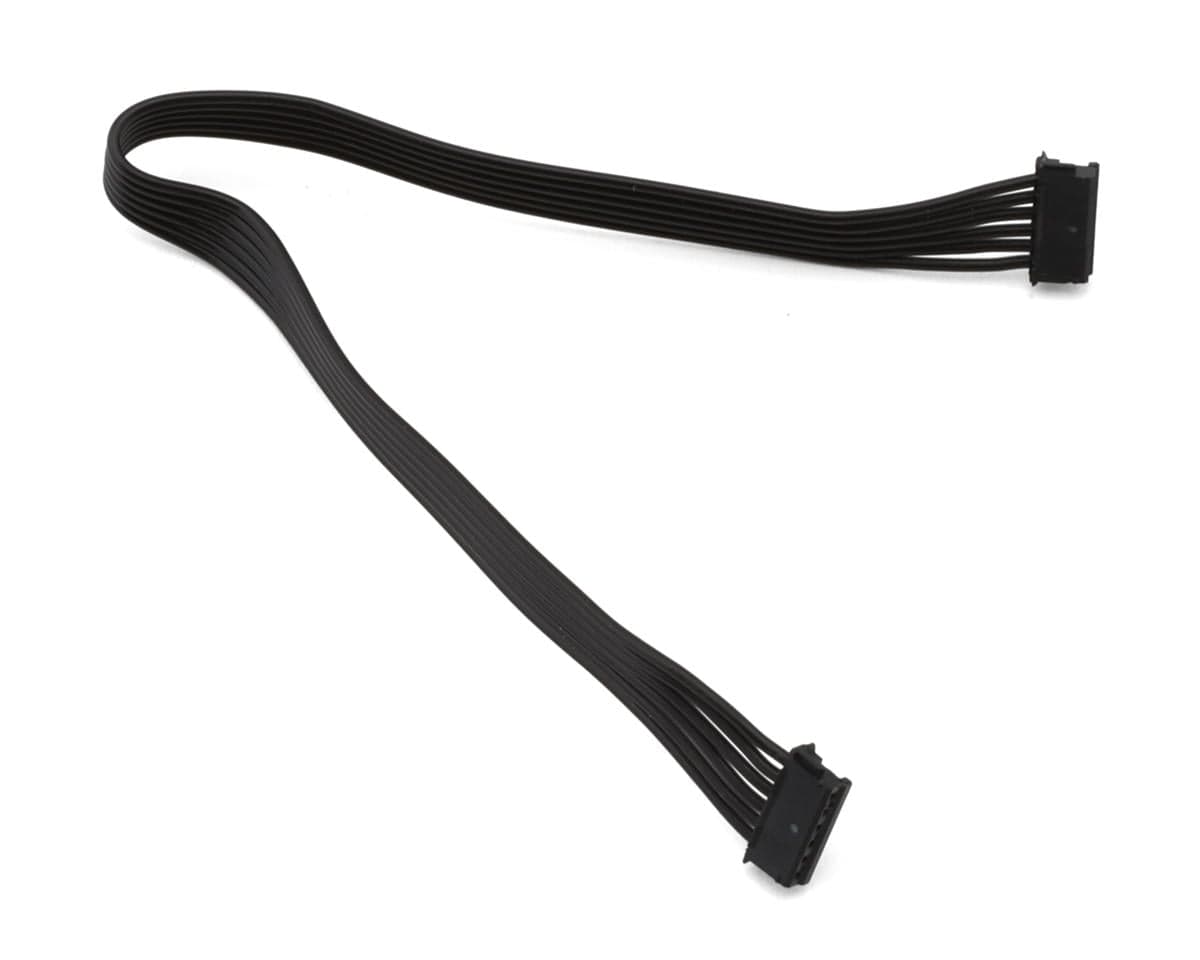

- (1) Sensor Cable
Specifications:
| Type | Brushless Sensored |
|---|---|
| Turns | 6.0T |
| Input Voltage | 1-2S |
| Pole/Slot | - |
| Max RPM | - |
| Motor Length | 2.05in (52.1mm) |
| Motor Diameter | 1.41in (35.8mm) |
| Shaft Diameter | 1/8in (3.175mm) |
| Weight | 5.71oz (162g) |
