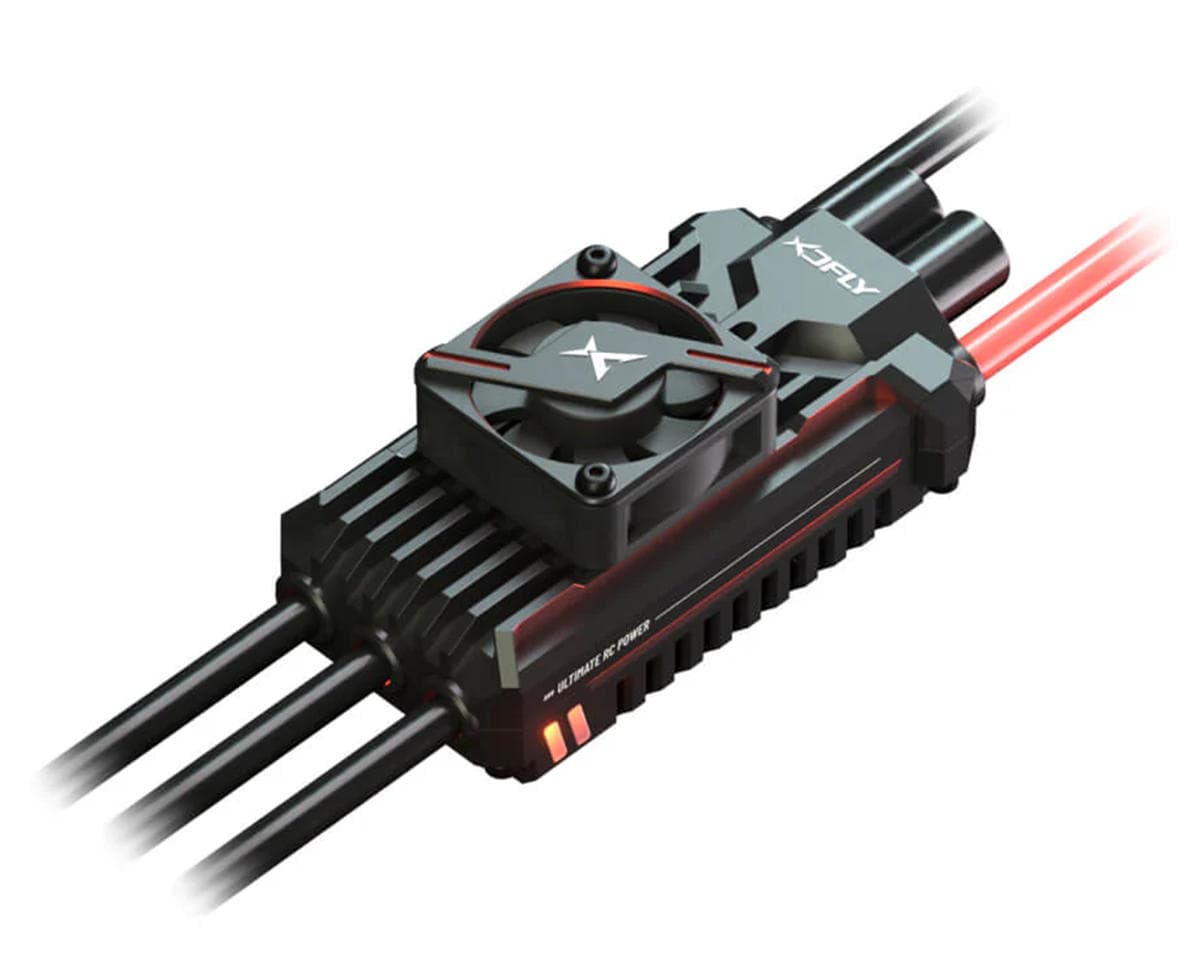

XDFly HPro 125A SBEC Brushless Aircraft ESC (3-8S LiPo)
About this part
ESC Overview:
The XDFly HPro 125A SBEC Brushless Aircraft ESC is a high-capacity, feature-rich speed controller designed for advanced RC pilots operating 500–550 class helicopters and F3A/F3C aircraft. Supporting 3S to 8S LiPo battery setups, this ESC delivers powerful, stable performance with a built-in adjustable 6–12V SBEC. Engineered for precision and durability, the HPro 125A combines smart telemetry, customizable features, and robust protection systems for peace of mind in high-demand environments. Whether you’re in the air with scale helis or performing aerobatics, this ESC offers unmatched control and responsiveness.
About the HPro ESC
Smart Control, High Current Handling, and Advanced Protection
At its core, the HPro 125A uses a high-performance 32-bit G4 processor running at 170MHz, delivering ultra-fast signal processing and precision throttle response. The ESC incorporates next-gen MOSFETs for reduced heat and improved current endurance, while a large heat-dissipating case and temperature-controlled fan ensure efficient cooling. A built-in self-check system verifies power and signal conditions at startup, and advanced features like a helicopter governor, stall landing protection, and multi-system telemetry support maximize flight stability. The ESC is also customizable via phone apps or transmitter interfaces and includes colorful LED status lights for intuitive monitoring. With its wide compatibility and multiple safety protocols, the HPro 125A is built for high-performance flight.
Features:
- 32-bit G4 processor with 170MHz operating speed
- Low-heat, high-endurance power MOSFETs
- Self-check startup diagnostics
- Large surface area case for heat dissipation
- Temperature-controlled smart cooling fan
- Adjustable helicopter governor function
- Configurable stall landing protection
- Mobile app and transmitter-based programming
- Telemetry support for major systems
- LED status lights with five color options
- Comprehensive protection features
Includes:
- (1) HPro 125A SBEC Brushless Aircraft ESC (3-6S LiPo)
Specifications:
| Suggested Application | Electric Helicopter or Fixed Wing |
|---|---|
| Motor Type | Brushless - Sensorless |
| Input Voltage | 3-8S LiPo (11.1-29.6V) |
| Continuous Current | 125A |
| Peak Current | 200A |
| Dimensions (LxWxH) | 3.54x1.7x0.99in (90x43x25mm) |
| Weight | 5.58oz (158g) |
| Motor Limits: | - |
| BEC Voltage | 6.0-12V Adjustable |
| BEC Continuous Current | 10A |
| BEC Peak Current | 35A |
| Motor Connector | Bare Wire |
| Battery Connector | Bare Wire |
| Motor Wire | - |
| Battery Wire | - |
| Throttle Wire | - |
| Programmable | Yes (XDFly Android&iOS APP/VBCT/E/RF2/Jeti) |
Note: Photos & Videos are provided by XDFly
