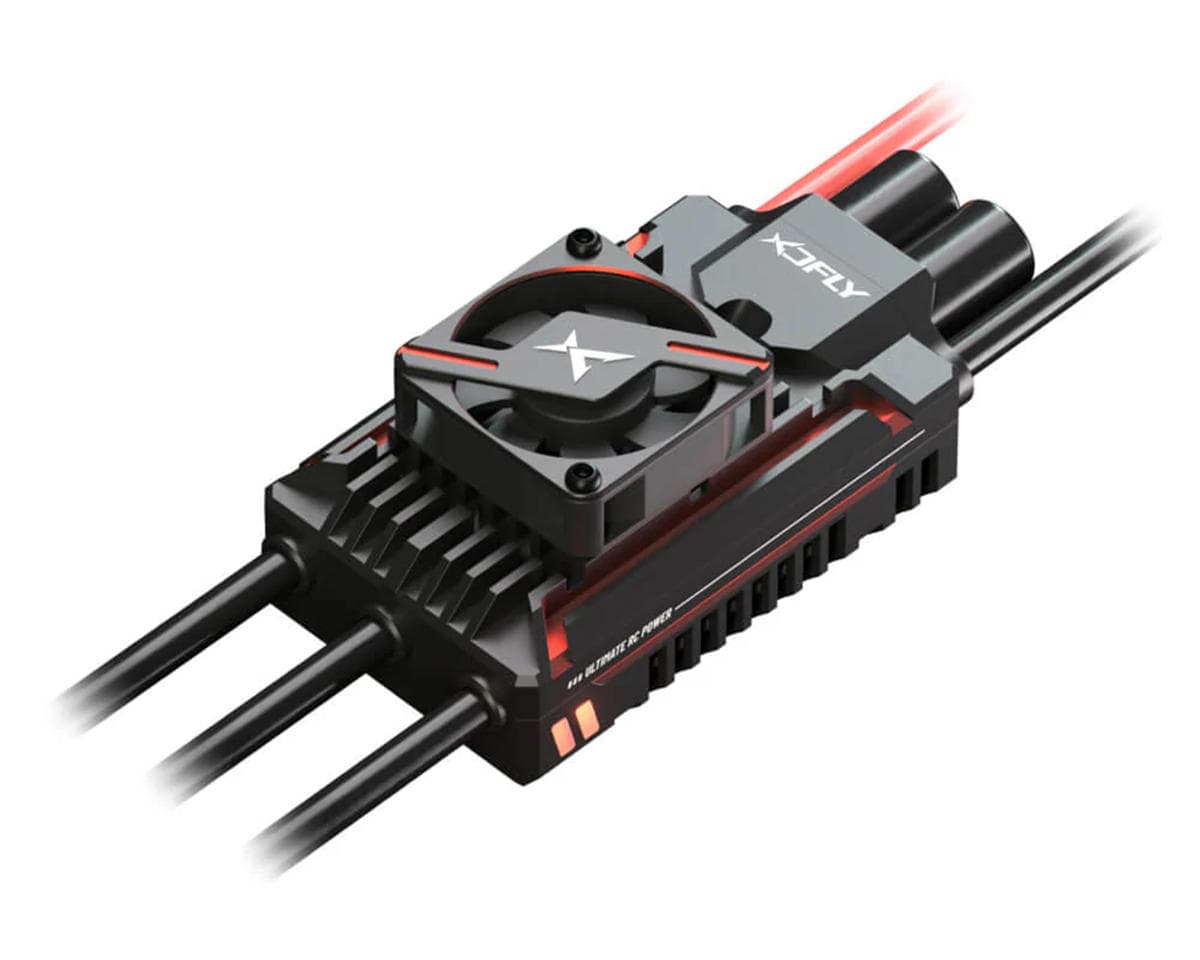

XDFly HPro 195A HV SBEC Brushless Aircraft ESC (6-14S LiPo)

ESC Overview:

The XDFly HPro 195A HV SBEC Brushless Aircraft ESC is a heavy-duty speed controller designed for large-scale RC aircraft and 600–700 class helicopters operating on high-voltage power systems. Capable of handling 6S to 14S LiPo batteries, this ESC features a built-in adjustable 6–12V SBEC and is engineered to deliver precise control, high current endurance, and smart functionality for demanding flight conditions. With cutting-edge safety systems, advanced telemetry, and intuitive programming support, the HPro 195A HV provides a reliable solution for serious pilots. It’s built to power the most aggressive maneuvers and largest aircraft with confidence and consistency.

About the HPro ESC

Extreme Power Handling with Intelligent Features

At its core, the HPro 195A HV uses a 32-bit G4 processor operating at 170MHz, offering exceptional processing speed and throttle resolution. Advanced power MOSFETs ensure efficient current flow with minimal heat, while a smart cooling system—featuring a fan that activates only above 40°C—keeps the ESC running optimally and quietly. The ESC includes a startup self-check, helicopter governor function, stall landing protection, and real-time telemetry compatibility with major platforms like Jeti, Futaba SBUS2, and Mikado. Programming can be done via phone app or supported transmitters, and customizable LED indicators in five colors make monitoring system status easy. With a full suite of protection systems, the HPro 195A HV is built for reliability under extreme load.

Features:

• 32-bit G4 processor with 170MHz frequency
• High-performance MOSFETs with low heat output
• Startup self-check for system safety
• Enhanced cooling with large case and smart fan
• Adjustable helicopter governor mode
• Stall landing timing adjustment
• App and transmitter-based programming support
• Real-time telemetry with multiple systems
• LED status lights with five color options
• Multiple built-in protection features
