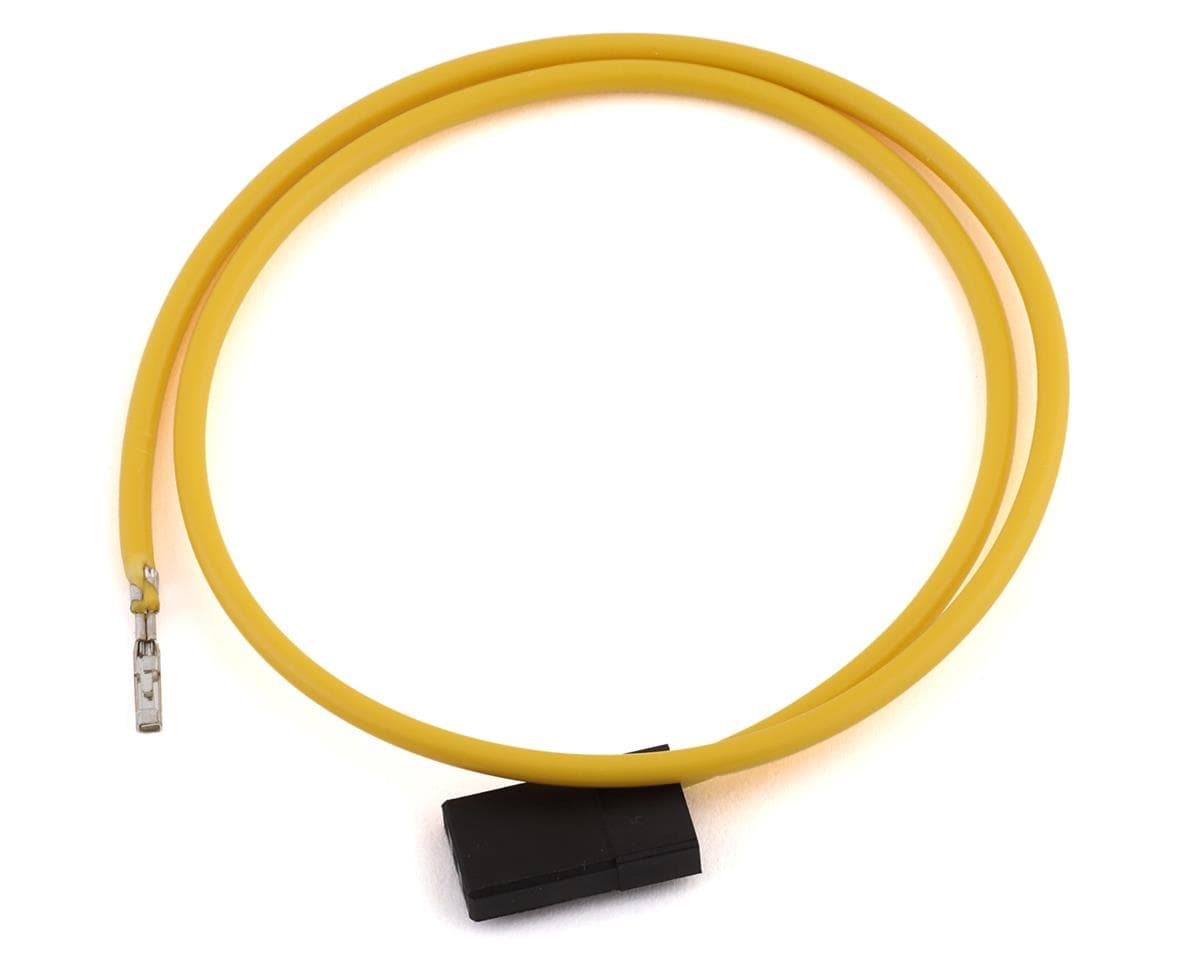

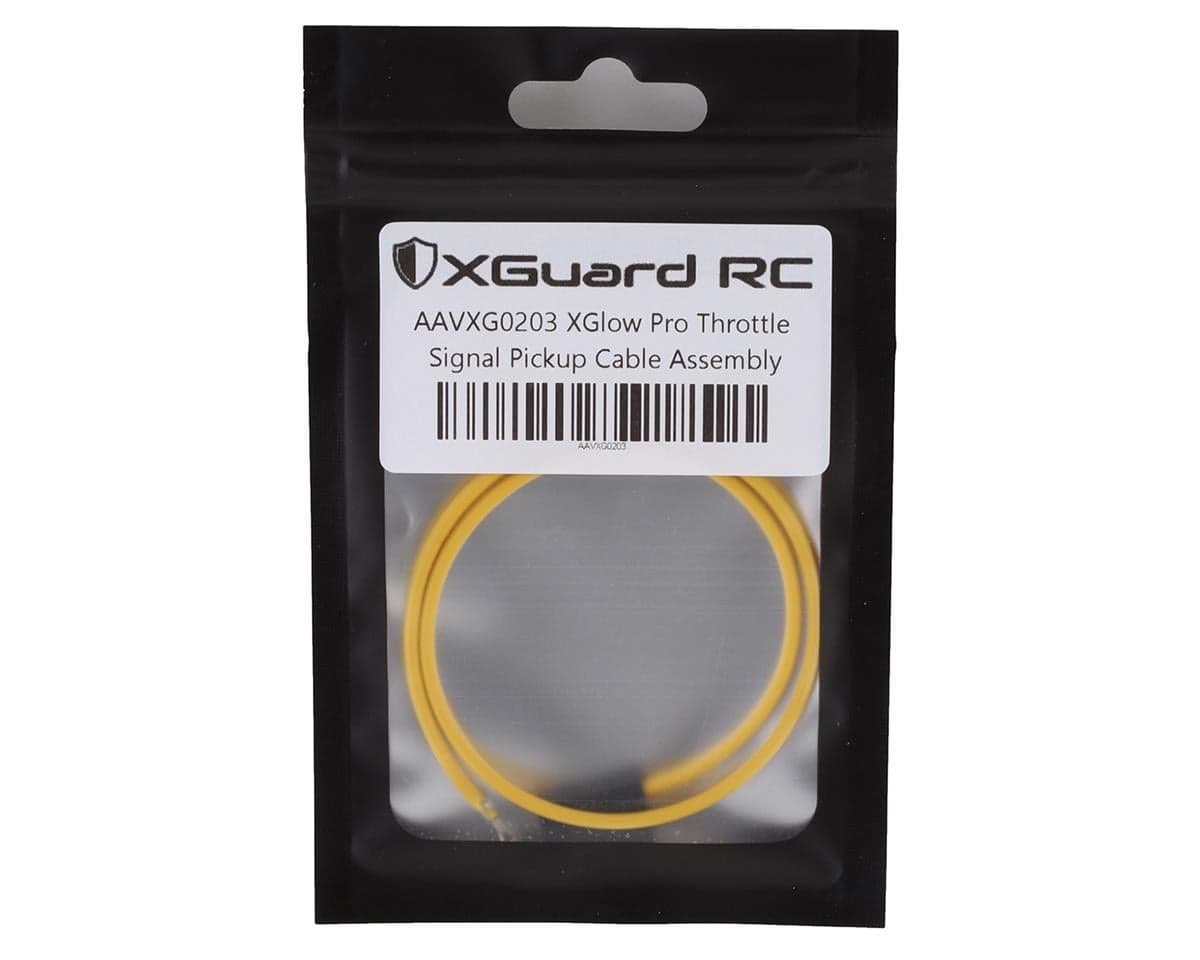

XGuard RC XGlow Pro Throttle Signal Pickup Cable Set
Part # AAVXG0203
Where to buy
$7.95
Prices are as last seen at the store; stock is not tracked.
About this part
The optional XGuard RC XGlow Pro Throttle Signal Pickup Cable allows users to add "Anti-Hot Start" to their XGuard equipped nitro helicopter. Installation is simple by inserting the silver pin into the XGlow servo connector, and the opposite side (side with 1 single yellow wire) is connected to a Y-Harness that is plugged into the throttle port of your receiver or gyro system.
Once connected, it allows the XGlow to know the throttle servo position to prevent hot starts, and runout prevention when additionally connected to the RPM port of the governor sensor*.
*Note: Runout prevention is only possible with both AAVXG0203, and AAVXG0202 installed to the XGuard.
Once connected, it allows the XGlow to know the throttle servo position to prevent hot starts, and runout prevention when additionally connected to the RPM port of the governor sensor*.
*Note: Runout prevention is only possible with both AAVXG0203, and AAVXG0202 installed to the XGuard.
