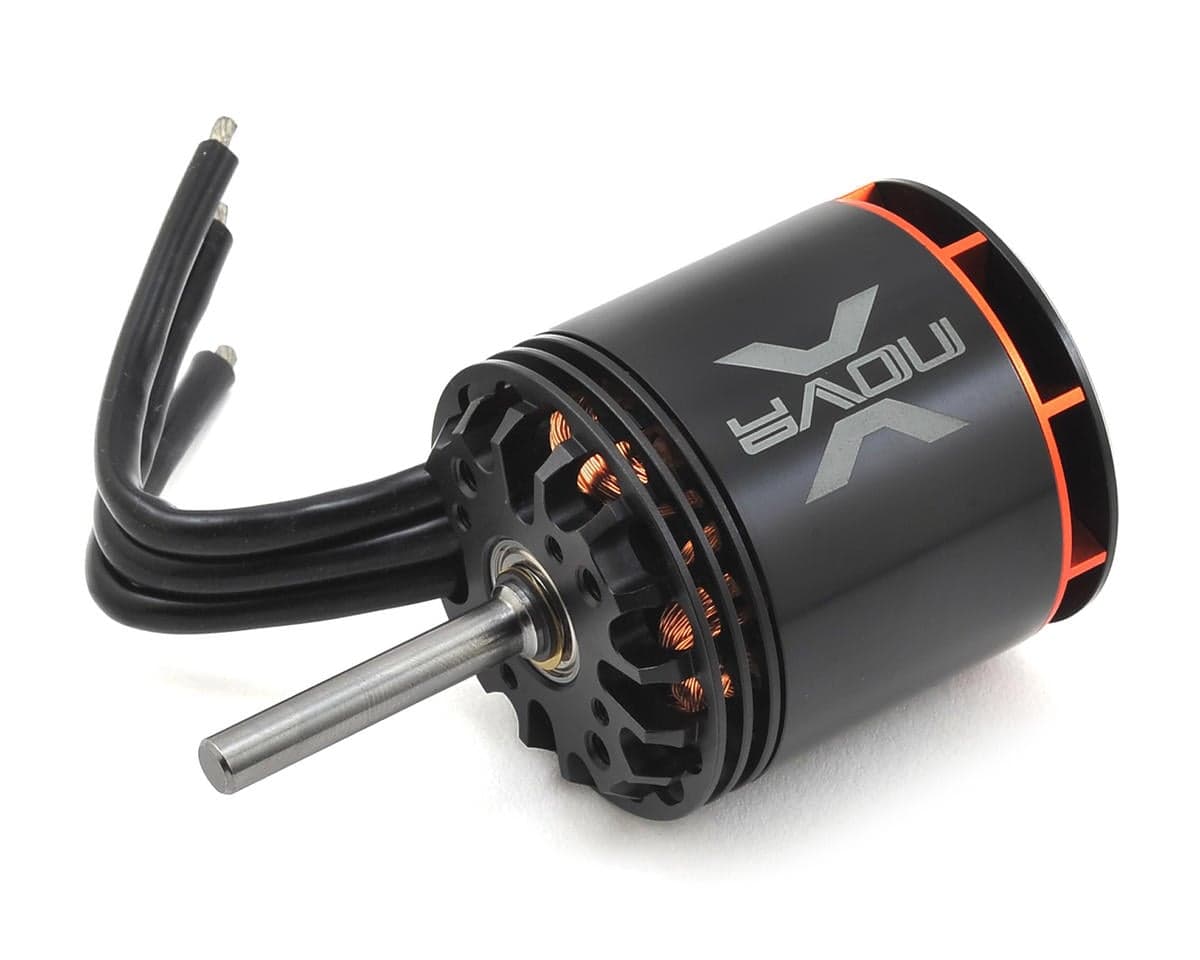

Xnova 4025-1120KV 1.5Y V3 Brushless Motor (Shaft A)
About this part
This is the Xnova 4025-1120KV 1.5Y Brushless Motor with a 6mm "Type A" 36mm Shaft. This high performance brushless motor was developed for hard 3D flying on 6S.
Features:
- "A Shaft" 36mm long, 6mm diameter
- Good for hard 3D on 6S
- High quality Neo Magnets, heat resistant up to 150 degree C
- Specialized wires, heat resistance up to 250 degree C
- Precision balanced
- High performance stator metal sheet
- Optimized ventilation
- High quality NMB bearings
- Marked leading high efficiency up to 93.5%
- Superb quality and machining of CNC parts
Specifications:
Slots & Poles: 24n8p
Winding T: 1.5Y
rpm/V: 1120
Volt (V): 10 | 20 | 25
Io(A): 2.7 | 3.2 | 3.6
Rm (mohm): 7.3 | 7.3 | 7.3
Weight (without connector): 384g
Body Length (no shaft): 55.75mm
Diameter: 49.5mm
Shaft Length: 28mm
Shaft Diameter: 6mm
Max Eff. Curr.: 60.82 | 93.63 | 111.03
Max Eff.: 91.12 | 93.16 | 93.52
Kt (Nm/A): 0.0085
Km (Nm/sqrt(w)): 0.0998
Max Continuous Power (Watts): 3000
Peak Continuous Power (Watts) (5 sec): 4000
Max cont. current (A): 110
Reviews5.0 · 3 reviews
I run this in my Goosky RS5 and it fits and works perfectly. Plenty of power and smooth operation. ?

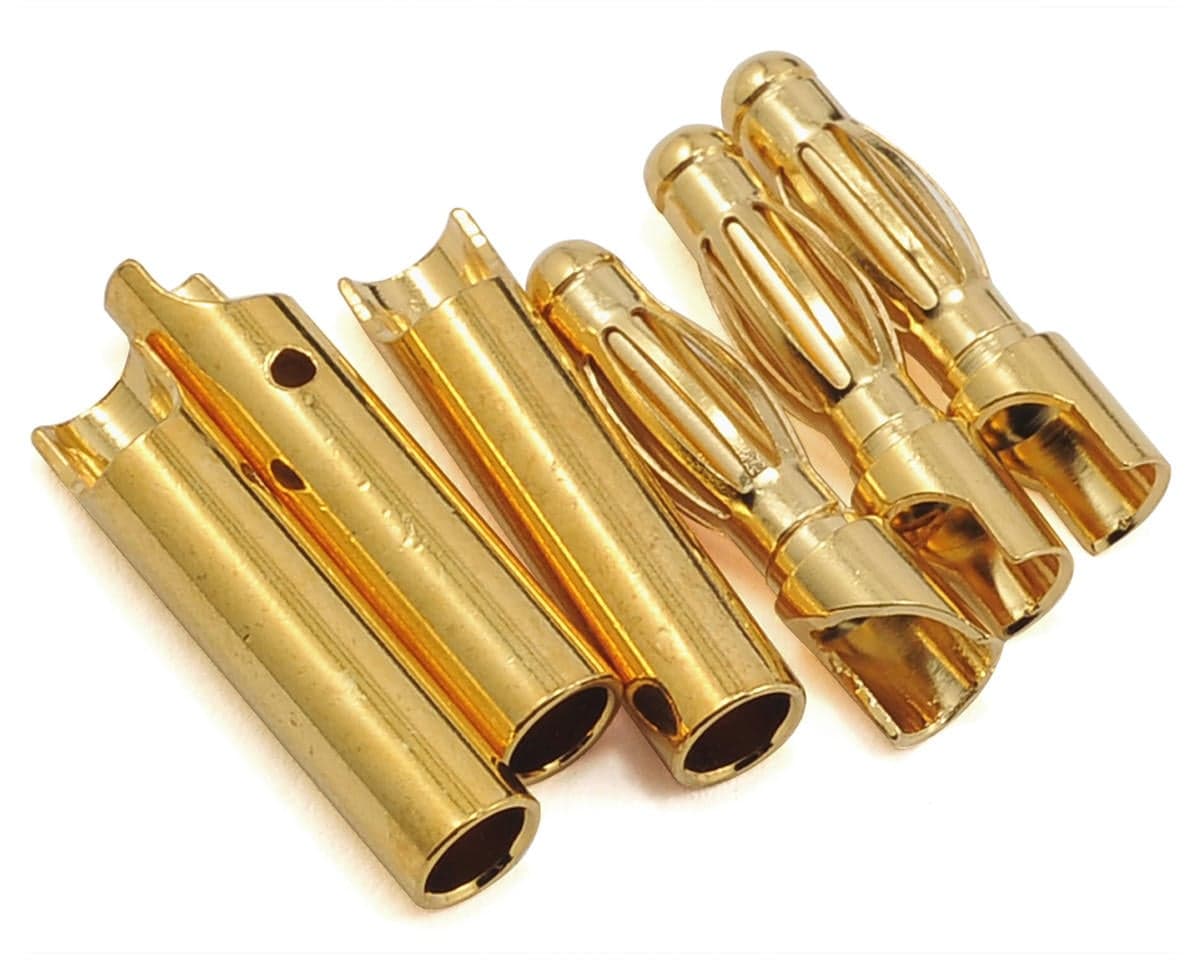

Excellent service from amain hobbies. Very efficient motor. Runs cool. Nice that it came with connectors, but no screws.
Have not used yet. Seem good though. Have not used yet. Seem good though.Have not used yet. Seem good though.
All three reviews are five-star ratings from verified owners of the Shaft A variant. Reviewers report that the motor fits and performs well in a Goosky RS5, with one describing plenty of power and smooth operation, and another calling it efficient and cool-running. One reviewer praised the seller's service and noted that connectors were included but screws were not. One review was written before the motor had been used, so it offers no performance evidence. Overall feedback is positive but limited in number.
- + Fits and works in Goosky RS5
- + Plenty of power and smooth operation
- + Efficient and runs cool
- + Good seller service
- − Screws not included
- − Limited feedback from a small sample
