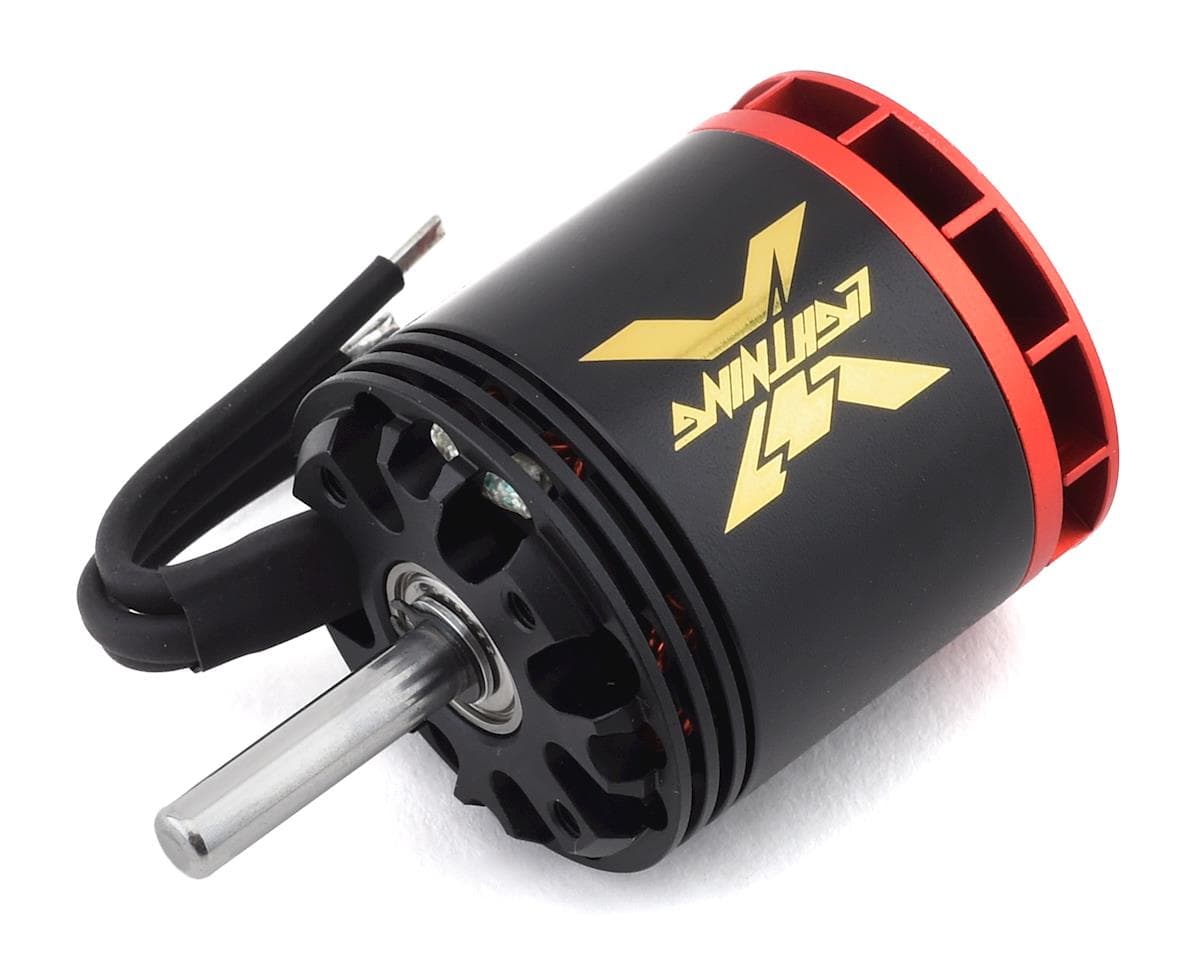

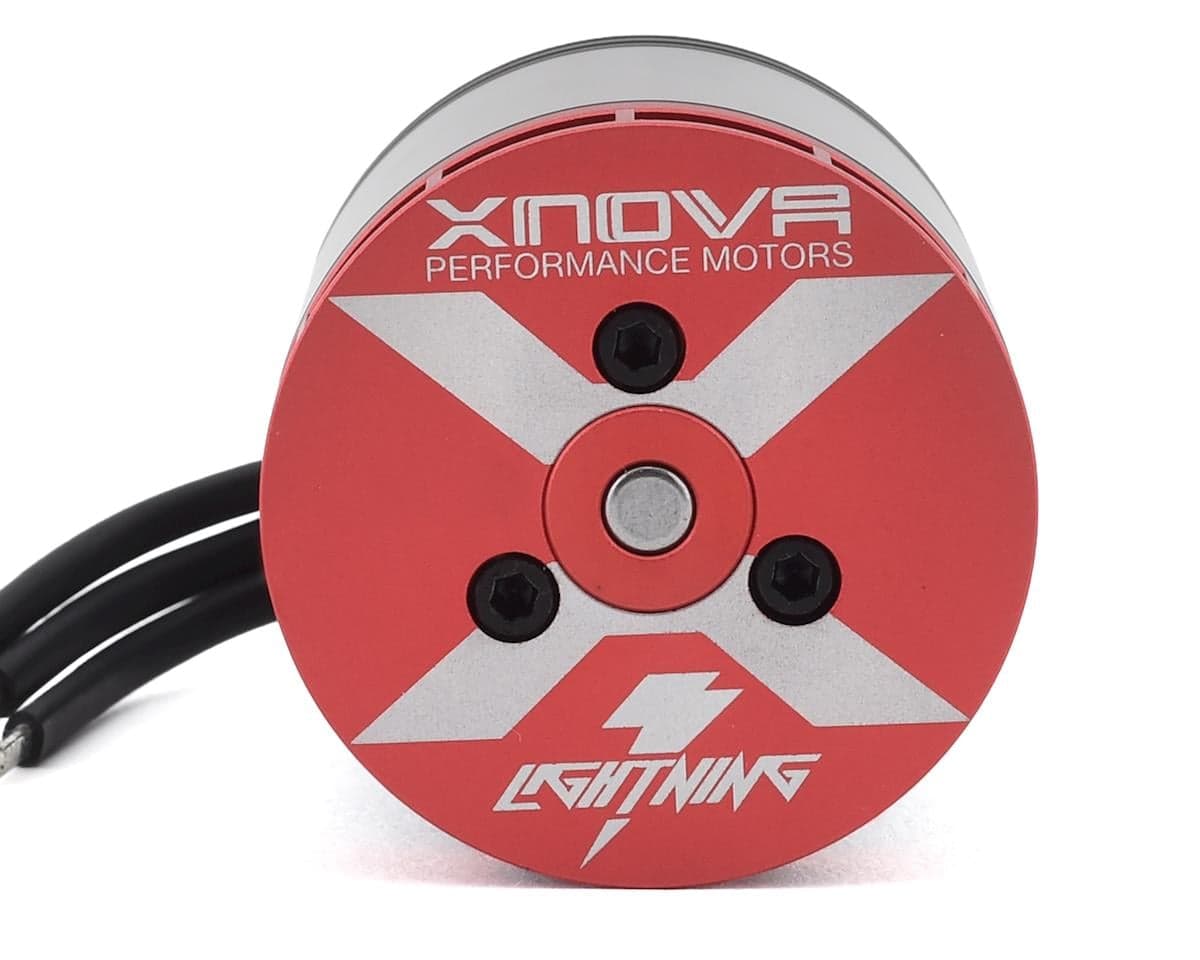

Xnova "Lightning" 2820-920KV Brushless Motor (920Kv)

This is the Xnova "Lightning" 2820-920KV Brushless Motor, an updated and improved version of the 2820 XTS motor with better overall performance and efficiency. This motor offers more consistent power delivery due to improved heat distribution. The Xnova lightning series is the highest level of motor performance for your buck.



Features:

• New type of high-performance neodymium magnets, heat resistant up to 150 degrees C resulting in overall better performance.
• Increased power output by use of thicker hand wound YY single strand copper wires, heat resistant up to 250 degrees C.
• 100% handwound.

Specifications:

Slots & Poles: 12n10p

Winding T: YY

rpm/V: 920

Volt (V): 10/22.2

Io(A): 1.8/2.8

Rm (mohm): 28 / 28

Weight (without connector): 150g

Body Length (no shaft): 40.7mm

Diameter: 36mm

Shaft Length: 22mm

Shaft Dia.: 5mm

Mounting Holes CTC Distance: 25mm

Mounting Screw: M3x0.5

Max Eff. Curr.: 25.35/47.12

Max Eff.: 85.80/88.11

Kt (Nm/A): 0.0104

Km (Nm/sqrt(w)): 0.0620

Max Continuous Power(Watts): 1150 Watts

Peak Continuous Power(Watts)(2 sec): 1450 Watts

Max Continuous Current(Amps): 52 amps
