Parts/Electric power/Brushless motors/Xnova "Lightning" 3220-950KV Brushless Motor (950Kv)

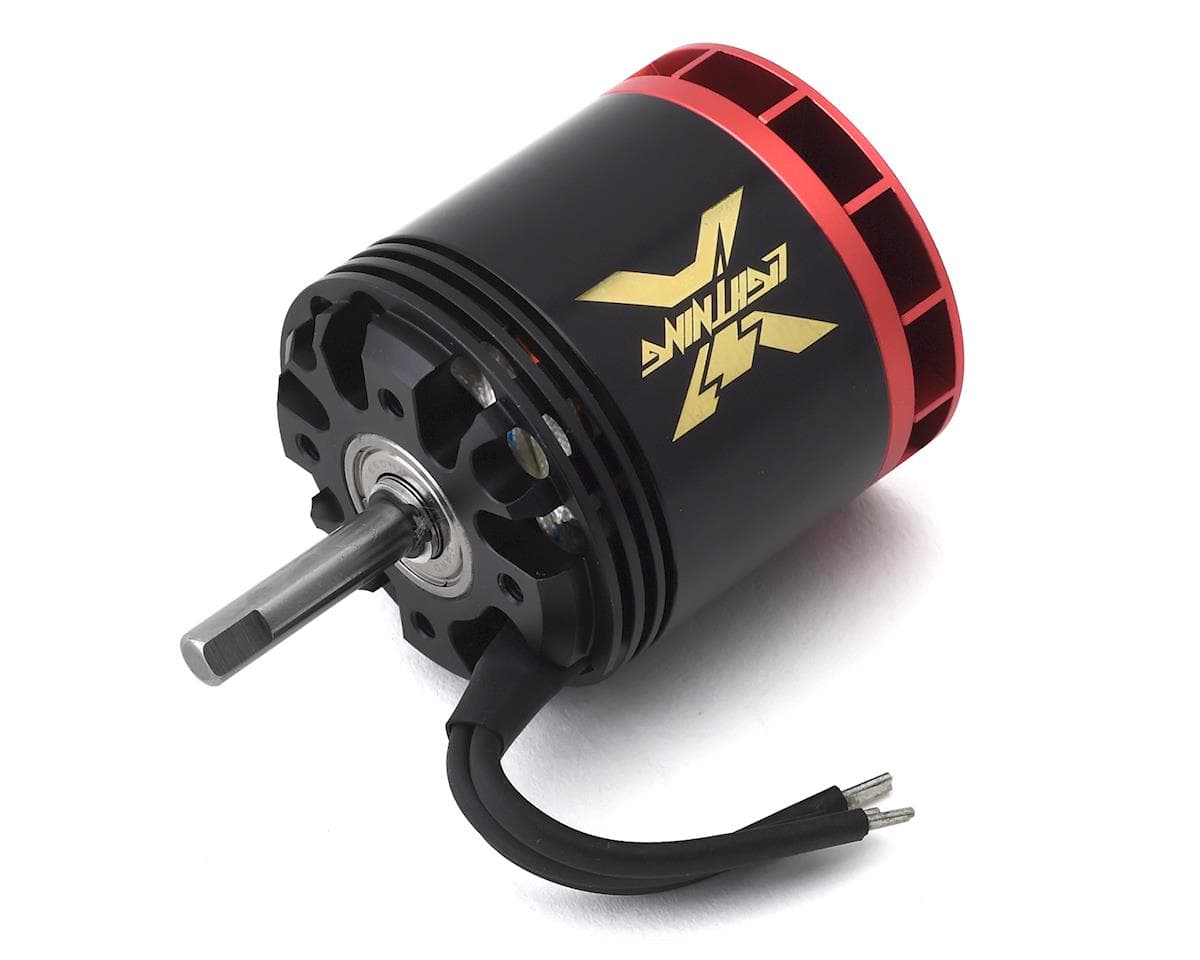

Xnova "Lightning" 3220-950KV Brushless Motor (950Kv)
Xnova

Xnova "Lightning" 3220-950KV Brushless Motor (950Kv)

Part # XNM-LGT-3220-950-A4.0(3)
Brushless motorsRotorcraft
Where to buy
$199.99
AMain Hobbies
Seen Oct 12, 2026
$199.99Buy
Prices are as last seen at the store; stock is not tracked.

About this part

This is the Xnova "Lightning" 3220-950KV Brushless Motor, an updated powerhouse of a motor for your heli needs. Any helicopter asking for insane power swinging 380-420mm blades will be more than happy with this masterpiece. The Xnova lightning series is the highest level of motor performance for your buck.

Features:
  • Improved higher efficiency with thinner stator lamination, designed with integrated cooling system resulting in lower temperature
  • Increased power output by use of thicker hand wound YY single strand copper wires, heat resistant up to 250 degrees C
  • New type of high-performance neodymium magnets, heat resistant up to 150 degrees C resulting in overall better performance
  • 100% handwound
Specifications:
Slots & Poles: 12n10p
Winding T: YY
rpm/V: 945
Volt (V): 10 / 22.2
Io(A): 1.8 / 3.0
Rm (mohm): 18 / 18
Weight (without connector): 200g
Body Length (no shaft): 45mm
Diameter: 40.5mm
Shaft Length: 22mm
Shaft Dia.: 5mm
Mounting Holes CTC Distance: 25mm
Mounting Screw: M3x0.5
Max Eff. Curr.: 31.62 / 60.83
Max Eff.: 88.62 / 90.14
Kt (Nm/A): 0.0101
Km (Nm/sqrt(w)): 0.0749
Max Continuous Power(Watts): 1450
Peak Continuous Power(Watts) (2 sec): 1900
Max Continuous Current(Amps): 66

Reviews4.0 · 3 reviews

Bradley BoudreauxVerified owneron Xnova "Lightning" 3220-950KV Brushless Motor (950Kv)

Great motor for my raw 420 competition bought off recommendation from another San heli guy

Henry BaburyanVerified owneron Xnova "Lightning" 3220-950KV Brushless Motor (950Kv)

Works nice on goblin 420. Arrived quick, easy installation I like it

Lex KramerVerified ownerMay 9, 2023on Xnova "Lightning" 3220-950KV Brushless Motor (950Kv)

Ik heb de motor nog niet ontvangen motor zou 1mei geleverd worden Wanneer komt hij Groetjes lex kramer

What reviewers say

Three verified-owner reviews of the Xnova Lightning 3220-950KV brushless motor (950Kv). Two reviewers rated it 5/5 and report it works well in 420-class helicopters, specifically a raw 420 competition build and a Goblin 420. One of them also mentions quick arrival and easy installation. The third reviewer rated it 2/5 but did not comment on the motor's performance; the review concerns a delivery that was expected on 1 May and had not arrived by the review date. Reviewers do not disagree on performance, but the sample is small and only one review addresses delivery timing.

  • + Works well in 420-class helicopters
  • + Easy installation
  • + Quick arrival
  • − Delivery delay reported by one reviewer
Summary generated from the reviews above.

Builds using this part

No builds use this part yet — add it to yours from the build editor.
