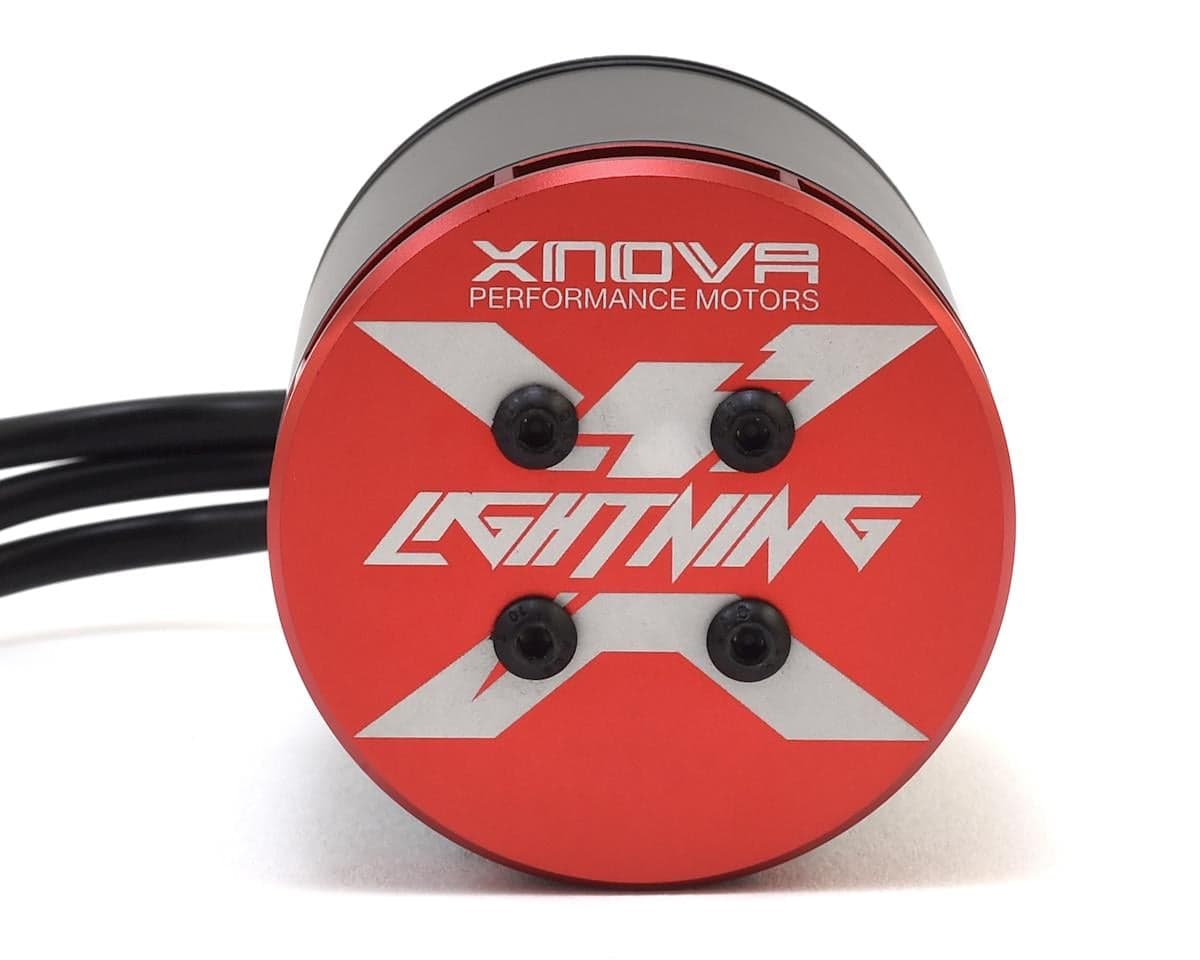

Xnova Lightning 4025-1120KV Brushless Motor w/6mm Shaft (Shaft A)
About this part
This is the Xnova Lightning 4025-1120KV 1.5Y Brushless Motor with a 6mm "Type A" 36mm Shaft. The "Lightning Series" was developed from the extremely successful XTS Platform. Lightning series motors are simply the pinnacle of performance, and efficiency. If you're looking for the absolute best brushless motor within the Xnova line up, this is what you're looking for! This high performance brushless motor was developed 520-600mm size helicopters when powered with 6S.
Features:
- "A Shaft"
- Good for hard 3D on 6S
- High quality Neo Magnets, heat resistant up to 150 degree C
- Specialized wires, heat resistance up to 250 degree C
- Precision balanced
- High performance stator metal sheet
- Optimized ventilation
- High quality NMB bearings
- Marked leading high efficiency up to 93.5%
- Superb quality and machining of CNC parts
Specifications:
Slots & Poles: 24n8p
Winding T: 1.5Y
rpm/V: 1120
Volt (V): 10 | 20 | 25
Io(A): 2.7 | 3.2 | 3.6
Rm (mohm): 6.8 | 6.8 | 6.8
Weight (without connector): 395g
Body Length (no shaft): 56.2mm
Diameter: 49.5mm
Shaft Length: 36mm
Shaft Diameter: 6mm
Max Eff. Curr.: 63.01 | 97.01 | 115.04
Max Eff.: 91.43 | 93.40 | 93.74
Kt (Nm/A): 0.0085
Km (Nm/sqrt(w)): 0.1034
Max Continuous Power (Watts): 3000
Peak Continuous Power (Watts) (5 sec): 4000
Max cont. current (A): 110
Reviews5.0 · 6 reviews
I ran this motor in both an OXY5 and a Goblin 570 sport with great success. My setup was running on 6S through a Hobbywing 130a ESC. I was turning right at 2900RPM on the head with 15deg of pitch making the heli absolutely ballistic. with this setup on my 570 it moved faster in the air than my 700's with the same collective stop performance. I highly recommend this power setup for any 550 - 600 size platform running 6S. You won't be disappointed.
This motor is built to top spec. The torque and speed are off the charts, too. I've put this in my Align TREX 550X, and the startups and speed consistency couldn't be better.
This is my sixth helicopter and my sixth XNOVA motor and it works just a good as the first one I bought five years ago. This on is in a Tron 5.8 with 600mm main blades and matching 95mm tail blades from Azure. The 6s power is supplied to the motor via a hobbywing 150A ESC using ELF governing. The motor runs cool and never sags even in hard blade barking maneuvers on a 95 degree day. These are by far the best motors on the market and worth every penny in my opinion. FYI all six helicopters are still airworthy and all six motors operate just as good as they did on day one.
I use in a Tron 5.8 6S 150 esc and is a rocket I am impressed with the power flying at 72% idle 1 83% idle 3 and it can do everything
Nice motor . If use this motor you will see the perfect and dynamic is your heli.
All six reviews are verified-owner ratings of 5/5 for the Shaft A variant of this 4025-1120KV brushless motor. Reviewers report strong power and torque in 550 to 600 size helicopters (Oxy 5, Goblin 570, Align TREX 550X, Tron 5.8) running 6S through 130A to 150A ESCs. One reviewer notes the motor runs cool and does not sag over a long period of use in hot conditions, and another reports consistent startups. Reviews are short and largely enthusiastic; none describe a problem or a negative trait, and none compare the Shaft A variant against other shaft options.
- + Strong power and torque
- + Good speed consistency
- + Runs cool under hard flying
- + Durable over long use
