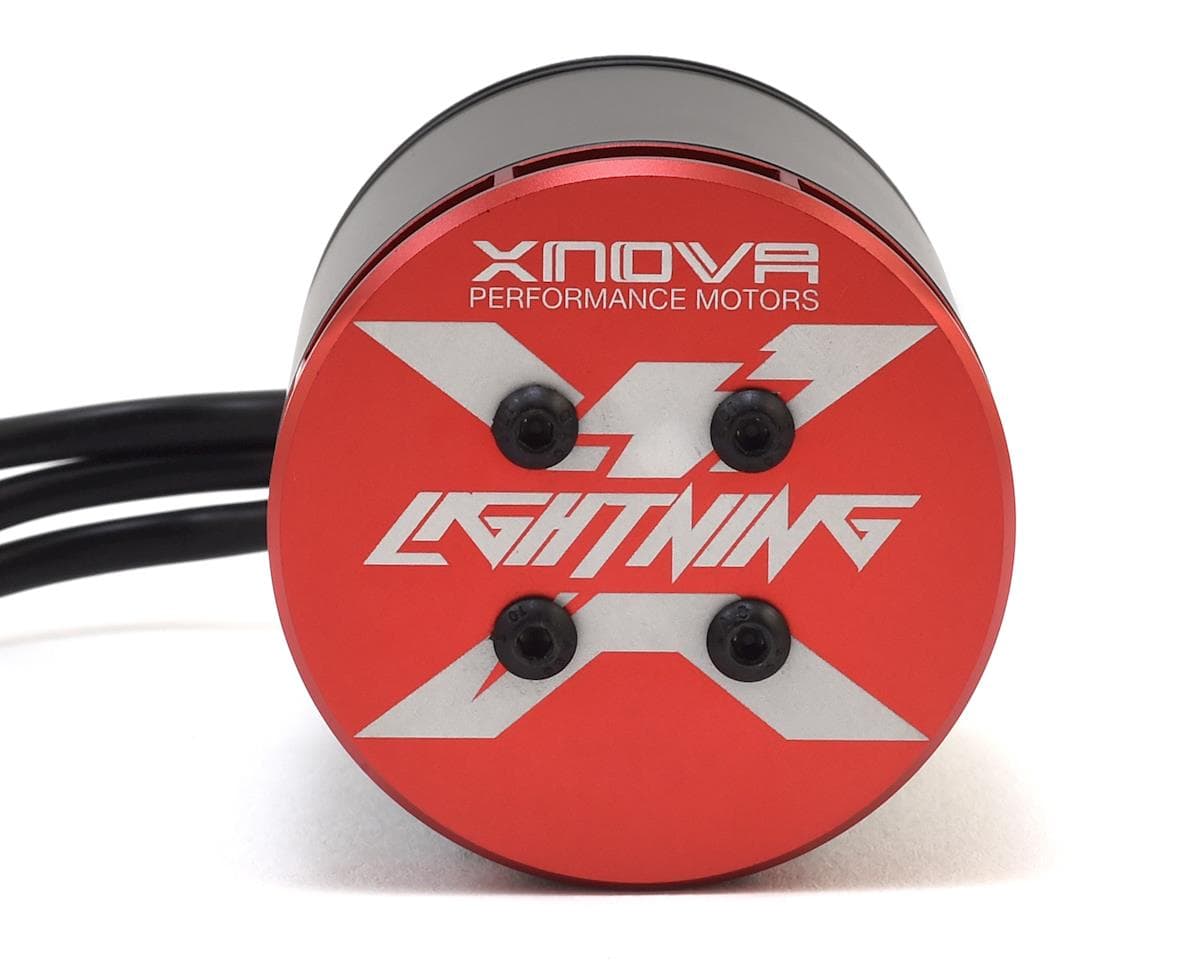

Xnova Lightning 4025-1120KV Brushless Motor w/6mm Shaft (Shaft B)
About this part
This is the Xnova Lightning 4025-1120KV 1.5Y Brushless Motor with a 6mm "Type B" 28mm Shaft. The "Lightning Series" was developed from the extremely successful XTS Platform. Lightning series motors are simply the pinnacle of performance, and efficiency. If you're looking for the absolute best brushless motor within the Xnova line up, this is what you're looking for! This high performance brushless motor was developed 520-600mm size helicopters when powered with 6S.
Features:
- "B Shaft"
- Good for hard 3D on 6S
- High quality Neo Magnets, heat resistant up to 150 degree C
- Specialized wires, heat resistance up to 250 degree C
- Precision balanced
- High performance stator metal sheet
- Optimized ventilation
- High quality NMB bearings
- Marked leading high efficiency up to 93.5%
- Superb quality and machining of CNC parts
Specifications:
Slots & Poles: 24n8p
Winding T: 1.5Y
rpm/V: 1120
Volt (V): 10 | 20 | 25
Io(A): 2.7 | 3.2 | 3.6
Rm (mohm): 6.8 | 6.8 | 6.8
Weight (without connector): 395g
Body Length (no shaft): 56.2mm
Diameter: 49.5mm
Shaft Length: 28mm
Shaft Diameter: 6mm
Max Eff. Curr.: 63.01 | 97.01 | 115.04
Max Eff.: 91.43 | 93.40 | 93.74
Kt (Nm/A): 0.0085
Km (Nm/sqrt(w)): 0.1034
Max Continuous Power (Watts): 3000
Peak Continuous Power (Watts) (5 sec): 4000
Max cont. current (A): 110
Reviews4.3 · 8 reviews
Bought this motor to replace another of the same model that had terrible vibration problems, turns out both motors had poorly balanced bell housings from the factory that required some stickers to properly balance. Unacceptable level of quality control from Xnova factory on this one, looks like I'm not the only person whose received a poorly balanced motor from the factory lately. Please look into it. Otherwise great motor once it's properly balanced.
awesome motor. Quality looks incredible. Dealing with a main was awesome. Definitely we'll buy more product from this company.
Awesome motor as always plenty of power for the Goblin 580
I don’t what magic xnova use. But that motor runs very cool and very efficient and i love it
the motor have a lot of vibrations or that it is not balanced or that the shaft is bend not sure what, but the Icon2 detect 4 time the allowed vibration for normal operation, when I run only the motor and pinion, even not the rotor head and tail very disappointed
Reviewers largely praise the motor's power, efficiency, cool running and build quality, with several noting strong performance in 580-class helicopters. The main recurring problem is vibration: one reviewer reported a poorly balanced bell housing on a replacement unit, requiring balancing stickers, and a verified owner reported vibration readings four times the allowed limit when running the motor and pinion alone, suspecting imbalance or a bent shaft. One reviewer also praised the seller's service. One review came from a buyer who had not yet run the motor. Reviews do not specify whether the vibration issue affects all units.
- + Strong power and spin-up
- + Runs cool and efficient
- + Good build quality
- + Responsive under governor in 580-class helicopters
- − Vibration from poor balance reported
- − Possible bent shaft suspected by one owner
- − Balance issues reported on replacement unit
