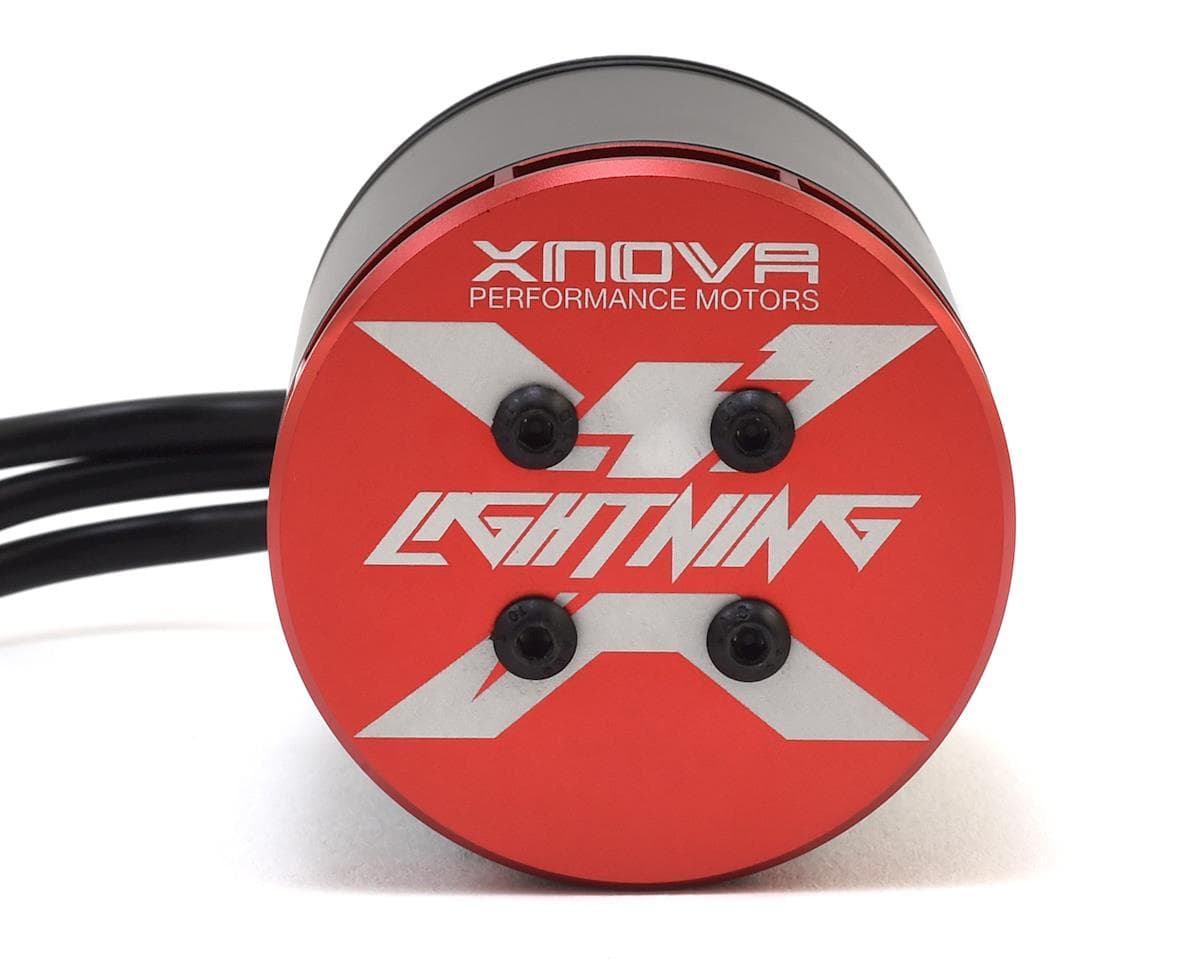

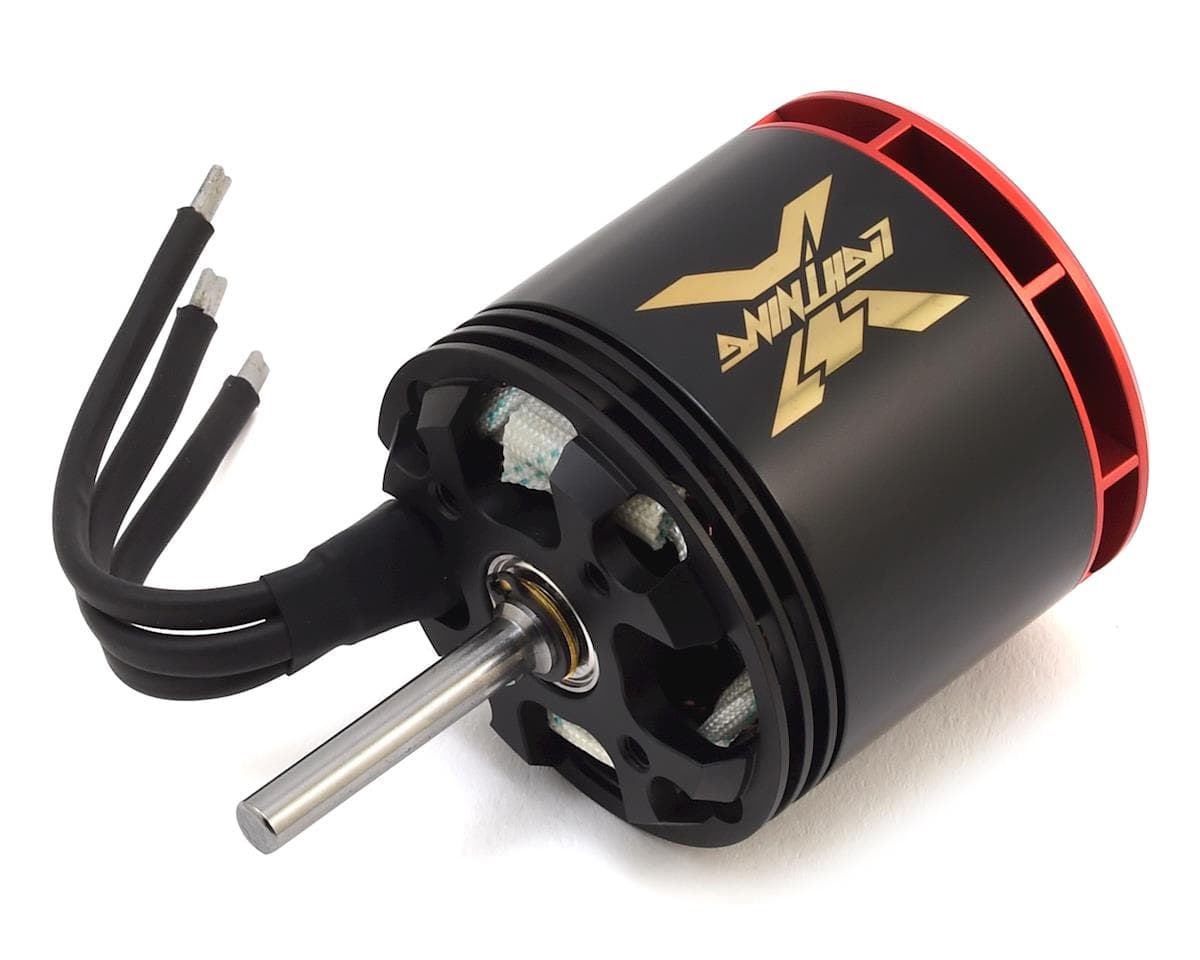

Xnova Lightning 4525-530KV Brushless Motor (Shaft A)
About this part
This is the Xnova Lightning 4525-530KV Brushless Motor, with a 6mm "Type A" 36mm shaft. The "Lightning Series" was developed from the extremely successful XTS Platform. Lightning series motors are simply the pinnacle of performance, and efficiency. If you're looking for the absolute best brushless motor within the Xnova line up, this is what you're looking for! The 4525 models are specially designed for 630-700mm helicopters to deliver an insane power to weight ratio. The 530kV model is recommended for extreme 3D flying and is optimized for 12S applications. All Lightning motors are 100% hand-wound and each motor runs through a complete quality control test before shipping.
Features:
- Designed for extreme 3D flying
- Developed for 630-700mm helicopters
- Optimized for 12S applications
- High quality Neo Magnets, heat resistant up to 150 degree C
- Specialized wires, heat resistance up to 300 degree C
- Precise balanced
- High performance stator metal sheet
- High quality NMB bearings
- Marked leading high efficiency up to 94%
- Cooler running
- Superb quality and machining of CNC parts
- Improved torque and power output
- 1.5mm thick wire
Specifications:
Slots & Poles: 12n10p
Winding T: YY with thick wire
rpm/V: 530
Weight (without connector): 500g
Body Length (no shaft): 56mm
Diameter: 55.7mm
Shaft Length: 36mm
Shaft Dia.: 6mm
Mounting Holes CTC Distance: 30mm
Mounting Screw: 4x07
Max Continuous Power (Watts): 4500
Peak Continuous Power (Watts): 10000
Max Continuous Current (A): 95
Reviews5.0 · 3 reviews
I've been running the XNova Lightning 4525 530kv motor now in a few different 700 machines and I have to say they have been very reliable. With tons of power and very cool temps when running, this motor is a winner. I will continue to run this same motor in all my electric 700's from now on. I've ran helis at high head speed over 2300rpm all the way down to 990rpm on the head with great success. THe motor performed the same at both ends of the spectrum.
Nice motor. Good quality. Great power. I will have repurchase intention.
amain recommended this motor as their top option for the Goblin Raw 700, great recommendation! Perfect motor to match the stock gear ration the model comes with, runs cool, very nice piece!
All three reviewers are verified owners of the Shaft A variant and rate it 5/5. They report strong power, reliable operation and cool running in 700-class helicopters, including Goblin Raw 700 builds. One reviewer says it performed consistently across head speeds from about 990 to 2300 rpm. Reviews are brief and positive, with no reported problems or disagreement. The sample is small, so the picture is limited.
- + Strong power
- + Runs cool
- + Reliable in 700-class helicopters
- + Consistent performance across head speeds
