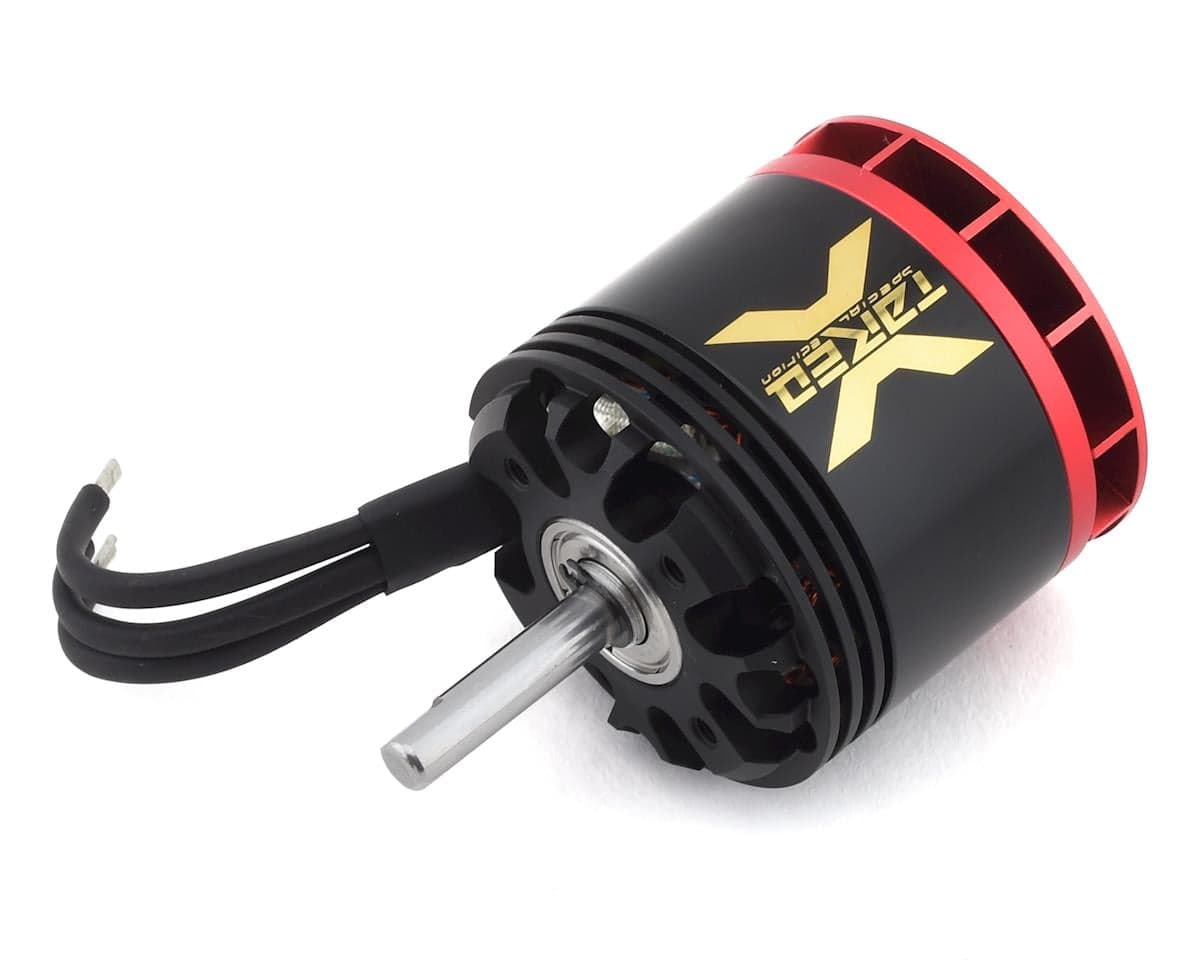

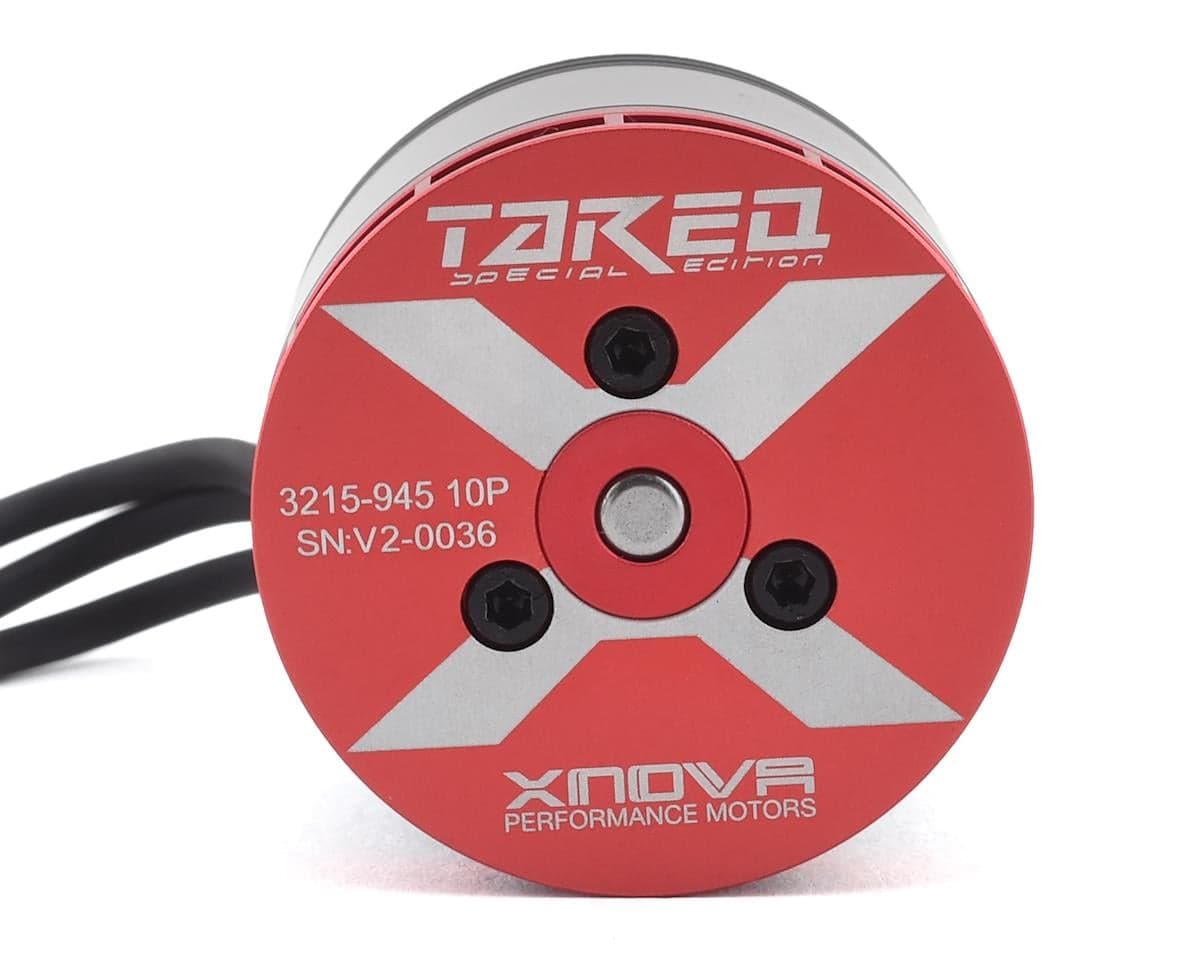

Xnova "Tareq Special Edition" 3215-945KV V2 Brushless Motor (945Kv)

This is the Xnova "Tareq Lightning Edition" 3215-945KV V2 Brushless Motor, an updated version of the Tareq motor that results in an even better overall performing motor and increased efficiency. Xnova brushless high performance out-runner motors are designed for extreme hard 3D flight, running in 360-380mm blade size helicopters where highest power to weight ratio is important.

Features:

• Improved higher efficiency with thinner stator lamination, designed with integrated cooling system resulting in lower temperature
• Increased power output by use of thicker hand wound YY single strand copper wires, heat resistant up to 250 degrees C
• New type of high-performance neodymium magnets, heat resistant up to 150 degrees C resulting in overall better performance
• 100% handwound

Specifications:

Slots & Poles: 12n10p

Winding T: YY

rpm/V: 945

Volt (V): 10 / 22.2

Io(A): 1.4 / 2.4

Rm (mohm): 24 / 24

Weight (without connector): 166g

Body Length (no shaft): 40mm

Diameter: 40.5mm

Shaft Length: 22mm

Shaft Dia.: 5mm

Mounting Holes CTC Distance: 25mm

Mounting Screw: M3x0.5

Max Eff. Curr.: 24.15 / 47.12

Max Eff.: 88.41 / 89.81

Kt (Nm/A): 0.0101

Km (Nm/sqrt(w)): 0.0652

Max Continuous Power(Watts): 1350

Peak Continuous Power(Watts) (2 sec): 1800

Max Continuous Current(Amps): 60
