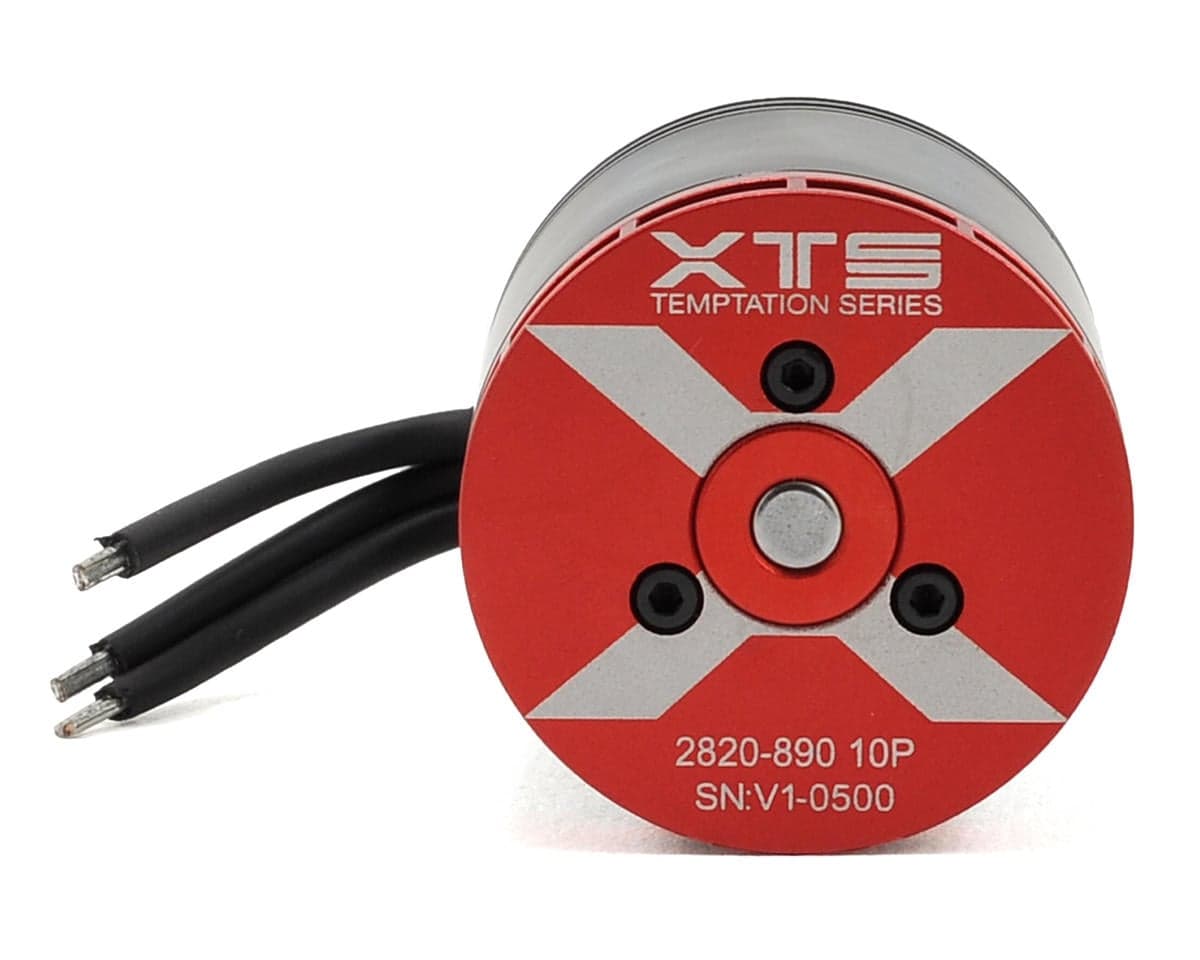

Xnova XTS 2820-890KV HP Brushless Motor (890Kv)

This is the Xnova XTS 2820-890KV HP Brushless Motor. The Xnova XTS series motors are developed and optimized for pure performance. The Xnova XTS series 2820 models are specially designed for the SAB-Goblin 380 helicopter to provide the highest power to weight ratio for hard 3D flying and long flight times. All XTS motors are 100% hand-wound and each motor runs through a complete quality control test before shipping.

Features:

• Designed for 3D flying and long flight times
• Developed for SAB-Goblin 380 helicopter
• High quality Neo Magnets, heat resistant up to 150 degree C
• Specialized wires, heat resistance up to 250 degree C
• Precise balanced
• High performance stator metal sheet
• High quality NMB bearings
• Marked leading high efficiency up to 90%
• Cooler running
• Superb quality and machining of CNC parts
• Handwound single strand wire

Specifications:
Slots & Poles: 12n10p
Winding T: 10YY
rpm/V: 890
Volt (V): 10 / 22.2
Io(A): 1.2 / 1.7
Rm (mohm): 34 / 34
Weight (without connector): 140g
Body Length (no shaft): 40.7mm
Diameter: 36mm
Shaft Length: 22mm
Shaft Dia.: 5mm
Mounting Holes CTC Distance: 25mm
Mounting Screw: M3x0.5
Max Eff. Curr.: 17.77 / 31.51
Max Eff.: 86.49 / 89.21
Kt (Nm/A): 0.0107
Km (Nm/sqrt(w)): 0.0550
Max Continuous Power(Watts): 1080
Peak Continuous Power(Watts) (2 sec): 1360
Max Continuous Current(Amps): 48
