Xnova XTS 4525-530KV Brushless Motor (Shaft A)
About this part

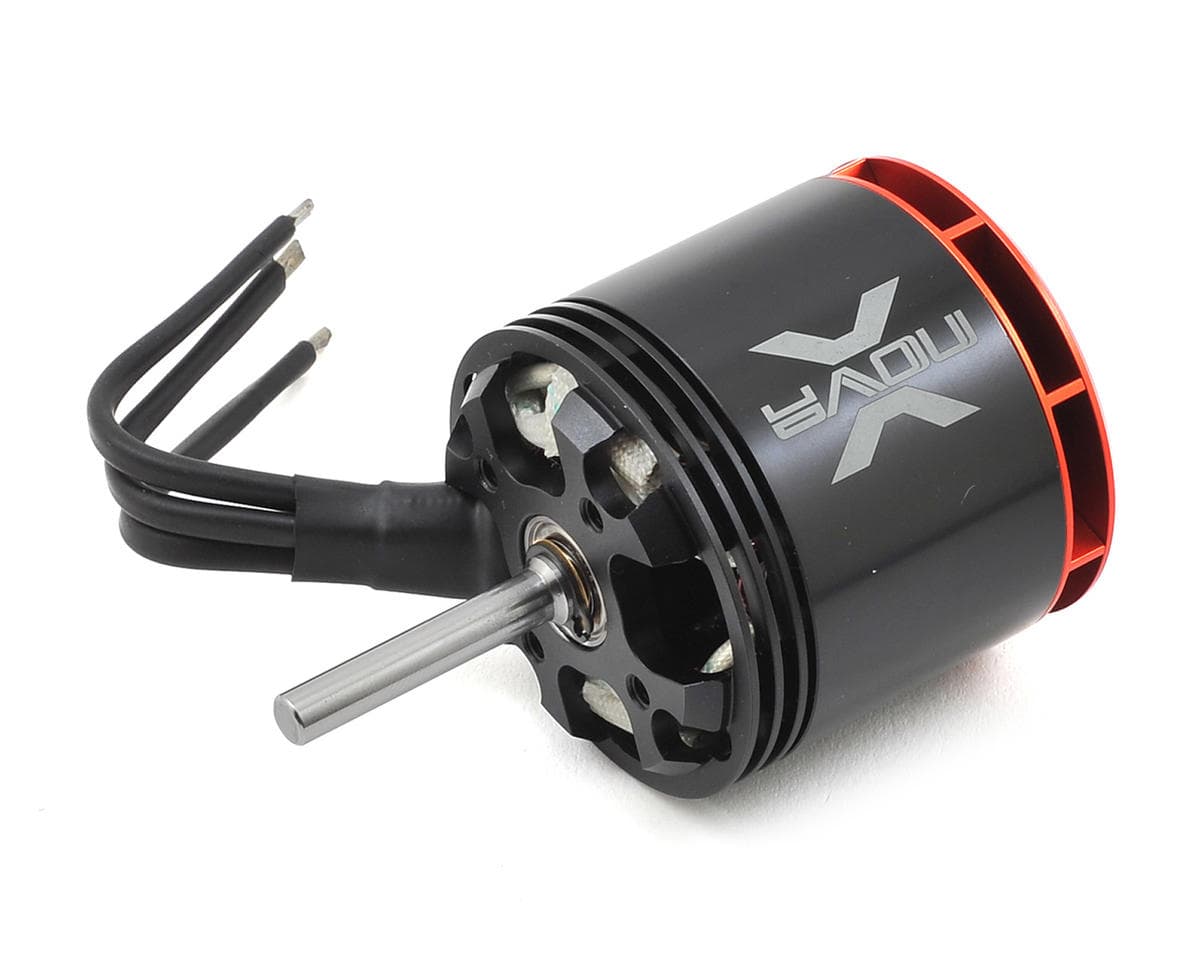

This is the Xnova XTS 4525-530KV YY Brushless Motor, with a 6mm "Type A" 36mm shaft. The Xnova XTS series motors are developed and optimized for pure performance. The Xnova XTS series 4525 models are specially designed for 630-700mm helicopters to deliver an insane power to weight ratio. The 530kV model is recommended for extreme 3D flying and is optimized for 12S applications. All XTS motors are 100% hand-wound and each motor runs through a complete quality control test before shipping.
Features:
- Designed for extreme 3D flying
- Developed for 630-700mm helicopters
- Optimized for 12S applications
- High quality Neo Magnets, heat resistant up to 150 degree C
- Specialized wires, heat resistance up to 300 degree C
- Precise balanced
- High performance stator metal sheet
- High quality NMB bearings
- Marked leading high efficiency up to 94%
- Cooler running
- Superb quality and machining of CNC parts
- Improved torque and power output
- Thick Single Strand Wire
Specifications:
Slots & Poles: 12n10p
Winding T: YY with thick wire
rpm/V: 530
Weight (without connector): 488g
Body Length (no shaft): 55.5mm
Diameter: 55.7mm
Shaft Length: 36mm
Shaft Dia.: 6mm
Mounting Holes CTC Distance: 30mm
Mounting Screw: 4x07
Max Continuous Power (Watts): 4500
Peak Continuous Power (Watts): 10000
Max Continuous Current (A): 95
