Xnova XTS 4525-530KV Brushless Motor (Shaft F/Logo 700)
About this part

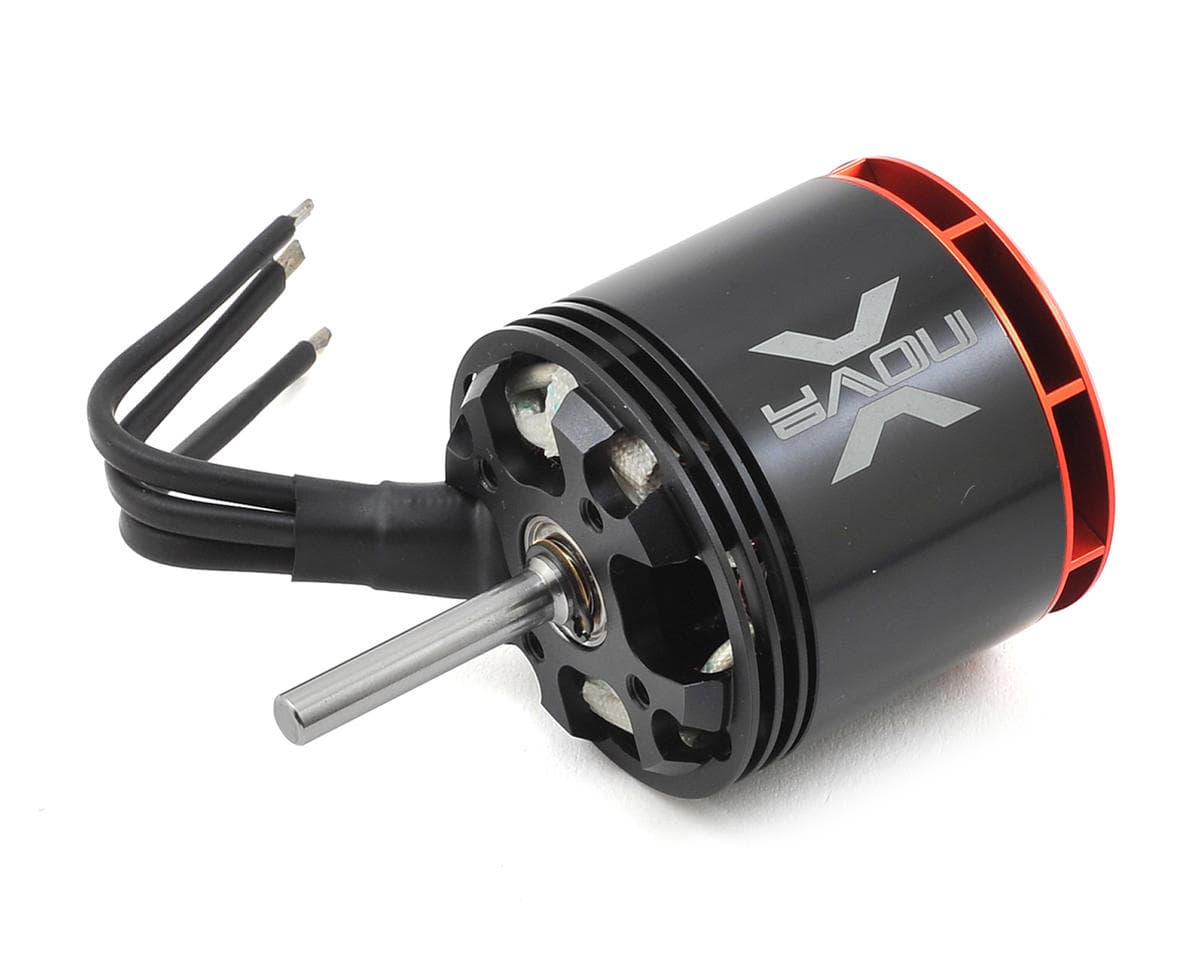

This is the Xnova XTS 4525-530KV YY Brushless Motor, with a 6mm "Type F" 60mm shaft, suited for use with the Mikado Logo 700 helicopter. The Xnova XTS series motors are developed and optimized for pure performance. The Xnova XTS series 4525 models are specially designed for 630-700mm helicopters to deliver an insane power to weight ratio. The 530kV model is recommended for extreme 3D flying and is optimized for 12S applications. All XTS motors are 100% hand-wound and each motor runs through a complete quality control test before shipping.
Features:
- Designed for extreme 3D flying
- Developed for 630-700mm helicopters
- Optimized for 12S applications
- High quality Neo Magnets, heat resistant up to 150 degree C
- Specialized wires, heat resistance up to 300 degree C
- Precise balanced
- High performance stator metal sheet
- High quality NMB bearings
- Marked leading high efficiency up to 94%
- Cooler running
- Superb quality and machining of CNC parts
- Improved torque and power output
- Thick Single Strand Wire
Specifications:
Slots & Poles: 12n10p
Winding T: YY with thick wire
rpm/V: 530
Weight (without connector): 488g
Body Length (no shaft): 55.5mm
Diameter: 55.7mm
Shaft Length: 60mm
Shaft Dia.: 6mm
Mounting Holes CTC Distance: 30mm
Mounting Screw: 4x07
Max Continuous Power (Watts): 4500
Peak Continuous Power (Watts): 10000
Max Continuous Current (A): 95
