About this part

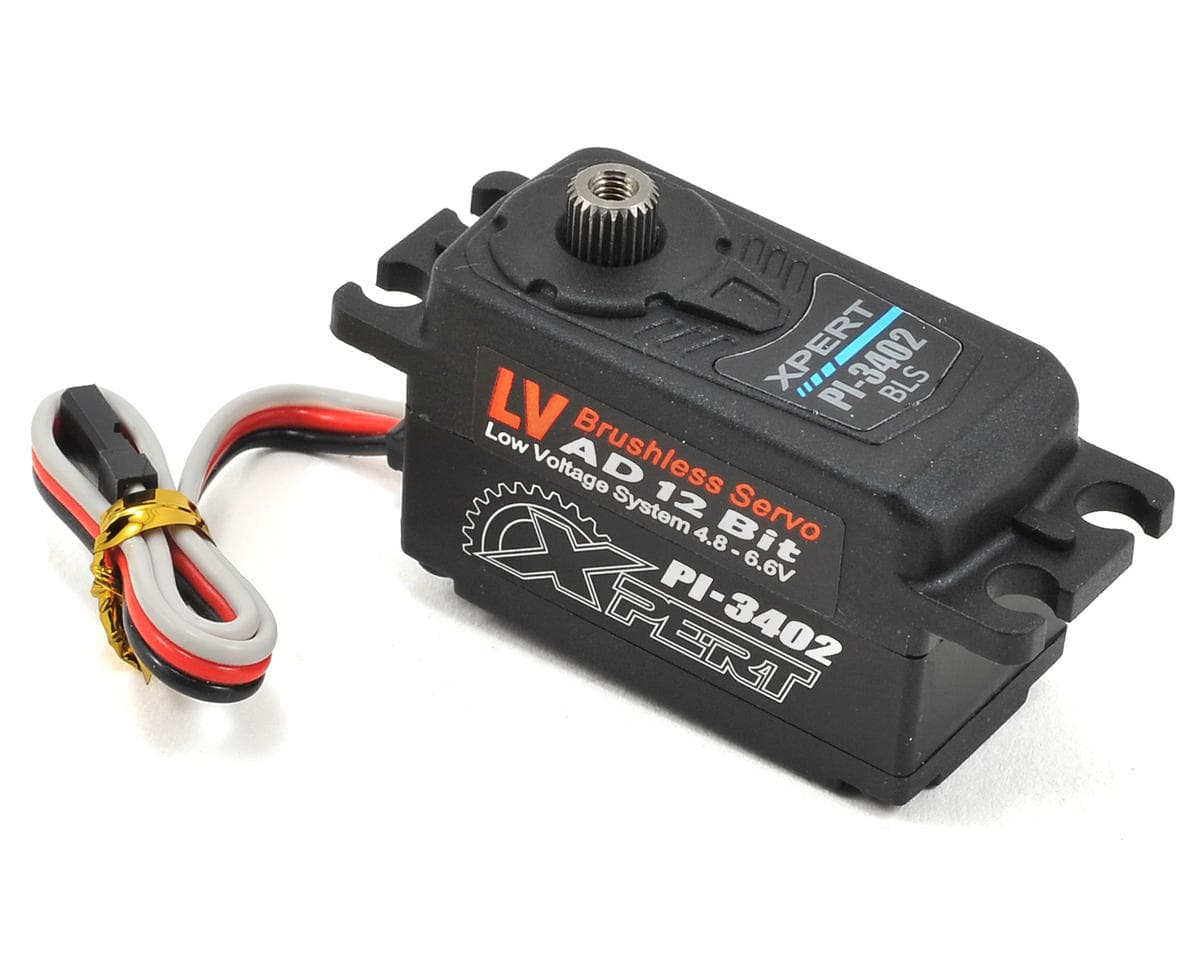

This is the Xpert 3000 Series "High Speed" Low Profile Aluminum Center Case Servo. Xpert low profile servos feature brushless motors, combined with metal gears, 4096 resolution and a unique SIC (Single Integrated Circuit) to deliver incredible performance and durability. The low profile design features a durable composite upper and lower case, with an aluminum middle case that provides optimized thermal dissipation. Additionally, over current protection, over temperature protection and a built in fail safe delivers reliability that make this servo a great choice for a variety of applications when space is limited.
For more Xpert Servo specifications and recommended applications, click here.
Features:
- Brushless motor design provides extremely high speed, incredible efficiency, and low power consumption.
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
- Light weight design
- Aluminum middle case for optimized thermal dissipation.
- Strong Metal Gear
- Glitch-free
- Sophisticated error correction
- High-Speed, High-precision 12-bit AD converter and CPU calculation
- Fail safe
- Over current protection
- Over temperature protection
- Start tone
Specifications:
- Speed:
- @4.8V: .08 sec/60
- @6.0V: .07 sec/60
- Torque:
- @4.8V: 12 kg-cm (166.6 oz-in)
- @6.0V: 15 kg-cm (208.3 oz-in)
-
- Input Voltage: 4.8 - 6.0V
- Dimensions: 40.8x20.2x26.8mm
- Weight: 45 g
Reviews4.3 · 4 reviews
I bought this servo to replace the rubbish Spektrum 6040 Low profile in my Losi 22T and in lieu of buying the new Spektrum 6270HV. This out performs the Spektrum by almost double the torque at just 6 volts and being Low Voltage it doesn't drag on your Rx and require a glitch buster. Spektrum 6270HV Torque: 8.92 kg-cm @ 6.0V Speed: .07 sec. @ 6.0V Xpert 3000 Series Torque: 15 kg-cm @ 6.0V: Speed: .07 sec @ 6.0V Plus this has many features that Spektrum and many other Low Profile servos don't have. Amainhobbies, replacement gears for these would be great, but, I honestly hope I don't need them. I've had to replace gears twice in the Spektrum and my reason for this purchase.
Great servo when there working, perfect for 2wd but this is a disposable servo at best so sorry for the 3 stars. I have the aluminium case model which has the same internals with a different case (now discontinued) i had a crunchy gear mesh so I wanted to replace the gear set, So I bought the replacement gear set thinking of a quick change over but for sure it became a nightmare to access with anti tamper proof sealant inside. Don’t be fooled that they sell the replacement gear sets its impossible to replace the gears (Xpert sealed servos) Iv even had a similar problem with the 4000 series servo but im going to put up with its notch. Why do good servos cost so much. :(
Fast smooth durable,7075 gear spare parts only $23. Airtronics M12S SHR mode fees is very nice. Only 45g Associated B6D run feeling muching.
Went from proteck ss to radient 10k to Xpert 3000 and the Expert is night and day difference. Recentering is strong and smooth same with feel very good. After looking I wish I had ordered a reefs as it has a lot more torque but the 3000 is good.
Reviewers generally praise this low-profile aluminium servo for strong torque, speed and smooth centring, with one reviewer comparing it favourably to a Spektrum 6270HV on stated specifications. Two reviewers note it performs well in 2WD and buyers appreciate its low voltage operation. The main recurring concern is durability: one reviewer reported a crunchy gear mesh and found the sealed case, with anti-tamper sealant, made replacement gears very difficult to fit despite replacement gear sets being available. Another reviewer described it as disposable at best. Reviewers also mention the replacement gear set price. Overall feedback is mixed on longevity, with four reviews total and limited detail on long-term use.
- + Strong torque for its class
- + Fast speed
- + Smooth, strong centring
- + Low voltage operation
- − Gears difficult to replace due to sealed case
- − Durability concerns, including crunchy gear mesh
- − Described as disposable by one reviewer
