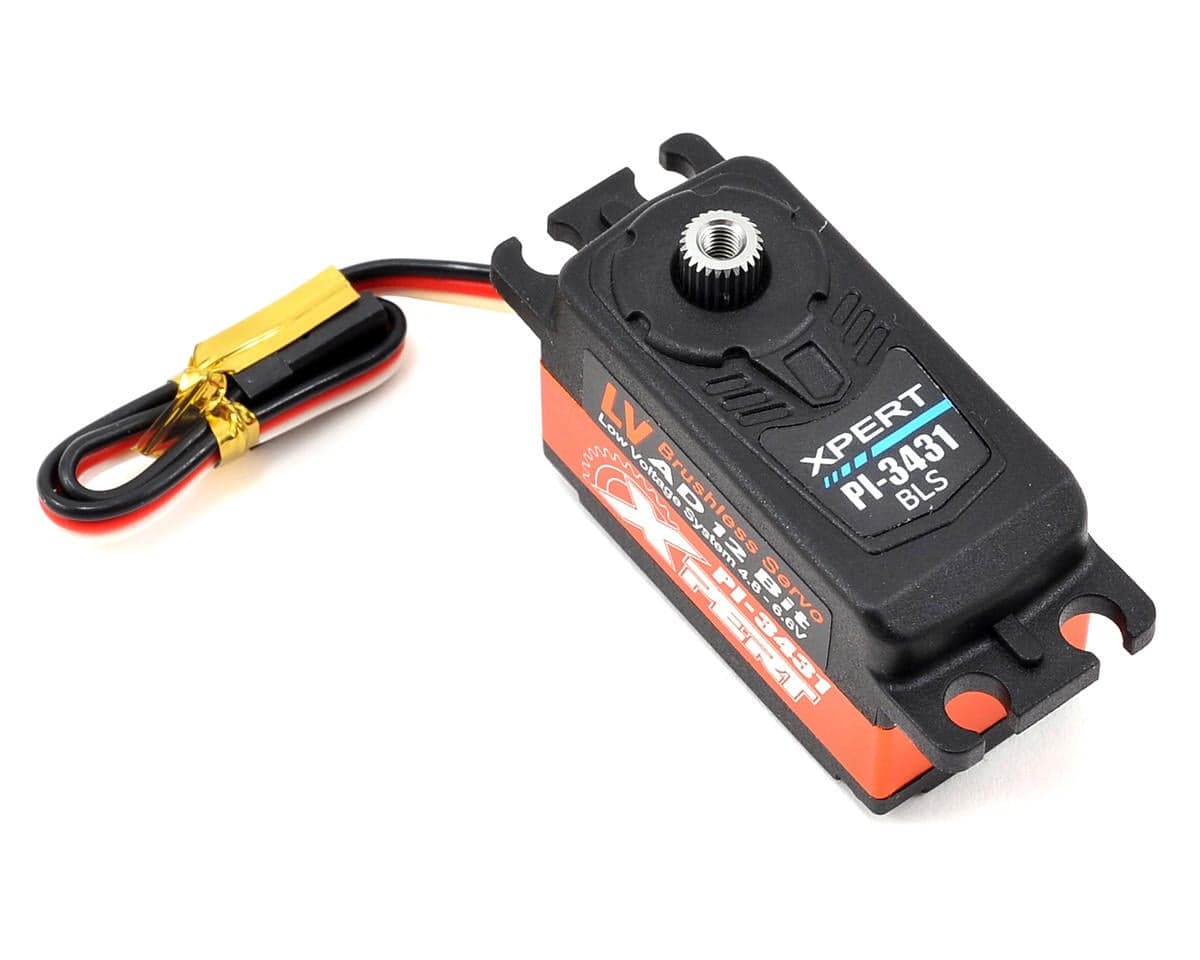

Xpert 3000 Series "Standard" Low Profile Aluminum Center Case Servo
About this part
This is the Xpert 3000 Series "Standard" Low Profile Aluminum Center Case Servo. Xpert low profile servos feature brushless motors, combined with metal gears, 4096 resolution and a unique SIC (Single Integrated Circuit) to deliver incredible performance and durability. The lightweight low profile design includes a molded upper and lower case, with an aluminum middle case that provides optimized thermal dissipation. Additionally, over current protection, over temperature protection and a built in fail safe delivers reliability that make this servo a great choice for a variety of applications when space is limited.
For more Xpert Servo specifications and recommended applications, click here.
Features:
- Brushless motor design provides extremely high speed, incredible efficiency, and low power consumption.
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
- Light weight design
- Aluminum middle case for optimized thermal dissipation.
- Strong Metal Gear
- Glitch-free
- Sophisticated error correction
- High-Speed, High-precision 12-bit AD converter and CPU calculation
- Fail safe
- Over current protection
- Over temperature protection
- Start tone
Specifications:
- Speed:
- @4.8V: .080 sec/60
- @6.0V: .070 sec/60
- Torque:
- @4.8V: 8.16 kg-cm (113.26 oz-in)
- @6.0V: 10.20 kg-cm (141.58 oz-in)
- Input Voltage: 4.8 - 6.0V
- Dimensions: 40.8x20.2x26.8mm
- Weight: 45 g
Reviews5.0 · 6 reviews
Great servo. I use it in my 1/10 touring car. Its fast, smooth and problem free. If you want a high quality servo. Grab one of these you cant go wrong. just check out the features compaired to others. it speaks for itself and it backs its up when you put it to the test and at half the price of any other brands Congratulations to xpert for a great design. It uses a 25t spline also. Just incase you need a servo horn.
This little servo has been in my eb410.2 since its release I doubted the power but it hasn't missed a beat 2020 I raced it outdoor at hot rod hobbies and indoor a OCRC on countless occasions 2021 only been running indoor pretty high grip and this thing is a beast it has enough power for me to muscle around my car in any situation It is pretty quiet and I love the start-up tone and the soft center when powering on. After 2 years It centers perfectly and gears are not loose what so ever only complaint is it makes more noise now at center than it ever did but performs outstanding. Will defiantly purchase for all my 10th scale stuff
Perfect servo for 1/10 2wd Buggy all day Id probably not trust it in a 1/10 4wd Buggy
Very impressed with this servo. I usually use 160T’s or spectrum 6240’s if I need a LP servo. The specs on this one looked good and it was going in a USGT car with a Tekin Spec ESC that doesn’t have a high voltage BEC so I figured I’d try it. Very very smooth, centers great, and extremely fast for a 6V servo. Super quiet as well and since it was going in an XRAY T4, the orange was a nice match as well hahaha. Definitely recommended.
Excellent servo. I am using this in a DEX210F. It is plenty fast, smooth, quiet and looks very appealing. I have had a few tumbles and so far no issues. Great value!
All six reviewers rate this low profile aluminum center case servo 5/5 and are verified owners using it in 1/10 touring, buggy and other 1/10 cars. Reviewers consistently describe it as fast, smooth, quiet and powerful for its size, with good centering. One long-term owner reported it still centers well after two years of racing, though gears remain tight, but noticed more noise at center over time. One reviewer doubted it for a 1/10 4WD buggy, while another ran it on a 6V setup without a high-voltage BEC. Reviews are generally positive and mostly brief, with no reported failures beyond occasional tumbles.
- + Fast and powerful for a low profile servo
- + Smooth and quiet operation
- + Centers well, including after long use
- + Good value for the price
- − Noise at center increased after extended use
- − One reviewer would not trust it in a 1/10 4WD buggy
