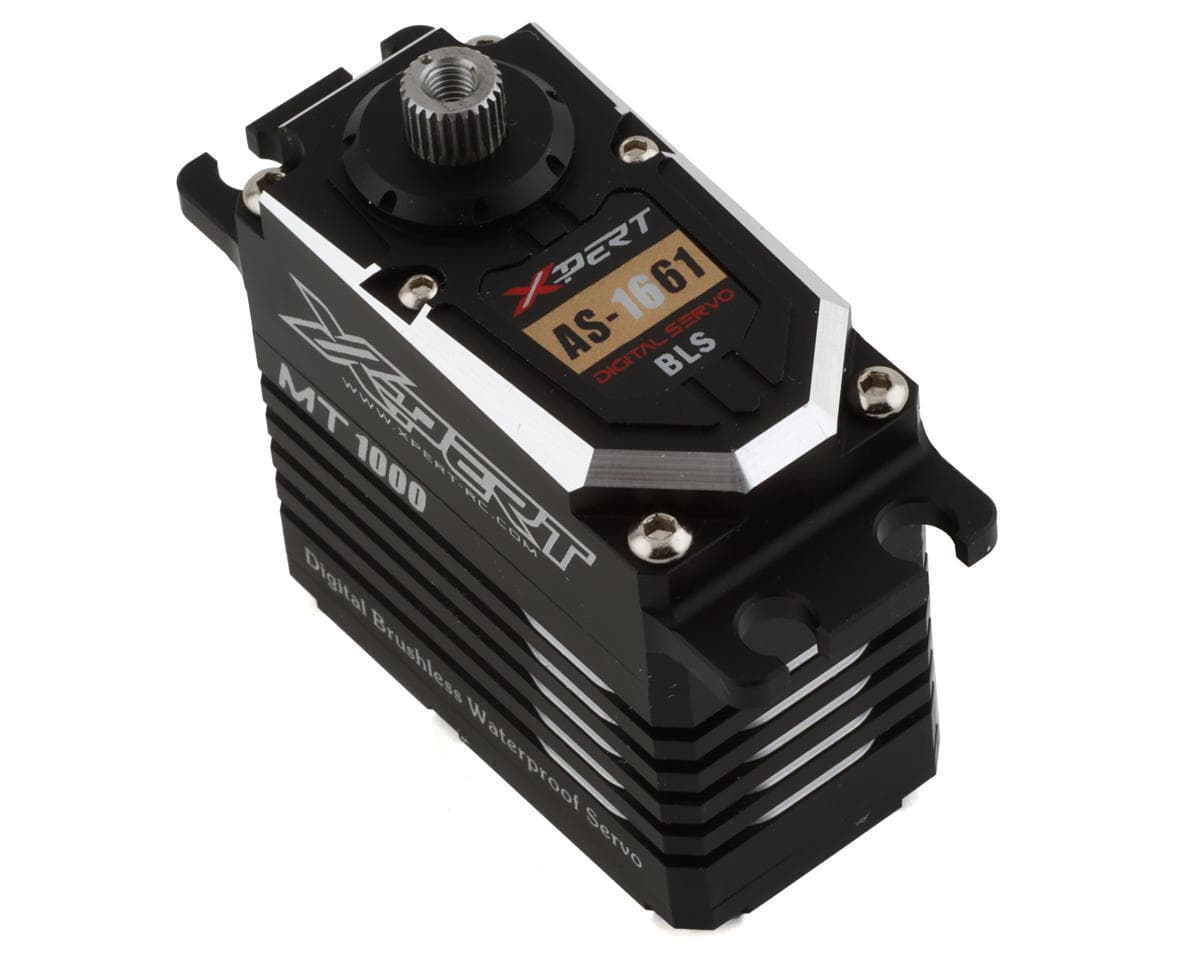

Xpert AS-1661-HV MT1000 High Torque Standard Servo (High Voltage)
Part # XPTAS-1661-HV
Where to buy
$209.99
Prices are as last seen at the store; stock is not tracked.
About this part

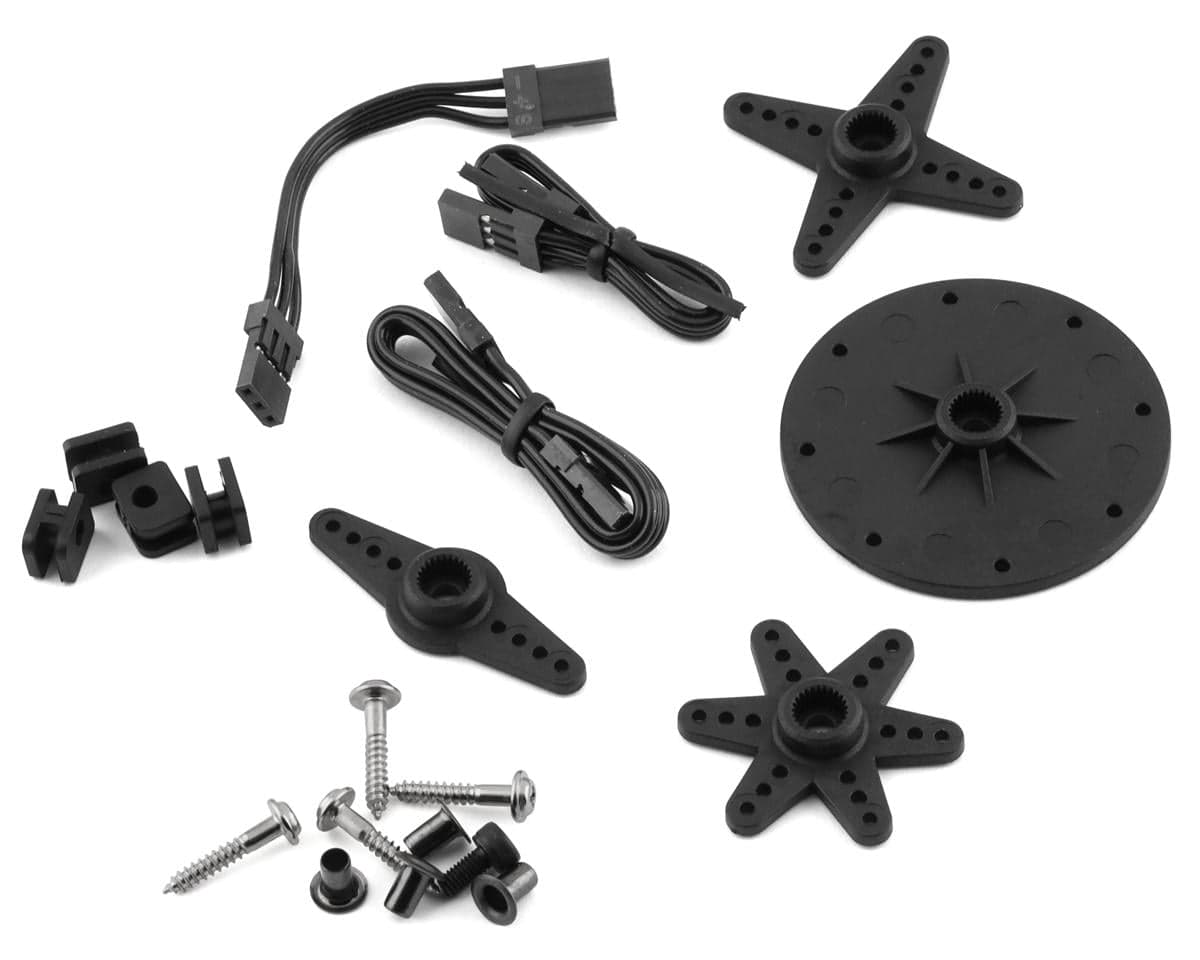

The Xpert AS-1661-HV MT1000 High Torque Standard Servo is a high voltage servo designed specifically for large scale aircraft. These servos are given full stainless steel gears for extreme durability. The servo also supports most high-speed response radio systems. Additionally this servo features a brushless motor offering over 1000oz-in of torque, high efficiency, and low power consumption. Package includes one servo, three servo leads, four plastic servo horns and mounting hardware.
Features:
Features:
- Mega Torque motor that produces over 1000oz-in of power for large scale airplane applications
- Brushless motor design provides extremely high speed, high efficiency, and low power consumption
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability
- Durable Aluminum case
- Quick release cable
- Super strong hardened stainless steel metal gears
- Glitch-free + fail safe
- High-Speed, High-precision 12-bit AD converter and CPU
- Over-current and over-temperature protection
- Smooth soft start
Specifications:
- Type: Standard
- Output Spline: 25T
- Power Supply: 6.0-8.4V
- Speed:
- 6.0V: .16 sec/60°
- 7.4V: .132 sec/60°
- 8.4V: .118 sec/60°
- Torque:
- 6.0V: 881.8oz-in (63.5kg-cm)
- 7.4V: 1013.7oz-in (73.0kg-cm)
- 8.4V: 1083.2oz-in (78.0kg-cm)
- Dimensions: 41.0x21.0x41.4mm
- Weight: 85g
- Applications: Large scale airplane
