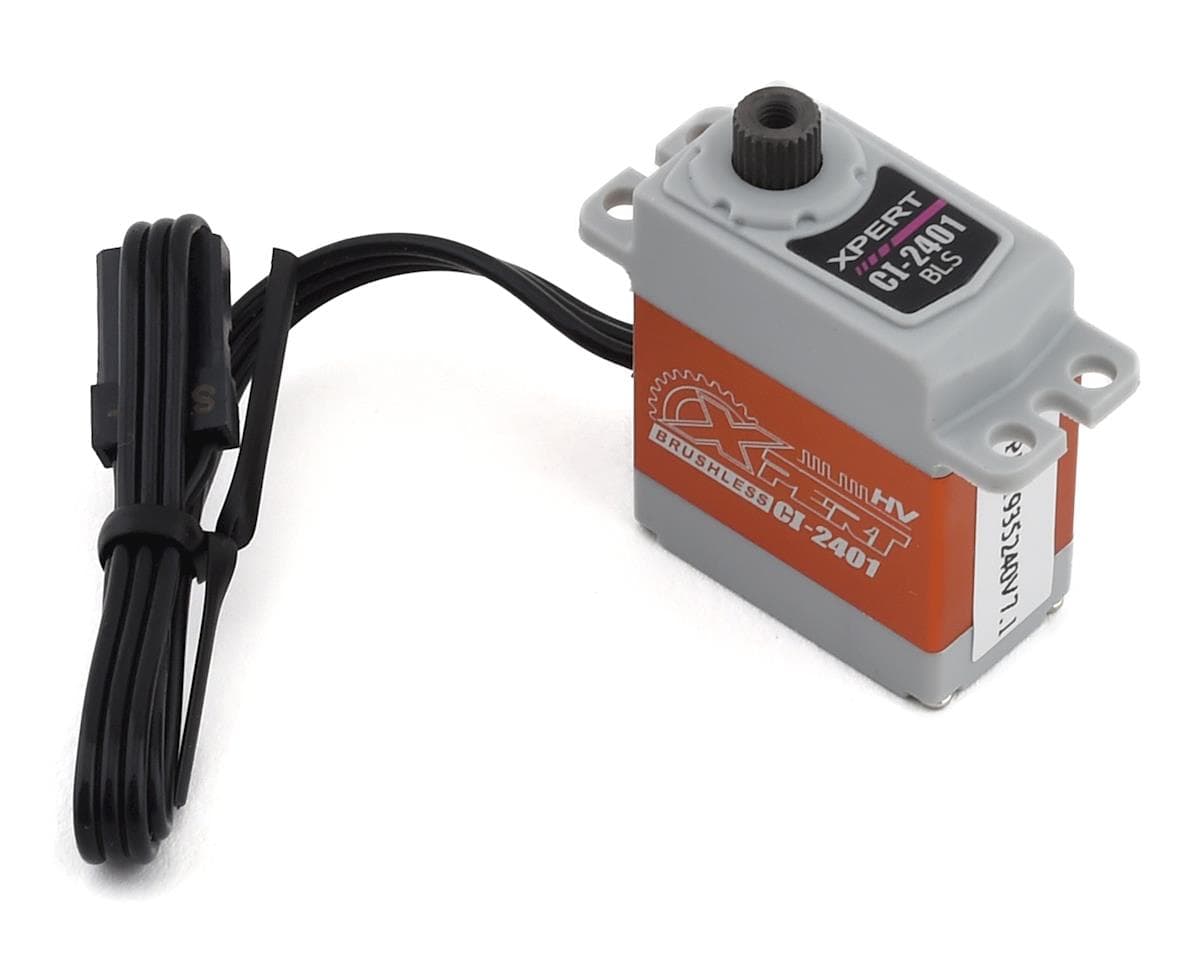

Xpert CI-2401 Aluminum Center Case Micro Brushless Servo (High Voltage)
Part # XPTCI-2401-HV
Where to buy
$99.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Xpert CI-2401 Aluminum Center Case Micro Brushless Servo is an incredibly impressive micro class servo. Featuring an aluminum center case design for efficient heat dissipation, 4096 resolution, and impressive 114.79 oz-in & 0.061 sec/60 degrees specs at 8V, these micro servos are in a class of their own. These are an ideal option for airplanes, helicopter cyclic and surface applications such as steering, shift servos and dig servo applications. If you have been looking for a heavy duty, high voltage micro servo that can handle the punishment of demanding applications, the CI- 2401 checks those boxes.
Features:
- Brushless motor design provides extremely high speed, efficiency, and low power consumption
- Plastic upper and lower case with center aluminum design
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability
- Light weight design
- All Aluminum center case for the best thermal dissipation and durability
- Strong Metal Gear
- Glitch-free
- Sophisticated error correction
- High-Speed, High-precision 12-bit AD converter and CPU calculation
- Fail safe
- Over current protection
- Over temperature protection
- Start sonorant
- Standard size micro spline pattern
Specifications:
- Input Voltage: 6.0V~8.4V
- Speed (sec/ 60°):
- @6.0V: .085sec/60°
- @7.4V: .069 sec/60°
- @8.4V: .061 sec/60°
- Torque (oz/in):
- @6.0V: 83.56 oz-in (6.02 kg-cm)
- @7.4V: 83.56 oz-in (6.02 kg-cm)
- @8.4V: 114.79 oz-in (8.27 kg-cm)
- Dimensions: 23.15x29x13 mm
- Weight: 21g
- Frequency: 200/333 Hz
- Range: 50~400 Hz
- Center Position: 1520us
