Xpert GS-5401-HV S2 High Speed Low Profile Brushless Servo (High Voltage)
Part # XPTGS-5401-HV
Where to buy
$160.00
Prices are as last seen at the store; stock is not tracked.
About this part

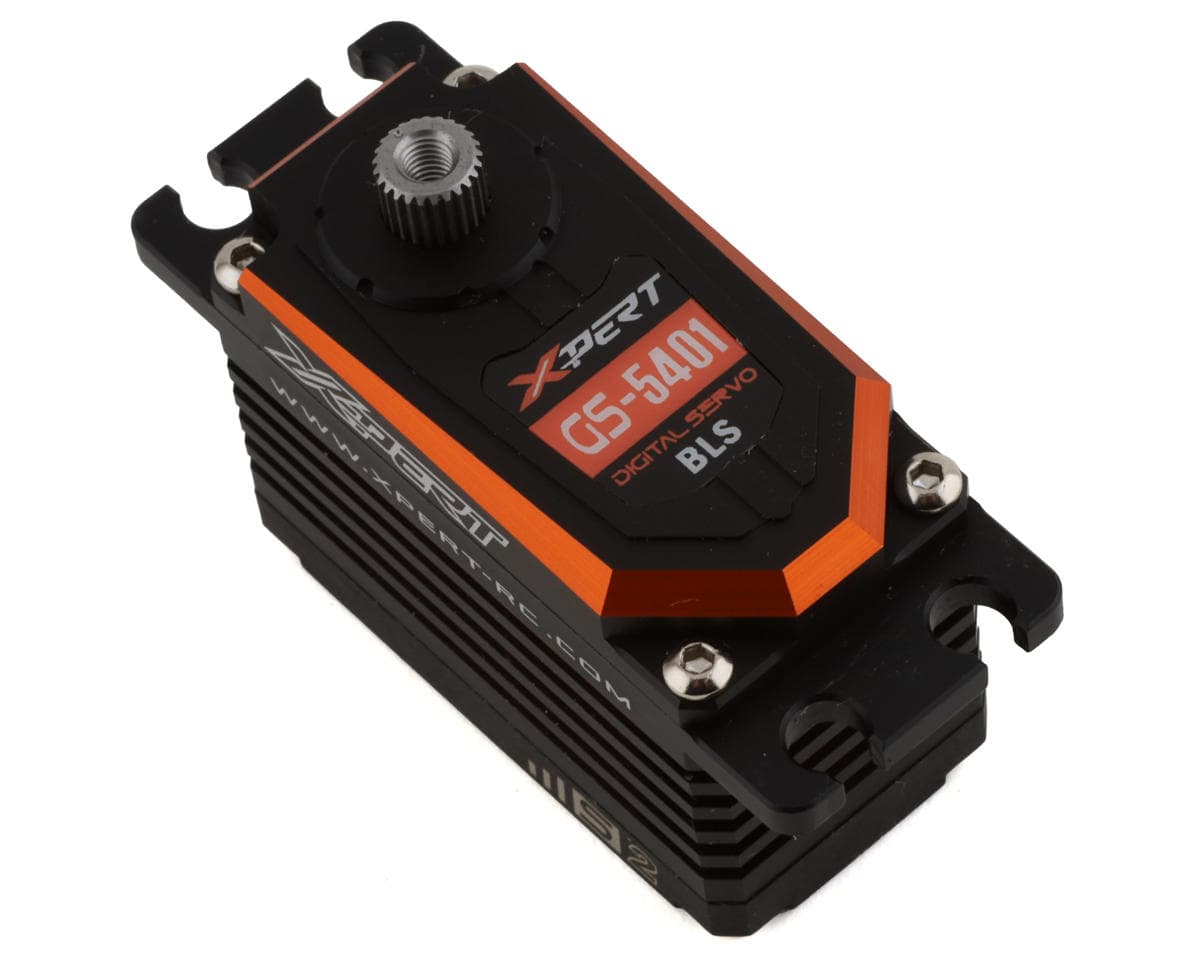

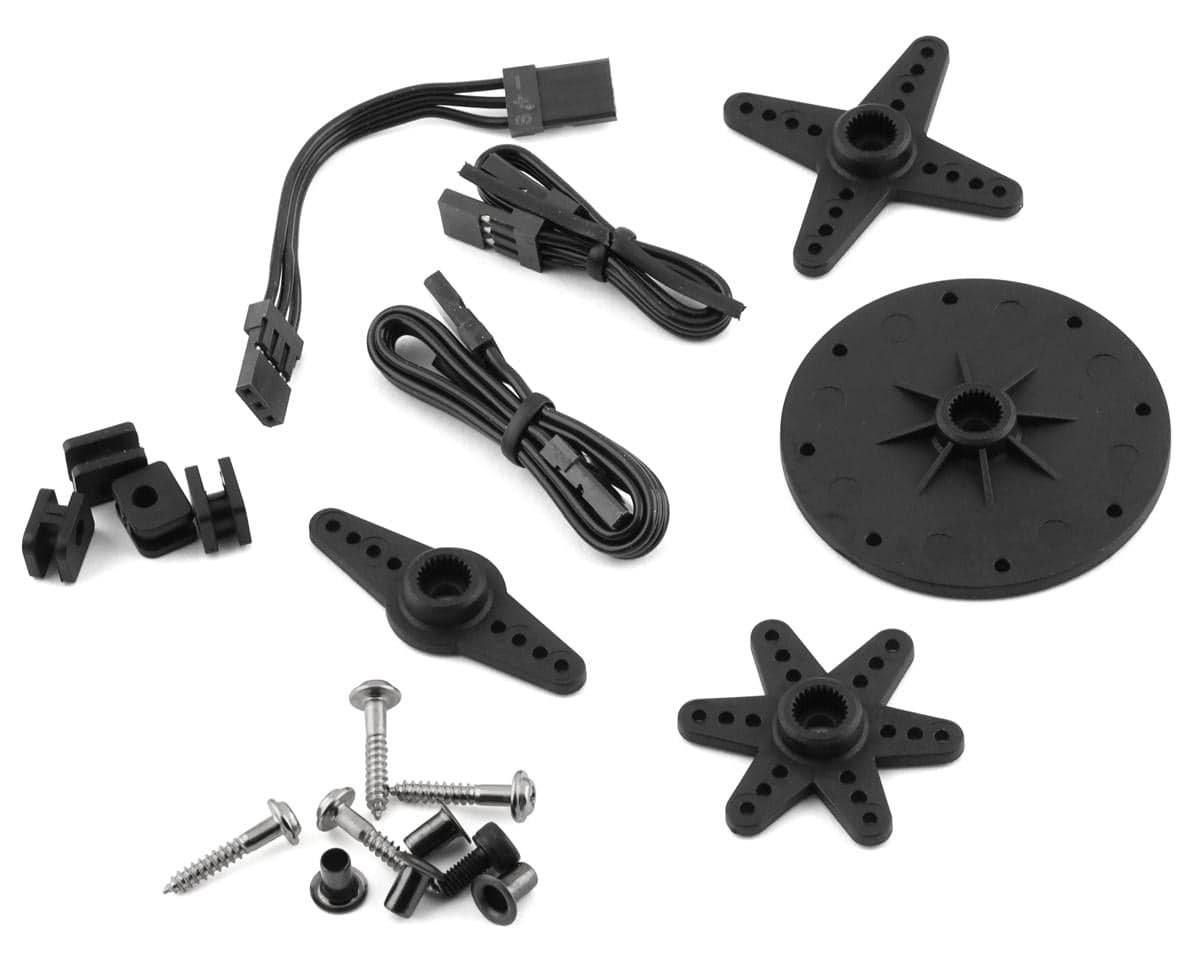

This is the Xpert GS-5401-HV S2 High Speed Low Profile Brushless High Voltage Servo. Designed for surface applications this servo offers ultra fast speed with it's highly efficient and powerful brushless motor. Utilizing an all aluminum case and hardened stainless steel gears the GS-5401 is built for impressive durability. Package includes one servo, three servo leads, four plastic servo horns and mounting hardware.
Features:
Features:
- Updated low profile servo case with larger size motor, resulting in higher torque and durability for surface applications
- Brushless motor design provides extremely high speed, high efficiency, and low power consumption
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability
- Durable Aluminum case
- Quick release cable
- Super strong hardened stainless steel metal gears
- Glitch-free + fail safe
- High-Speed, High-precision 12-bit AD converter and CPU
- Over-current and over-temperature protection
- Smooth soft start
- Supports Sanwa SSR mode
Specifications:
- Type: Low Profile
- Output Spline: 25T
- Power Supply: 5.0-8.4V
- Speed:
- 6.0V: .084 sec/60°
- 7.4V: .075 sec/60°
- 8.4V: .073 sec/60°
- Torque:
- 6.0V: 224.9oz-in (16.2kg-cm)
- 7.4V: 255.5oz-in (18.2kg-cm)
- 8.4V: 277.7oz-in (20.0kg-cm)
- Dimensions: 40.0x20.0x43.3mm
- Weight: 71g
- Applications: Surface
