Xpert

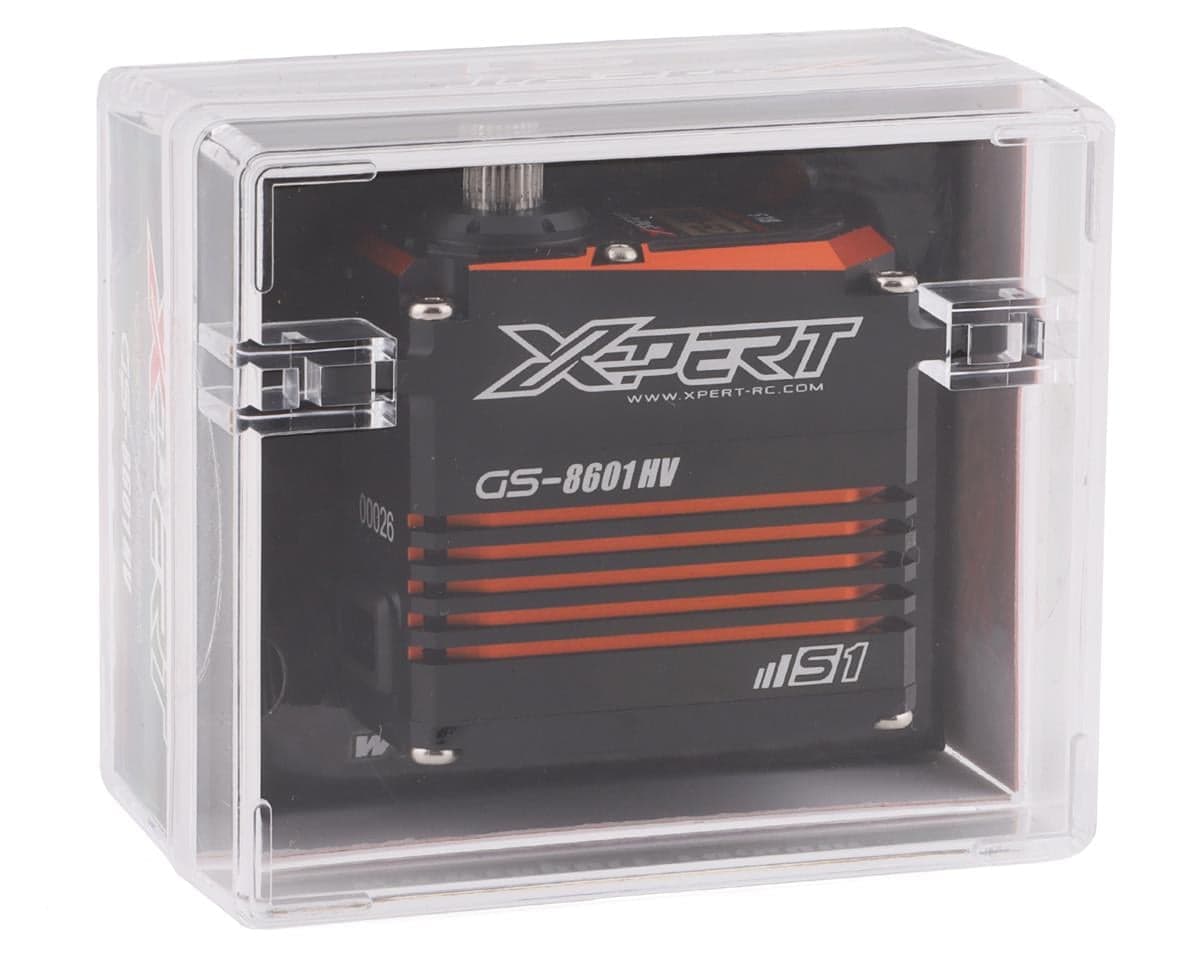

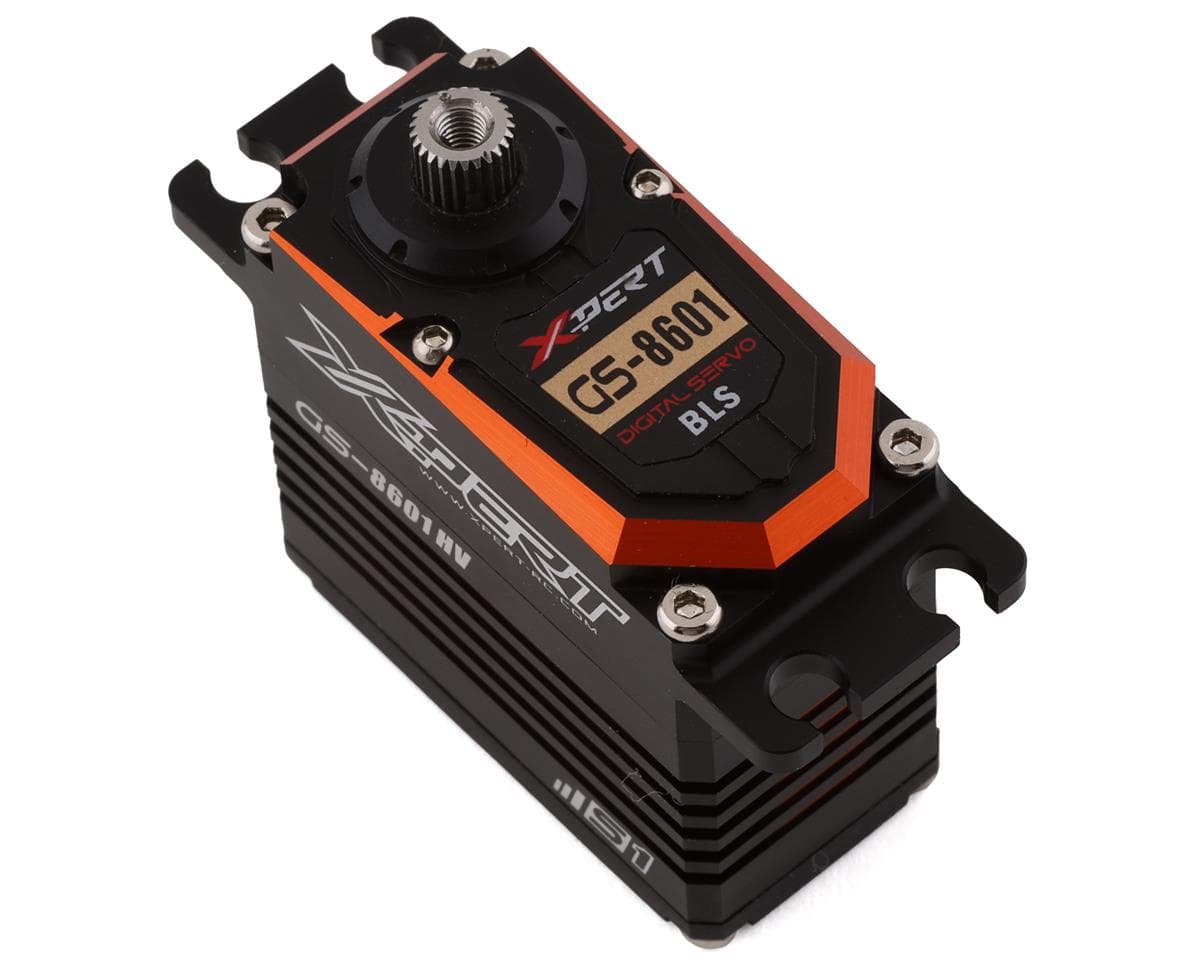

Xpert GS-8601-HV S1 Aluminum Case Servo (High Voltage)
Part # XPTGS-8601-HV
Where to buy
$169.99
Prices are as last seen at the store; stock is not tracked.
About this part

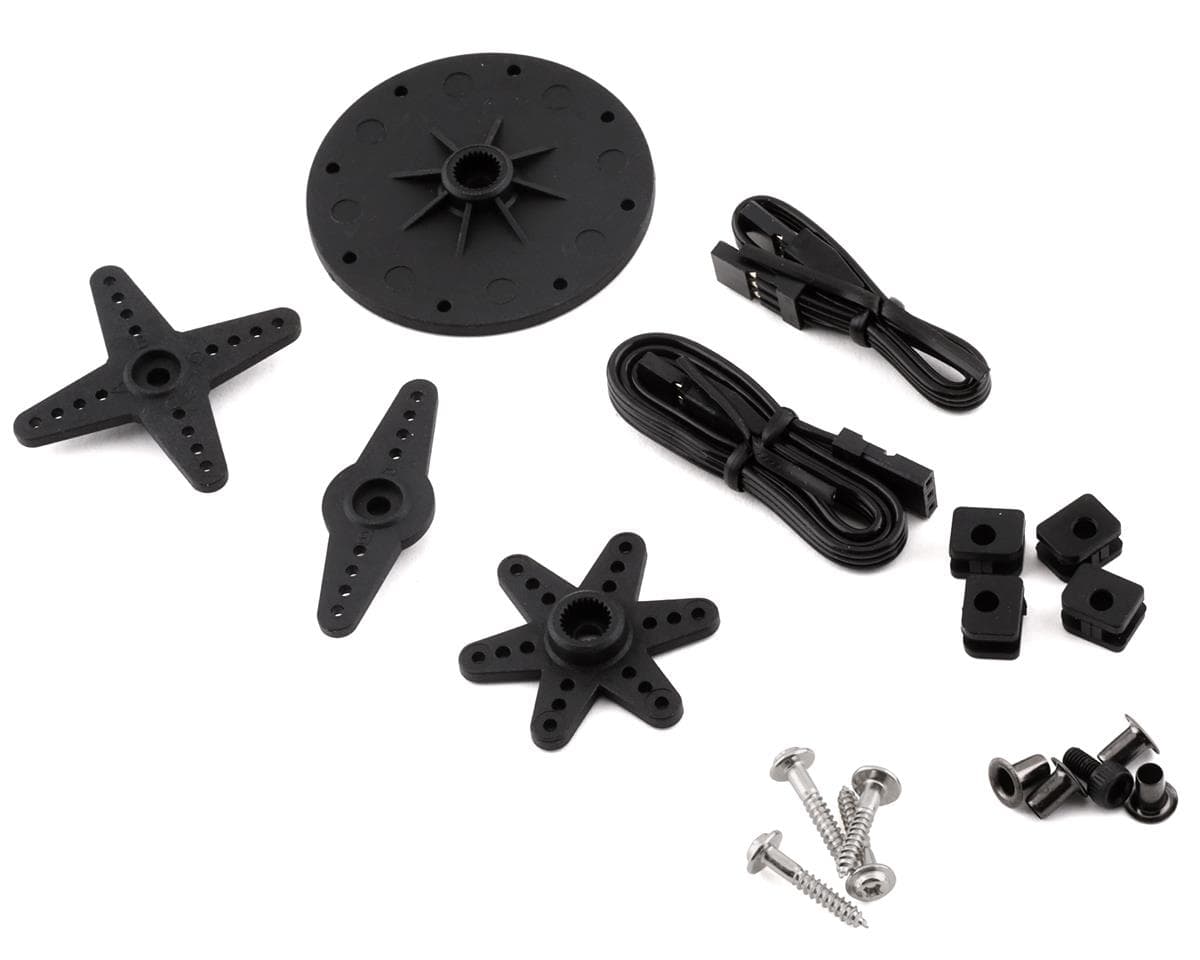

The Xpert GS-8601-HV S1 Aluminum Case Servo is a high voltage servo designed specifically for 1/10 and 1/8 racing. These servos are given full stainless steel gears and 2mm alignment pins for extreme durability. The servo also supports most high-speed response radio systems. Package includes one servo, two servo leads, four plastic servo horns and mounting hardware.
Features:
Features:
- High performance design specifically for 1/10 and 1/8 surface competitions
- Supports most high-speed response radio systems on the market
- Full stainless steel gears prolong the durability
- Enlarged 2mm gear alignment pins for improving the durability under impact
- Water-resistance structure
- Over-current protection
- Over-temperature protection
Specifications:
- Type: Standard
- Output Spline: 25T
- Power Supply: 5.0-8.4V
- Speed:
- 6.0V: .153 sec/60°
- 7.4V: .131 sec/60°
- 8.4V: .124 sec/60°
- Torque:
- 6.0V: 360oz-in (25.9kg-cm)
- 7.4V: 460oz-in (33.1kg-cm)
- 8.4V: 555oz-in (40.0kg-cm)
- Dimensions: 40.0x20.0x44.3mm
- Weight: 71g
- Range: 250us-500us,500us-1000us, 1000u-2000us(auto adaptive)
- Applications: 1/8 and 1/10 Surface Steering
