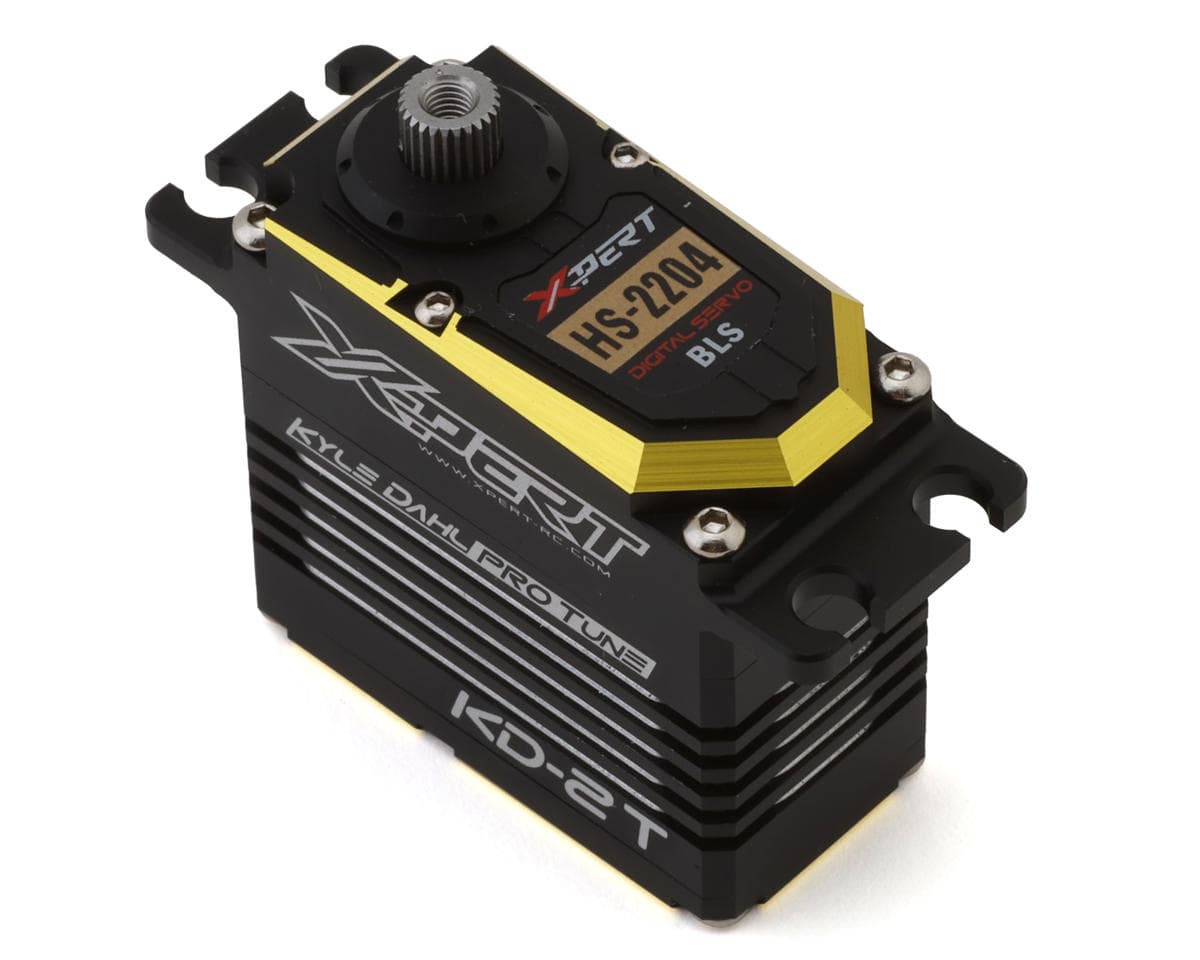

Xpert HS-2204T-HV KD2T High Speed Brushless Aluminum Case Tail Servo

This is the Xpert HS-2204T-HV KD2T High Speed Brushless Aluminum Case Tail Servo. Designed for helicopter tail applications this servo offers ultra fast speed with it's highly efficient and powerful brushless motor. Utilizing an all aluminum case and hardened stainless steel gears the HS-2204T is built for impressive durability.

Features:

• Brushless motor design provides extremely high speed, high efficiency, and low power consumption
• 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability
• Durable Aluminum case
• Quick release cable
• Super strong hardened stainless steel metal gears
• Glitch-free + fail safe
• High-Speed, High-precision 12-bit AD converter and CPU
• Over-current and over-temperature protection
• Smooth soft start

Specifications:

• Suggested Application: Helicopter Tail
• Input Voltage: 7.4-8.4V
• Speed:
• 7.4V: .040 sec/60°
• 8.4V: .035 sec/60°
• Torque:
• 7.4V: 92.44 oz-in
• 8.4V: 104.93 oz-in
• Pulse/Frequency: 50-1000Hz
• Pulse Width: 760uS
• Motor Type: Brushless
• Output Shaft: 25T
• Gear Material: Metal
• Dimensions: 40x40.5x20mm
• Weight: 71.5g

Includes:

• (1) HS-2204T-HV KD2T High Speed Brushless Aluminum Case Servo (High Voltage)

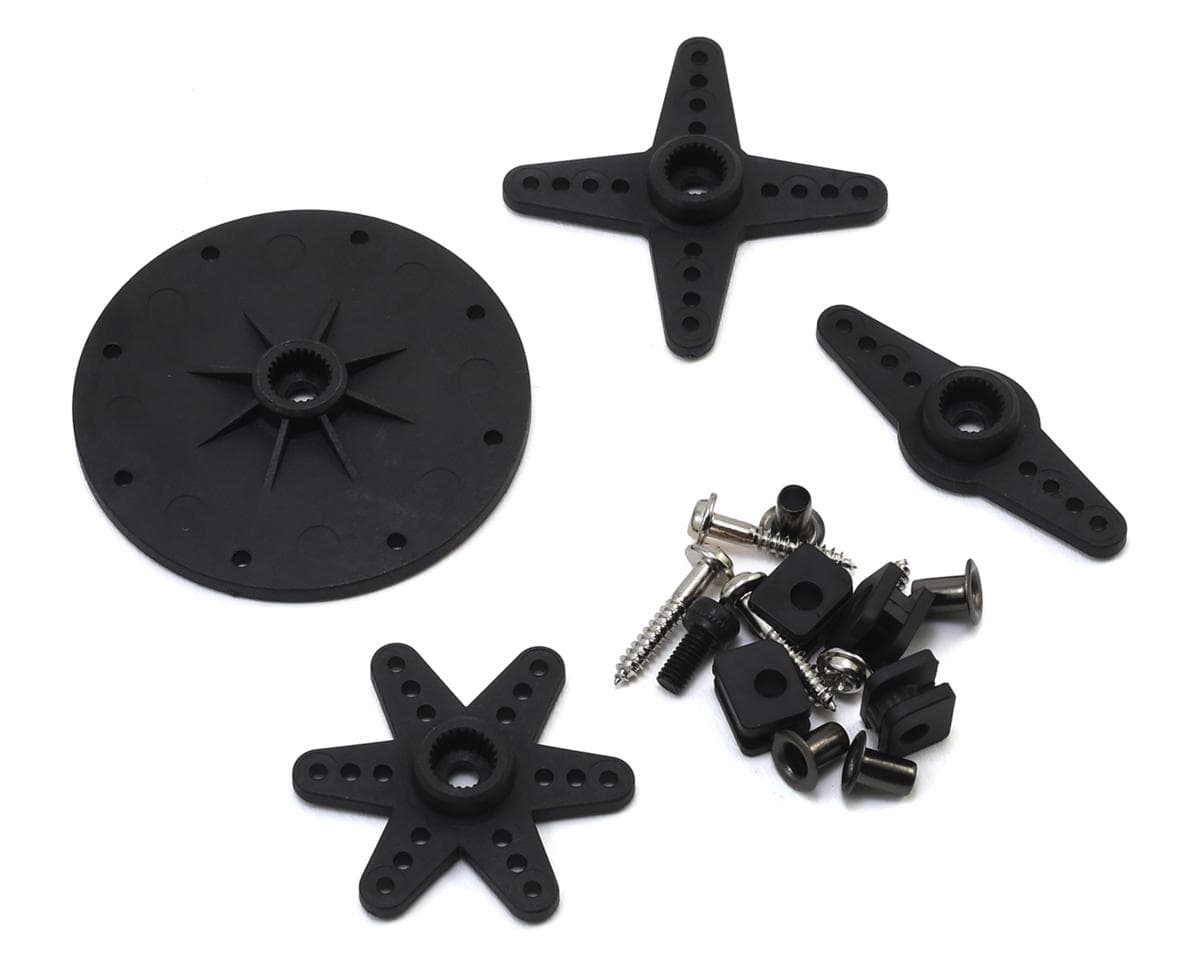

• (4) Assorted Plastic Servo Horns

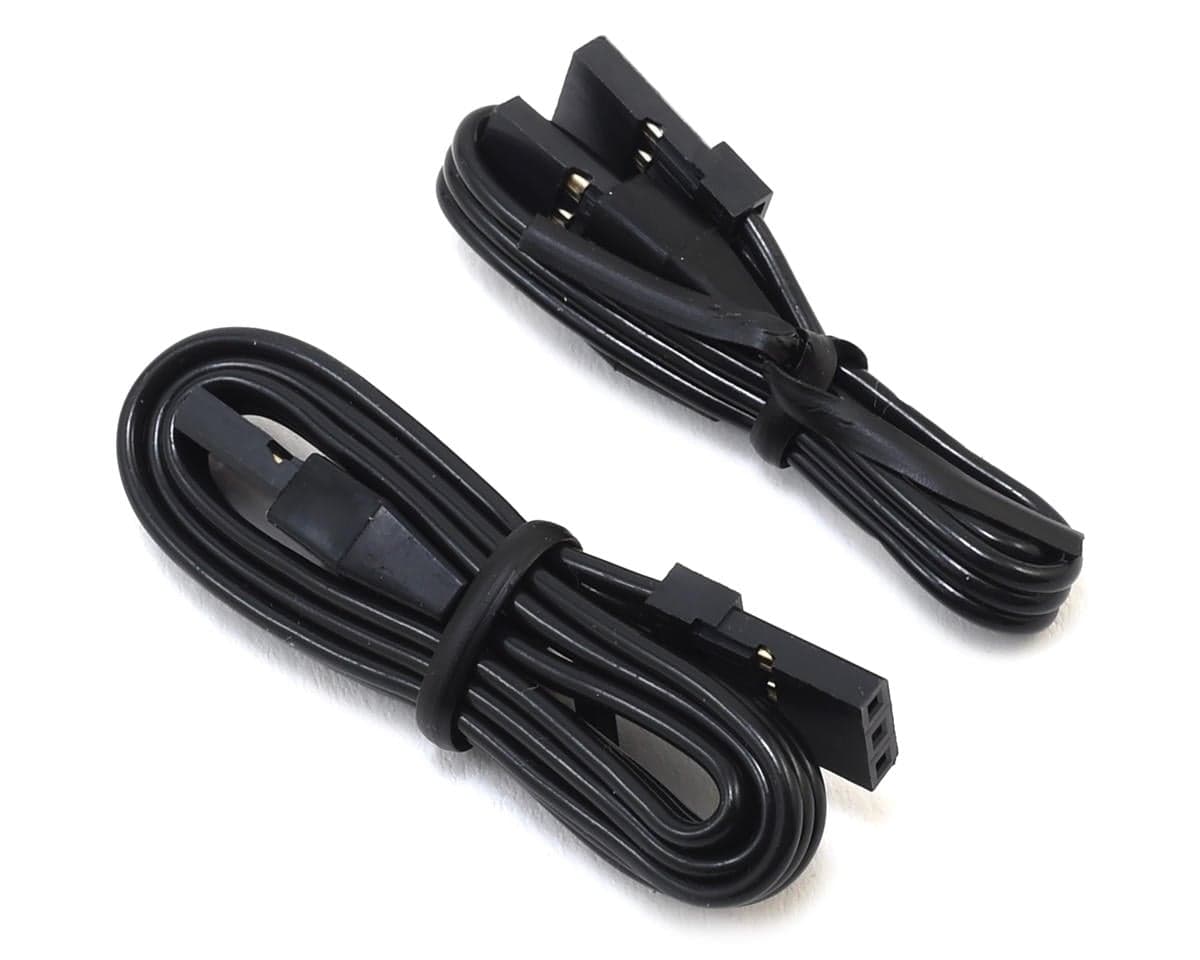

• (2) Servo Leads
• Mounting Hardware
