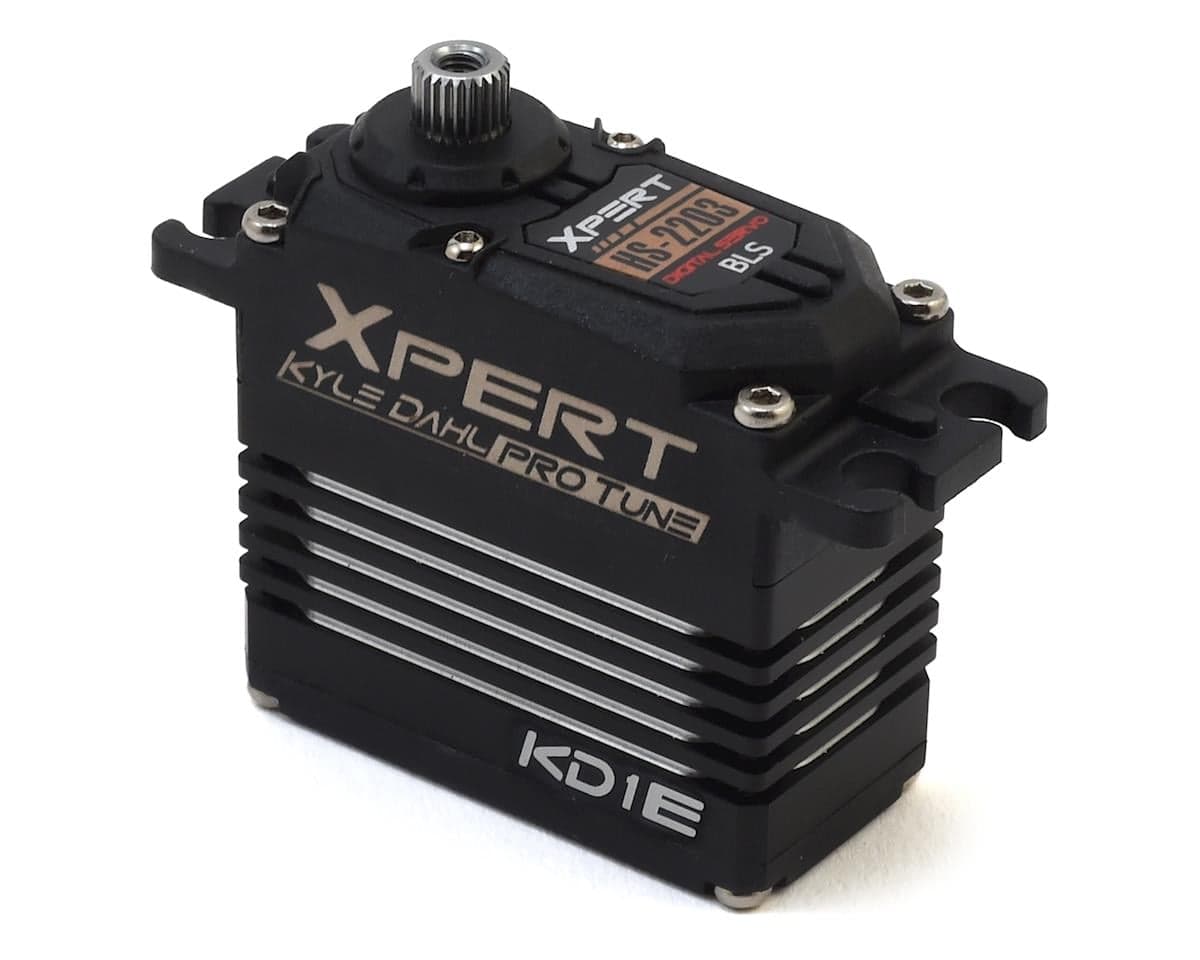

Xpert KD1E Kyle Dahl Pro Tune High Speed Brushless Throttle Servo (High Voltage)
Part # XPTKD1EHS-2203-HV5.0(1)
Where to buy
$109.99
Prices are as last seen at the store; stock is not tracked.
About this part
KD1E Kyle Dahl Pro Tune High Speed Brushless Throttle Servo.
Features:
Specifications:
Features:
- Developed and tuned by World Champion Helicopter Master, Kyle Dahl.
- Specifically design for nitro engine throttle channel
- Quick release cable that allows easy and quick installation for all helicopters.
- Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
- All Aluminum case for the best thermal dissipation and durability.
- Strong Metal Gear
- Glitch-free
- Sophisticated error correction
- High-Speed, High-precision 12-bit AD converter and CPU calculation
- Fail safe
- Over current protection
- Over temperature protection
- Start sonorant
Specifications:
- Torque:
- @8.4V: 83.97 oz-in/ 6.05kg-cm
- @7.4V: 73.98 oz-in/ 5.33kg/cm
- Speed:
- @8.4V: .035sec/60
- @7.4V: .044 sec/60
- Dimensions: 40x37.80x20 mm
- Weight: 61.9g
Reviews5.0 · 1 review
RCHeliVerified owneron Xpert KD1E Kyle Dahl Pro Tune High Speed Brushless Throttle Servo (High Voltage)
Extremely smooth and powerful servo great addition to any nitro machine. Very quiet during operation and no buzzing to find its center. The detectable servo lead functions by a large rubber boot around the servo lead press fitting into the receptacle Sometimes there were issues making sure the rubber boot seated correctly as it was pushed into the servo.
