Xpert

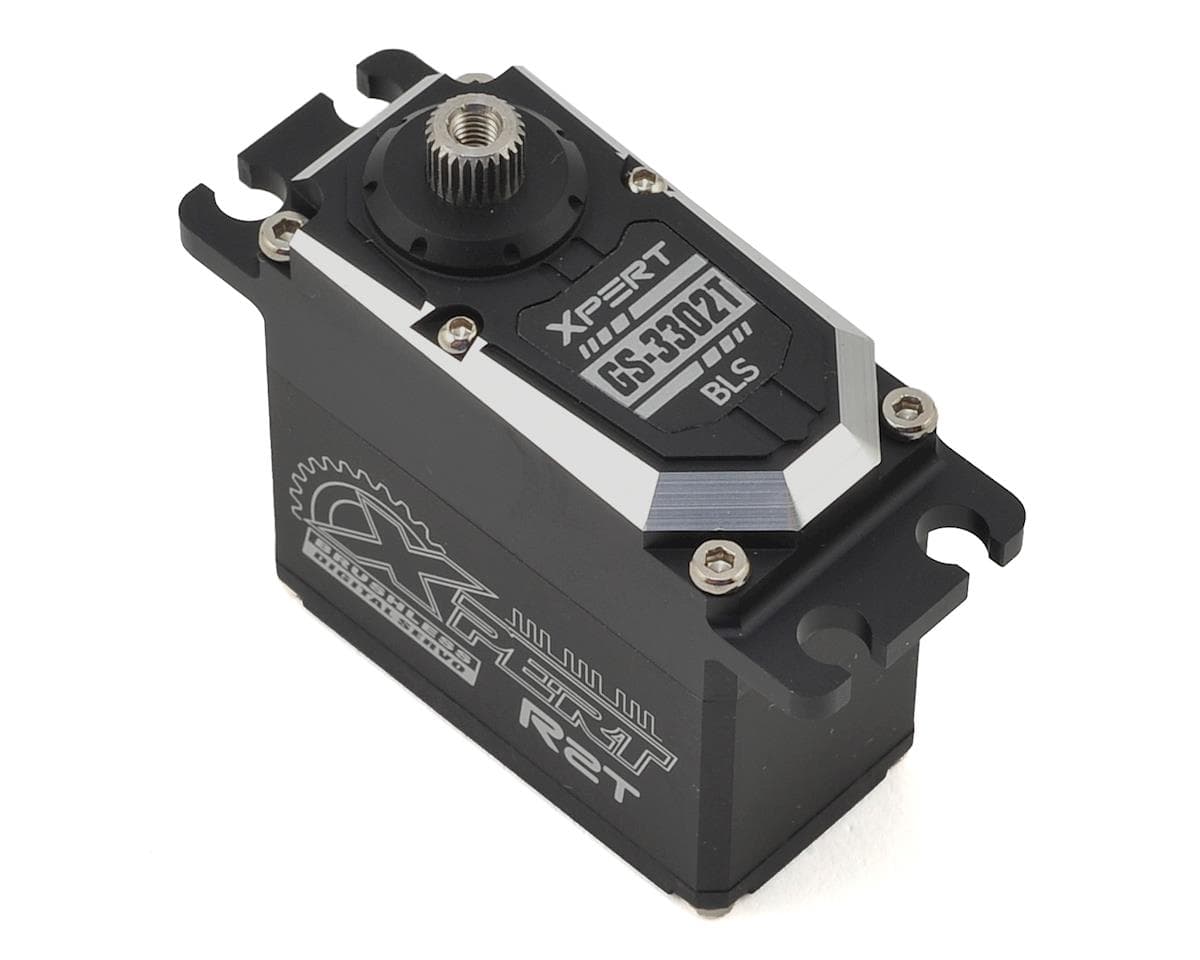

Xpert R2 Tail Metal Gear Brushless Servo (High Voltage)
Part # XPTGS-3302T-HV4.5(2)
Where to buy
$154.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Xpert RC R2T is an unbelievably fast high voltage, brushless tail servo. The R2T features a quick release cable that simplifies installation and removal by allowing you to detach the servo wire from the servo itself, rather than the receiver. Plus, the servo includes 165mm and 290mm long connector leads! Combine this with a standard size full aluminum case, a strong metal gear train, 760us narrow band, .040 sec/60 speed and 233.18 oz-in at 8.4V and you have a recipe for lightning fast, rock solid tail control. A plastic bottom case saves a few extra grams for those looking to have an even lighter servo!
Features:
Features:
- Quick release cable that allows easy and quick installation for all helicopters.
- Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
- Light weight design
- All Aluminum case for the best thermal dissipation and durability.
- Strong Metal Gear
- Glitch-free
- Sophisticated error correction
- High-Speed, High-precision 12-bit AD converter and CPU calculation
- Fail safe
- Over current protection
- Over temperature protection
- Start sonorant
- 760us narrow band
- Operating frequency up to 800Hz

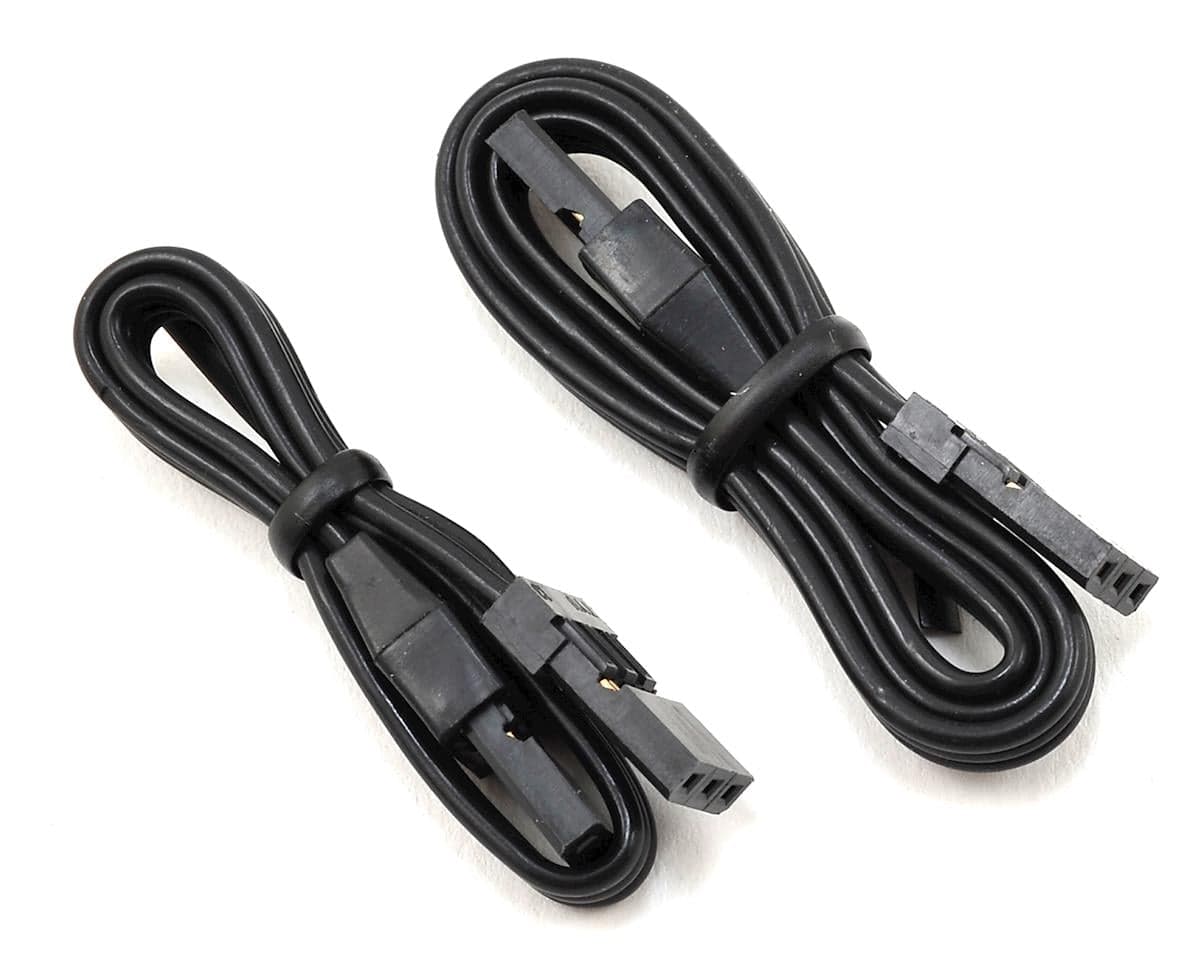

- Includes 165mm and 290mm long leads
- Dimensions: 40x37.80x20 mm
- Weight: 70 g
- Speed:
- @6.0V: .056 sec/60
- @7.4V: .045 sec/60
- @8.4V: .040 sec/60
- Torque:
- @6.0V: 166.56 oz-in (12.00 kg-cm)
- @7.4V: 205.43 oz-in (14.80 kg-cm)
- @8.4V: 233.18 oz-in (16.80 kg-cm)
Reviews4.5 · 2 reviews
Jason HuberVerified owneron Xpert R2 Tail Metal Gear Brushless Servo (High Voltage)
Excellent servo. i installed this in a Logo 550 helicopter. Note that the raised embossment where the servo wire plugs into the servo makes fitment difficult where the servo opening is exactly the size of the servo length wise. On the Logo 550, the tail servo was fit by slightly squeezing / bending the opening for the tail servo. Performs better than any other tail servo I have ever used and I've used a few.
Terrance GrahamVerified owneron Xpert R2 Tail Metal Gear Brushless Servo (High Voltage)
This is the king of TR servos! It has the highest torque and plenty of speed. I recommend product.
