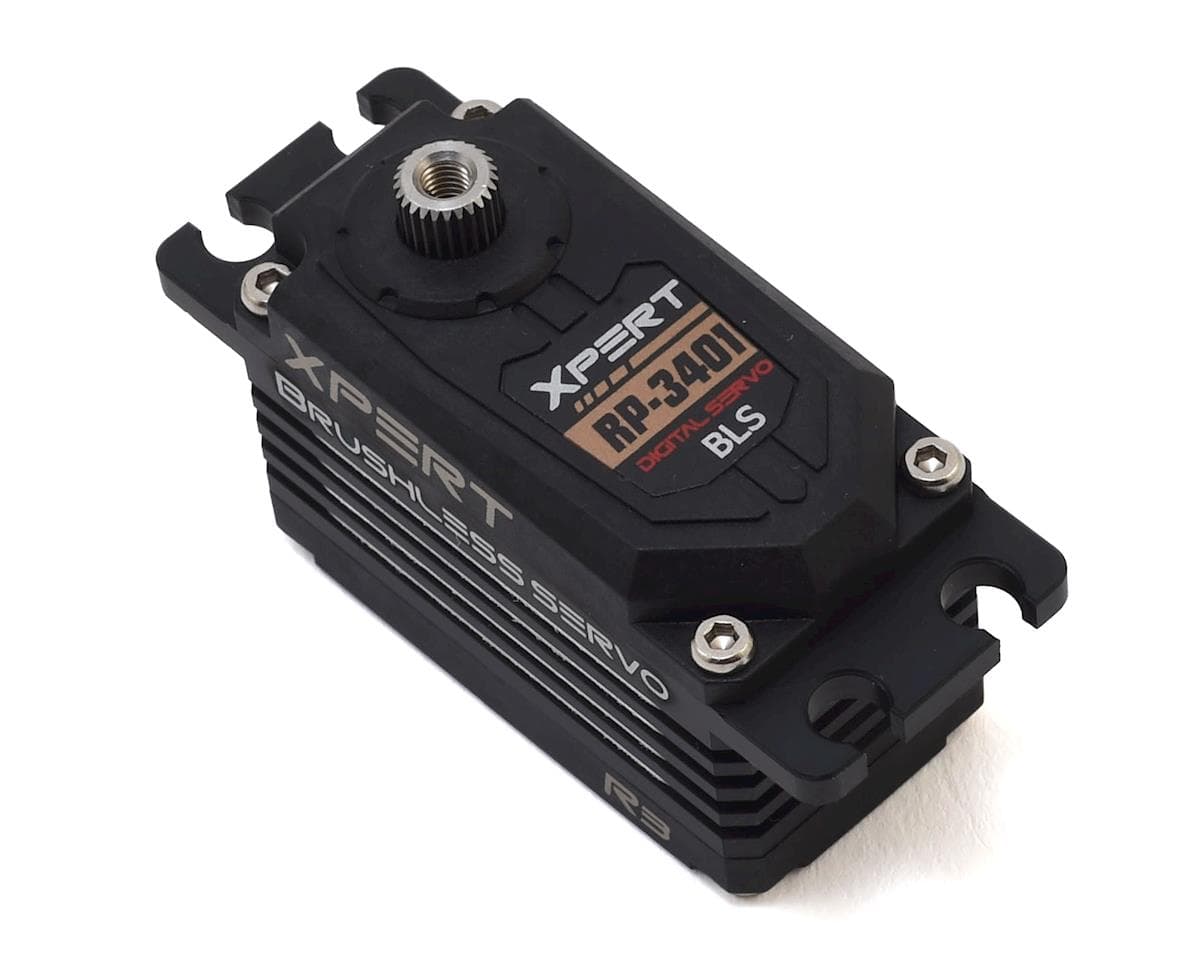

Xpert R3 Quick Release High Speed Low Profile Brushless Servo (High Voltage)

Xpert R3 Quick Release High Speed Low Profile Brushless Servo

Features:

• Brushless motor design provides extremely high speed, top efficiency, and low power consumption with 200+ oz-in torque

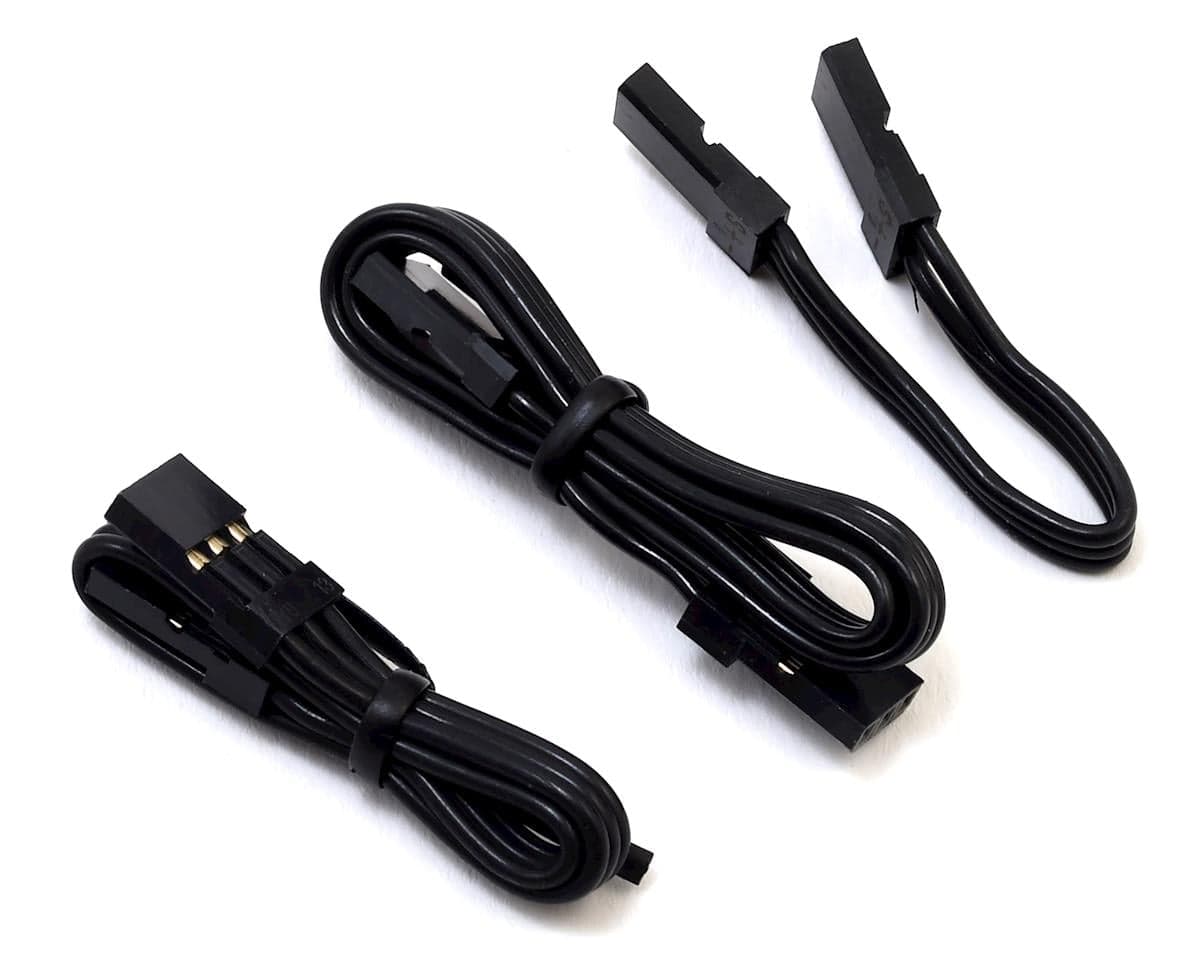

• Quick release connector for easy wiring
• Plastic upper and lower case with center aluminum design
• 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
• Light weight design
• All Aluminum case for the best thermal dissipation and durability.
• Strong Metal Gear
• Glitch-free
• Sophisticated error correction
• High-Speed, High-precision 12-bit AD converter and CPU calculation
• Fail safe
• Over current protection
• Over temperature protection
• Start sonorant
• Sanwa SSR mode compatible

Specifications:

• Dimensions: 40.8 x 20.2 x 26.8mm
• Frequency: 200/333 Hz
• Range: 50~400 Hz
• Center Position: 1520us
• Speed:
• @4.8V: .095sec/60°
• @6.0V: .070sec/60°
• @6.6V: .063 sec/60°
• Torque:
• @4.8V: 147.57oz-in /10.63 kg-cm
• @6.0V: 208.20 oz-in/15.00 kg-cm
• @6.6V: 229.02oz-in/ 16.5 kg-cm
