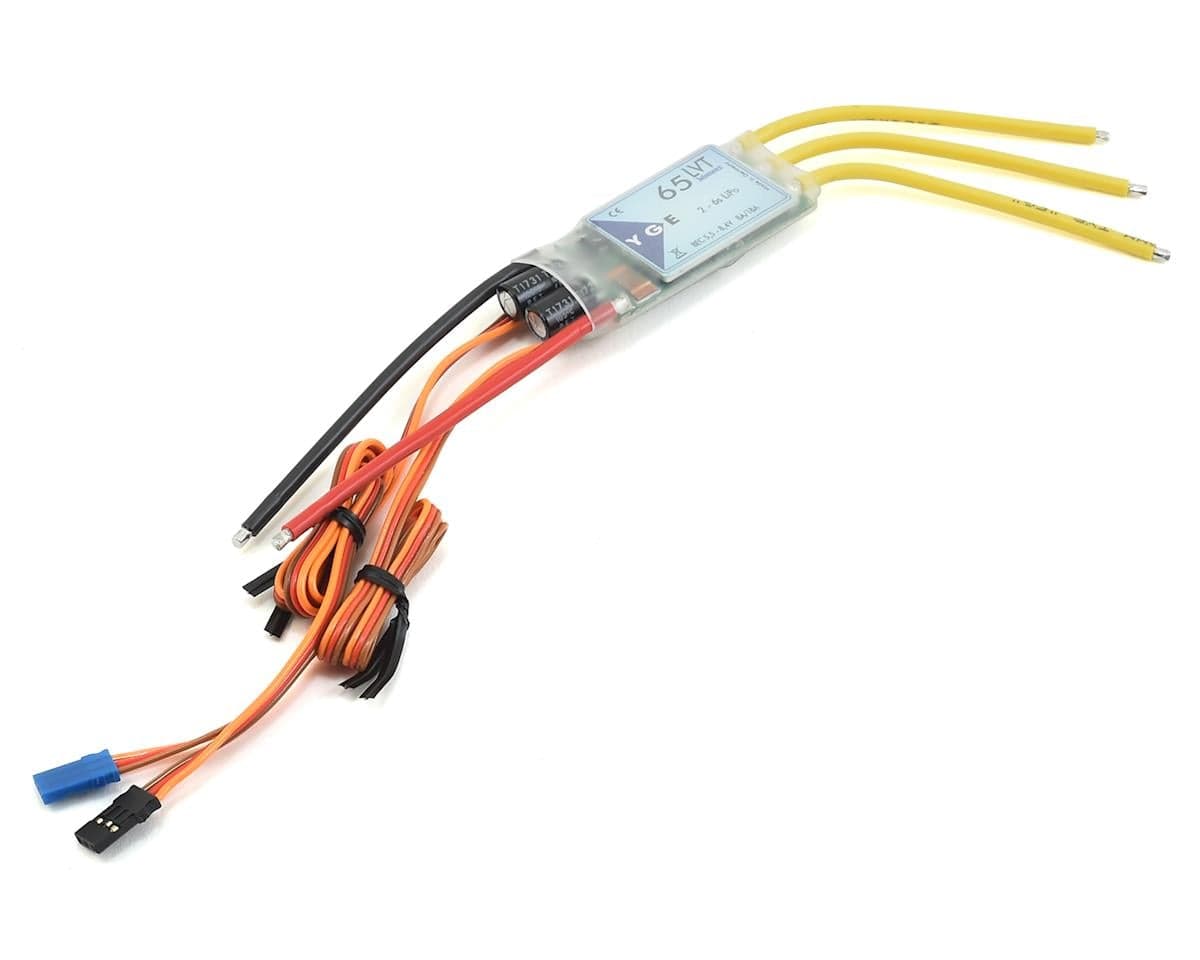

YGE 65A LV Telemetry ESC

YGE ESC's have been known to provide reliable performance in the most demanding electric applications in sailplanes, airplanes, and helicopters. As telemetry support continues to improve within the R/C industry, YGE now has implemented on-board Telemetry items for radios which support it.

Built on a proven design, and offering the latest in demand tech all in one convenient package will be the standard for electronics moving forward. Utilizing onboard Telemetry features, the chances of external items failing is vastly reduced, and additionally reduces clutter on the model for wiring up external modules and sensors.

Features:

• The specified current is the maximum continuous full gas flow with good cooling
• 2-6s LiPo, undervoltage reset or shutdown
• Current limitation
• Undervoltage detection can be switched off
• Speed ??control (governor mode)
• Soft start
• Active freewheel, therefore unlimited part-load
• Automatic timing, or adjustable in 6 levels
• EMK brake adjustable
• F3A / Acro brake (brake intensity steplessly adjustable in flight)
• Min and Max values ??are logged and can be displayed in the optional PC tool after the flight (eg current)
• Speed ??limit: 240,000 rpm (2-pole)
• Overtemperature / overload warning
• Anti-glare: reduces the start-up spark
• Basic programming via mode setup
• Fine adjustment and choice of telemetry protocol via PC setup, suitable USB adapter is optionally available
