Yokomo BL-EP6 Brushless Speed Controller with Programming Card

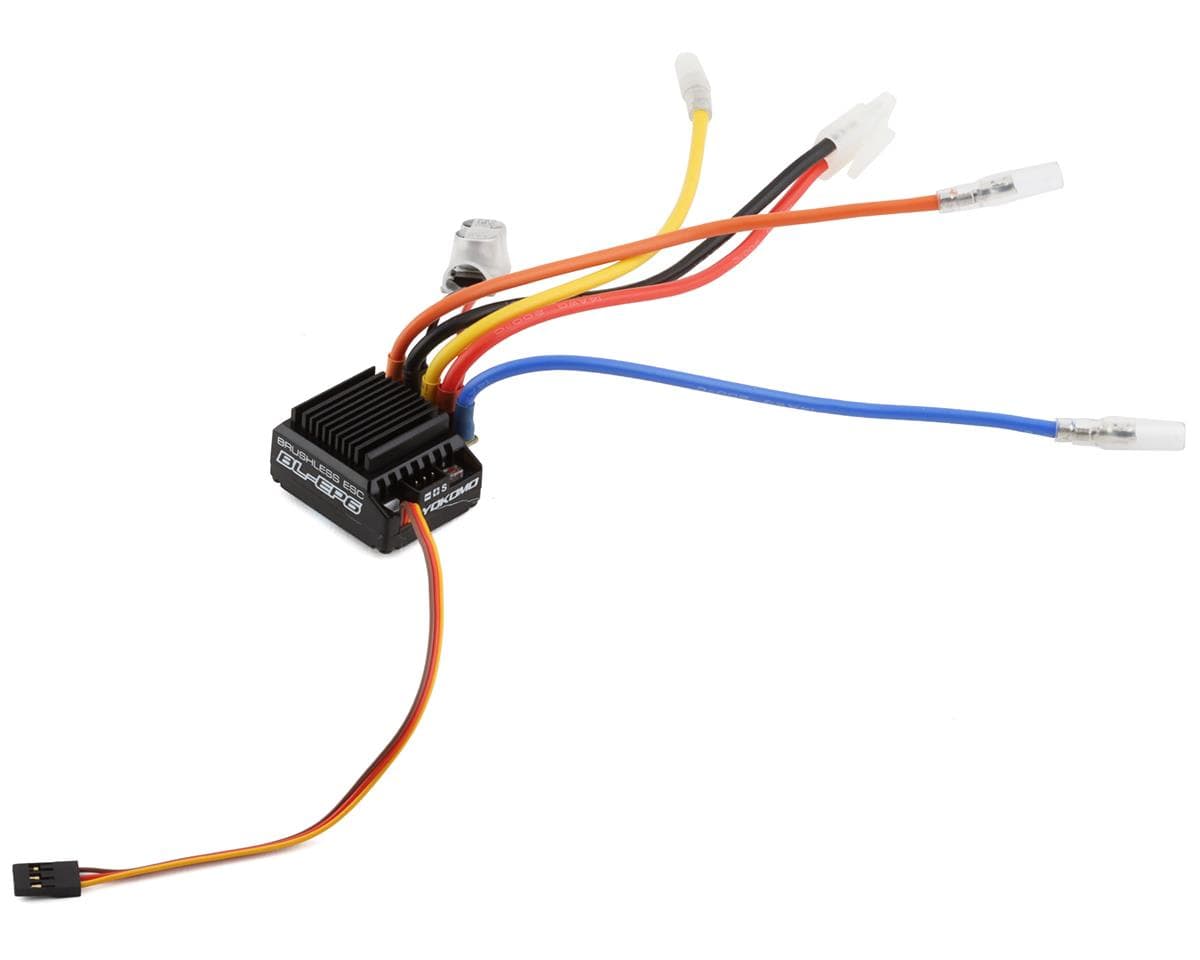

The Yokomo BL-EP6 Racing Brushless Sensored/Sensorless ESC Speed Controller is a great option for beginner and intermediate drivers. This ESC is designed for On-Road, Off-Road and Drift applications. The included programming card allows you to make quick setup changes. Package includes one ESC and one programming card.
Features:
- Great option for beginner and intermediate drivers
- Designed for On-Road, Off-Road and Drift applications
- Works with sensored and sensorless motors

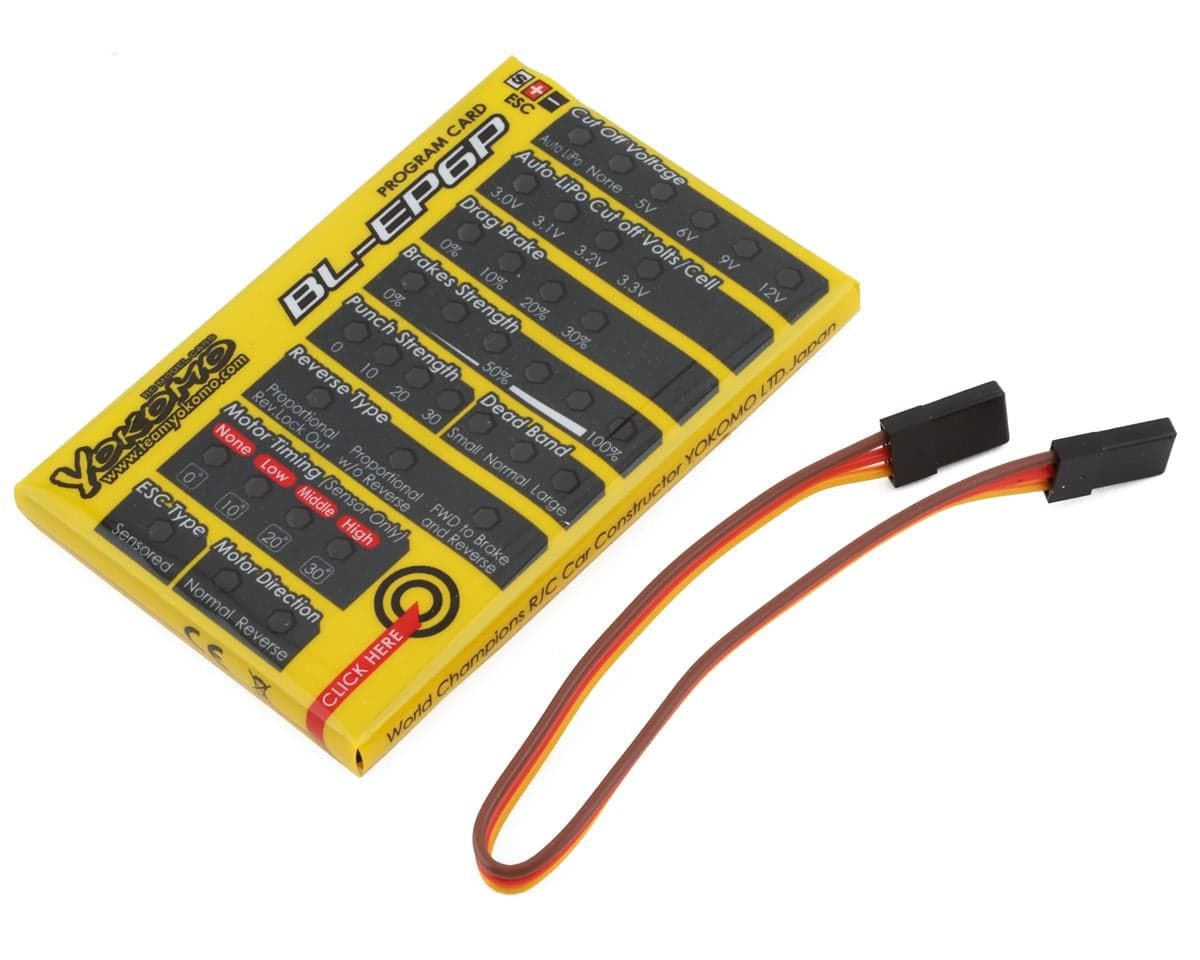

- Includes programming card
Specifications:
- Suggested Application: 1/10 Scale
- Motor Type: Brushless - Sensored/Sensorless
- Input Voltage: 2-3S LiPo (4-9S NiMH)
- Current:
- Continuous: 60A
- Burst: 380A
- Motor Limits:
- 2S LiPo: 8.5T or Slower
- 3S LiPo: 10.5T or Slower
- BEC Output:
- Voltage: 6.0V
- Continuous Current: -
- Peak Current: 3A
- Connectors:
- Motor: Female Motor Bullet
- Battery: Tamiya
- Wire Dimensions:
- Motor: 14AWG (165mm long)
- Battery: 14AWG (165mm long)
- Throttle: Servo Wire (185mm long)
- Dimensions (LxWxH): 1.53x1.49x0.78" (39x38x20mm)
- Weight: 30g
- Programming: Programming Card
