About this part

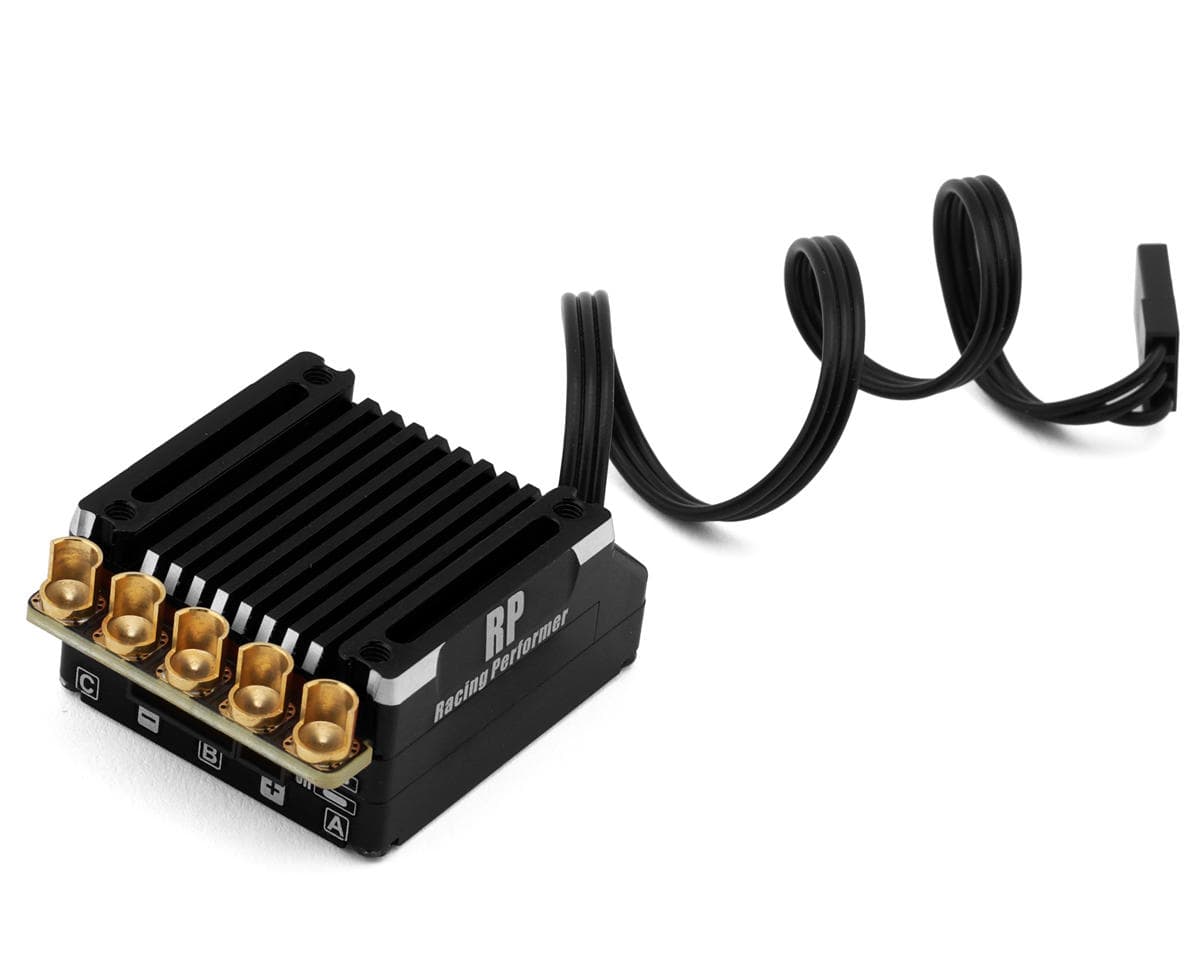

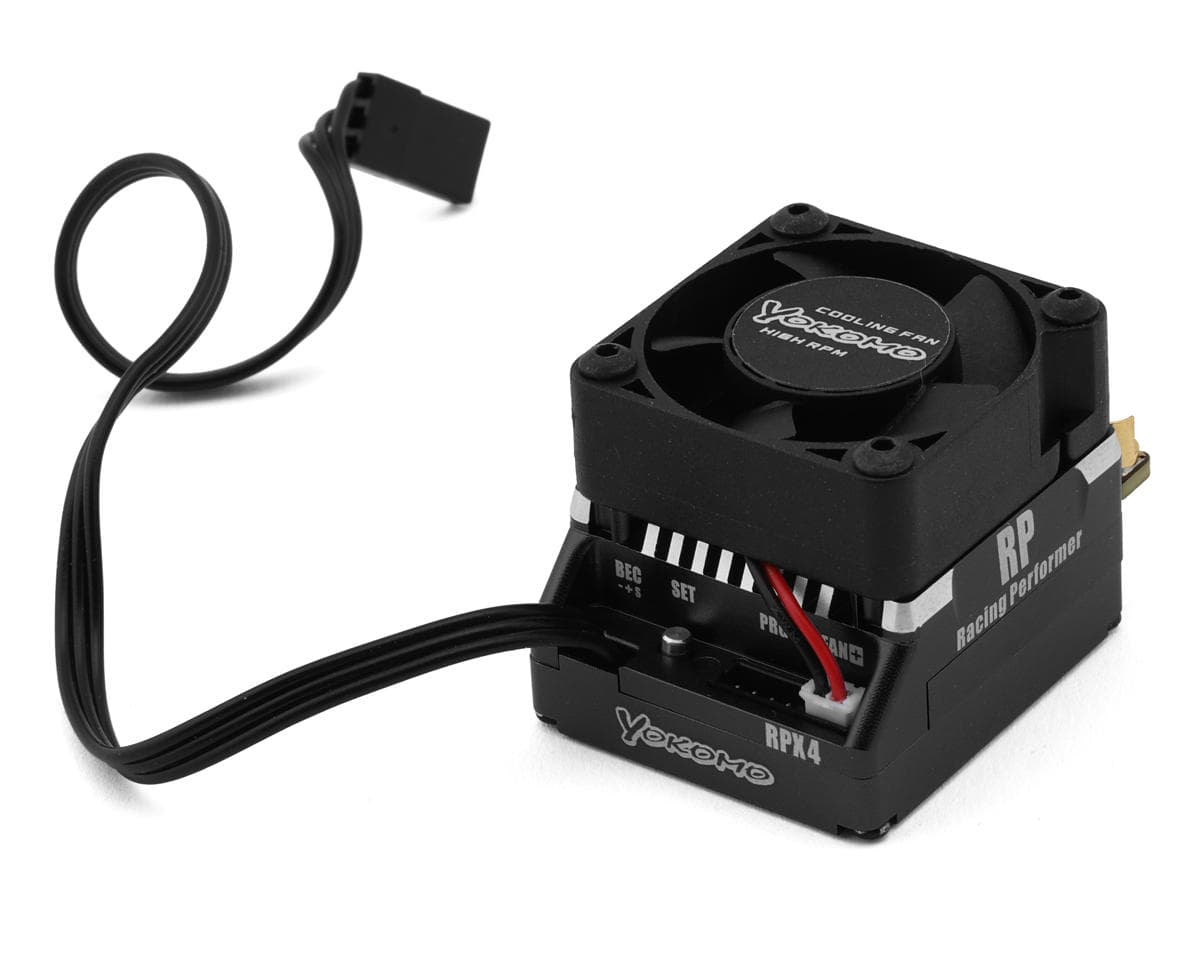

High-Performance R/C Race ESC
Dominate every lap with the Yokomo BL-RPX4 Race ESC — lightning-fast throttle response, efficient power delivery, and tunable boost settings deliver championship-level performance for 1/10 touring cars.
About the BL-RPX4 Race ESC
Precision Throttle Response
The Yokomo BL-RPX4 Race ESC is powered by an advanced 32-bit Super Speed CPU, delivering ultra-fast processing for flawless throttle input and instant motor response. With smooth, controllable power at low RPMs and explosive acceleration at high speeds, racers can maintain maximum efficiency and precision through corners and straights. This ensures consistent lap times and complete confidence under competitive conditions.
Race-Optimized Design
Developed in collaboration with Team Yokomo, the RPX4 comes preloaded with race-tuned programs for on-road and touring car competition. Adjustable Boost and Turbo timing unlock maximum acceleration, while refined power mapping ensures smooth delivery on high-grip surfaces. Available in anodized black, blue, purple, and red, the RPX4 delivers both peak performance and striking style for serious racers.
Advanced Cooling System
Engineered with a full aluminum housing and integrated cooling fan, the RPX4 maintains stable operation under extreme race conditions. High-grade FETs, advanced heat dissipation, and multiple safety protections safeguard against voltage drops, signal loss, and overheating. With adjustable BEC output (5–7.4V) and variable frequency control, racers can fine-tune efficiency and reliability to match any track or motor setup.
Features:
- 32-bit Super Speed CPU for precise racing control
- Smooth, efficient throttle and acceleration response
- Adjustable Boost and Turbo timing for max speed
- Preloaded with race-optimized programs by Team Yokomo
- Full aluminum housing for strength and heat management
- Integrated cooling fan for consistent performance
- Adjustable BEC from 5–7.4V
- Variable frequency control for fine-tuning
- Multiple safety protections built in
- Ready for top-level 1/10 competition

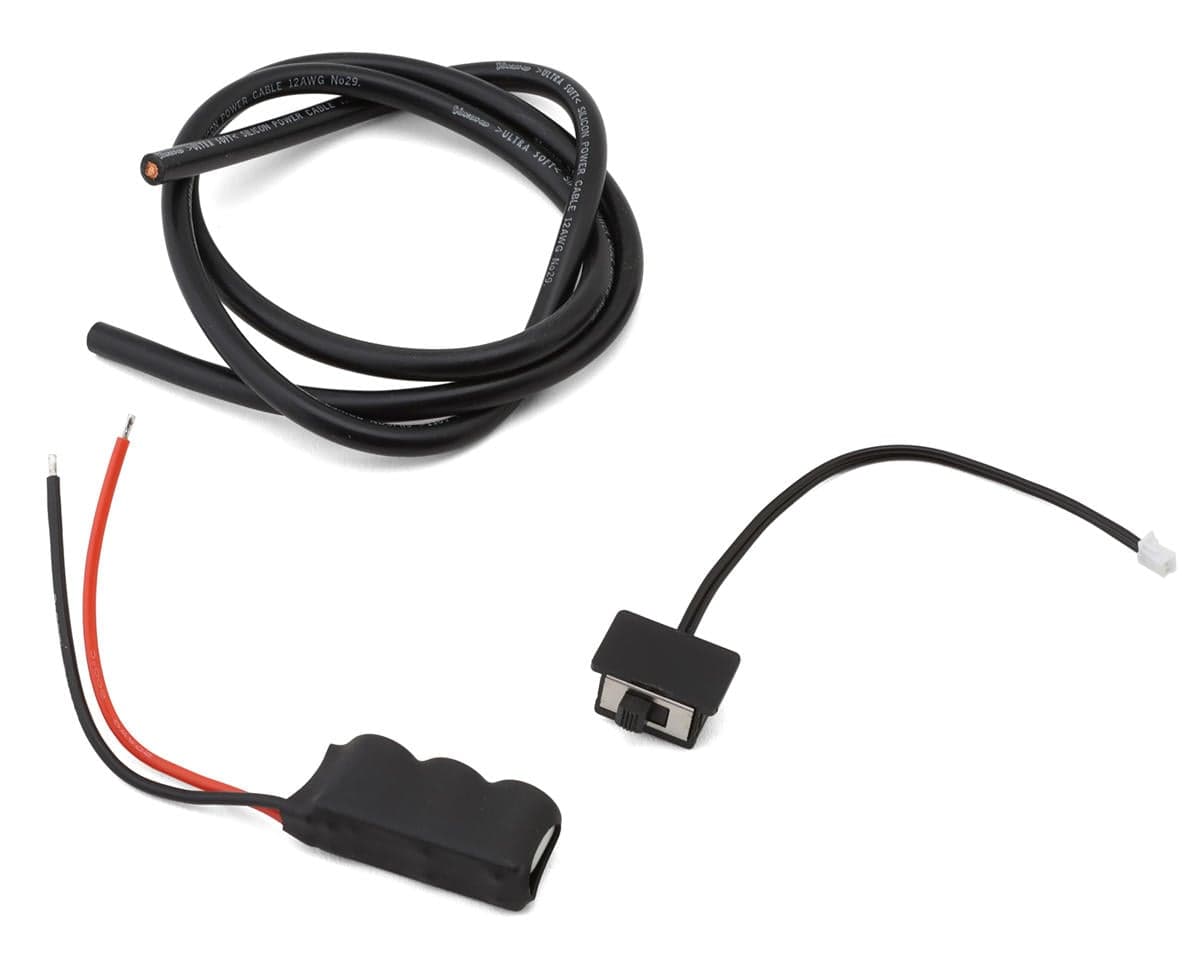

Includes:
- (1) BL-RPX4 Sensored Brushless Race ESC
- (1) 30mm Cooling Fan
- (1) 12AWG Wire
- (1) Power Switch
- (1) Capacitor
- (1) Instruction Manual
Specifications:
| Suggested Application | 1/10 On-Road / Touring Cars |
|---|---|
| Motor Type | Brushless - Sensored |
| Input Voltage | 2S LiPo (7.4V) |
| Continuous Current | 160A |
| Peak Current | - |
| Dimensions (LxWxH) | 1.2x1.37x0.69in (31×35x17.6mm) |
| Weight | 1.39oz (39.6g) |
| Motor Limits | Over 4.5T |
| BEC Voltage | 6V/7.4V |
| BEC Continuous Current | 8A |
| Programmable | Yes |
