About this part
ESC Overview:
Unleash next-level performance with the Yokomo RPX3 V2 ESC, engineered for elite racers and drifters who demand precision, power, and total control on the track.

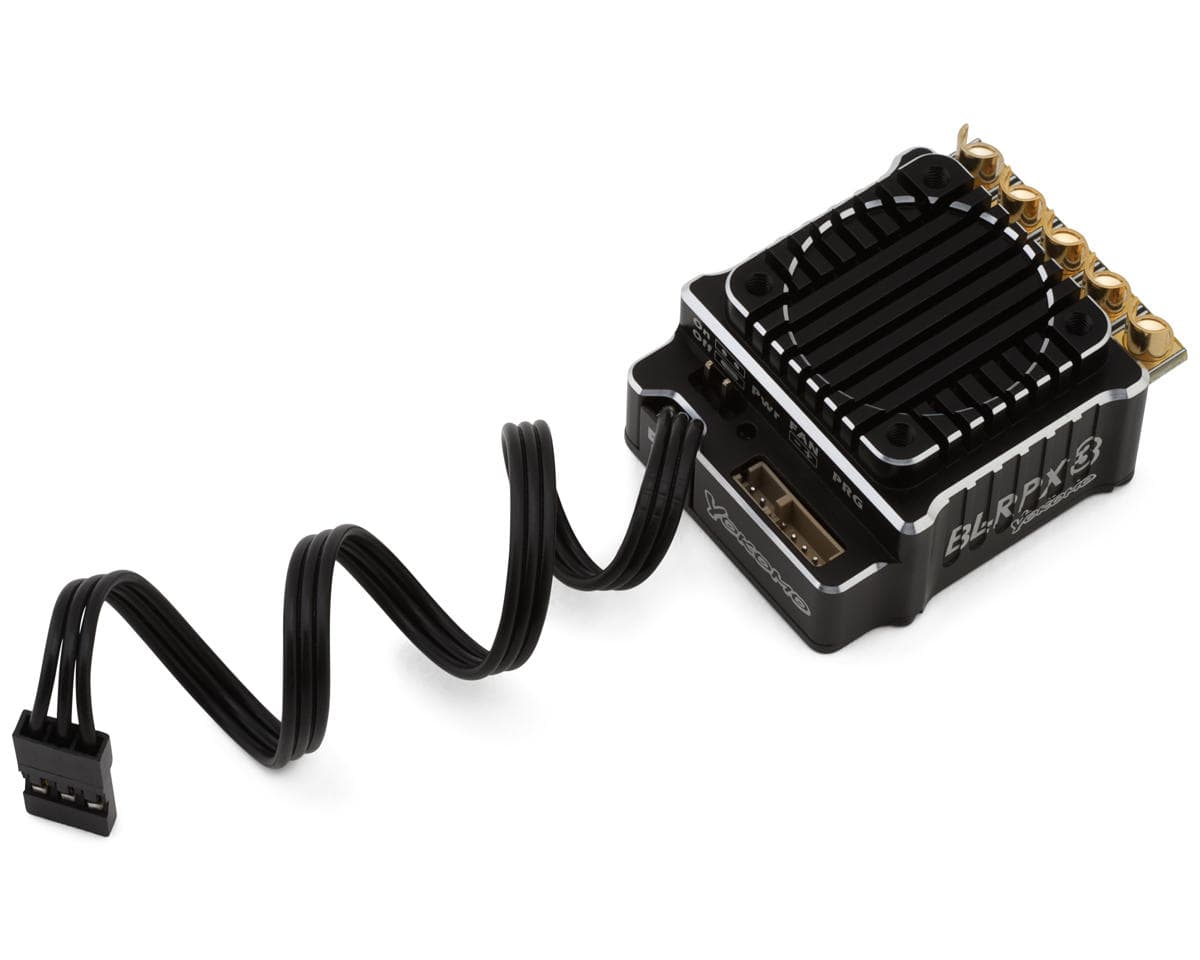

About the RPX3 V2 ESC
Advanced Power & Control
The Yokomo RPX3 V2 Brushless Sensored Competition ESC offers an upgraded design with enhanced throttle and braking performance, making it an excellent choice for top-level drifting and racing competitions. It features adjustable compression settings, allowing for precise tuning of throttle feeling, and an updated negative adjustment option. The addition of party mode enables limited throttle opening ranges for improved control.
With optimized boost and braking functions, this ESC provides powerful and responsive braking at high speeds. The aluminum case with heatsink fins ensures optimal cooling, preventing performance loss due to heat, while the lightweight, compact design adds to its overall efficiency. Equipped with an adjustable BEC and programmable via a programming card, the RPX3 V2 adapts to various racing conditions, making it a versatile and powerful option for competitive drivers.
Features:
- Updated V2 version with better throttle and brake feel
- Compression can be adjusted both positively and negatively
- Party mode limits throttle for more control
- Stronger, more responsive braking at high speeds
- Auto Throttle Function (ATH) simplifies stock class setup
- Boost adjusts based on throttle input for better efficiency
- Aluminum case with heatsink fins keeps it cool
- Lightweight, compact, and easy to program

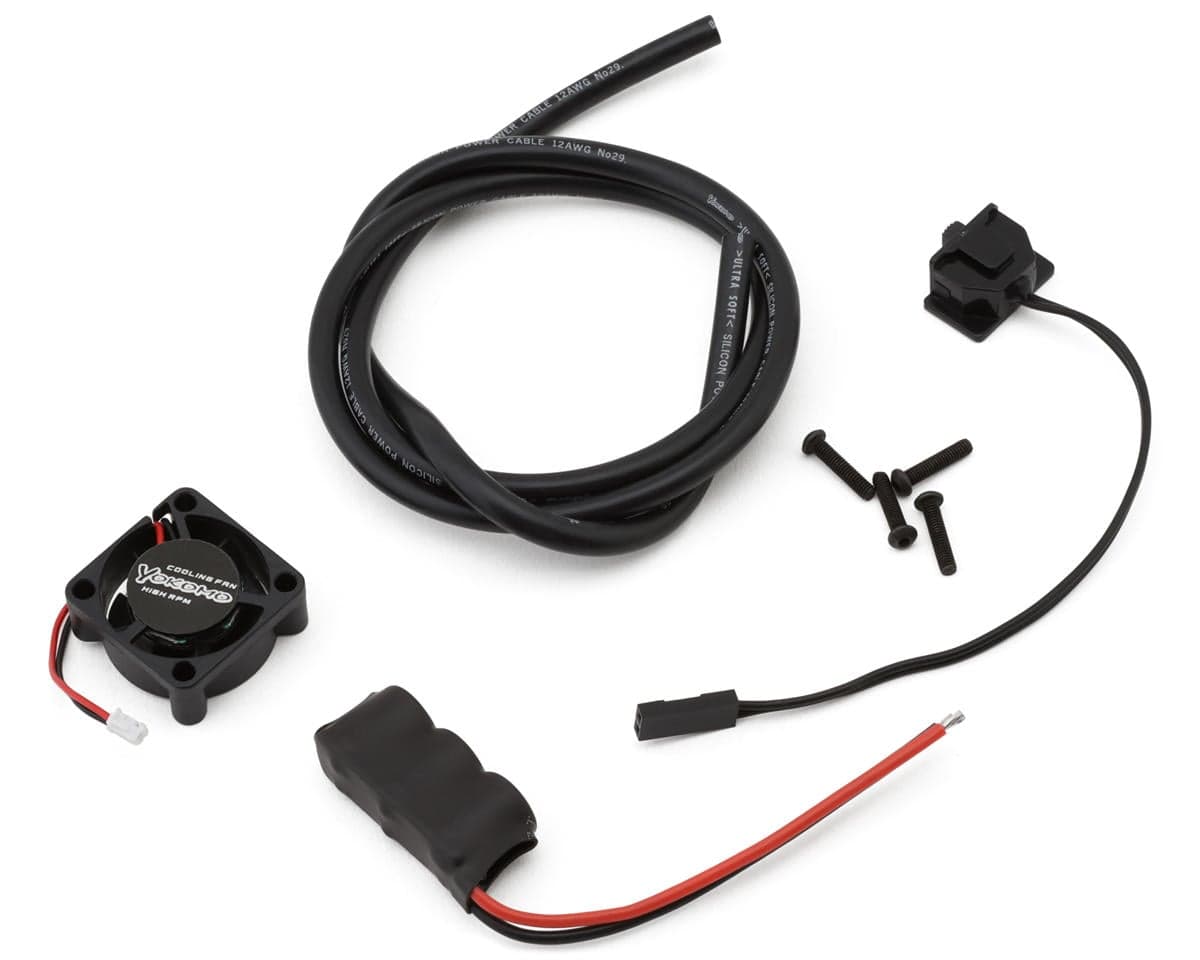

Includes:
- (1) RPX3 V2 160A Sensored Brushless Competition ESC
- (1) Power Switch
- (1) Cooling Fan
- (1) 12AWG Wire
Specifications:
| Suggested Application | 1/10 Drift/Stock & Mod Racing |
|---|---|
| Motor Type | Sensored - Brushless |
| Input Voltage | 2-3S LiPo (6-12.6V) |
| Continuous Current | 160A |
| Burst Current | - |
| Dimensions (LxWxH) | 1.3x1.4x0.77in (33.3x35.9x19.6mm) |
| Weight | 1.39oz (39.5g) |
| Motor Limits | Over 4.5T |
| BEC Voltage | 6.0/7.4V (Adjustable) |
| BEC Continuous Current | 5A |
| BEC Peak Current | - |
| Motor Connector | - |
| Battery Connector | - |
| Motor Wire | 12awg |
| Programmable | Yes |
