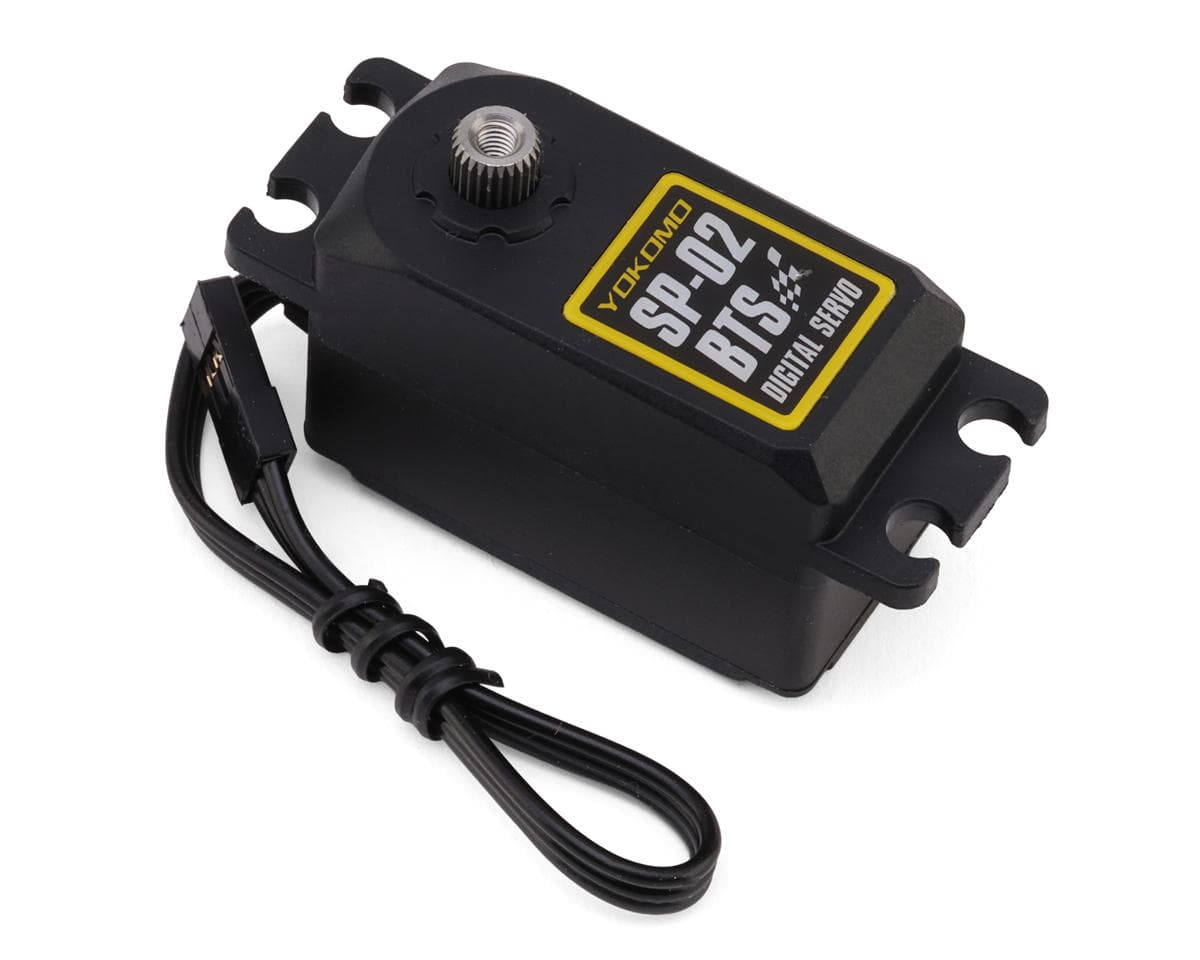

Yokomo SP-02 BTS Digital Low Profile Metal Gear Steering Servo
About this part
Servo Overview:
Take your 1/10 build to the next level with the Yokomo SP-02 BTS Servo — fast, powerful, and precision-tuned for racers who demand smooth control and reliable performance without breaking the budget.
About the SP-02 BTS Low Profile Servo
High Performance Precision Control
The Yokomo SP-02 BTS Digital Low Profile Metal Gear Steering Servo delivers exceptional speed and control with a responsive coreless motor and fully programmable tuning for competitive racing. Built with durable all-metal gears and a lightweight, high-rigidity titanium final gear, it ensures long-lasting performance and high-speed operation. The CNC aluminum middle case enhances heat dissipation for consistent stability under demanding conditions, while producing up to 49.18 oz-in of torque and 0.155 sec/60° speed at 6.0V. Weighing only 48g with a low-profile design and 4.8–6.0V compatibility, it’s a budget-friendly, high-performance upgrade ideal for both 1/10 off-road and touring car applications.
Features:
- Coreless motor delivers smooth and responsive control
- All-metal gears with titanium final gear for durability
- CNC aluminum case improves heat dissipation
- Fully programmable for custom performance tuning
- Low profile and lightweight at only 48g
- High speed and torque for competitive racing
Includes:
- (1) SP-02 BTS Digital Low Profile Metal Gear Steering Servo
Specifications:
| Application | 1/10 Racing |
|---|---|
| Input Voltage | 4.8-6.0V |
| Operating Speed @ 6.0V | .155 sec/60° |
| Dynamic Torque @ 6.0V | 49.18oz-in (6.8Kg-cm) |
| Gear Material | Metal |
| Motor Type | Coreless |
| Output Shaft Spline | 25T |
| Dimensions | 1.6x1.06in (40.8x27.1mm) |
| Weight | 1.69oz (48g) |
