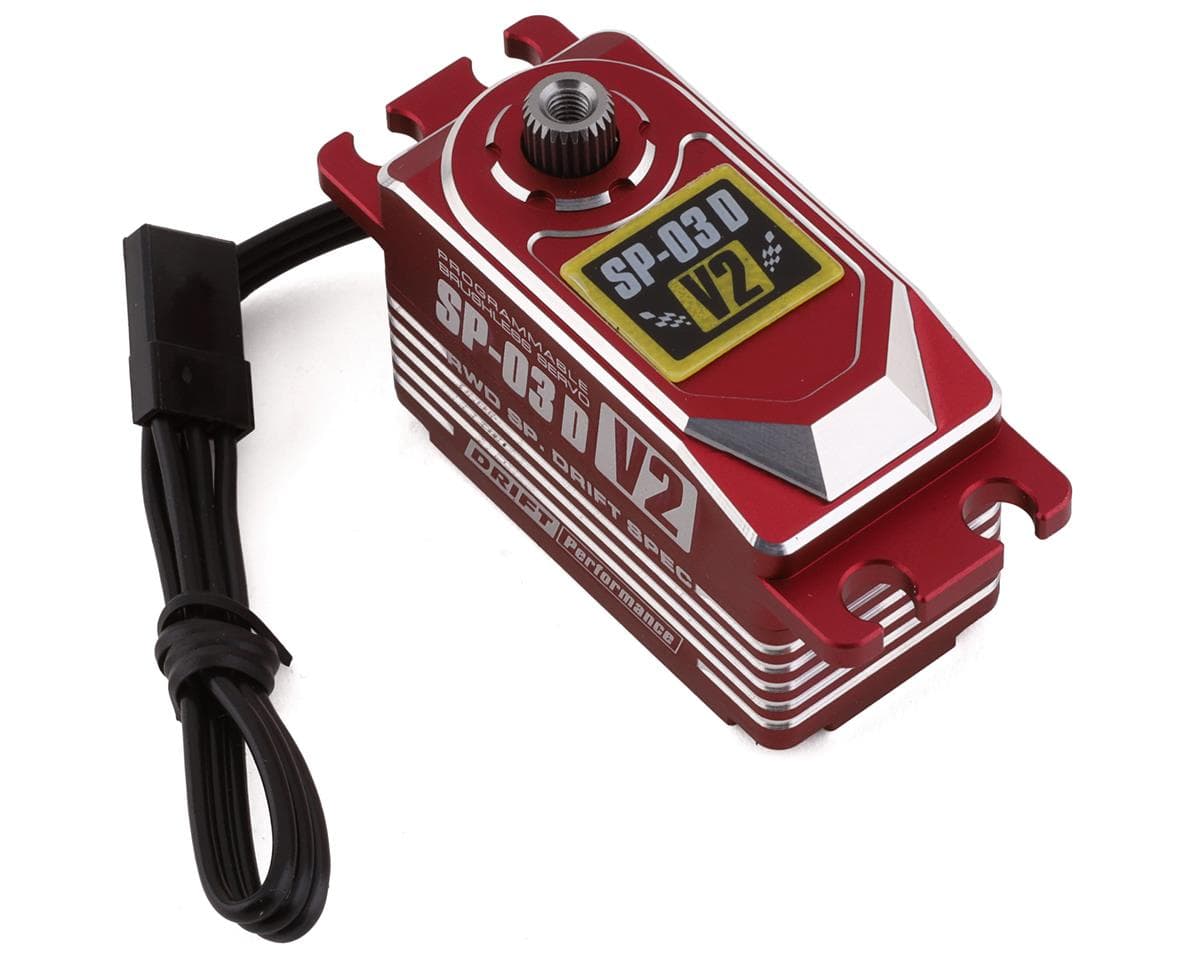

Yokomo SP-03 D V2 Programable Brushless Drift Servo (Red) (High Voltage)
About this part
Servo Overview:
This is the Yokomo SP-03 D V2 Programmable Brushless Drift Servo. The SP-03D V2 is equipped with an updated program that offers faster speed, higher torque, and incredible holding power. In order to maximize performance of the brushless motor, this servo is capable of supporting up to 7.4V DC. While greatly improving the basic performance, the steering holding power is increased to enhance stability during cornering, with an incredible linear feeling while driving.
As a drift-only servo, the hunting suppression function that prevents malfunction is just as important as the specifications. This suppression function is also equipped with the latest program, which makes it possible to run the steering gyro with a higher gain than normal. If you use a dedicated programmer, you can change the performance of the servo and the hunting suppression level, so you can fine-tune the steering characteristics to your liking.
Features:
- CNC aluminum case for efficient cooling and protection
- Advanced high-performance semiconductor chipset
- Four selectable driving modes for versatile performance
- High voltage capable and fully programmable
- Optimized for competition drifting
- Endpoint adjustment button for optimized servo performance
- Enhanced stability and reduced steering shake
- Anodized in multiple colors to match your car's bling
Specifications:
- Application: 1/10 Drift Cars
- Voltage: 4.8V-7.4V
- Torque:
- @4.8V: 180 oz-in (13kg.cm)
- @6.0V: 222 oz-in (16kg.cm)
- @7.4V: 249 oz-in (18kg.cm)
- Spline: 25T
- Dimensions: 1.6x0.79x1.02in (40.8x20.2x26.1mm)
- Weight: 1.72oz (49g)
Includes:
- (1) Yokomo SP-03 D V2 Programable Drift Servo
- (1) Instruction Manual
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.8 · 6 reviews
Hands down best Drift Servo! Upgraded on my MST RMX 2.5 RTR and added the Yokomo Servo and Gyro and it’s like chalk and cheese to the factory RTR ones. Best upgrade for your Drift Car! I’m running 70% Gain on Green on the V4 Gyro and it drifts perfectly now! Worthwhile watching some YouTube videos on how to program these too.
Don't let the price fool you, this servo it Grade-A stuff. Glassy smooth and plenty of any and all things drift. Pair it with the Yokomo Gyro? Butter. It worked so well out of the box, I didn't even bother changing any of the program. Run it on my Yokomo SD3.0 and it's crisp, responsive and can handle dang near anything you throw at it.
This is my 1st drifting servo and I'm very impressed. I matched it with the V4 gyro. Got alot to still learn and figure out but man the quality and look is awesome!
Very nice servoo, i liked soo mutch, and its very good for rc drift.
I recently had a servo go bad and the customer service team were excellent in determining on how to satisfy their customer, after dealing with the retailer at a different store location. AMains did not hesitate in resolving the issue in hand. I was able to get a replacement.
Reviewers consistently rate this high-voltage brushless drift servo highly, with most giving five stars. Owners describe smooth, responsive steering and report good results when paired with Yokomo gyros, several noting it worked well out of the box without reprogramming. One reviewer found it less snappy than a Futaba servo but still smoother. Several reviewers mention the programming options as something to learn, with some planning to buy a programmer. One reviewer reported a defective unit and was satisfied with the replacement process. Reviews are few and mostly brief, and the reviews refer to this red variant.
- + Smooth, responsive steering
- + Works well with Yokomo gyros
- + Good out of the box
- + Good customer service and replacement
- − Less snappy than some competing servos
- − Programming takes learning
- − Programmer needed for full features
