About this part
Servo Overview:

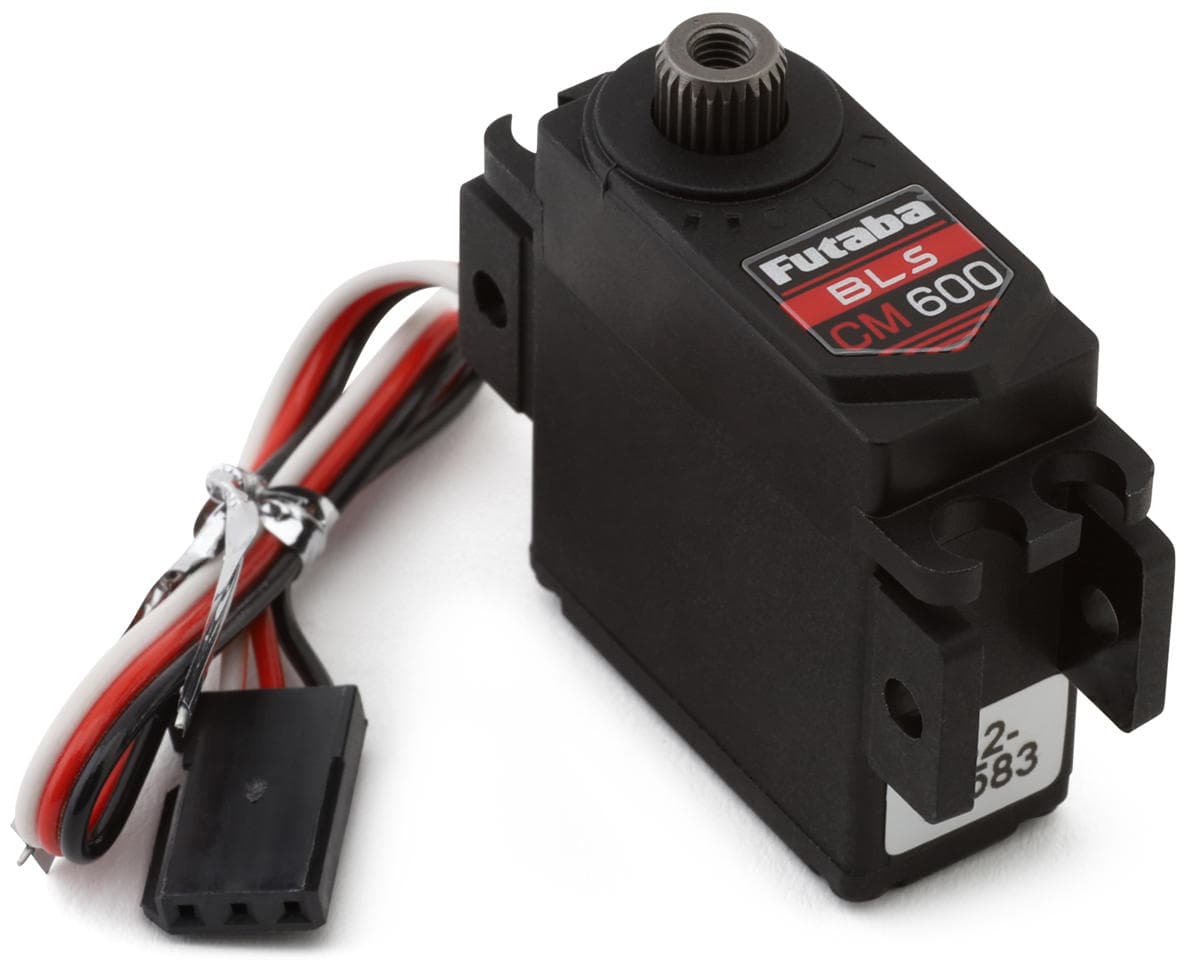

This is the BLS-CM600 mini 1/12 Scale Brushless Servo from Futaba. Designed for 1/12 scale on-road racing such as 1/12 pan cars, this brushless and high voltage capable mini servo can deliver 93oz-in of torque and 0.09sec/60° transit speed at 7.4V! Providing all the torque and speed needed in a compact and extremely lightweight profile!
Features:
- Delivers 93oz-in of torque and 0.09sec/60° transit speed at 7.4V
- High voltage capable
- Extremely compact and lightweight at only 28g
- Perfect for 1/12 surface racing
- Digital, programmable and S.Bus capable
Specifications:
- Application: 1/12 Scale On-Road
- Operating Voltage: 6.0V-7.4V
- Speed:
- @6.0V: 0.11sec/60°
- @7.4V: 0.09sec/60°
- Torque:
- @6.0V: 74.9oz-in (4.68kg-cm)
- @7.4V: 93oz-in (5.47kg-cm)
- Motor: Brushless
- Operating Temp.: -
- Dimensions(LxWxH): 1.07x0.51x1.20in (27.2x13x30.5mm)
- Weight: 0.98oz (28g)
- Operating Spline: 25T Futaba
Includes:
- (1) BLS-CM600 S.Bus2 Mini 1/12 High Voltage Brushless Servo

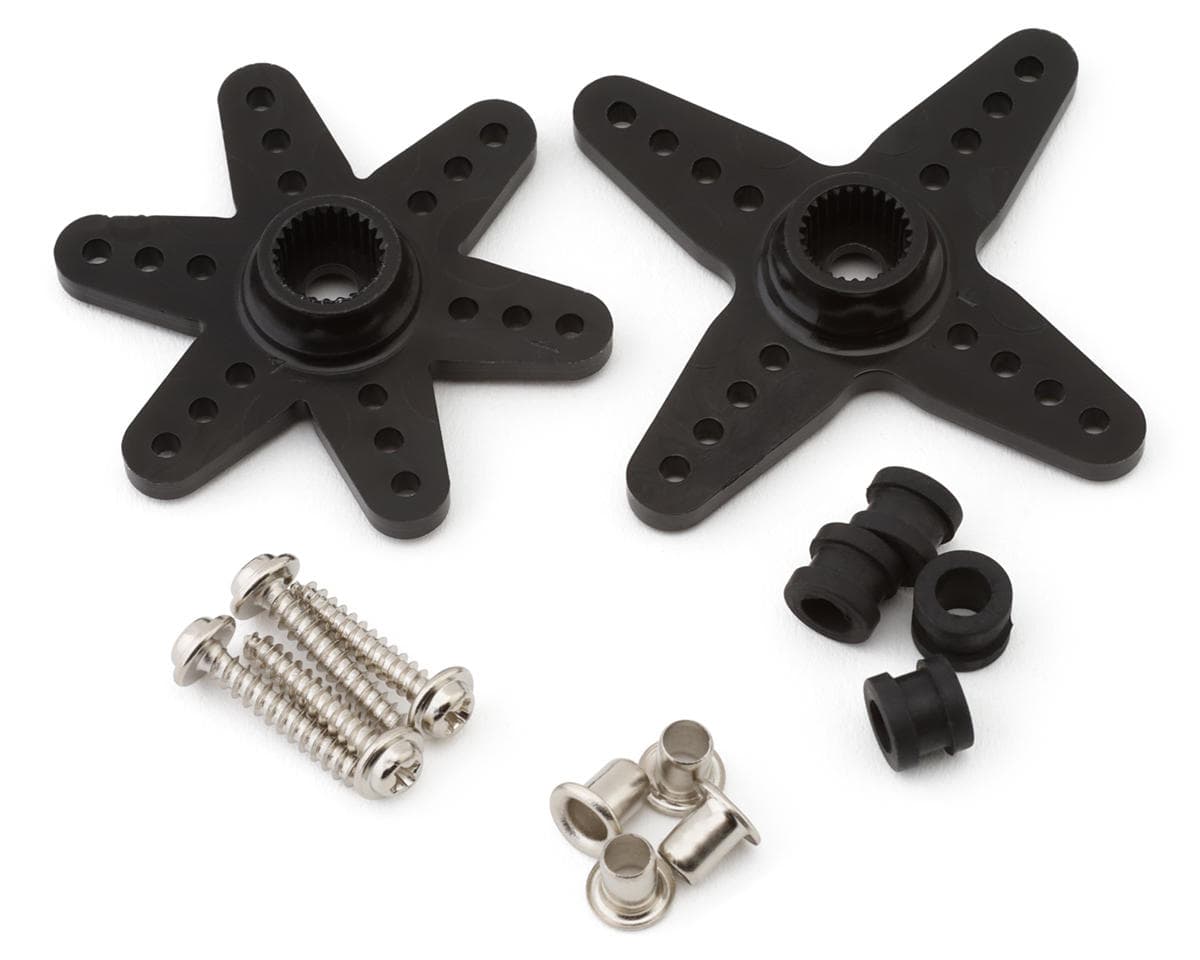

- Servo Horns and Mounting Hardware
